Article reflector
Product name Highbay 42 S/L
Weight 0.5kg

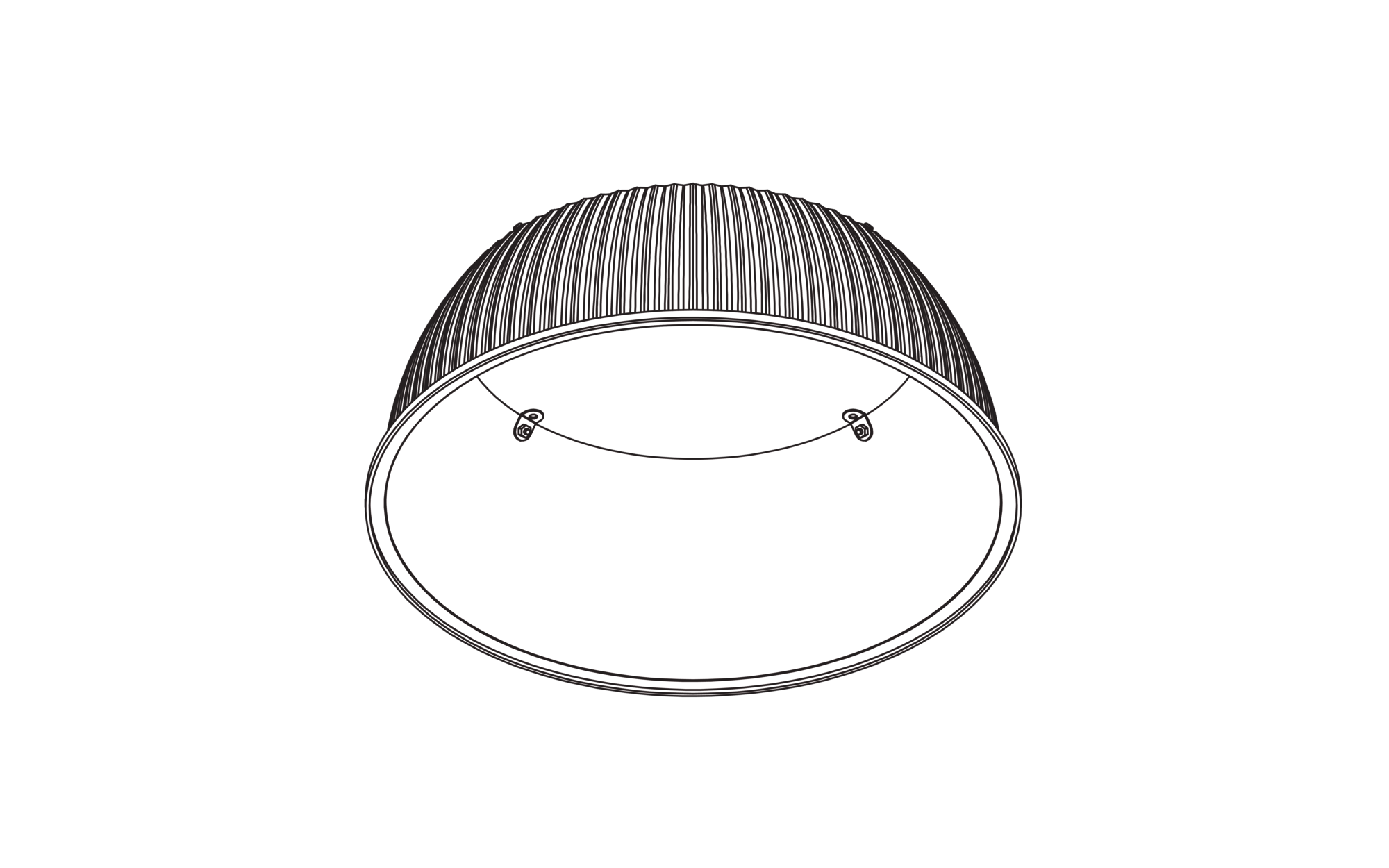

Highbay 42 S/L, reflector, primary light control with reflector, of PC, transparent prismatic structure, light emission: direct with ceiling illumination distribution, primary light characteristic: rotationally symmetric, installation type: surface-mounted, diameter: 410mm, height: 141mm, packaging unit: 1 piece

Product details


Key data

Product type reflector
Product name Highbay 42 S/L
Order No. 59HP91001


Light control


Beam angle


Symmetry

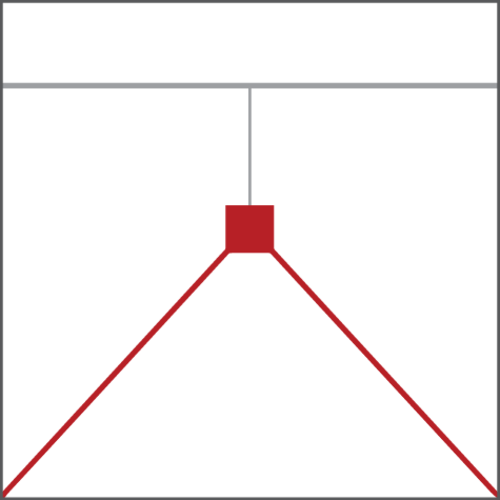

Light emission


Mounting

Mounting method, mounting location surface-mounted, to the luminaire
Arrangement single arrangement
Supplement incl. adapter ring

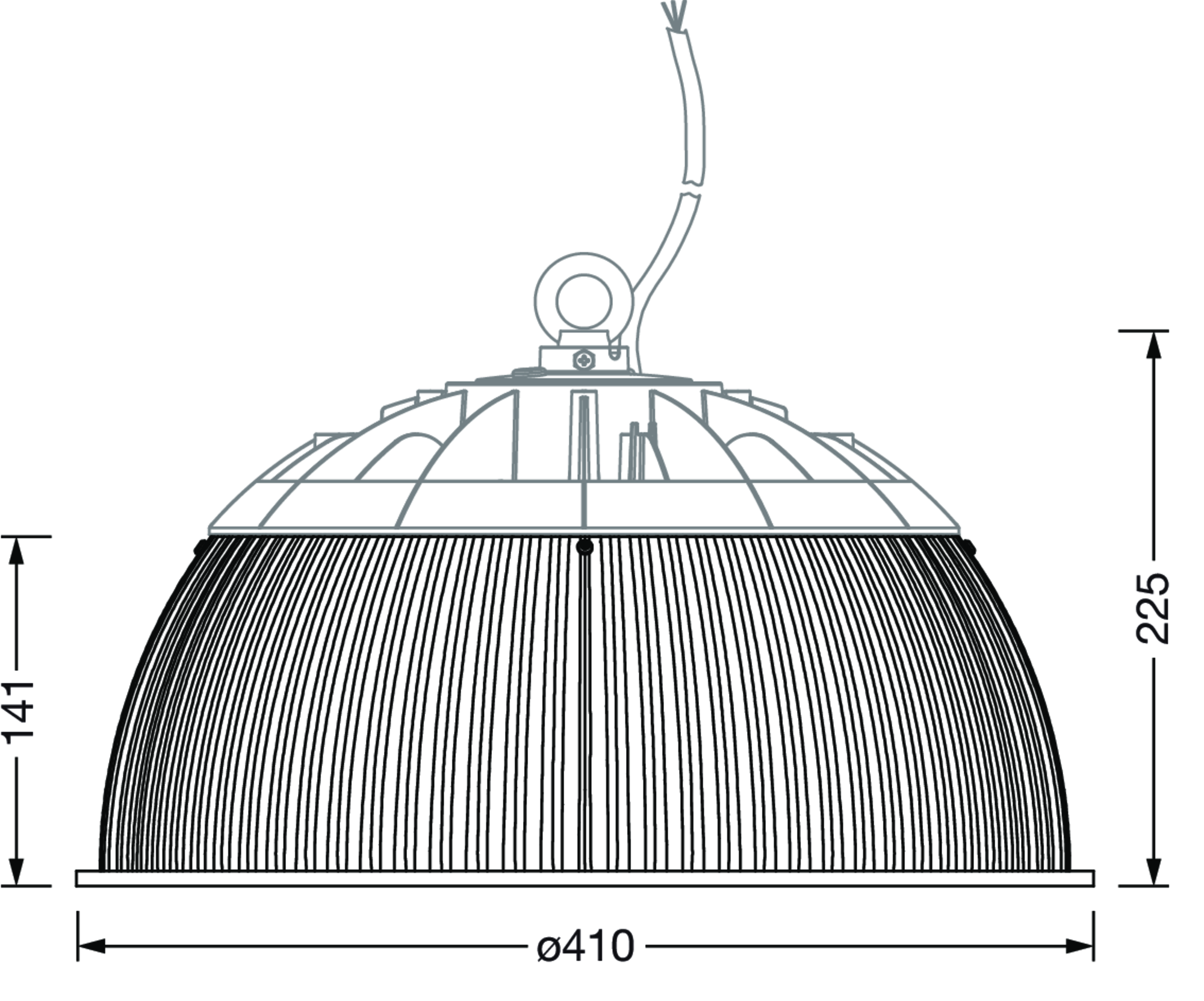

Dimensions, Weight

Diameter 410mm
Height 141mm
Weight 0.5kg

Product type
reflector

Product name
Highbay 42 S/L

Order No.
59HP91001

Mounting method, mounting location
surface-mounted, to the luminaire

Arrangement
single arrangement

Supplement
incl. adapter ring

Diameter
410mm

Height
141mm

Weight
0.5kg

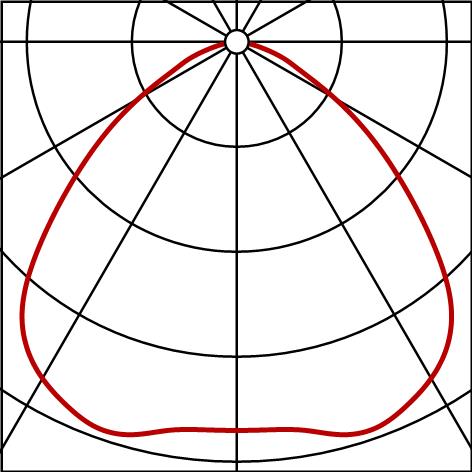

Photometric report / planning data

Photometric report / planning data

HB42S
rot.sym,wd,90°,12800lm840,0/1
Ordercode: 51HP327A4FMA

reflector
ø= 410mm, PC, transparent prismatic structure, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91001

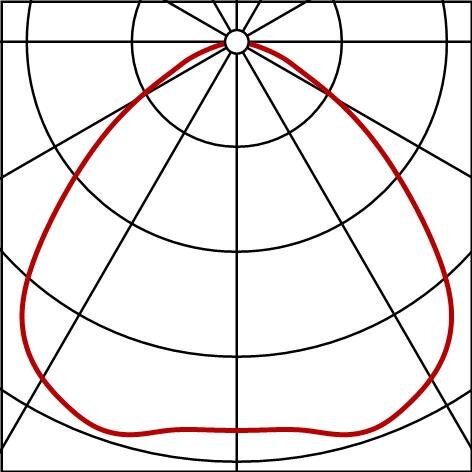

Photometric report / planning data

Photometric report / planning data

HB42S
rot.sym,wd,90°,19200lm840,0/1
Ordercode: 51HP327A4HMA

reflector
ø= 410mm, PC, transparent prismatic structure, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91001

Photometric report / planning data

Photometric report / planning data

HB42L
rot.sym,wd,90°,28000lm840,ML
Ordercode: 51HP32MB4MMA

reflector
ø= 410mm, PC, transparent prismatic structure, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91001

Photometric report / planning data

Photometric report / planning data

HB42L
rot.sym,wd,90°,28000lm857,ML
Ordercode: 51HP32MB7MMA

reflector
ø= 410mm, PC, transparent prismatic structure, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91001
