Highbay 42-L, wide distribution, 90°, 857, ON/OFF Multilumen, AC
Close

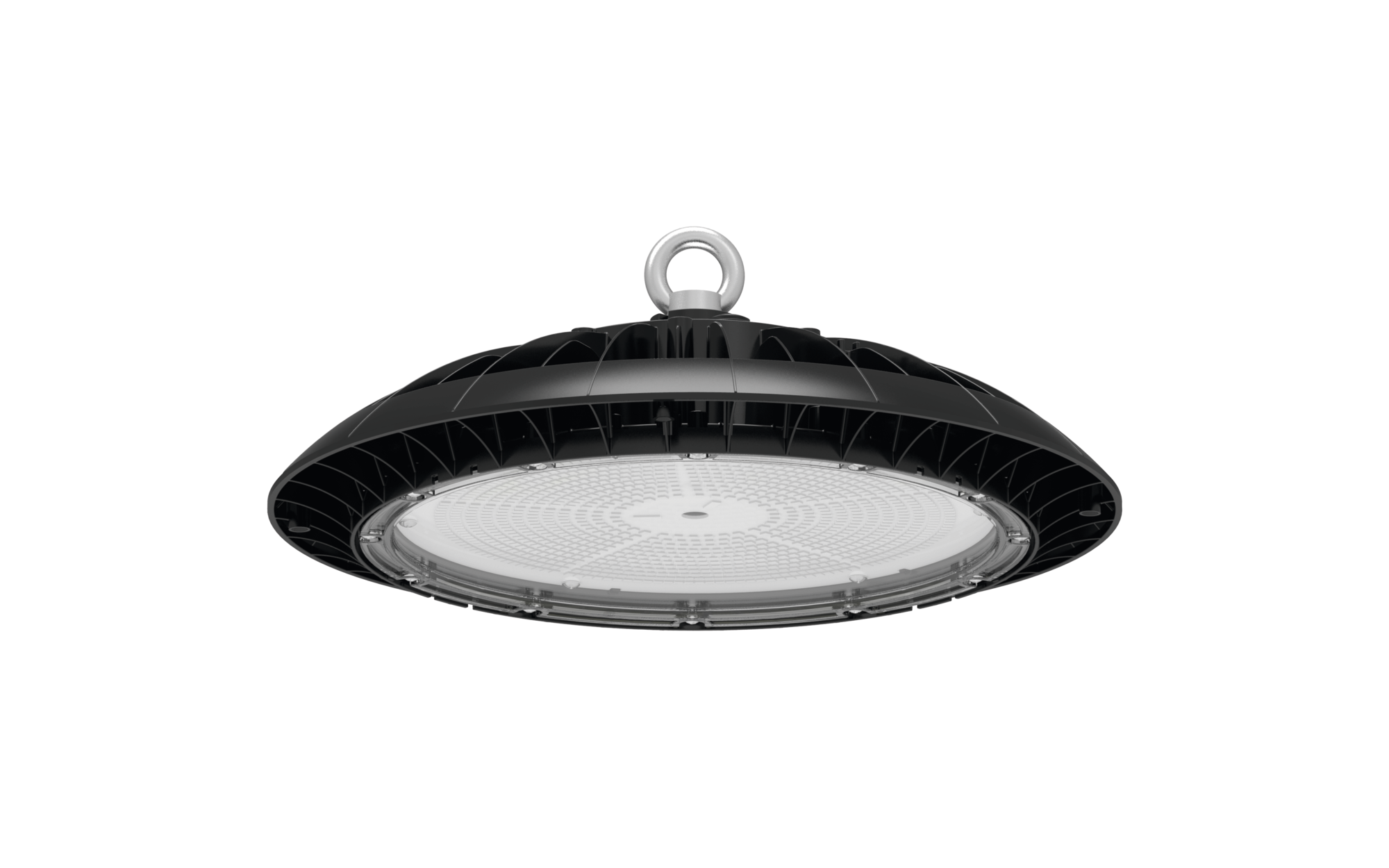

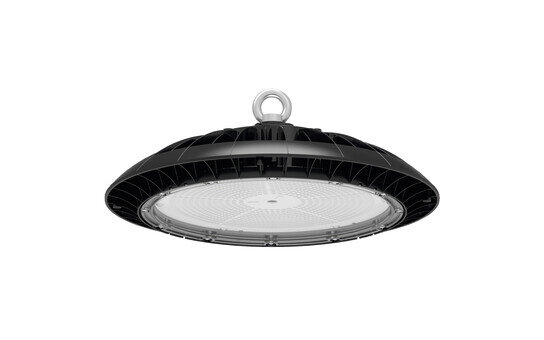

Article LED high bay luminaire
Product name Highbay 42-L
Lamp LED
Rated luminous flux 28000lm
Luminous efficacy 160lm/W
Colour temperature 5700K
Colour rendering CRI > 80
Rated input power 175W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK08
Weight 2.4kg

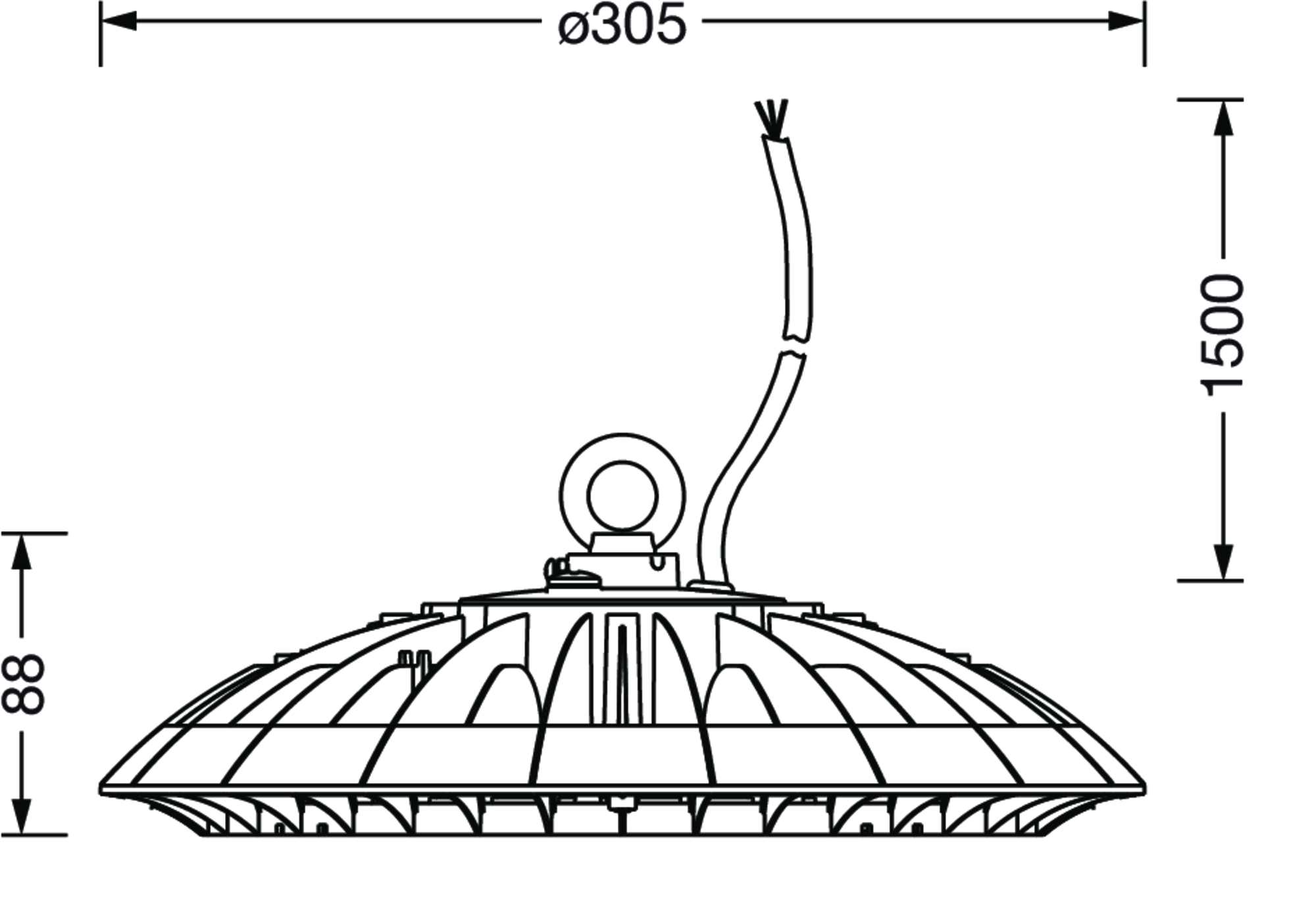

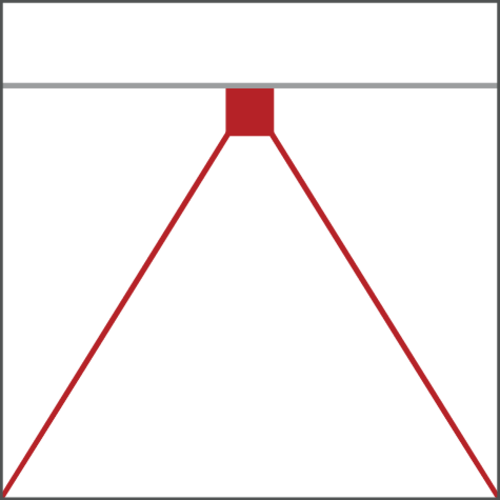

Highbay 42-L, LED high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 28.000lm, luminous efficacy: 160lm/W, light colour: 857, colour temperature: 5700K, control gear: ECG, with cable, 3x 1.0mm², free wire ends, mains connection: 230V, AC, 50Hz, cable length: 1,5m, rated input power: 175W, housing, rotationally symmetric, of diecast aluminium, black, with hook on luminaire side, diameter: 305mm, height: 117mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
- Tender text (TXT)
- Revit (RFA)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (DXF)
- 3D-Model (DXF)
- 3D-Model (DXF)
Product details

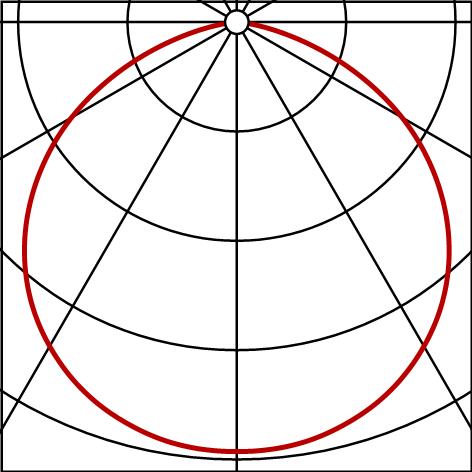

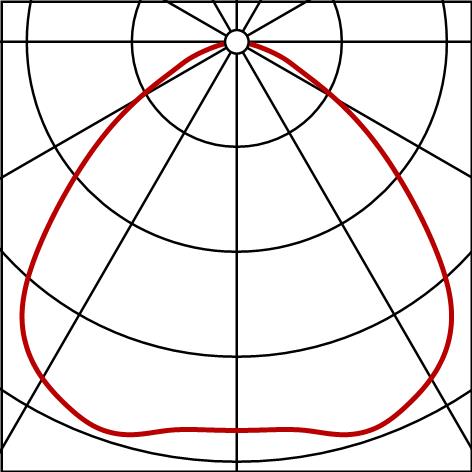

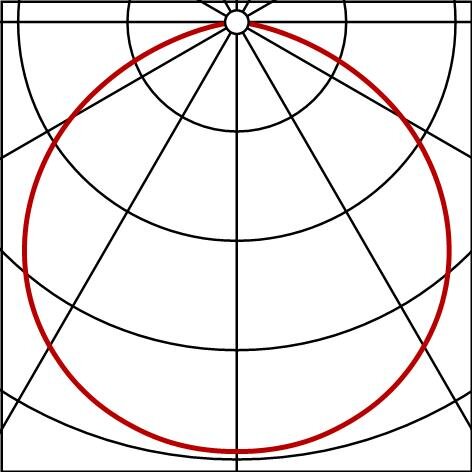

Photometric report / planning data
HB42L
rot.symwd,90°,28000lm857,ML
Ordercode: 51HP32MB7MMA
