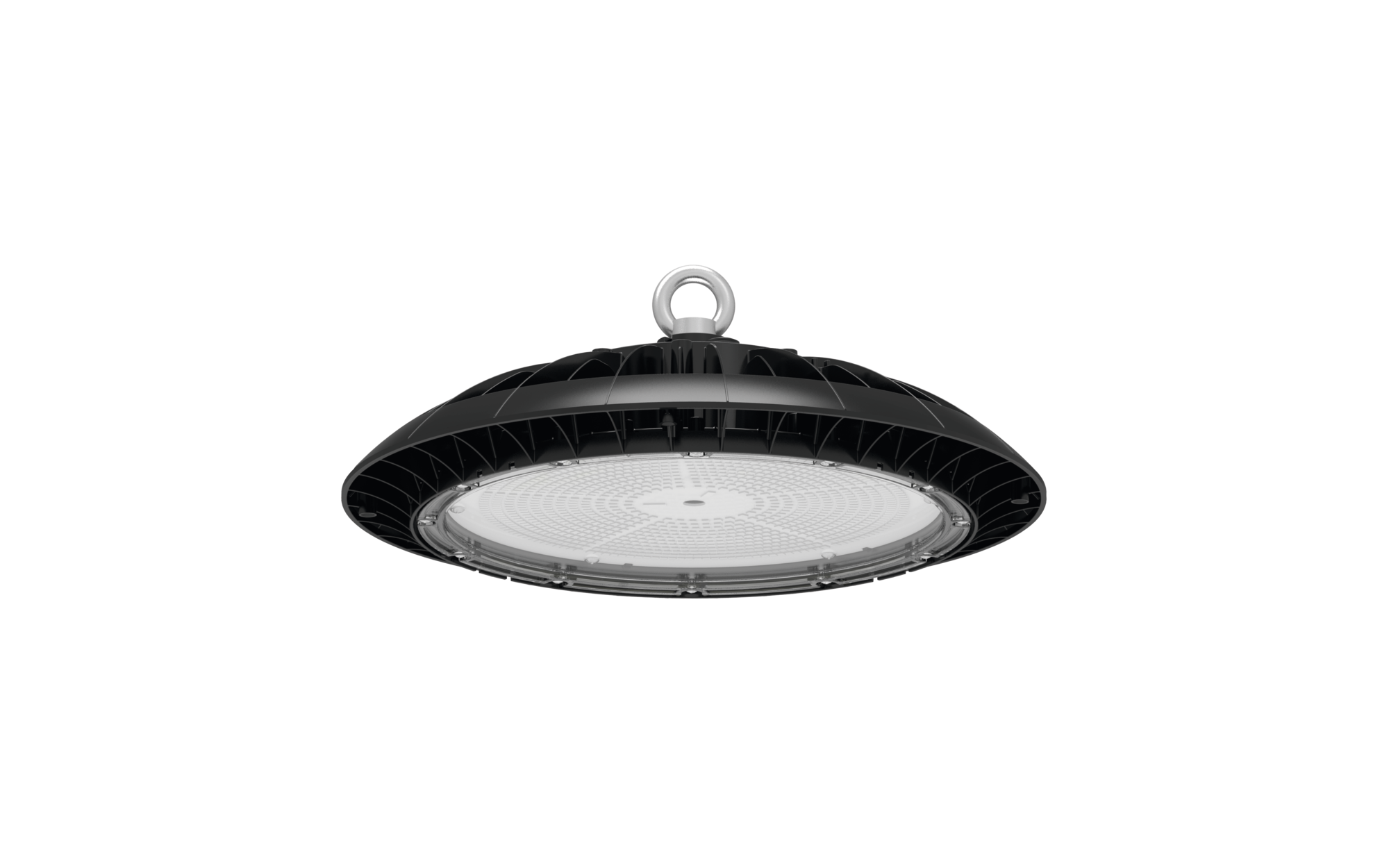

Highbay 42

ProducttypesConfiguration & Datasheets

Highbay 42 – the simple refurbishment solution for cost-effective lighting replacement. The high-quality, robust housing impresses in harsh environments. Variants with multilumen technology enable simple adjustments to the luminous flux. The luminaire impresses with its uncomplicated handling thanks to one-point mounting.

Our simple solution: Highbay 42 is our high bay luminaire with the simplest requirements in terms of efficiency and quality

Producttypes

Highbay 42

Highbay 42

Intro to Productfamily

Data

Article LED high bay luminaire
Lighting effect direct rotationally symmetric wide distribution, 90°
Net luminous flux 12800lm to 28000lm
Colour temperature 4000K; 5700K
Control ON/OFF; ON/OFF Multilumen
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Specials

High quality, robust housing
Rotationally symmetric, functional design
1:1 replacement for solutions with 250W metal halide and 400W high pressure mercury vapour lamps
Minimised maintenance effort
Simple handling due to single-point mounting
Suitable for temperatures of -20°C to +40°C

Configuration & Datasheets

Colour temperature

Light colour

Rated luminous flux

Control

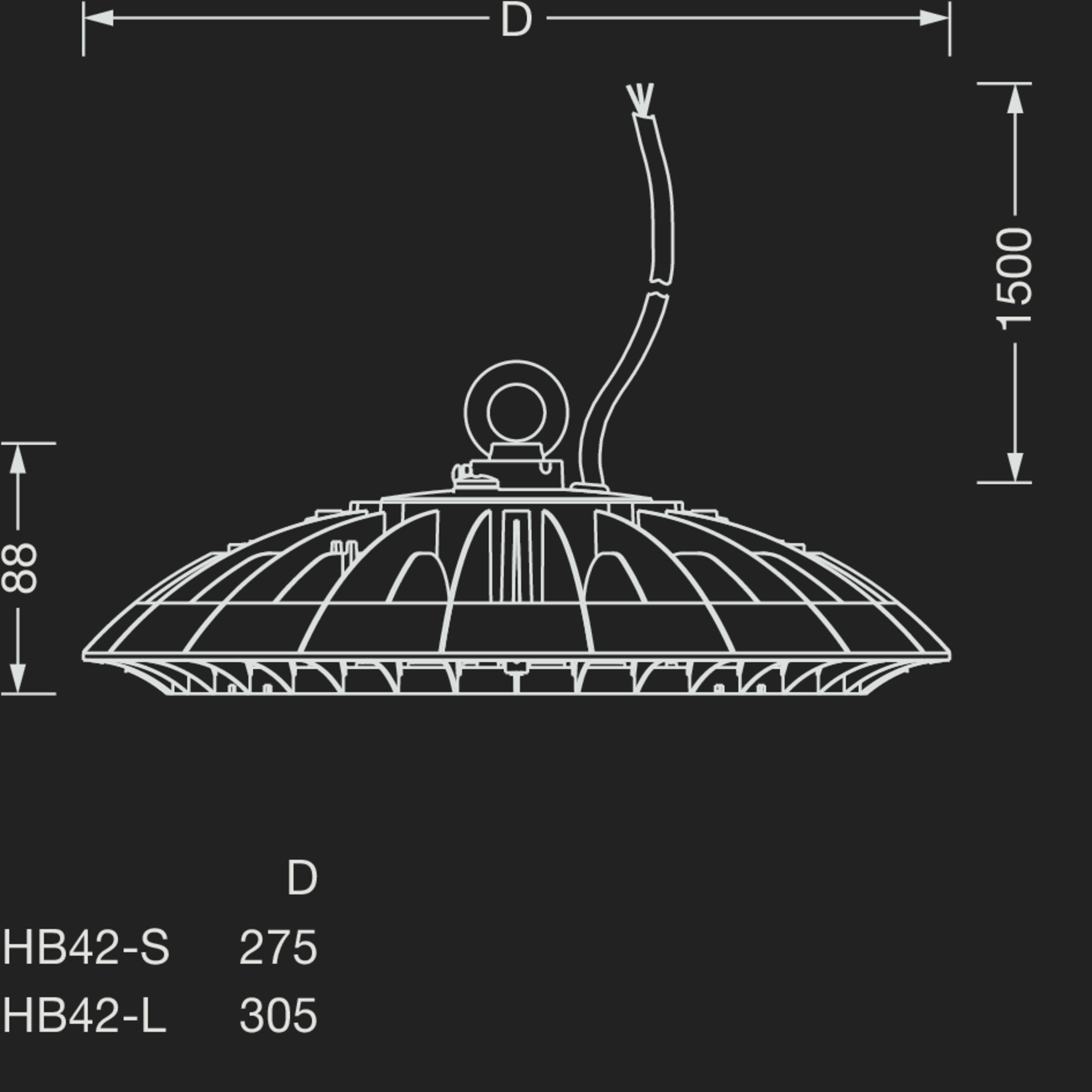

Dimension (mm)

  • incl. connection cable (l= 1500mm) with free wire ends
  • incl. suspension eyelet and carabiner made of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
  • please order photometric accessories separately if required

Results

Highbay 42-S, wide distribution, 90°, 840, ON/OFF, AC

Order No.: 51HP327A4FMAGTIN (EAN): 4058352475614
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 8012800lm80W160lm/WON/OFFØ2751.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 42-S, wide distribution, 90°, 840, ON/OFF, AC

Order No.: 51HP327A4HMAGTIN (EAN): 4058352475621
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 8019200lm120W160lm/WON/OFFØ2751.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 42-L, wide distribution, 90°, 840, ON/OFF Multilumen, AC

Order No.: 51HP32MB4MMAGTIN (EAN): 4058352475652
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 8028000lm175W160lm/WON/OFF MultilumenØ3052.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 42-L, wide distribution, 90°, 857, ON/OFF Multilumen, AC

Order No.: 51HP32MB7MMAGTIN (EAN): 4058352475669
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
5700KCRI > 8028000lm175W160lm/WON/OFF MultilumenØ3052.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 42-S, wide distribution, 90°, 840, ON/OFF, AC

Order No.: 51HP327A4FMAGTIN (EAN): 4058352475614

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux12800lm
Connected load80W
Luminous efficacy160lm/W
ControlON/OFF
Dimension (mm)Ø275
Wt. (kg)1.8
Show details

Highbay 42-S, wide distribution, 90°, 840, ON/OFF, AC

Order No.: 51HP327A4HMAGTIN (EAN): 4058352475621

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux19200lm
Connected load120W
Luminous efficacy160lm/W
ControlON/OFF
Dimension (mm)Ø275
Wt. (kg)1.8
Show details

Highbay 42-L, wide distribution, 90°, 840, ON/OFF Multilumen, AC

Order No.: 51HP32MB4MMAGTIN (EAN): 4058352475652

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load175W
Luminous efficacy160lm/W
ControlON/OFF Multilumen
Dimension (mm)Ø305
Wt. (kg)2.4
Show details

Highbay 42-L, wide distribution, 90°, 857, ON/OFF Multilumen, AC

Order No.: 51HP32MB7MMAGTIN (EAN): 4058352475669

Colour temperature5700K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load175W
Luminous efficacy160lm/W
ControlON/OFF Multilumen
Dimension (mm)Ø305
Wt. (kg)2.4
Show details

Optional accessory

Articlereflector, ø= 410mm, PC, transparent prismatic structure, rotationally symmetric wide distribution, 100°PU1 pc.Wt. (kg)0.5Order No.: 59HP91001GTIN (EAN): 4058352475829Show details
Articlereflector, ø= 435mm, aluminium, Alu-Soft, rotationally symmetric wide distribution, 100°PU1 pc.Wt. (kg)0.4Order No.: 59HP91003GTIN (EAN): 4058352475843Show details
Articlemounting bracketPU1 pc.Wt. (kg)0.4Order No.: 59HP92001GTIN (EAN): 4058352475867Show details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Order No.: 5LY9001GTIN (EAN): 4039806184290Show details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Order No.: 5LY9002GTIN (EAN): 4039806184313Show details
