Article reflector
Product name Highbay 42 S/L
Weight 0.4kg

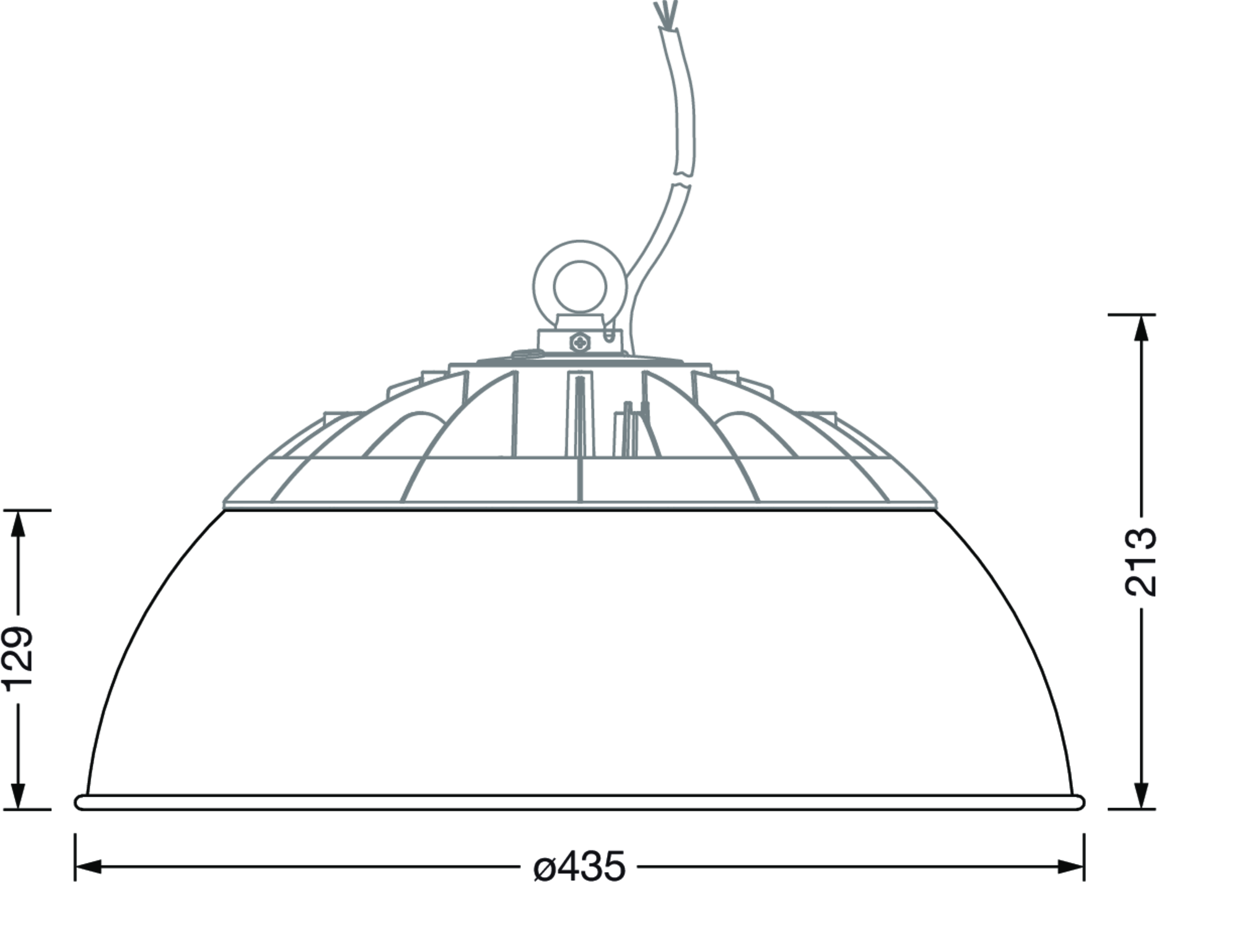

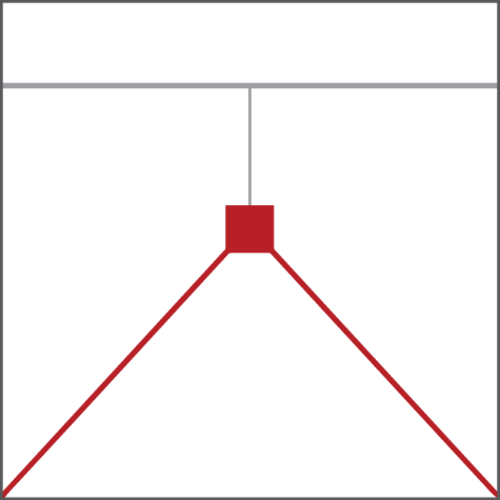

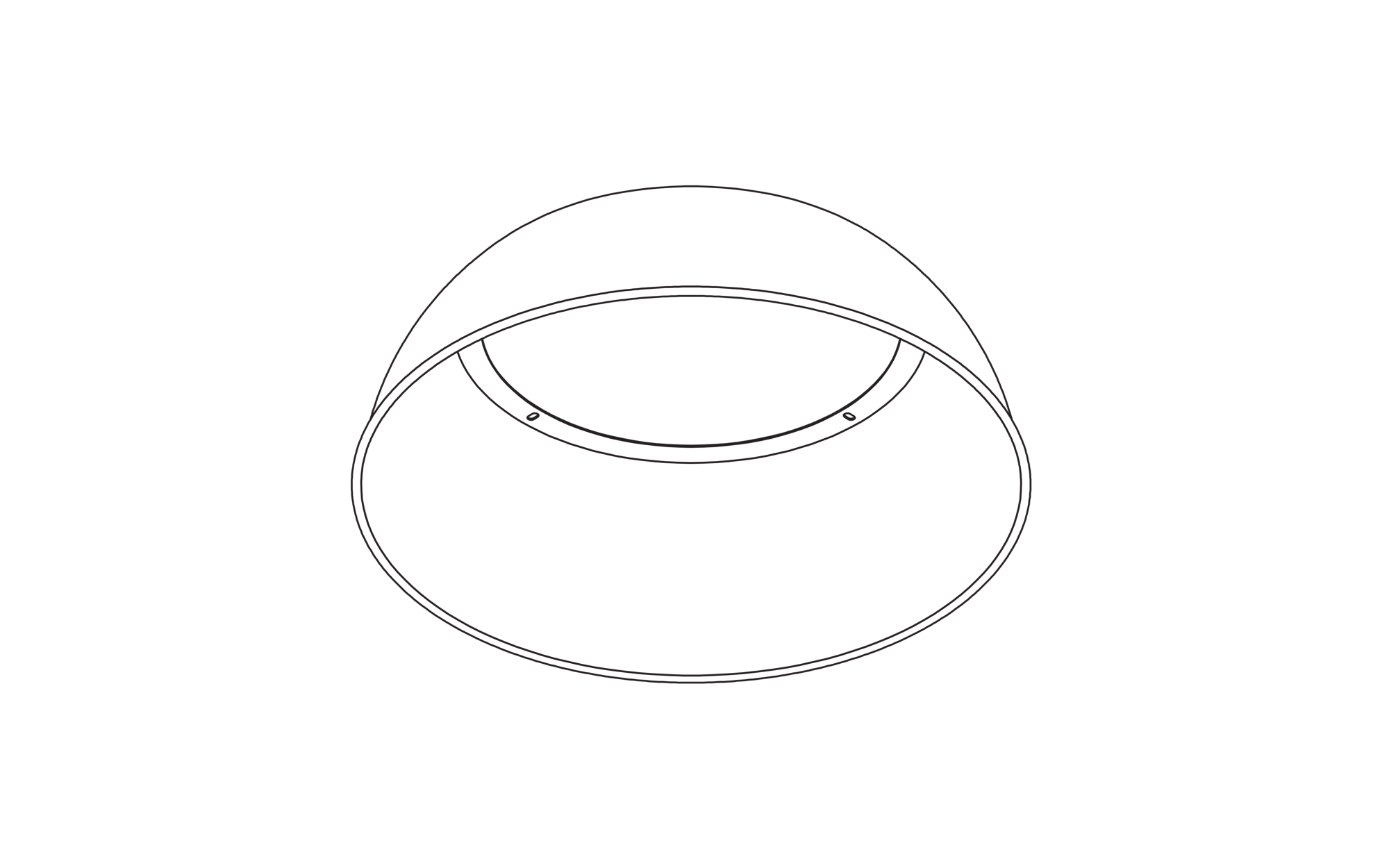

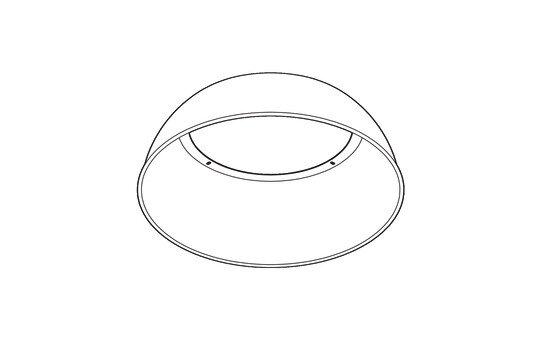

Highbay 42 S/L, reflector, primary light control with reflector, of aluminium, Alu-Soft, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: surface-mounted, diameter: 435mm, height: 130mm, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

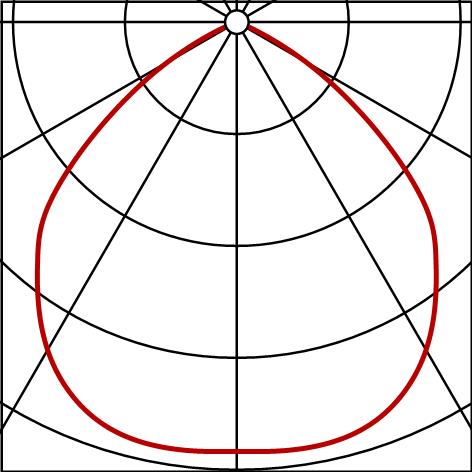

Photometric report / planning data
HB42S
rot.symwd,90°,12800lm840,0/1
Ordercode: 51HP327A4FMA
reflector
ø= 435mm, aluminium, Alu-Soft, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91003

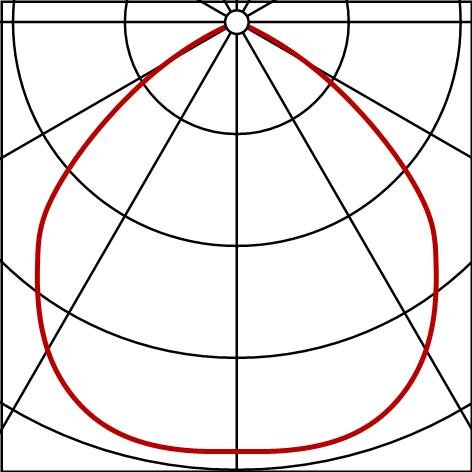

Photometric report / planning data
HB42S
rot.symwd,90°,19200lm840,0/1
Ordercode: 51HP327A4HMA
reflector
ø= 435mm, aluminium, Alu-Soft, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91003
Photometric report / planning data
HB42L
rot.symwd,90°,28000lm840,ML
Ordercode: 51HP32MB4MMA
reflector
ø= 435mm, aluminium, Alu-Soft, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91003
Photometric report / planning data
HB42L
rot.symwd,90°,28000lm857,ML
Ordercode: 51HP32MB7MMA
reflector
ø= 435mm, aluminium, Alu-Soft, rotationally symmetric wide distribution, 100°
Ordercode: 59HP91003
