SITECO
Mirrortec
Product selection

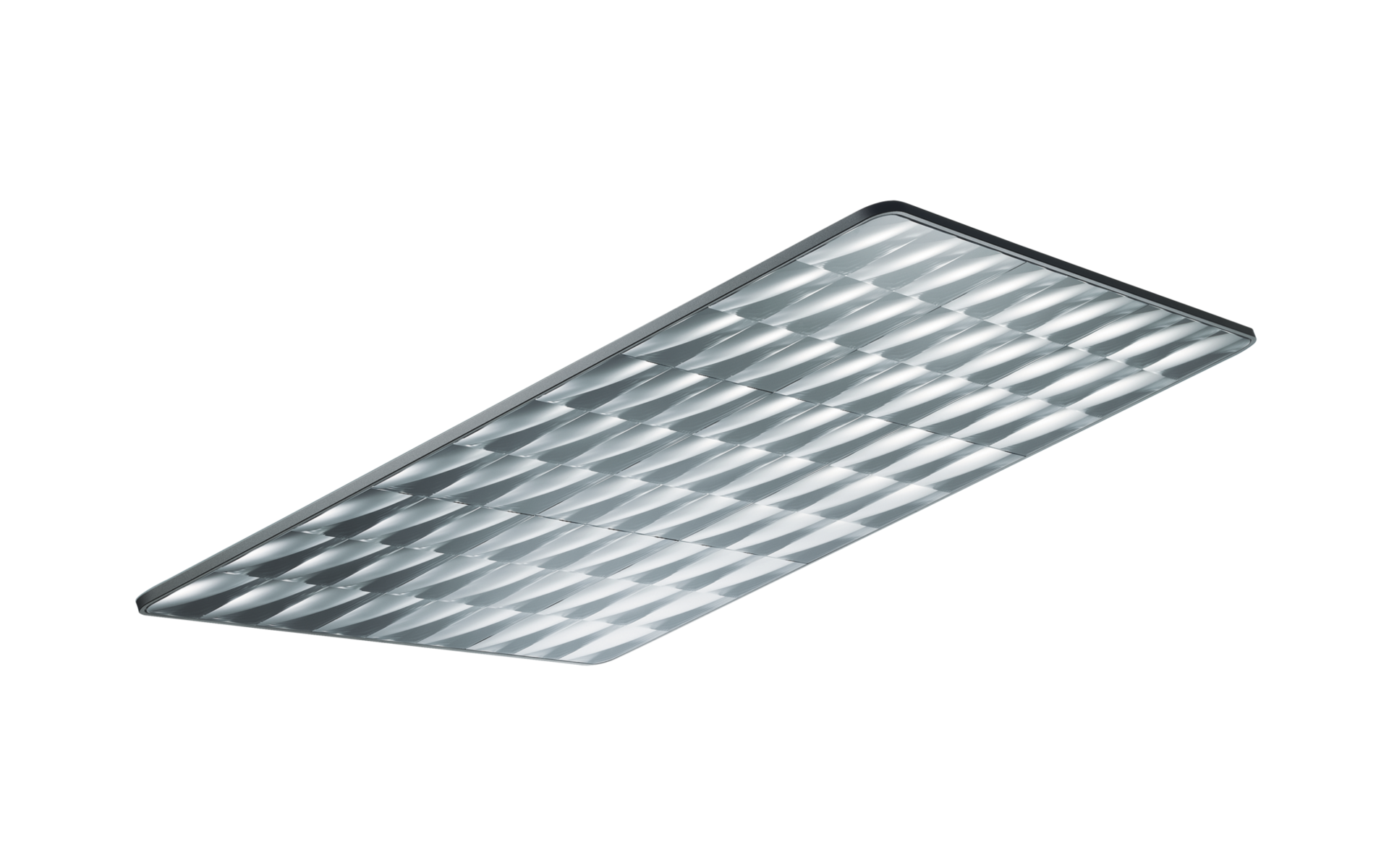

SITECO Mirrortec Reflector 100
Key data
Article secondary reflector
Lighting effect asymmetric wide distribution; symmetric narrow distribution
Surface structure fresnel structure
Form square; circular
Special features
Ultra-flat facetted reflector with Fresnel technology
Very good optical characteristics: brilliant appearance with superior light point resolution; defined beam area with good uniformity
The light source is still not visible even from greater distances
High quality design, minimal construction height
Depth effect of facets
Low installation effort , low weight
Easy cleaning with washable, flat front
Configuration & data sheets
- incl. wire or pendant suspension
Results
SITECO Mirrortec Indoor, symmetric narrow distribution, circular, Ø900, with pendant suspension
Order No.: 5NW13991KB GTIN (EAN): 4039806449627
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | circular | Ø900 | 9.6 | 2410.90 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 600x600, with pendant suspension
Order No.: 5NW13991QA GTIN (EAN): 4039806449641
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 600x600 | 6.0 | 1305.00 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 900x900, with pendant suspension
Order No.: 5NW13991QB GTIN (EAN): 4039806449658
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 900x900 | 9.5 | 2410.90 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW13991QC GTIN (EAN): 4039806449665
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 1200x1200 | 17.6 | 3872.70 |
SITECO Mirrortec Indoor, symmetric narrow distribution, circular, Ø900, with wire suspension
Order No.: 5NW13993KB GTIN (EAN): 4039806449740
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | circular | Ø900 | 4.8 | 2676.10 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 600x600, with wire suspension
Order No.: 5NW13993QA GTIN (EAN): 4039806449764
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 600x600 | 3.0 | 1905.50 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 900x900, with wire suspension
Order No.: 5NW13993QB GTIN (EAN): 4039806449771
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 900x900 | 8.8 | 2676.10 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 1200x1200, with wire suspension
Order No.: 5NW13993QC GTIN (EAN): 4039806449788
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 1200x1200 | 14.5 | 3771.30 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 600x600, with pendant suspension
Order No.: 5NW14091QA GTIN (EAN): 4039806588555
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 600x600 | 5.9 | 2292.50 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 900x900, with pendant suspension
Order No.: 5NW14091QB GTIN (EAN): 4039806588562
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 900x900 | 9.5 | 2438.00 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW14091QC GTIN (EAN): 4039806588586
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 1200x1200 | 17.9 | 4159.80 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 600x600, with wire suspension
Order No.: 5NW14093QA GTIN (EAN): 4039806568441
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 600x600 | 3.4 | 1963.20 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 900x900, with wire suspension
Order No.: 5NW14093QB GTIN (EAN): 4039806568465
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 900x900 | 8.5 | 2709.10 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 1200x1200, with wire suspension
Order No.: 5NW14093QC GTIN (EAN): 4039806568489
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 1200x1200 | 8.6 | 3894.80 |
SITECO Mirrortec Indoor, symmetric narrow distribution, circular, Ø900, with pendant suspension
Order No.: 5NW13991KBGTIN (EAN): 4039806449627
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | circular |
| Dimension (mm) | Ø900 |
| Wt. (kg) | 9.6 |
| Price (EUR) | 2410.90 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 600x600, with pendant suspension
Order No.: 5NW13991QAGTIN (EAN): 4039806449641
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 6.0 |
| Price (EUR) | 1305.00 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 900x900, with pendant suspension
Order No.: 5NW13991QBGTIN (EAN): 4039806449658
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 9.5 |
| Price (EUR) | 2410.90 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW13991QCGTIN (EAN): 4039806449665
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 17.6 |
| Price (EUR) | 3872.70 |
SITECO Mirrortec Indoor, symmetric narrow distribution, circular, Ø900, with wire suspension
Order No.: 5NW13993KBGTIN (EAN): 4039806449740
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | circular |
| Dimension (mm) | Ø900 |
| Wt. (kg) | 4.8 |
| Price (EUR) | 2676.10 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 600x600, with wire suspension
Order No.: 5NW13993QAGTIN (EAN): 4039806449764
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 3.0 |
| Price (EUR) | 1905.50 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 900x900, with wire suspension
Order No.: 5NW13993QBGTIN (EAN): 4039806449771
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 8.8 |
| Price (EUR) | 2676.10 |
SITECO Mirrortec Indoor, symmetric narrow distribution, square, 1200x1200, with wire suspension
Order No.: 5NW13993QCGTIN (EAN): 4039806449788
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 14.5 |
| Price (EUR) | 3771.30 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 600x600, with pendant suspension
Order No.: 5NW14091QAGTIN (EAN): 4039806588555
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 5.9 |
| Price (EUR) | 2292.50 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 900x900, with pendant suspension
Order No.: 5NW14091QBGTIN (EAN): 4039806588562
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 9.5 |
| Price (EUR) | 2438.00 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW14091QCGTIN (EAN): 4039806588586
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 17.9 |
| Price (EUR) | 4159.80 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 600x600, with wire suspension
Order No.: 5NW14093QAGTIN (EAN): 4039806568441
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 3.4 |
| Price (EUR) | 1963.20 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 900x900, with wire suspension
Order No.: 5NW14093QBGTIN (EAN): 4039806568465
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 8.5 |
| Price (EUR) | 2709.10 |
SITECO Mirrortec Indoor, asymmetric wide distribution, square, 1200x1200, with wire suspension
Order No.: 5NW14093QCGTIN (EAN): 4039806568489
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 8.6 |
| Price (EUR) | 3894.80 |
