Lunis 11 R
The compact luminaires of the Lunis 11 R family offer a lighting solution for many applications. Various optical covers ensure a high degree of planning freedom. The luminaire is even a good solution for lighting in areas with VDU screen workplaces.
Round, simple, universal

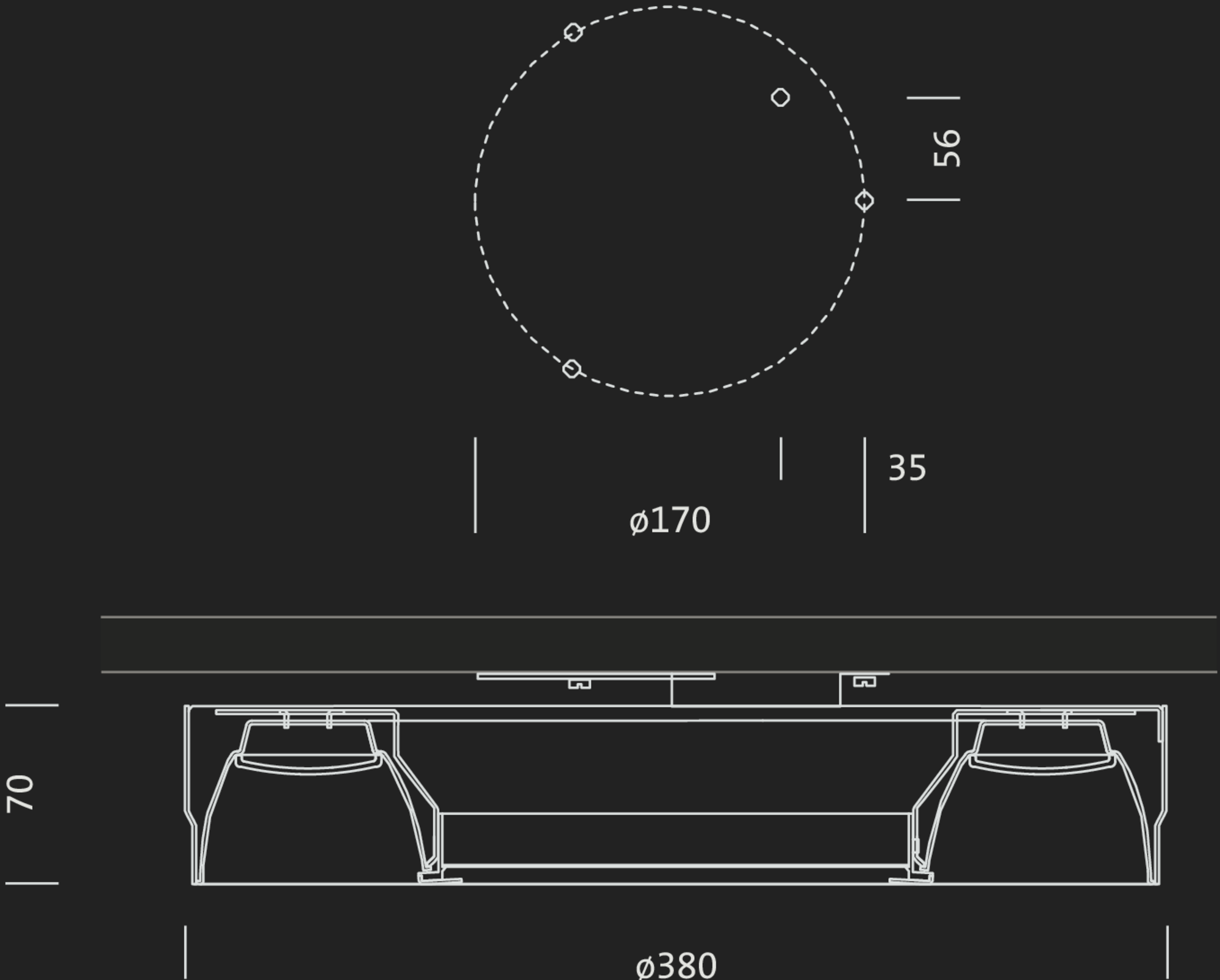

Lunis 11 R for ceiling surface mounting
Intro product family
Key data
Article downlight
Lighting effect direct symmetric wide distribution; direct symmetric wide distribution
Net luminous flux 3790lm to 4800lm
Colour temperature 2700…6500K; 3000K; 4000K
Control ON/OFF Multilumen; DALI 2; DALI-2 DT8
Special features
Different light characteristics by means of various louvers (highly specular/matt/C louver, transparent collector lens/opal diffuser)
High form factor due to high quality housing material: housing and reflector made of aluminum, housing metallic grey or pure white
Wide flexibility in adapting to individual light requirements due to versions with light control via DALI or with multilumen (switchable luminous flux)
Luminous flux adjustable during installation in 8 steps in the range of ~2000lm…4000lm (multilumen)
Configuration & data sheets
- please order lighting technology (louvre or panel) for circular downlight separately
Results
Lunis 11 R, Light colour 830, DALI 2, white
Order No.: 51DC112DD2400A GTIN (EAN): 4069025358967
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4800lm | 31.1W | 154lm/W | DALI 2 | white | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, white
Order No.: 51DC112DD4400A GTIN (EAN): 4069025358981
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4800lm | 29.6W | 162lm/W | DALI 2 | white | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, white
Order No.: 51DC112MD2400A GTIN (EAN): 4069025359049
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3950lm | 25.3W | 156lm/W | ON/OFF Multilumen | white | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, white
Order No.: 51DC112MD4400A GTIN (EAN): 4069025359063
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4140lm | 25.3W | 164lm/W | ON/OFF Multilumen | white | 1.5 |
Lunis 11 R, Light colour 830, DALI 2, black
Order No.: 51DC312DD2400A GTIN (EAN): 4069025359162
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4800lm | 31.1W | 154lm/W | DALI 2 | black | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, black
Order No.: 51DC312DD4400A GTIN (EAN): 4069025359186
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4800lm | 29.6W | 162lm/W | DALI 2 | black | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, black
Order No.: 51DC312MD2400A GTIN (EAN): 4069025359247
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3950lm | 25.3W | 156lm/W | ON/OFF Multilumen | black | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, black
Order No.: 51DC312MD4400A GTIN (EAN): 4069025359261
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4140lm | 25.3W | 164lm/W | ON/OFF Multilumen | black | 2.0 |
Lunis 11 R, Light colour 830, DALI 2, silver
Order No.: 51DC612DD2400A GTIN (EAN): 4069025359360
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4800lm | 31.1W | 154lm/W | DALI 2 | silver | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, silver
Order No.: 51DC612DD4400A GTIN (EAN): 4069025359384
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4800lm | 29.6W | 162lm/W | DALI 2 | silver | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, silver
Order No.: 51DC612MD2400A GTIN (EAN): 4069025359445
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3950lm | 25.3W | 156lm/W | ON/OFF Multilumen | silver | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, silver
Order No.: 51DC612MD4400A GTIN (EAN): 4069025359476
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4140lm | 25.3W | 164lm/W | ON/OFF Multilumen | silver | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, white
Order No.: 51DC112DDB400A GTIN (EAN): 4069025359001
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 4800lm | 33.9W | 142lm/W | DALI 2 | white | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, white
Order No.: 51DC112DDD400A GTIN (EAN): 4069025359025
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 4800lm | 34.3W | 140lm/W | DALI 2 | white | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, white
Order No.: 51DC112MDB400A GTIN (EAN): 4069025359087
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 3830lm | 26.2W | 146lm/W | ON/OFF Multilumen | white | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, white
Order No.: 51DC112MDD400A GTIN (EAN): 4069025359117
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 3790lm | 26.2W | 145lm/W | ON/OFF Multilumen | white | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, black
Order No.: 51DC312DDB400A GTIN (EAN): 4069025359209
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 4800lm | 33.9W | 142lm/W | DALI 2 | black | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, black
Order No.: 51DC312DDD400A GTIN (EAN): 4069025359223
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 4800lm | 34.3W | 140lm/W | DALI 2 | black | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, black
Order No.: 51DC312MDB400A GTIN (EAN): 4069025359292
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 3830lm | 26.2W | 146lm/W | ON/OFF Multilumen | black | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, black
Order No.: 51DC312MDD400A GTIN (EAN): 4069025359308
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 3790lm | 26.2W | 145lm/W | ON/OFF Multilumen | black | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, silver
Order No.: 51DC612DDB400A GTIN (EAN): 4069025359407
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 4800lm | 33.9W | 142lm/W | DALI 2 | silver | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, silver
Order No.: 51DC612DDD400A GTIN (EAN): 4069025359421
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 4800lm | 34.3W | 140lm/W | DALI 2 | silver | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, silver
Order No.: 51DC612MDB400A GTIN (EAN): 4069025359483
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 90 | 3830lm | 26.2W | 146lm/W | ON/OFF Multilumen | silver | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, silver
Order No.: 51DC612MDD400A GTIN (EAN): 4069025359506
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 3790lm | 26.2W | 145lm/W | ON/OFF Multilumen | silver | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, white
Order No.: 51DC112TD6400A GTIN (EAN): 4069025359124
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 4230lm | 28.4W | 149lm/W | DALI-2 DT8 | white | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, white
Order No.: 51DC112TDT400A GTIN (EAN): 4069025359148
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 90 | 3910lm | 30.8W | 127lm/W | DALI-2 DT8 | white | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, black
Order No.: 51DC312TD6400A GTIN (EAN): 4069025359322
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 4230lm | 28.4W | 149lm/W | DALI-2 DT8 | black | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, black
Order No.: 51DC312TDT400A GTIN (EAN): 4069025359346
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 90 | 3910lm | 30.8W | 127lm/W | DALI-2 DT8 | black | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, silver
Order No.: 51DC612TD6400A GTIN (EAN): 4069025359520
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 4230lm | 28.4W | 149lm/W | DALI-2 DT8 | silver | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, silver
Order No.: 51DC612TDT400A GTIN (EAN): 4069025359544
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 90 | 3910lm | 30.8W | 127lm/W | DALI-2 DT8 | silver | 2.0 |
Lunis 11 R, Light colour 830, DALI 2, white
Order No.: 51DC112DD2400AGTIN (EAN): 4069025358967
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 31.1W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, white
Order No.: 51DC112DD4400AGTIN (EAN): 4069025358981
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 29.6W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, white
Order No.: 51DC112MD2400AGTIN (EAN): 4069025359049
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3950lm |
| Connected load | 25.3W |
| Luminous efficacy | 156lm/W |
| Control | ON/OFF Multilumen |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, white
Order No.: 51DC112MD4400AGTIN (EAN): 4069025359063
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4140lm |
| Connected load | 25.3W |
| Luminous efficacy | 164lm/W |
| Control | ON/OFF Multilumen |
| Colour | white |
| Wt. (kg) | 1.5 |
Lunis 11 R, Light colour 830, DALI 2, black
Order No.: 51DC312DD2400AGTIN (EAN): 4069025359162
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 31.1W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, black
Order No.: 51DC312DD4400AGTIN (EAN): 4069025359186
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 29.6W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, black
Order No.: 51DC312MD2400AGTIN (EAN): 4069025359247
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3950lm |
| Connected load | 25.3W |
| Luminous efficacy | 156lm/W |
| Control | ON/OFF Multilumen |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, black
Order No.: 51DC312MD4400AGTIN (EAN): 4069025359261
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4140lm |
| Connected load | 25.3W |
| Luminous efficacy | 164lm/W |
| Control | ON/OFF Multilumen |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 830, DALI 2, silver
Order No.: 51DC612DD2400AGTIN (EAN): 4069025359360
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 31.1W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, DALI 2, silver
Order No.: 51DC612DD4400AGTIN (EAN): 4069025359384
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 29.6W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 830, ON/OFF Multilumen, silver
Order No.: 51DC612MD2400AGTIN (EAN): 4069025359445
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3950lm |
| Connected load | 25.3W |
| Luminous efficacy | 156lm/W |
| Control | ON/OFF Multilumen |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 840, ON/OFF Multilumen, silver
Order No.: 51DC612MD4400AGTIN (EAN): 4069025359476
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4140lm |
| Connected load | 25.3W |
| Luminous efficacy | 164lm/W |
| Control | ON/OFF Multilumen |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, white
Order No.: 51DC112DDB400AGTIN (EAN): 4069025359001
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 33.9W |
| Luminous efficacy | 142lm/W |
| Control | DALI 2 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, white
Order No.: 51DC112DDD400AGTIN (EAN): 4069025359025
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 34.3W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, white
Order No.: 51DC112MDB400AGTIN (EAN): 4069025359087
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3830lm |
| Connected load | 26.2W |
| Luminous efficacy | 146lm/W |
| Control | ON/OFF Multilumen |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, white
Order No.: 51DC112MDD400AGTIN (EAN): 4069025359117
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3790lm |
| Connected load | 26.2W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF Multilumen |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, black
Order No.: 51DC312DDB400AGTIN (EAN): 4069025359209
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 33.9W |
| Luminous efficacy | 142lm/W |
| Control | DALI 2 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, black
Order No.: 51DC312DDD400AGTIN (EAN): 4069025359223
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 34.3W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, black
Order No.: 51DC312MDB400AGTIN (EAN): 4069025359292
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3830lm |
| Connected load | 26.2W |
| Luminous efficacy | 146lm/W |
| Control | ON/OFF Multilumen |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, black
Order No.: 51DC312MDD400AGTIN (EAN): 4069025359308
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3790lm |
| Connected load | 26.2W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF Multilumen |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, DALI 2, silver
Order No.: 51DC612DDB400AGTIN (EAN): 4069025359407
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 33.9W |
| Luminous efficacy | 142lm/W |
| Control | DALI 2 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, DALI 2, silver
Order No.: 51DC612DDD400AGTIN (EAN): 4069025359421
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 34.3W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 930, ON/OFF Multilumen, silver
Order No.: 51DC612MDB400AGTIN (EAN): 4069025359483
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3830lm |
| Connected load | 26.2W |
| Luminous efficacy | 146lm/W |
| Control | ON/OFF Multilumen |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 940, ON/OFF Multilumen, silver
Order No.: 51DC612MDD400AGTIN (EAN): 4069025359506
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3790lm |
| Connected load | 26.2W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF Multilumen |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, white
Order No.: 51DC112TD6400AGTIN (EAN): 4069025359124
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4230lm |
| Connected load | 28.4W |
| Luminous efficacy | 149lm/W |
| Control | DALI-2 DT8 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, white
Order No.: 51DC112TDT400AGTIN (EAN): 4069025359148
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3910lm |
| Connected load | 30.8W |
| Luminous efficacy | 127lm/W |
| Control | DALI-2 DT8 |
| Colour | white |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, black
Order No.: 51DC312TD6400AGTIN (EAN): 4069025359322
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4230lm |
| Connected load | 28.4W |
| Luminous efficacy | 149lm/W |
| Control | DALI-2 DT8 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, black
Order No.: 51DC312TDT400AGTIN (EAN): 4069025359346
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3910lm |
| Connected load | 30.8W |
| Luminous efficacy | 127lm/W |
| Control | DALI-2 DT8 |
| Colour | black |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 8tw, DALI-2 DT8, silver
Order No.: 51DC612TD6400AGTIN (EAN): 4069025359520
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4230lm |
| Connected load | 28.4W |
| Luminous efficacy | 149lm/W |
| Control | DALI-2 DT8 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Lunis 11 R, Light colour 9tw, DALI-2 DT8, silver
Order No.: 51DC612TDT400AGTIN (EAN): 4069025359544
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 3910lm |
| Connected load | 30.8W |
| Luminous efficacy | 127lm/W |
| Control | DALI-2 DT8 |
| Colour | silver |
| Wt. (kg) | 2.0 |
Mandatory accessories
| Order No.: 58DC0000D0010AGTIN (EAN): 4069025317223 | Show all details |
| Order No.: 58DC0000D0020AGTIN (EAN): 4069025317247 | Show all details |
| Order No.: 58DC0000D0030AGTIN (EAN): 4069025317261 | Show all details |
Optional accessories
| Order No.: 5LR94685EEGTIN (EAN): 4039806161208 | Show all details |
| Order No.: 5LR94683DTGTIN (EAN): 4039806161185 | Show all details |
| Order No.: 5LR94681CEGTIN (EAN): 4039806194336 | Show all details |
| Order No.: 58DC0020D0000AGTIN (EAN): 4069025545381 | Show all details |
