Highbay

Family Product selection Configuration & data sheets

Product selection

Highbay 41

Highbay 41

Key data

Article high bay luminaire
Lighting effect direct rotationally symmetric wide distribution, 90°
Net luminous flux 14000lm to 28000lm
Colour temperature 4000/5000/6500K
Control ON/OFF Multilumen
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Special features

Compact housing made of die-cast aluminum
Variable lumen packages
3 selectable light colour (4000K/5000K/6500K)
Adjustable light distribution from narrow to extremely wide distribution
Easy installation thanks to 1-point mounting
60,000h service life with low degradation
PIR motion sensor, adjustable with remote control, available as an accessory

Configuration & data sheets

Rated luminous flux

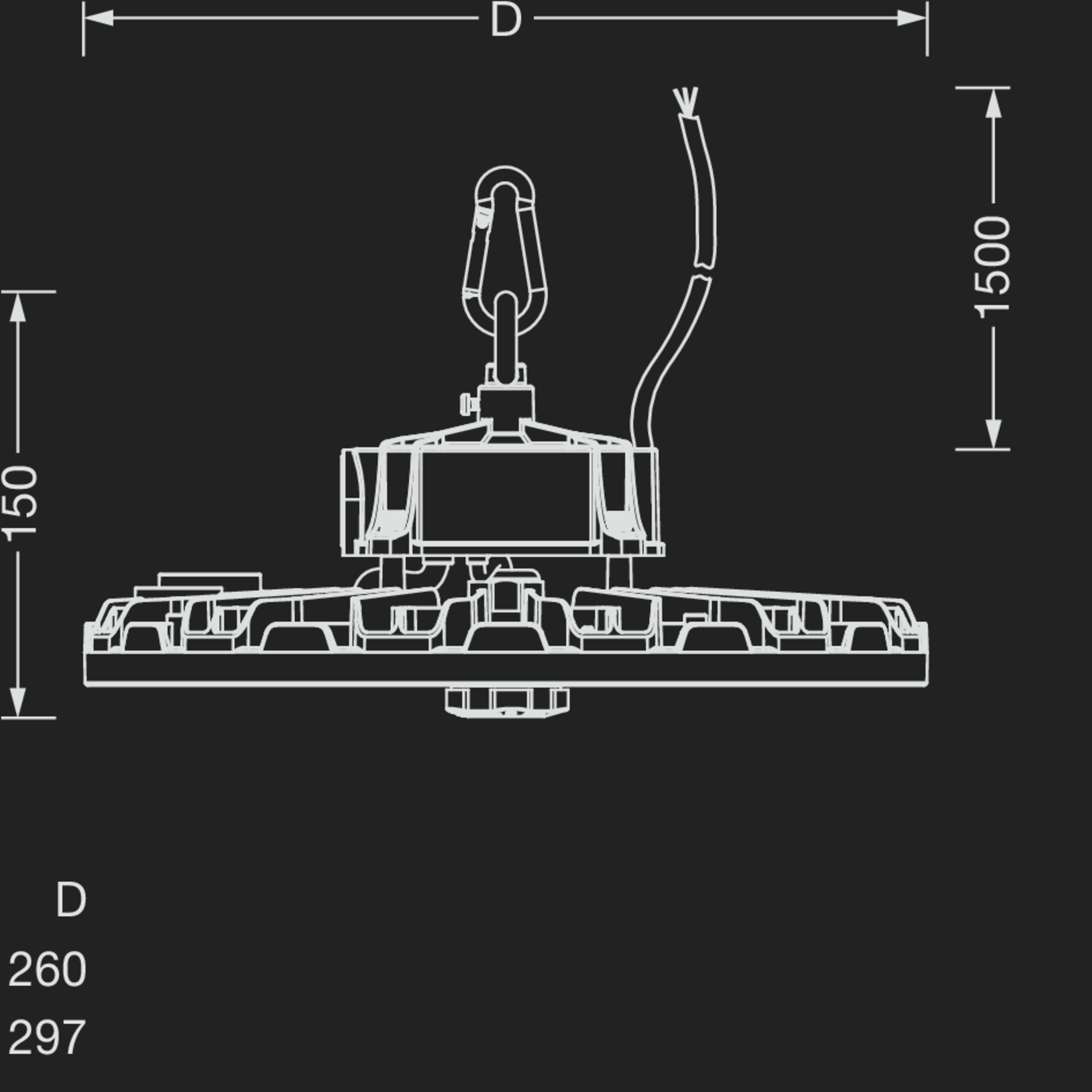

Dimension (mm)

  • incl. connection cable (l= 1500mm) with free wire ends
  • incl. suspension eyelet and carabiner made of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately

Results

Delivery time on request

Highbay 41-S, wide distribution, 90°, 840/850/865, ON/OFF Multilumen, AC

Order No.: 51HD3XMAMH0A GTIN (EAN): 4069025768834
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000/5000/6500KCRI > 8018020lm106W14000lm82W82W170lm/WON/OFF MultilumenØ2601.9
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Highbay 41-L, wide distribution, 90°, 840/850/865, ON/OFF Multilumen, AC

Order No.: 51HD3XMBMN0A GTIN (EAN): 4069025768841
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000/5000/6500KCRI > 8031960lm188W28000lm165W165W170lm/WON/OFF MultilumenØ2972.4
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Highbay 41-S, wide distribution, 90°, 840/850/865, ON/OFF Multilumen, AC

Order No.: 51HD3XMAMH0AGTIN (EAN): 4069025768834

Colour temperature4000/5000/6500K
Colour renderingCRI > 80
Luminous flux18020lm
Pnom106W
Factory-preset luminous flux14000lm
Factory-preset Pnom82W
Connected load82W
Luminous efficacy170lm/W
ControlON/OFF Multilumen
Dimension (mm)Ø260
Wt. (kg)1.9
Show all details
Delivery time on request

Highbay 41-L, wide distribution, 90°, 840/850/865, ON/OFF Multilumen, AC

Order No.: 51HD3XMBMN0AGTIN (EAN): 4069025768841

Colour temperature4000/5000/6500K
Colour renderingCRI > 80
Luminous flux31960lm
Pnom188W
Factory-preset luminous flux28000lm
Factory-preset Pnom165W
Connected load165W
Luminous efficacy170lm/W
ControlON/OFF Multilumen
Dimension (mm)Ø297
Wt. (kg)2.4
Show all details

Optional accessories

Articlemounting bracketPU1 pc.Wt. (kg)0.5Order No.: 59HD92001GTIN (EAN): 4069025768919Show all details
ArticlePIR sensor, surface-mounted to the luminairePU1 pc.Wt. (kg)0.1Order No.: 59HD91001GTIN (EAN): 4069025768896Show all details
Articleremote controlPU1 pc.Wt. (kg)0.1Order No.: 59HD91002GTIN (EAN): 4069025768902Show all details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Order No.: 5LY9001GTIN (EAN): 4039806184290Show all details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Order No.: 5LY9002GTIN (EAN): 4039806184313Show all details
