Licross® 11/21 for local control
Stay flexible: The modular system of Licross® enables any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: with daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs. 45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to UVC air disinfection device open up a broad horizon of applications far from lighting, which create additional added value.
Simple standalone solution
Siteco Connect 31 Logistic - for magazines and corridors
Introduction famille de produits
Données caractéristiques
Équipement maître; esclave
Désignation Sensor-Head PR1-M; Sensor-Head PR1-S; Interface MS; Interface MD; Interface S
Particularités
Configuration et fiches techniques
- lors de l’établissement du contact avec la ligne DALI 1, convient pour un câblage à partir de 7 conducteurs
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- adaption to on-site conditions via 90° rotatable sensor interface
- chaque capteur d’extension fait diminuer de 3 pièces le nombre de BE pouvant être commandés
- une unité de détection est composée d’une tête de capteur et d’une interface
Résultats
Licross® Interface, maître, commutable
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Prix (CHF) |
---|---|---|---|---|---|---|---|
Interface MS | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes | ON/OFF | 500x96 | -20..+50°C | 174,00 |
Licross® Interface, maître, gradable
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Prix (CHF) |
---|---|---|---|---|---|---|---|
Interface MD | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes | DALI | 500x96 | -20..+50°C | 179,00 |
Licross® Interface, esclave, gradable
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Prix (CHF) |
---|---|---|---|---|---|---|---|
Interface S | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes | DALI 2 | 500x96 | -20..+50°C | 170,00 |
SITECO Connect, esclave, gradable
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Prix (CHF) |
---|---|---|---|---|---|---|---|
Sensor-Head PR1-S | couloir et magazine | DALI 2 | 2,5..5m | 23x6m max. | 95x95 | -20..+50°C | 115,00 |
SITECO Connect, maître, commutable, gradable
Désignation | Domaine d'application | Commande | Hauteur de pose | Champ de détection de mouvement | Dimension (mm) | ta | Prix (CHF) |
---|---|---|---|---|---|---|---|
Sensor-Head PR1-M | couloir et magazine | DALI | 2,5..5m | 23x6m max. | 95x95 | -20..+50°C | 134,00 |
Licross® Interface, maître, commutable
N° de commande: 56TL1FAMAGTIN (EAN): 4058352400524
Désignation | Interface MS |
---|---|
Domaine d'application | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes |
Commande | ON/OFF |
Hauteur de pose | |
Champ de détection de mouvement | |

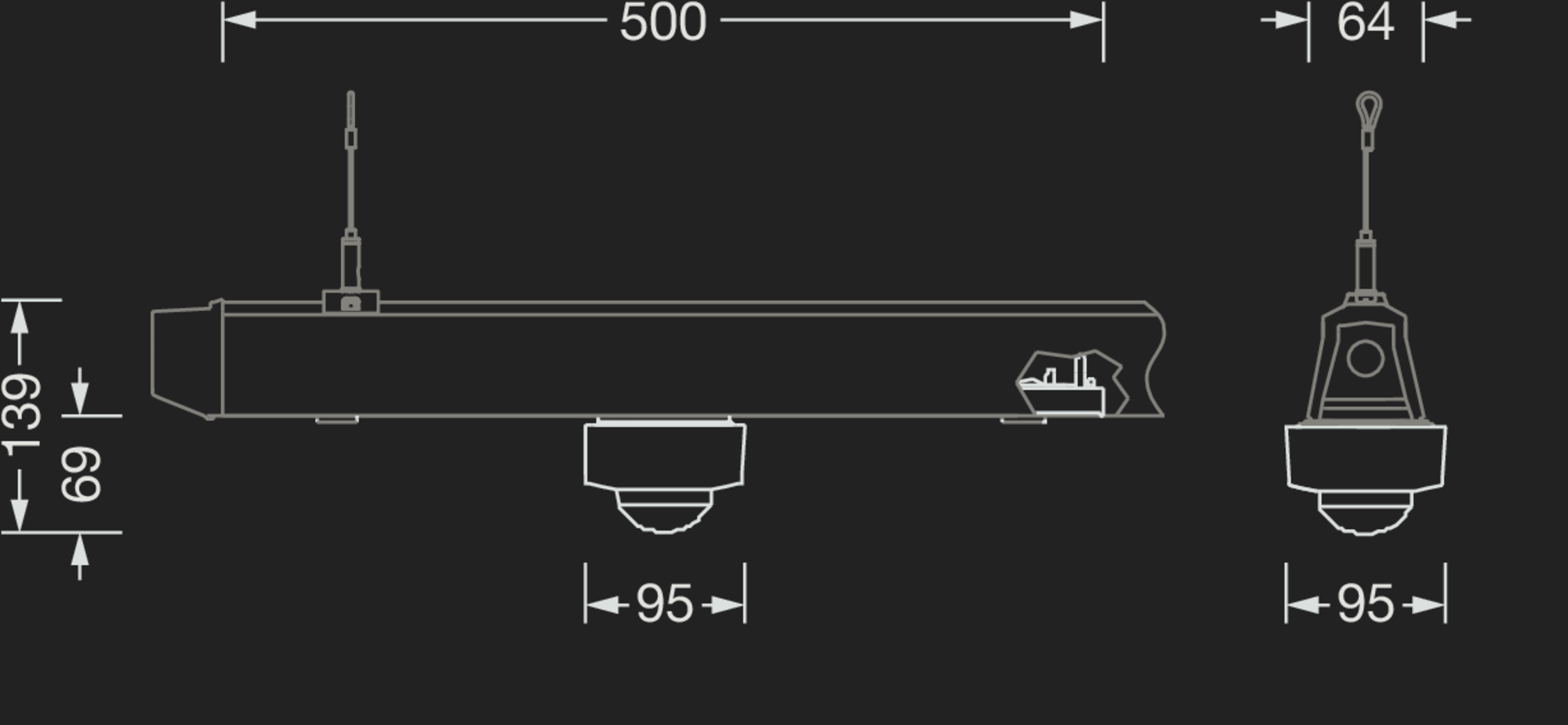

Dimension (mm) | 500x96 |
ta | -20..+50°C |
Prix (CHF) | 174,00 |
Licross® Interface, maître, gradable
N° de commande: 56TL1FCMAGTIN (EAN): 4058352373873
Désignation | Interface MD |
---|---|
Domaine d'application | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes |
Commande | DALI |
Hauteur de pose | |
Champ de détection de mouvement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Prix (CHF) | 179,00 |
Licross® Interface, esclave, gradable
N° de commande: 56TL1FCSAGTIN (EAN): 4058352373880
Désignation | Interface S |
---|---|
Domaine d'application | couloir et magazine, pour rayonnages et stockage en hauteur, parking couvert et parking souterrain, zone d'expédition pièces hautes |
Commande | DALI 2 |
Hauteur de pose | |
Champ de détection de mouvement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Prix (CHF) | 170,00 |
SITECO Connect, esclave, gradable
N° de commande: 59US1HXSPR1AGTIN (EAN): 4058352363997
Désignation | Sensor-Head PR1-S |
---|---|
Domaine d'application | couloir et magazine |
Commande | DALI 2 |
Hauteur de pose | 2,5..5m |
Champ de détection de mouvement | 23x6m max. |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Prix (CHF) | 115,00 |
SITECO Connect, maître, commutable, gradable
N° de commande: 59US1HXMPR1AGTIN (EAN): 4058352363850
Désignation | Sensor-Head PR1-M |
---|---|
Domaine d'application | couloir et magazine |
Commande | DALI |
Hauteur de pose | 2,5..5m |
Champ de détection de mouvement | 23x6m max. |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Prix (CHF) | 134,00 |
