SITECO
Monsun
Product selection

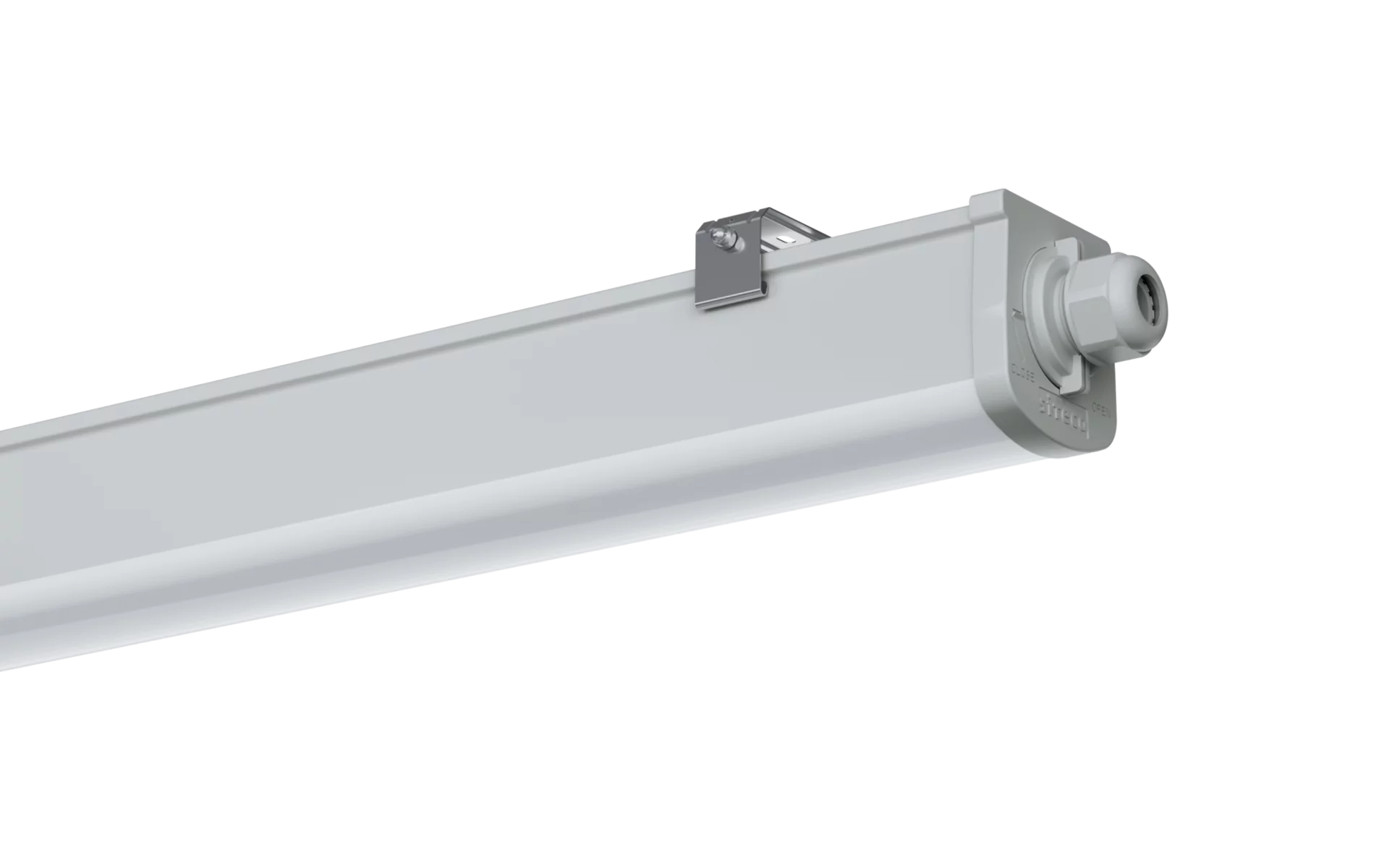

Monsun 31
Key data
Article damp-proof luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 3000lm
Colour temperature 4000K
Control DALI 2
Cover PC
Protection rating IP66
Insulation class insulation class II (safety insulation)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Special features
Robust housing, economical operation, long system life up to 50,000h (L80/B50)
Optimised, high-efficiency LED system
Quick mounting due to integrated connection element with tool-free electrical connection system and due to integrated through-wiring
Existing mounting points in refurbishment projects can be used thanks to variably positionable fixing clips
Configuration & data sheets
- includes ceiling/wall fixing element and chain hanger of V2A; ceiling or wall installation without other luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
- for chain suspension: please order chain separately
- with use if the optional emengency light element, a separate charging phase is required
Results
Delivery time on request
Monsun 31, diffuse distribution, DALI 2, PC
Order No.: 51FA20DK430B GTIN (EAN): 4058352419564
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3000lm | 22W | 136lm/W | DALI 2 | 3x 2.5mm² + 3x 1.5mm² | -20..+40°C | IK08 | 1158 | 1.3 |
Delivery time on request
Monsun 31, diffuse distribution, DALI 2, PC
Order No.: 51FA20DK430BGTIN (EAN): 4058352419564
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3000lm |
| Connected load | 22W |
| Luminous efficacy | 136lm/W |
| Control | DALI 2 |
| Through-wiring | 3x 2.5mm² + 3x 1.5mm² |
| ta | -20..+40°C |
| Impact resistance | IK08 |

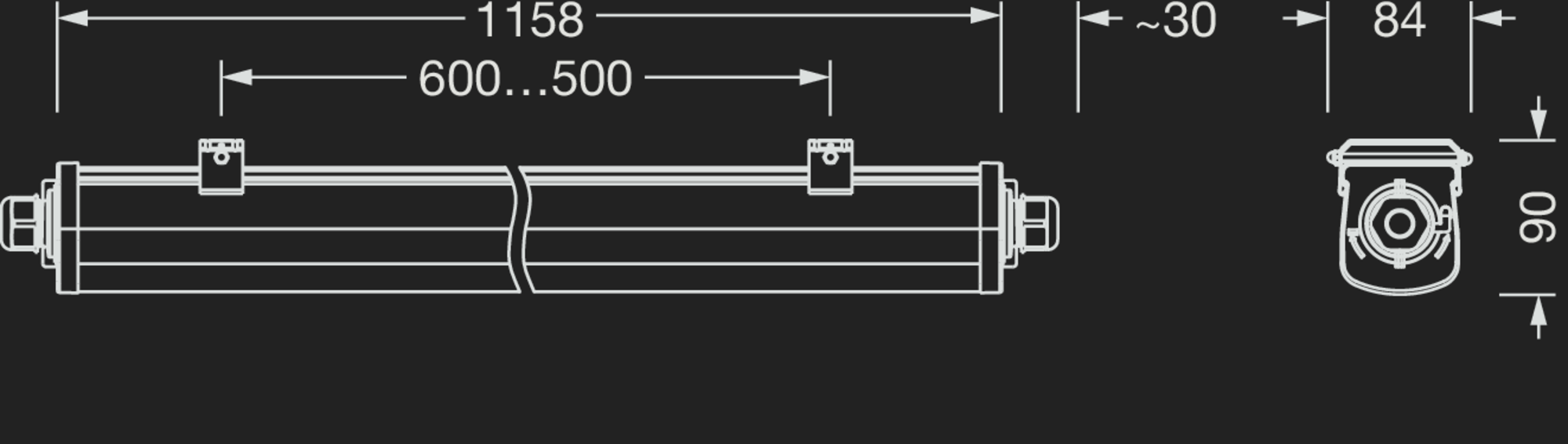

| L (mm) | 1158 |
| Wt. (kg) | 1.3 |
Optional accessories
| Order No.: 5LY9001GTIN (EAN): 4039806184290 | Show all details |
| Order No.: 5LY9002GTIN (EAN): 4039806184313 | Show all details |
| Order No.: 5LY9004GTIN (EAN): 4039806184368 | Show all details |
| Order No.: 58FA207A403B3GGTIN (EAN): 4058352419601 | Show all details |
| Order No.: 58FA101GTIN (EAN): 4058352706664 | Show all details |
