Lunis 41

Product typesConfiguration & data sheets

The Lunis 41 product family is the simple downlight solution. The compact, handy design with a low overall height makes it universally applicable. Various variants allow, for example, accent lighting or use in harsh environments thanks to a high degree of protection. In many cases, Lunis 41 is a practical replacement for downlights with compact fluorescent and halogen lamps.

Our simple solution: Lunis 41 is our downlight with the simplest requirements in terms of efficiency and quality

Product types

Lunis 41 Flat

Lunis 41 Eco

Lunis 41 Spot

Lunis 41 Flat

Intro product family

Key data

Article downlight
Lighting effect direct distribution
Net luminous flux 1250lm to 2450lm
Colour temperature 4000/6500K; 3000/4000K; 4000/5700K
Control ON/OFF; ON/OFF Multilumen; DALI 2
Protection rating IP20/IP44
Insulation class insulation class II (safety insulation)

Special features

For simple accent lighting in public buildings and the retail sector
Compact design with low overall height
Uniform light with good colour rendering and switchable colour temperature
Due to its compact dimensions and the standard installation diameter, is in many cases ideal for renovation purposes and as a replacement for conventional halogen lamp downlights

Configuration & data sheets

Colour temperature

Rated luminous flux

Control

D

DA

Results

Lunis 41 Flat, Light colour 830/840, ON/OFF, 150

Order No.: 51DR107DGBA GTIN (EAN): 4058352509920
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 801250lm15W83lm/WON/OFF1700.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

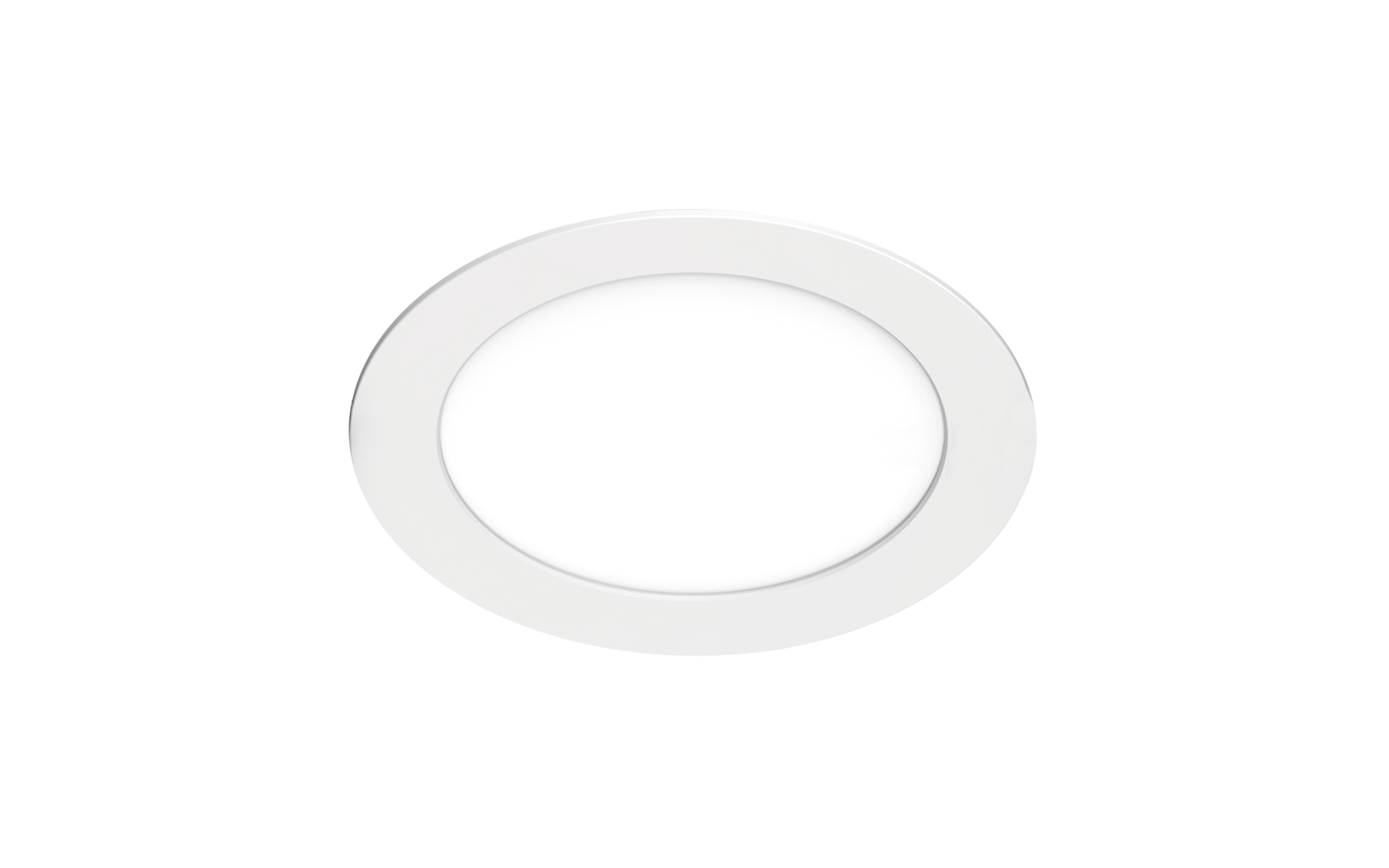

Lunis 41 Flat, Light colour 840/857, ON/OFF, 200

Order No.: 51DR107FHCA GTIN (EAN): 4058352509951
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
4000/5700KCRI > 802160lm22W98lm/WON/OFF2250.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 830/840, ON/OFF Multilumen, 150

Order No.: 51DR10MDGBB GTIN (EAN): 4069025152053
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 801530lm12.5W122lm/WON/OFF Multilumen1700.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 840/865, ON/OFF Multilumen, 150

Order No.: 51DR10MDHBB GTIN (EAN): 4069025152084
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
4000/6500KCRI > 801580lm12.5W126lm/WON/OFF Multilumen1700.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 830/840, ON/OFF Multilumen, 200

Order No.: 51DR10MFGCB GTIN (EAN): 4069025152091
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 802360lm19.5W121lm/WON/OFF Multilumen2250.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 840/865, ON/OFF Multilumen, 200

Order No.: 51DR10MFHCB GTIN (EAN): 4069025152107
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
4000/6500KCRI > 802430lm19.5W125lm/WON/OFF Multilumen2250.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 830/840, DALI 2, 150

Order No.: 51DR10DDGBB GTIN (EAN): 4069025152015
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 801575lm DALI 21700.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 830/840, DALI 2, 200

Order No.: 51DR10DFGCB GTIN (EAN): 4069025152039
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)
3000/4000KCRI > 802450lm DALI 22250.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 41 Flat, Light colour 830/840, ON/OFF, 150

Order No.: 51DR107DGBAGTIN (EAN): 4058352509920

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1250lm
Connected load15W
Luminous efficacy83lm/W
ControlON/OFF
D (mm)170
Wt. (kg)0.3
Show all details

Lunis 41 Flat, Light colour 840/857, ON/OFF, 200

Order No.: 51DR107FHCAGTIN (EAN): 4058352509951

Colour temperature4000/5700K
Colour renderingCRI > 80
Luminous flux2160lm
Connected load22W
Luminous efficacy98lm/W
ControlON/OFF
D (mm)225
Wt. (kg)0.5
Show all details

Lunis 41 Flat, Light colour 830/840, ON/OFF Multilumen, 150

Order No.: 51DR10MDGBBGTIN (EAN): 4069025152053

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1530lm
Connected load12.5W
Luminous efficacy122lm/W
ControlON/OFF Multilumen
D (mm)170
Wt. (kg)0.5
Show all details

Lunis 41 Flat, Light colour 840/865, ON/OFF Multilumen, 150

Order No.: 51DR10MDHBBGTIN (EAN): 4069025152084

Colour temperature4000/6500K
Colour renderingCRI > 80
Luminous flux1580lm
Connected load12.5W
Luminous efficacy126lm/W
ControlON/OFF Multilumen
D (mm)170
Wt. (kg)0.5
Show all details

Lunis 41 Flat, Light colour 830/840, ON/OFF Multilumen, 200

Order No.: 51DR10MFGCBGTIN (EAN): 4069025152091

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux2360lm
Connected load19.5W
Luminous efficacy121lm/W
ControlON/OFF Multilumen
D (mm)225
Wt. (kg)0.4
Show all details

Lunis 41 Flat, Light colour 840/865, ON/OFF Multilumen, 200

Order No.: 51DR10MFHCBGTIN (EAN): 4069025152107

Colour temperature4000/6500K
Colour renderingCRI > 80
Luminous flux2430lm
Connected load19.5W
Luminous efficacy125lm/W
ControlON/OFF Multilumen
D (mm)225
Wt. (kg)0.4
Show all details

Lunis 41 Flat, Light colour 830/840, DALI 2, 150

Order No.: 51DR10DDGBBGTIN (EAN): 4069025152015

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1575lm
Connected load
Luminous efficacy
ControlDALI 2
D (mm)170
Wt. (kg)0.3
Show all details

Lunis 41 Flat, Light colour 830/840, DALI 2, 200

Order No.: 51DR10DFGCBGTIN (EAN): 4069025152039

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux2450lm
Connected load
Luminous efficacy
ControlDALI 2
D (mm)225
Wt. (kg)0.4
Show all details

Optional accessories

Articlejunction box, IP20PU1 pc.Wt. (kg)0.1Order No.: 58DV003GTIN (EAN): 4058352534304Show all details
