DUS 31 luminaire insert
Key data
Article luminaire insert
Colour temperature 4000K; 6500K
Lighting effect direct symmetric extremely narrow distribution; direct symmetric narrow distribution; direct symmetric wide distribution
Special features
Efficient LED inserts with high luminous efficacy for refurbishment of existing DUS trunking systems, for example, as replacements for existing fluorescent lamp inserts
Different light distributions for diverse applications
Demand-oriented lighting solution with individually adjustable lumen packages, even for on/off models, thanks to multi-lumen capability
Simple and quick mounting
Links
Configuration & data sheets
- versions with colour temperature 3000K on request
- with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
Results
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V485C2 GTIN (EAN): 4069025124241
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8590 | 48W | 179lm/W | ON/OFF | -35..+45°C | 1535 | white | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV685C2 GTIN (EAN): 4069025124326
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8970 | 50 | 61 | 180lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | 1535 | white | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV485C2 GTIN (EAN): 4069025185914
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8950 | 48W | 186lm/W | ON/OFF Multilumen | -35..+50°C | 1535 | white | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4A5C2 GTIN (EAN): 4069025124449
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10960 | 61W | 181lm/W | ON/OFF Multilumen | -35..+40°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811MV4A5C2 GTIN (EAN): 4069025509505
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10960 | 61W | 181lm/W | ON/OFF Multilumen | -35..+40°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V68XC2 GTIN (EAN): 4069025124265
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8340 | 48W | 174lm/W | ON/OFF | -35..+45°C | 1535 | white | 1.7 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV475C2 GTIN (EAN): 4069025185839
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7600 | 41 | 48 | 188lm/W | ON/OFF Multilumen, CLOi | -35..+50°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV49XC2 GTIN (EAN): 4069025124289
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9240 | 50 | 61 | 185lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4DXD2 GTIN (EAN): 4069025124302
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13040 | 69 | 82 | 190lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV675C2 GTIN (EAN): 4069025185877
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 7670 | 42 | 50 | 182lm/W | ON/OFF Multilumen, CLOi | -35..+50°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6A5D2 GTIN (EAN): 4069025185891
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 10550 | 57 | 68 | 187lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6C5D2 GTIN (EAN): 4069025124340
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 12660 | 69 | 82 | 185lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4A5C2 GTIN (EAN): 4069025124371
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 61W | 177lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6A5C2 GTIN (EAN): 4069025124401
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 10550 | 61W | 172lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4CXD2 GTIN (EAN): 4069025185945
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 12350 | 65W | 191lm/W | ON/OFF Multilumen | -35..+40°C | 1535 | white | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4FXD2 GTIN (EAN): 4069025124470
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15440 | 82W | 188lm/W | ON/OFF Multilumen | -35..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4A5C2 GTIN (EAN): 4069025124203
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 61W | 177lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4D5D2 GTIN (EAN): 4069025124227
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 75W | 183lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811MV6A5C2 GTIN (EAN): 4069025664839
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 10390 | 61W | 172lm/W | ON/OFF Multilumen | -35..+40°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4A5D2 GTIN (EAN): 4069025185853
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10570 | 55 | 65 | 193lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV47XC2 GTIN (EAN): 4069025841889
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7000 | 38W | 184lm/W | DALI 2 | -25..+45°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4A5C23SL3 GTIN (EAN): 4069025254771
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 65W | 167lm/W | DALI 2 | 3h | +5..+35°C | 1535 | white | 2.3 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4D5D2 GTIN (EAN): 4069025124388
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 75W | 183lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4D5D23SL3 GTIN (EAN): 4069025254795
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 79W | 174lm/W | DALI 2 | 3h | +5..+35°C | 1535 | white | 2.3 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6DXD2 GTIN (EAN): 4069025124425
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 13280 | 75W | 177lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4A5C2 GTIN (EAN): 4069025124487
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10610 | 61W | 173lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Delivery time on request
DUS 31, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4DXD2 GTIN (EAN): 4069025124500
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13370 | 75W | 178lm/W | DALI 2 | -25..+35°C | 1535 | white | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V485C2GTIN (EAN): 4069025124241
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8590 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 179lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -35..+45°C |

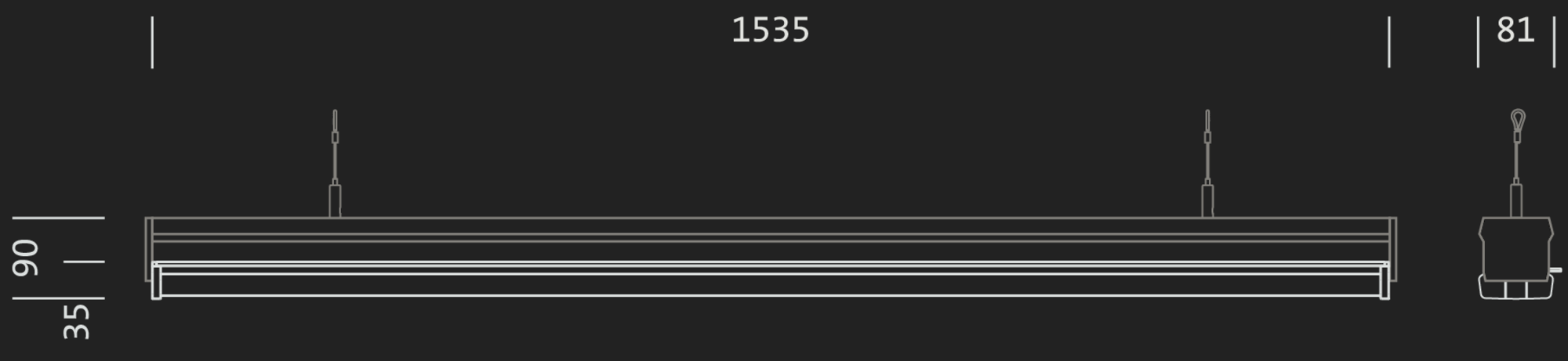

| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV685C2GTIN (EAN): 4069025124326
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8970 |
| Connected load | |
| Pnom (W) begin service life | 50 |
| Pnom (W) end service life | 61 |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV485C2GTIN (EAN): 4069025185914
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8950 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 186lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+50°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available from stock
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4A5C2GTIN (EAN): 4069025124449
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10960 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811MV4A5C2GTIN (EAN): 4069025509505
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10960 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V68XC2GTIN (EAN): 4069025124265
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8340 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -35..+45°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.7 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV475C2GTIN (EAN): 4069025185839
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7600 |
| Connected load | |
| Pnom (W) begin service life | 41 |
| Pnom (W) end service life | 48 |
| Luminous efficacy | 188lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+50°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV49XC2GTIN (EAN): 4069025124289
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 9240 |
| Connected load | |
| Pnom (W) begin service life | 50 |
| Pnom (W) end service life | 61 |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4DXD2GTIN (EAN): 4069025124302
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13040 |
| Connected load | |
| Pnom (W) begin service life | 69 |
| Pnom (W) end service life | 82 |
| Luminous efficacy | 190lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV675C2GTIN (EAN): 4069025185877
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7670 |
| Connected load | |
| Pnom (W) begin service life | 42 |
| Pnom (W) end service life | 50 |
| Luminous efficacy | 182lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+50°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6A5D2GTIN (EAN): 4069025185891
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10550 |
| Connected load | |
| Pnom (W) begin service life | 57 |
| Pnom (W) end service life | 68 |
| Luminous efficacy | 187lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6C5D2GTIN (EAN): 4069025124340
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 12660 |
| Connected load | |
| Pnom (W) begin service life | 69 |
| Pnom (W) end service life | 82 |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4A5C2GTIN (EAN): 4069025124371
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6A5C2GTIN (EAN): 4069025124401
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10550 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 172lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4CXD2GTIN (EAN): 4069025185945
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 12350 |
| Connected load | 65W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 191lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Available approx. 15-20 working days from order
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4FXD2GTIN (EAN): 4069025124470
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15440 |
| Connected load | 82W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 188lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4A5C2GTIN (EAN): 4069025124203
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4D5D2GTIN (EAN): 4069025124227
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 183lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric narrow distribution, IP20, AC
Order No.: 53BD811MV6A5C2GTIN (EAN): 4069025664839
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10390 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 172lm/W |
| Control | ON/OFF Multilumen |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4A5D2GTIN (EAN): 4069025185853
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10570 |
| Connected load | |
| Pnom (W) begin service life | 55 |
| Pnom (W) end service life | 65 |
| Luminous efficacy | 193lm/W |
| Control | ON/OFF Multilumen, CLOi |
| Battery duration | |
| ta | -35..+40°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV47XC2GTIN (EAN): 4069025841889
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7000 |
| Connected load | 38W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 184lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+45°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4A5C23SL3GTIN (EAN): 4069025254771
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 65W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 167lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 2.3 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4D5D2GTIN (EAN): 4069025124388
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 183lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4D5D23SL3GTIN (EAN): 4069025254795
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 79W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 2.3 |
Delivery time on request
DUS 31, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6DXD2GTIN (EAN): 4069025124425
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13280 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4A5C2GTIN (EAN): 4069025124487
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10610 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 173lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Delivery time on request
DUS 31, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4DXD2GTIN (EAN): 4069025124500
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13370 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 1535 |
| Colour | white |
| Wt. (kg) | 1.8 |
Optional accessories
| Order No.: 5TP9018GTIN (EAN): 4058352076842 | Show all details |
