51FD20MD430A

Order No.: 51FD20MD430A
Remember articleRemember article

Article damp-proof luminaire
Product name Monsun 31
Lamp LED
Rated luminous flux 2510lm
Luminous efficacy 167lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 15W
Service life 70000h (L85) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 1.0kg

Monsun 31, damp-proof luminaire, primary optical cover: diffuser, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 2.510lm, luminous efficacy: 167lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 15W, housing, of PC, matt metallic grey (RAL 9006), with mounting bracket, length: 600mm, width: 95mm, height: 80mm, clip for enclosure, of spring steel V2A, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type damp-proof luminaire
Product name Monsun 31
Order No. 51FD20MD430A

Lighting technology

Cover diffuser, frosted
Beam angle diffuse distribution
Symmetry symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 2510lm
Luminous efficacy 167lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 15W
Supplement prepared for through-wiring, luminous flux adjustable on luminaire in 4 steps (2020/2510/3060/3530lm), connected load according to luminous flux setting (12/15/18/21W)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Certification, designation CE, UKCA

Material, Colour

housing PC, matt metallic grey (RAL 9006), with mounting bracket
Colour specification matt metallic grey (RAL 9006)
clip for enclosure spring steel V2A
Cover diffuser of PC

Mounting

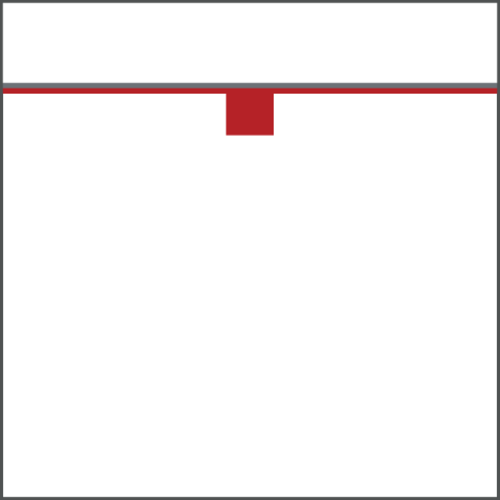

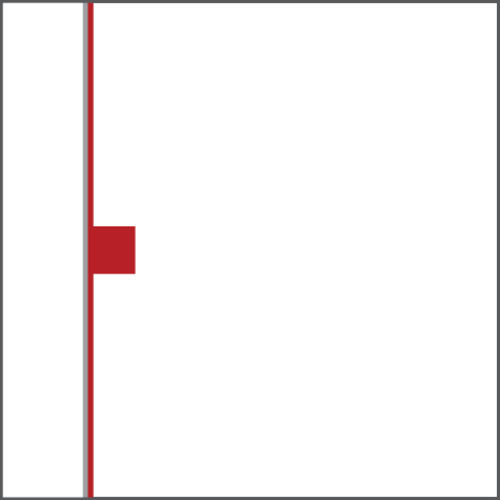

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

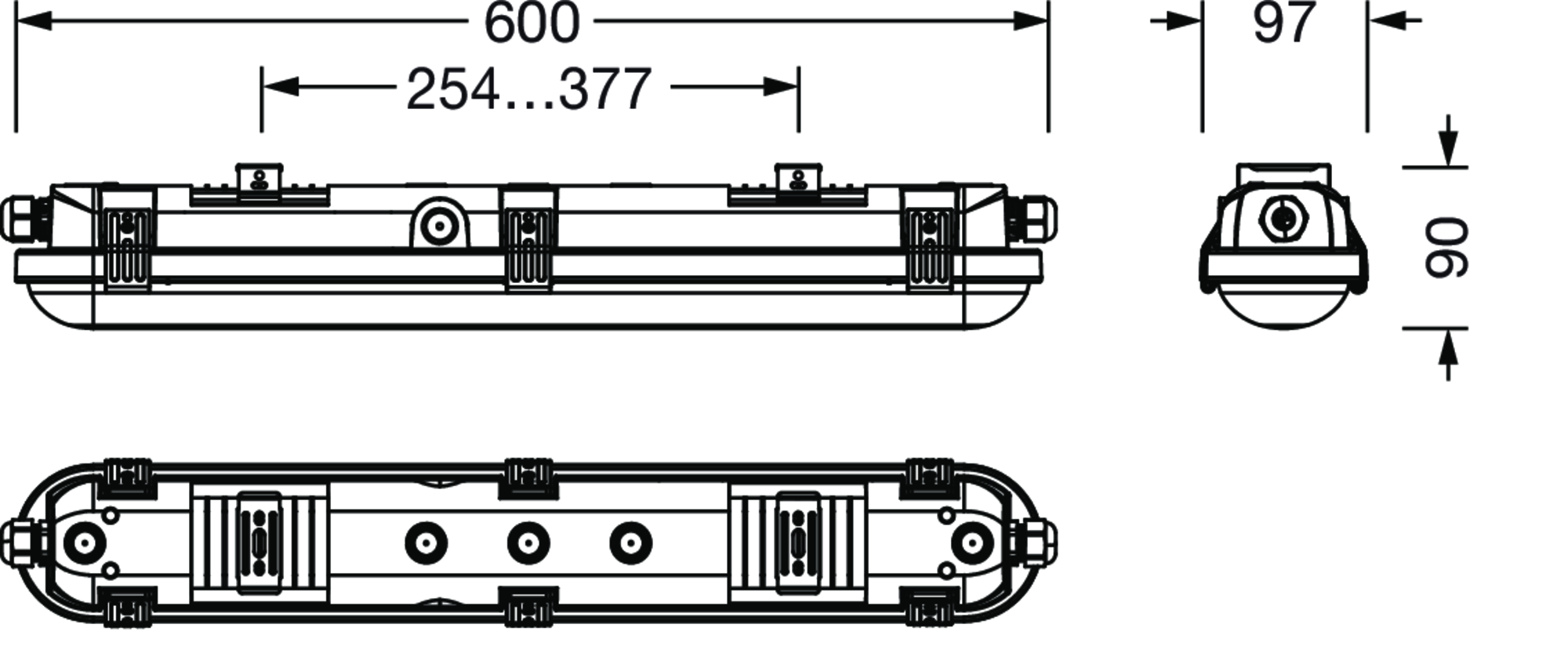

Dimensions, Weight

Length 600mm
Width 95mm
Height 80mm
Weight 1.0kg

Service life

Rated service life 70000h (L85) at AT = 25°C

Product type
damp-proof luminaire

Product name
Monsun 31

Order No.
51FD20MD430A

Cover
diffuser, frosted

Beam angle
diffuse distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
2510lm

Luminous efficacy
167lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
15W

Supplement
prepared for through-wiring, luminous flux adjustable on luminaire in 4 steps (2020/2510/3060/3530lm), connected load according to luminous flux setting (12/15/18/21W)

Control
ON/OFF Multilumen

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Certification, designation
CE, UKCA

housing
PC, matt metallic grey (RAL 9006), with mounting bracket

Colour specification
matt metallic grey (RAL 9006)

clip for enclosure
spring steel V2A

Cover
diffuser of PC

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
600mm

Width
95mm

Height
80mm

Weight
1.0kg

Rated service life
70000h (L85) at AT = 25°C

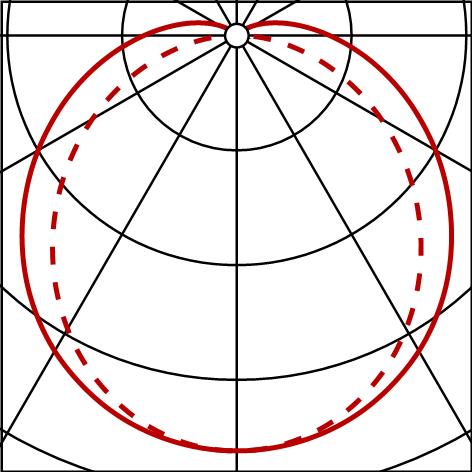

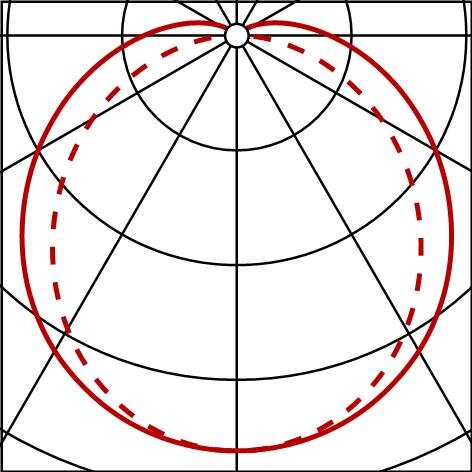

Photometric report / planning data

Monsun 31
LED, diffuser, surface-mounted, L= 600mm
Lamps: 1x LED
Order No.: 51FD20MD430A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
