Key data

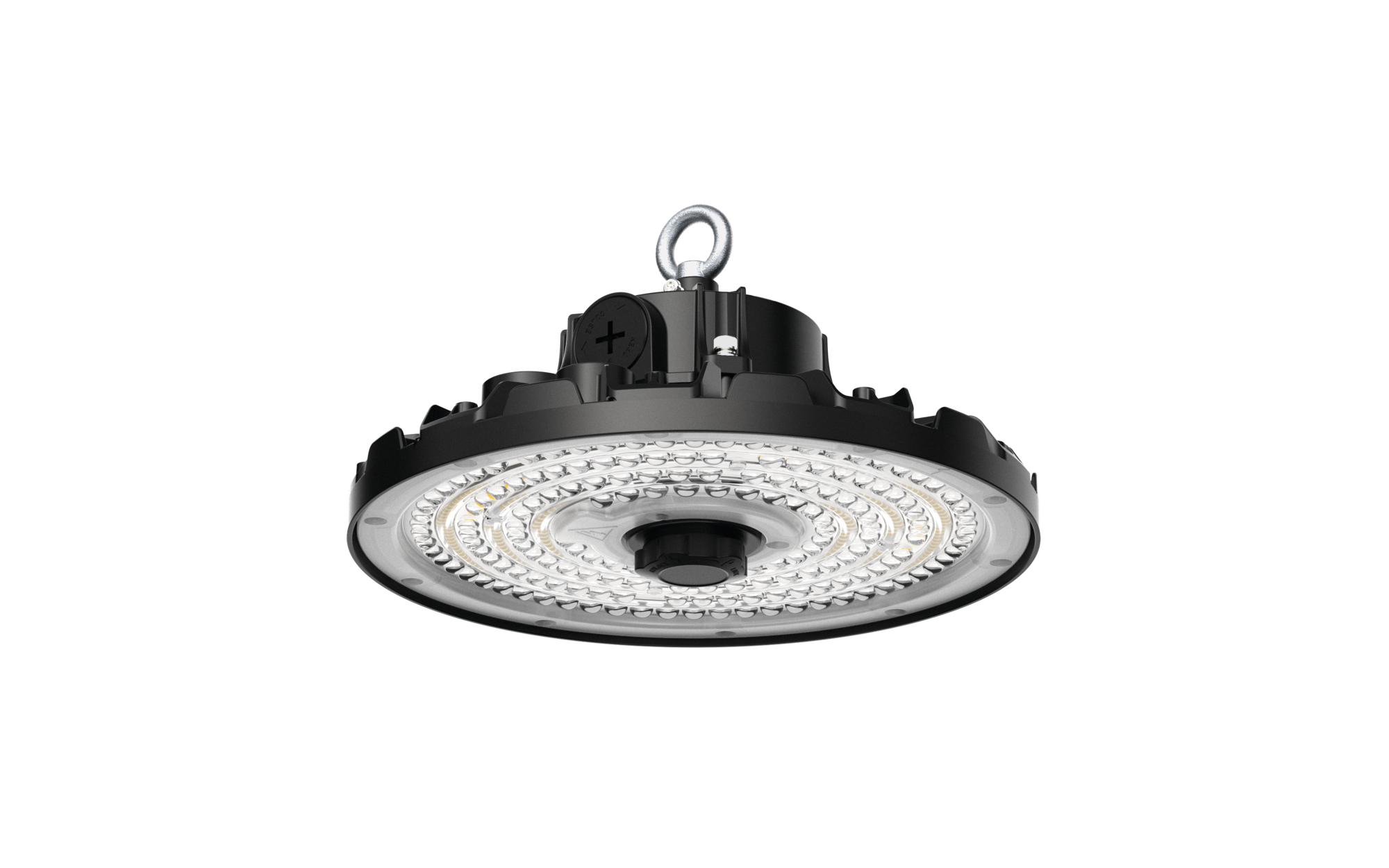

Product type high bay luminaire
Product name Highbay 41-S
Order No. 51HD3XMAMH0A

Lighting technology

Light control lens of PC
Cover cover panel, transparent

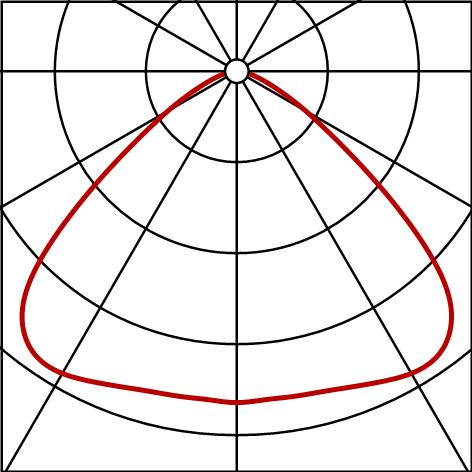

Beam angle wide distribution, 90°
Symmetry rotationally symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≥ 25
UGR viewing direction along lateral luminaire axis ≥ 25

Lamps

Lamps with LED
Rated luminous flux 14000lm
Luminous efficacy 170lm/W
Colour temperature 4000/5000/6500K
Colour rendering index CRI > 80
Light colour 840/850/865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 82W

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP65
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -25..+45°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Certification, designation CE, UKCA

Material, Colour

housing diecast aluminium, traffic black (RAL 9017), rotationally symmetric, with hook on luminaire side
Quantity 1 piece
Cover cover panel of PC

Mounting

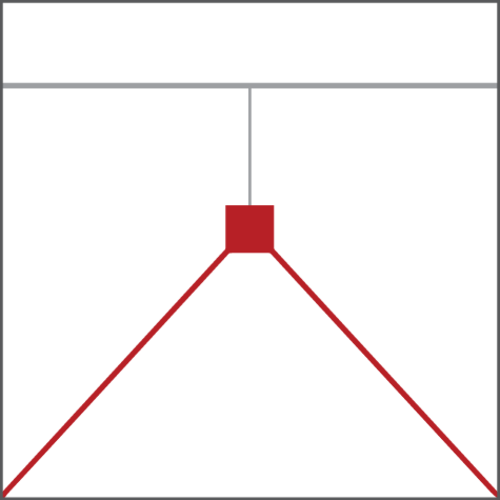

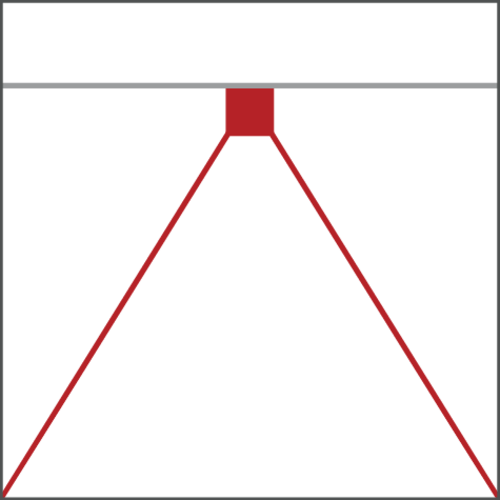

Mounting method, mounting location suspended mounting, surface-mounted, to mounting bracket, to the chain, to the ceiling / to the wall
Mounting height 6..20m
Arrangement single arrangement
Supplement only suitable for use in indoor areas, mounting accessories required, please order separately

Electrical connection

Connection cable, 3x 1.0mm², free wire ends
Nominal voltage 220..240V, 50Hz, AC

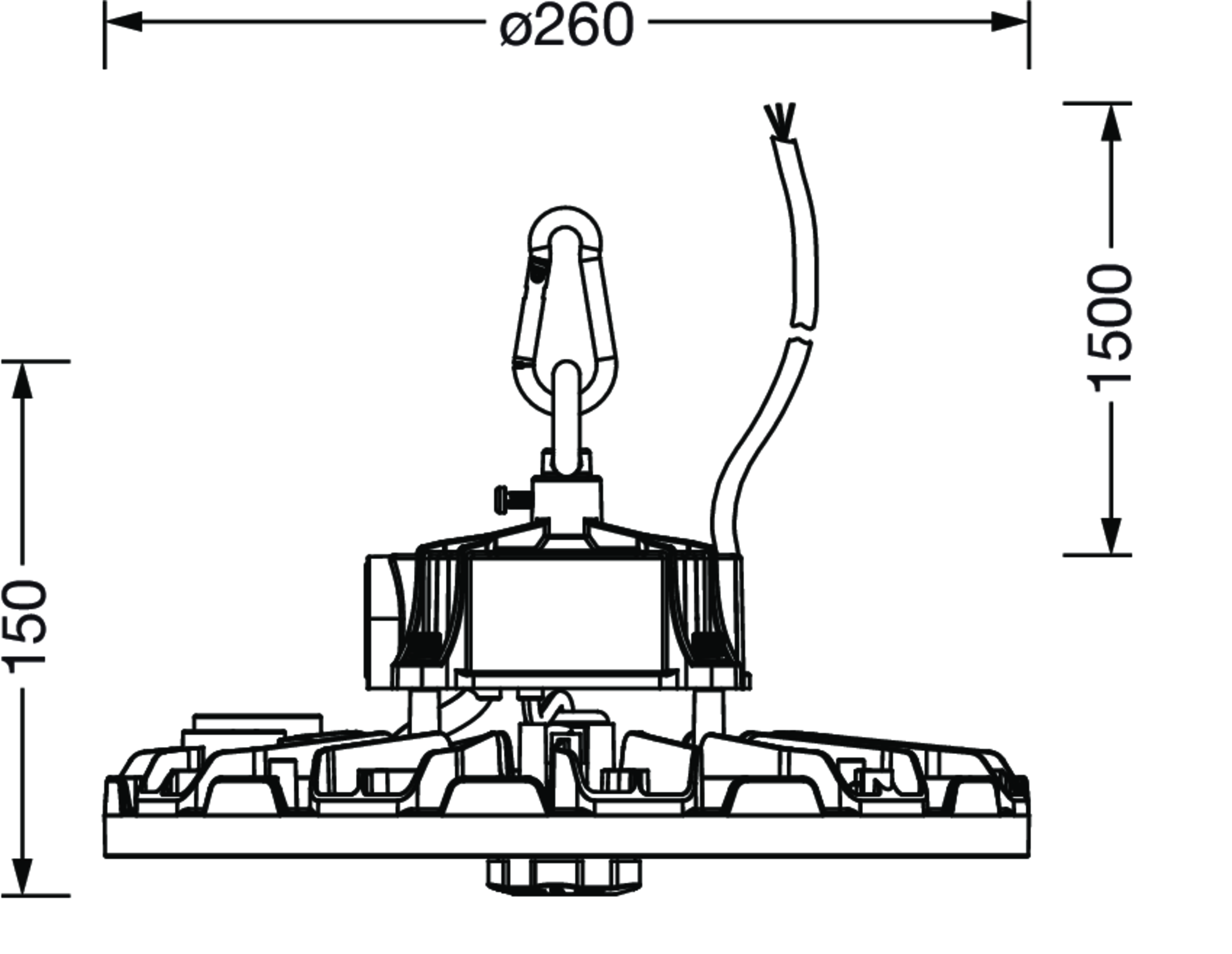

Dimensions, Weight

Diameter 260mm
Height 114mm
Weight 1.9kg

Service life

Rated service life 60000h (L85) at AT = 25°C
