51HD3XMBMN0A

Order No.: 51HD3XMBMN0A

Remember article Remember article

Article high bay luminaire
Product name Highbay 41-L
Lamp LED
Rated luminous flux 28000lm
Luminous efficacy 170lm/W
Colour temperature 4000/5000/6500K
Colour rendering CRI > 80
Rated input power 165W
Service life 60000h (L85) at AT = 25°C
Protection rating IP65
Impact resistance IK08
Weight 2.4kg

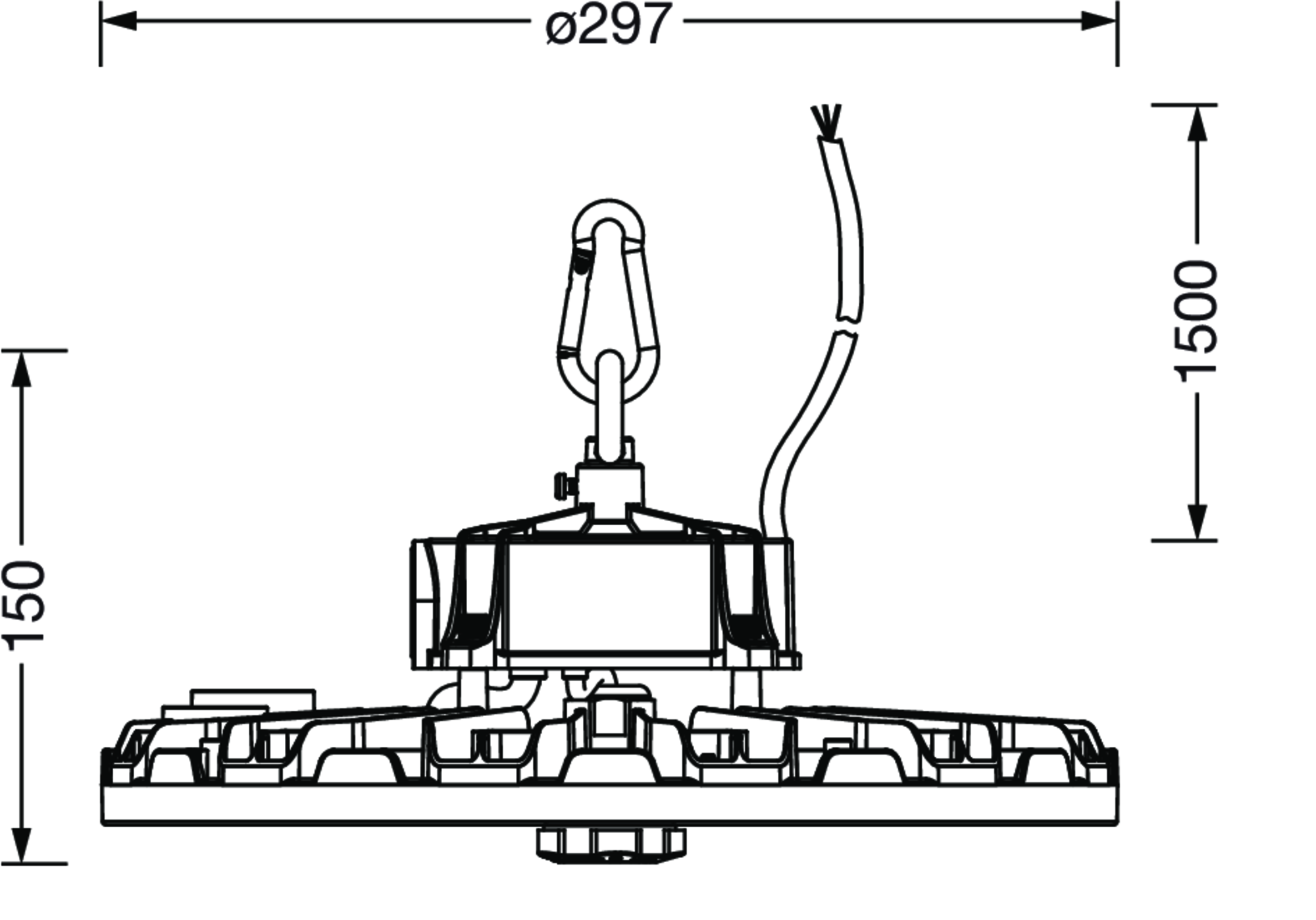

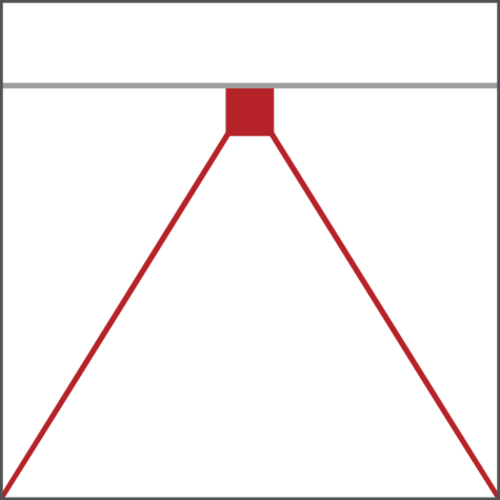

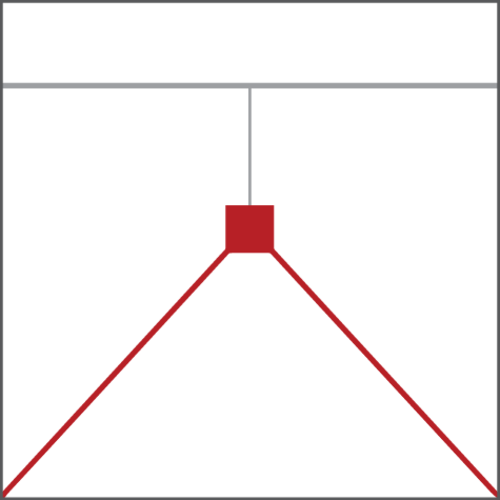

Highbay 41-L, high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 28.000lm, luminous efficacy: 170lm/W, light colour: 840/850/865, colour temperature: 4000/5000/6500K, control gear: ON/OFF Multilumen, with cable, 3x 1.0mm², free wire ends, mains connection: 220..240V, AC, 50Hz, cable length: 1,5m, rated input power: 165W, housing, rotationally symmetric, of diecast aluminium, traffic black (RAL 9017), with hook on luminaire side, diameter: 297mm, height: 114mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -25..+45°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

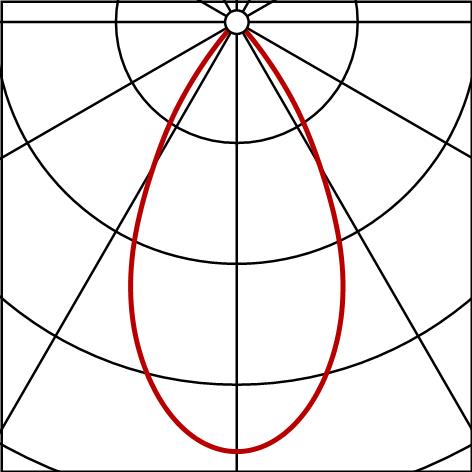

Photometric report / planning data

HB41L
rot.sym,wd,90°,31960lm840/850/865

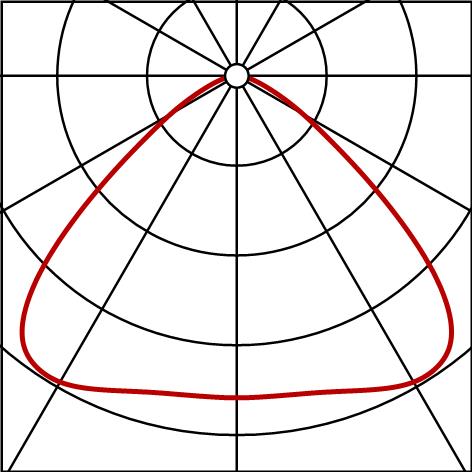

Lamps: LED 6500K / CRI >= 80, individual setting: extremely wide distribution, Lumen Max.
Order No.: 51HD3XMBMN0A

Photometric report (PDF)

Product versions/accessory
