51MX21DA44SB
Article office luminaire
Product name Silica 21
Lamp LED
Rated luminous flux 4320lm
Luminous efficacy 169lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 25.6W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 3.0kg

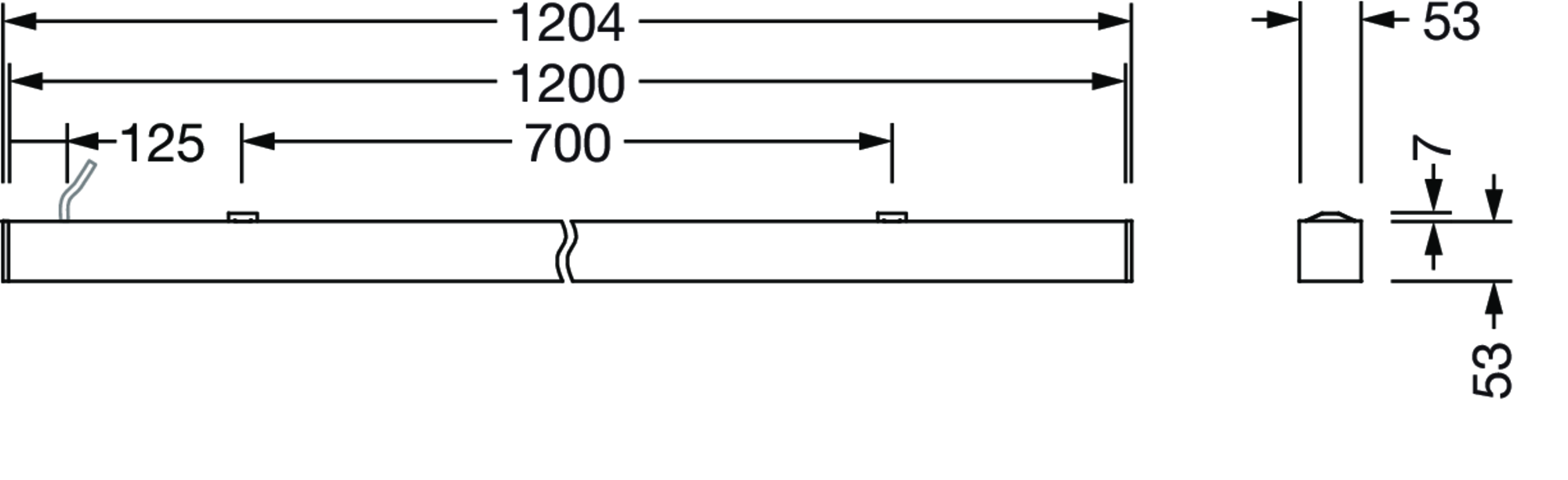

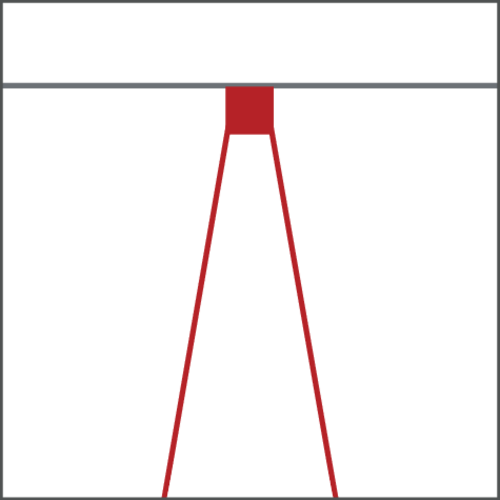

Silica 21, office luminaire, primary light control with darklight reflector, of PMMA, black, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.320lm, luminous efficacy: 169lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 25.6W, luminaire housing, of aluminium, metallic grey (RAL 9006), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

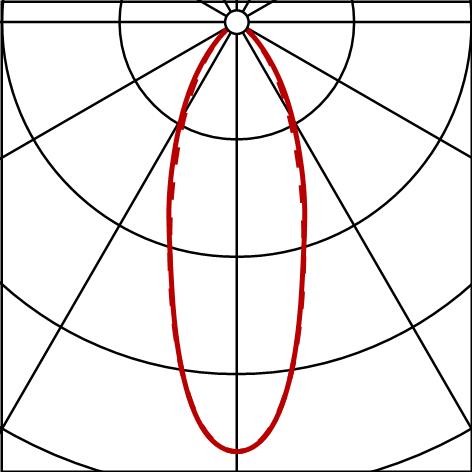

Photometric report / planning data
Silica 21
office luminaire, metallic grey (RAL 9006), DALI 2, 4320lm, 840, 1204x53mm, Connection: terminal
Lamps: 1x LED
Order No.: 51MX21DA44SB
