51TE12DV475GD

Order No.: 51TE12DV475GD
Remember articleRemember article

Article luminaire insert
Product name Licross 11 Recessed MO
Lamp LED
Rated luminous flux 7640lm
Luminous efficacy 191lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 40W
Service life 100000h (L90) at AT = ta max, 100000h (L95) at AT = 25°C
Protection rating IP54
Impact resistance IK06
Weight 2.5kg

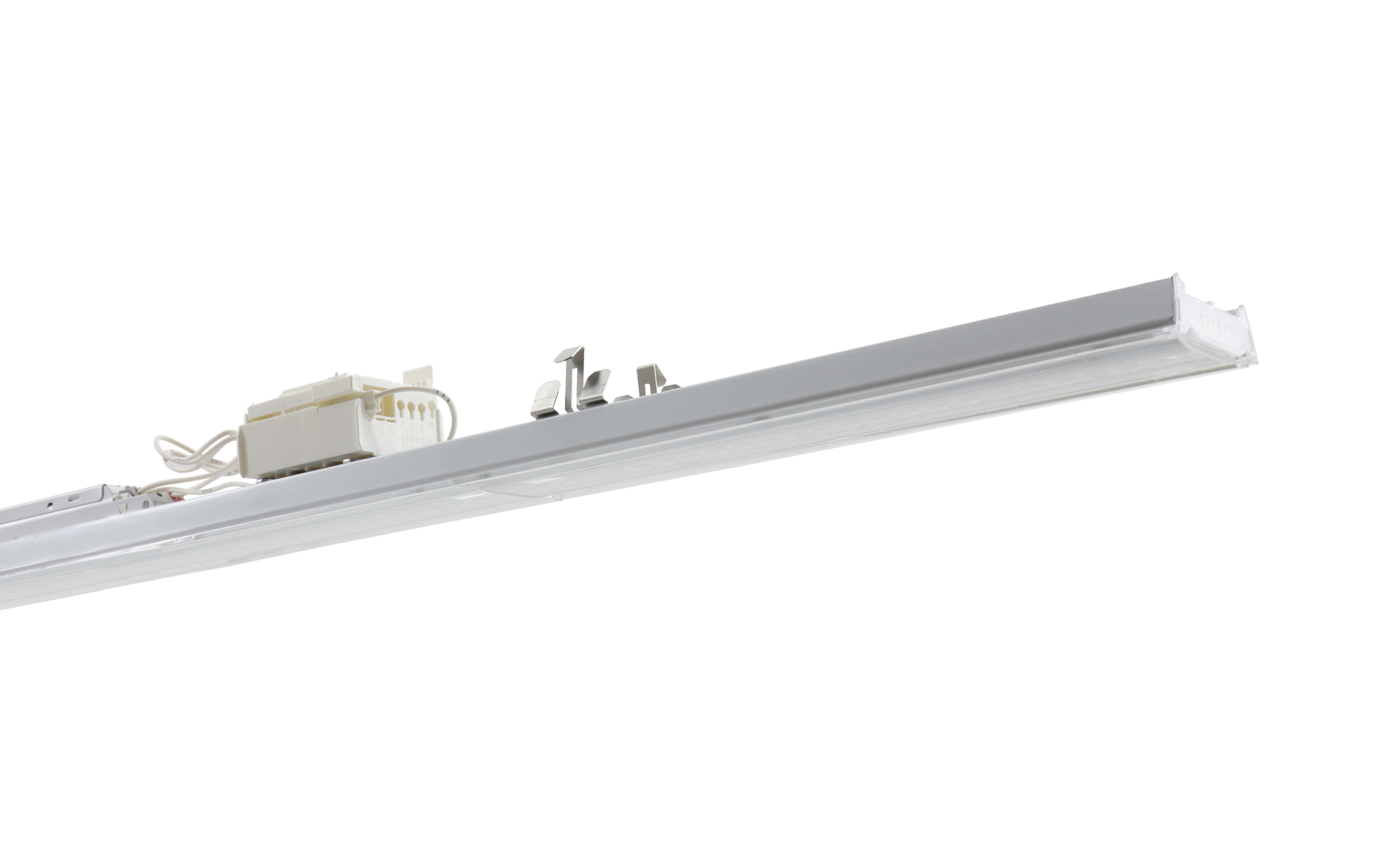

Licross 11 Recessed MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 2.250mm, width: 66mm, height: 67mm, LED rated luminous flux: 7.640lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 2 SDCM (initial), control gear: DALI 2, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 40W, internal wiring halogen-free, for central battery installations according to EN 60598-2-22, without changeover relay, for emergency light function, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP54, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+45°C, standard: EN 60598-2-22, LABS conformity tested according to VDMA 24364:2018-05, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Licross 11 Recessed MO
Order No. 51TE12DV475GD

Lighting technology

Cover cover
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 7640lm
Luminous efficacy 191lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 40W
Supplement without changeover relay, for emergency light function, for central battery installations according to EN 60598-2-22, internal wiring halogen-free

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP54
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) -25..+45°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

Licross LED insert sheet steel, galvanised, coil coated, white
Cover cover of PMMA

Mounting

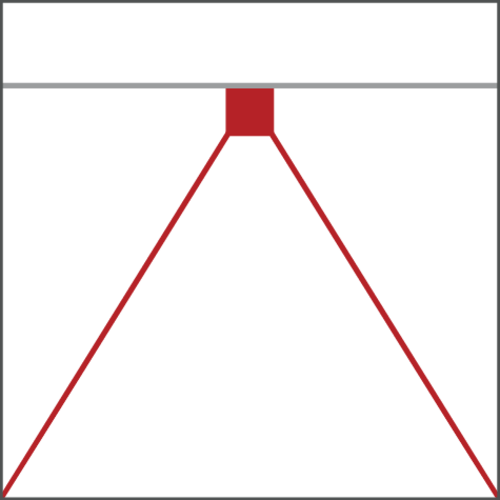

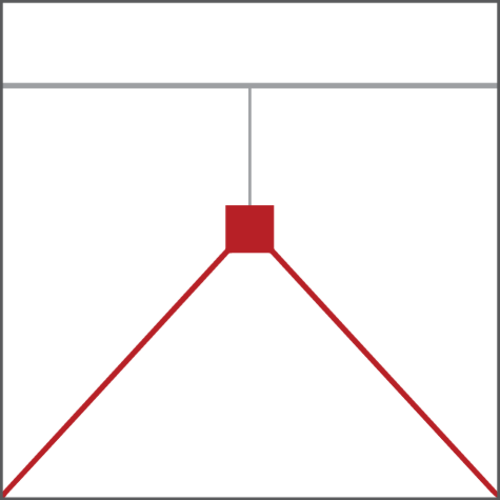

Mounting method, mounting location slip-in mounting, in the Licross trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

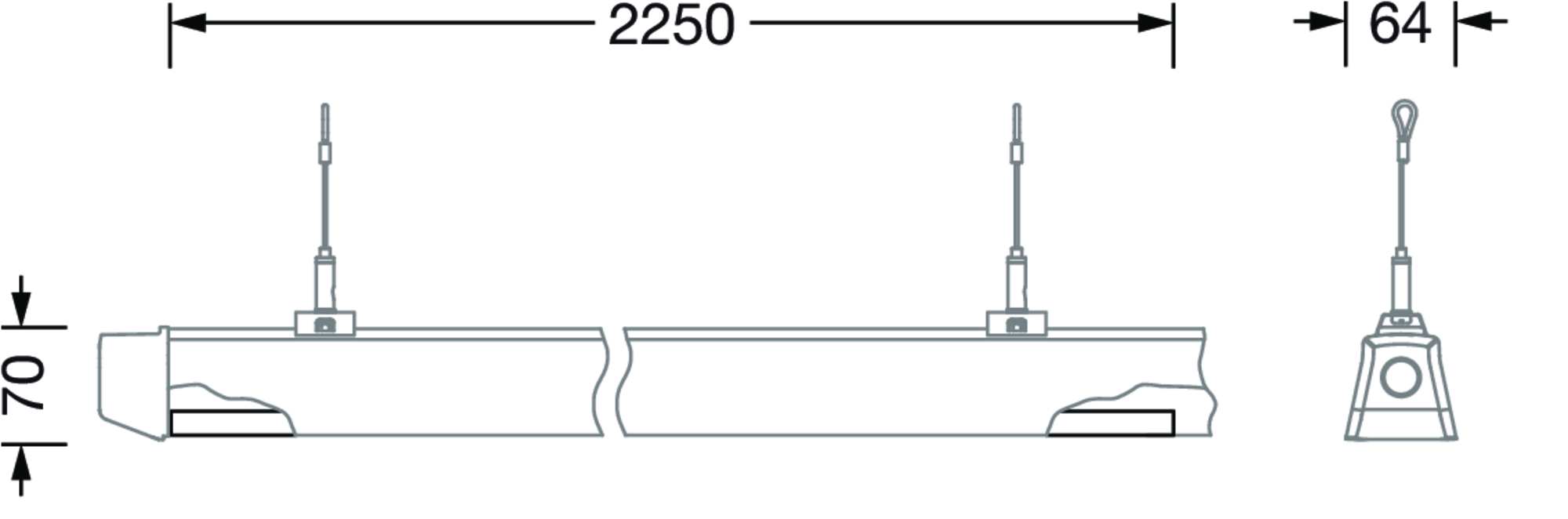

Dimensions, Weight

Length 2250mm
Width 66mm
Height 67mm
Weight 2.5kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

Product type
luminaire insert

Product name
Licross 11 Recessed MO

Order No.
51TE12DV475GD

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
7640lm

Luminous efficacy
191lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
40W

Supplement
without changeover relay, for emergency light function, for central battery installations according to EN 60598-2-22, internal wiring halogen-free

Control
DALI 2

Protection rating
IP54

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with non-conductive dust loads with corresponding accessories

Temperature range (operation)
-25..+45°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, VDE, UKCA

Licross LED insert
sheet steel, galvanised, coil coated, white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
plug, 6-pole, with phase selection

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
2250mm

Width
66mm

Height
67mm

Weight
2.5kg

Rated service life
100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

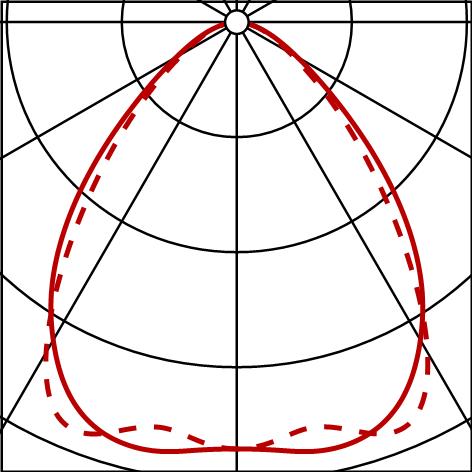

Photometric report / planning data

Lic11Re
wd,7640lm840,DA2,IP54,L2250,wh
Lamps: LED 4000K / CRI >= 80, factory setting AC mode: AC-mode
Order No.: 51TE12DV475GD

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
Product versions/accessory

Lic11Re
Lamps: LED 4000K / CRI >= 80, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
Order No.: 51TE12DV475GD

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
