51WB14MC82B
Article wall and ceiling luminaire
Product name Rondel 21
Lamp LED
Rated luminous flux 1800lm
Luminous efficacy 120lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 15W
Service life 50000h (L80) at AT = 25°C
Protection rating IP40
Impact resistance IK03
Weight 1.3kg

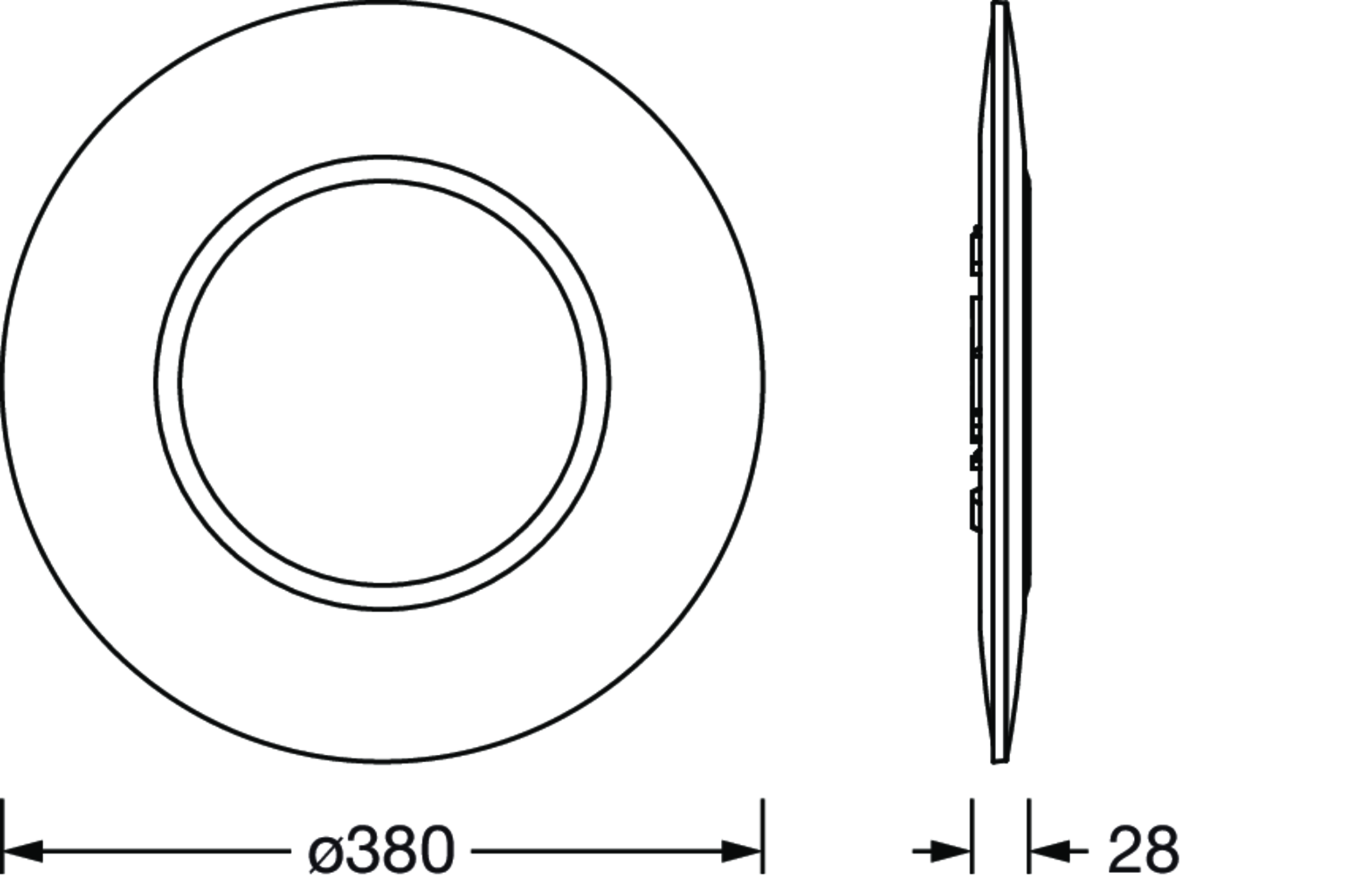

Rondel 21, wall and ceiling luminaire, of PC, opal, light emission: direct distribution, installation type: surface-mounted, LED, rated luminous flux: 1.800lm, luminous efficacy: 120lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 15W, housing, round, of sheet steel, powder-coated, white, diameter: 380mm, height: 28mm, cover, of PC, graphite (RAL 7037), protection rating (complete): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

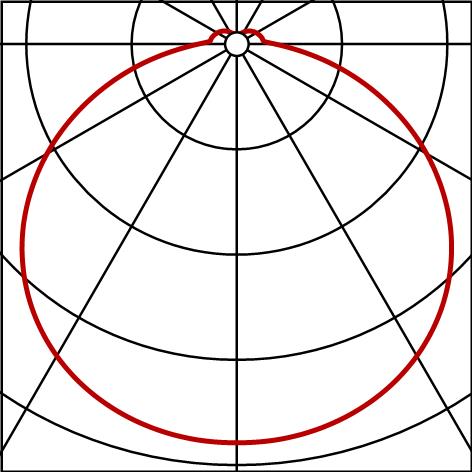

Photometric report / planning data
RON21
1800lm830/840,ML,PC,wh
Lamps: LED 4000K / CRI >= 80, factory setting AC mode: colour temperature 4000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 4000K / CRI >= 80, individual setting: colour temperature 4000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 4000K / CRI >= 80, individual setting: colour temperature 4000K
Order No.: 51WB14MC82B
RON21
Lamps: LED 4000K / CRI >= 80, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
Order No.: 51WB14MC82B
