53BM812DV4A5C2D

Order No.: 53BM812DV4A5C2D
Remember articleRemember article

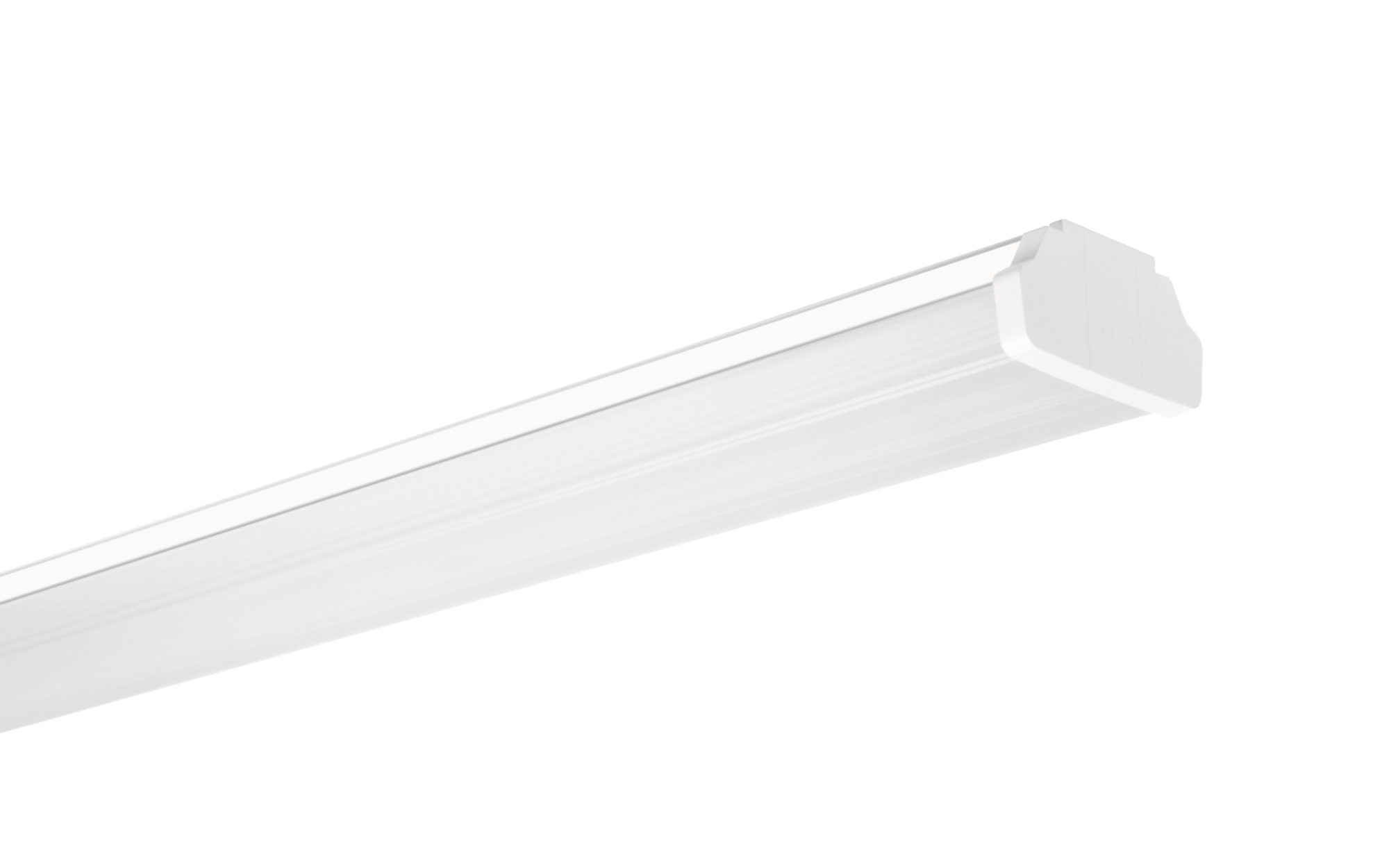

Article luminaire insert
Product name Modario 31 Gen.2
Lamp LED
Rated luminous flux 10860lm
Luminous efficacy 177lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 61W
Service life 70000h (L80) at AT = ta max, 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

Modario 31 Gen.2, luminaire insert, of sheet steel, coil coated, white, length: 1.495mm, width: 81mm, height: 82mm, 5x system unit, system units: 299mm, LED rated luminous flux: 10.860lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: DALI 2, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 61W, for central battery installations according to EN 60598-2-22, for emergency light function, without changeover relay, through-wiring accessed according to module size, for emergency supply 1 (L'/N'), can be replugged to emergency supply 2 (L''/N'') with optional accessory, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -25..+35°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Modario 31 Gen.2
Order No. 53BM812DV4A5C2D

Lighting technology

Cover cover, prismatic structure, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps

Lamps with LED
Rated luminous flux 10860lm
Luminous efficacy 177lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 61W
Supplement without changeover relay, for emergency light function, for central battery installations according to EN 60598-2-22

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment) IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) -25..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

PS LED insert sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario trunking rail
Cover cover of PMMA

Mounting

Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

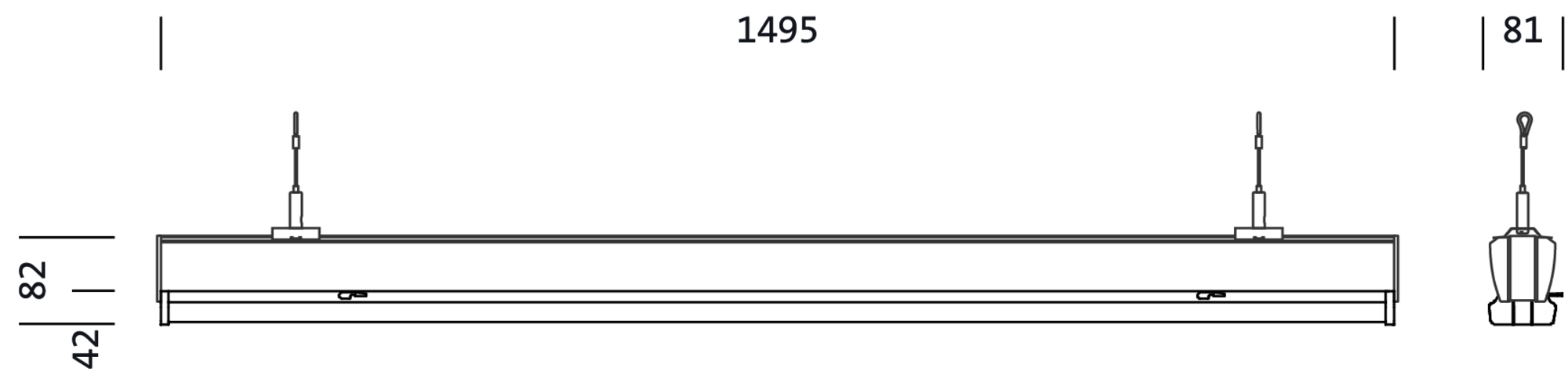

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 81mm
Height 82mm
Weight 2.0kg

Service life

Rated service life 70000h (L80) at AT = 25°C, 70000h (L80) at AT = ta max

Product type
luminaire insert

Product name
Modario 31 Gen.2

Order No.
53BM812DV4A5C2D

Cover
cover, prismatic structure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps
with LED

Rated luminous flux
10860lm

Luminous efficacy
177lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
61W

Supplement
without changeover relay, for emergency light function, for central battery installations according to EN 60598-2-22

Control
DALI 2

Protection rating
IP20

Protection rating (lamp compartment)
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
-25..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, VDE, UKCA

PS LED insert
sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario trunking rail

Cover
cover of PMMA

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
plug, 6-pole, with phase selection

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

System units
5x SE

Length
1495mm

Width
81mm

Height
82mm

Weight
2.0kg

Rated service life
70000h (L80) at AT = 25°C, 70000h (L80) at AT = ta max

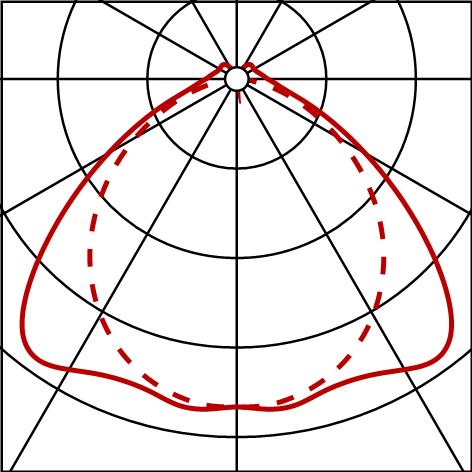

Photometric report / planning data

Mod31G2
LI,wd,10860lm840,DA2,wh,5su
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 53BM812DV4A5C2D

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
Product versions/accessory

Mod31G2
Lamps: 1x LED, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
Order No.: 53BM812DV4A5C2D

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
