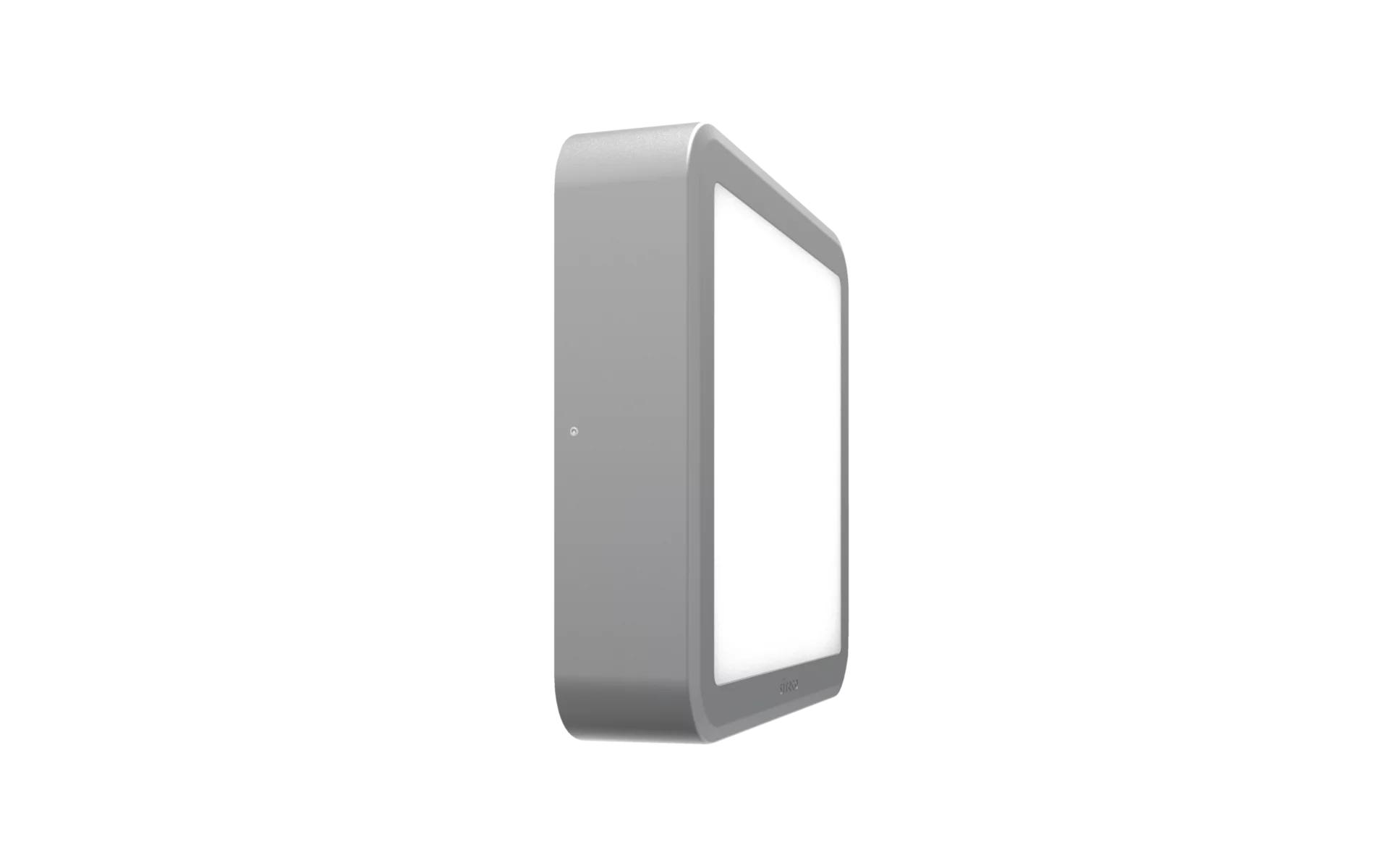

CL 31 Bulkhead
symmetric diffuse distribution, Light colour 830, DALI, square, SITECO metallic grey
Article wall and ceiling luminaire
Product name CL 31 Bulkhead
Lamp LED
Rated luminous flux 1575lm
Luminous efficacy 105lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 15W
Service life 60000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK09
Weight 2.2kg
CL 31 Bulkhead, wall and ceiling luminaire, primary light control with reflector, primary optical cover: cover panel, of PC, opal, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 1.575lm, luminous efficacy: 105lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 15W, luminaire housing, square, of aluminium, powder-coated, SITECO metallic grey, length: 266mm, width: 266mm, height: 63mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -20..+50°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

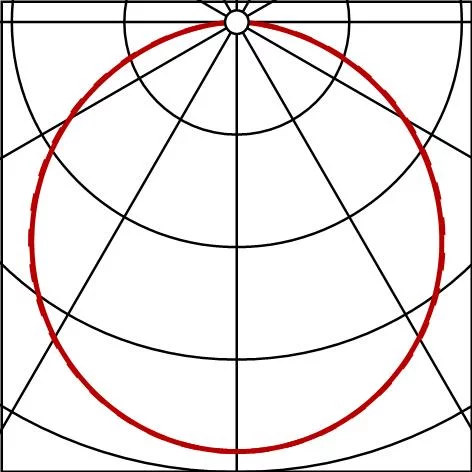

Photometric report / planning data
CL31Bkhd
square,1575lm830,DA
Lamps: LED 3000K / CRI >= 80
Order No.: 5CL761603
