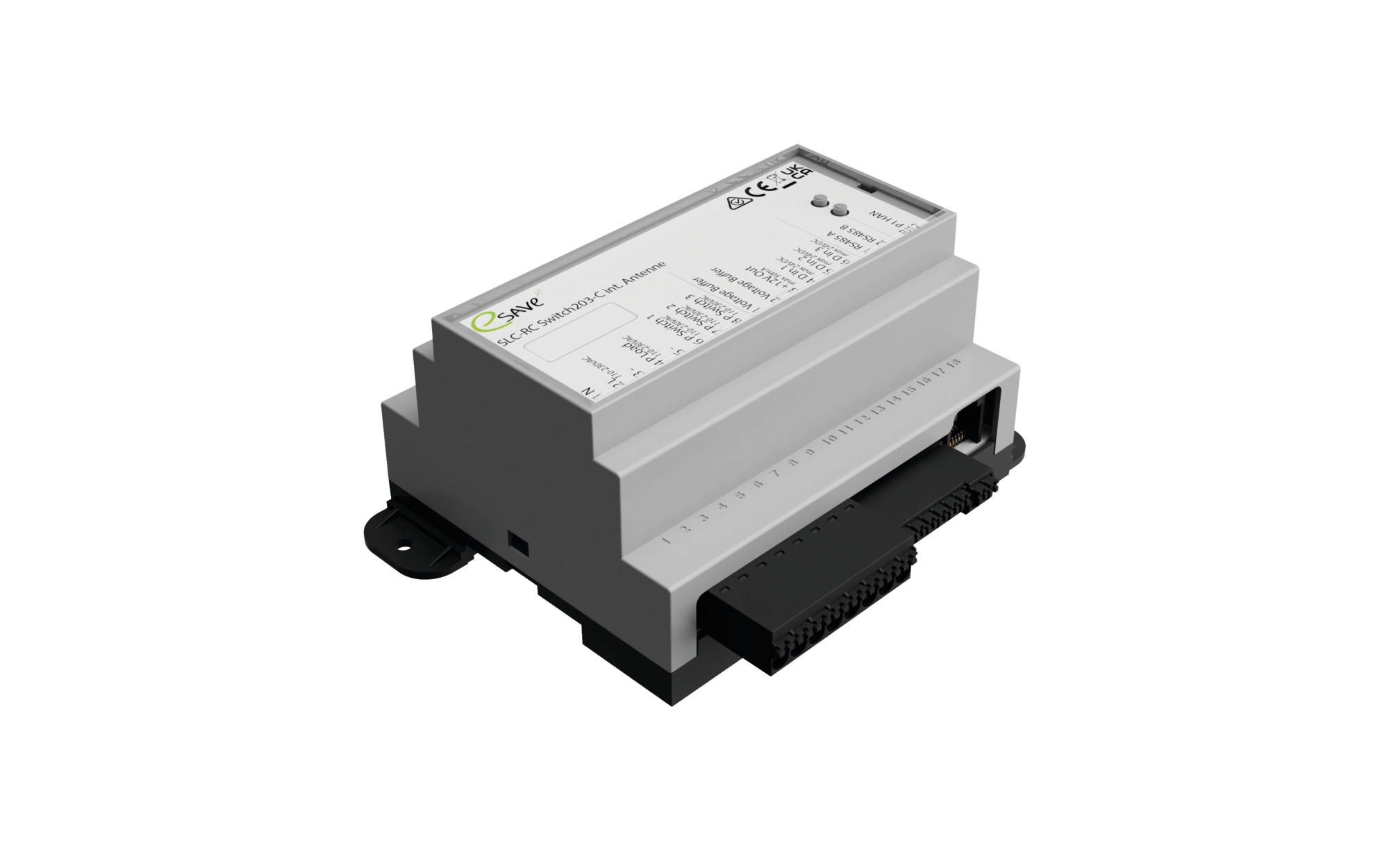

Order No.: 5EA1ECL02

Article control unit
Product name SITECO Connect Wireless
Protection rating IP20
Weight 0.2kg

SITECO Connect WirelessGroup Control LE, control unit, communication: 2.4GHz, 2G, 4G, 5G, LTE Cat M1, NB-IoT NB2, EGPRS, local mesh radio network, RS-485, control: Smart-Wire (control line), optionally via radio push button, with radio clock, digital input, via API, by AstroDim calendar, by weekday, by timer, by time, manual, local setting and operation with smartphone app, local setting and operation with USB stick, remote setup and operation, sensor technology: GALILEO, GLONASS, GNSS, GPS, operation only possible with external antenna, e.g. 5EA1EAT01 or 5EA1EAT02, Usage fees for remote access via web application and mobile network (LTE CAT M1 / ​​NB IoT NB2 / EGPRS) are included in the scope of delivery, amounting to 60 credit points (= 60 months). This individually extendable term begins when the device's QR code is scanned into a system. The credit can then be used by other devices within the system, installation type: DIN rail mounting, installation location: in an electrical distributor, of plastic, voltage: 230V, voltage type: AC, RS-485, 3 x relay contact, protection rating (complete): IP20, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

System family SITECO Connect 31 Wireless
Product type control unit
Product name SITECO Connect Wireless
Order No. 5EA1ECL02


Control


Equipment


Certificates, Standards

Protection rating IP20
Temperature range (operation) -25..+80°C
Certification, designation CE


Material, Colour

housing plastic, grey


Mounting

Mounting method, mounting location DIN rail mounting, in an electrical distributor


Electrical connection

Nominal voltage 230V, 50/60Hz, AC


Dimensions, Weight

Length 70mm
Width 60mm
Height 86mm
Weight 0.2kg

System family
SITECO Connect 31 Wireless

Product type
control unit

Product name
SITECO Connect Wireless

Order No.
5EA1ECL02

Protection rating
IP20

Temperature range (operation)
-25..+80°C

Certification, designation
CE

housing
plastic, grey

Mounting method, mounting location
DIN rail mounting, in an electrical distributor

Nominal voltage
230V, 50/60Hz, AC

Length
70mm

Width
60mm

Height
86mm

Weight
0.2kg
