5EA40TE01

Order No.: 5EA40TE01
Remember articleRemember article

Article sensor
Product name SITECO Connect Wireless
Protection rating IP66
Impact resistance IK07
Weight 0.1kg

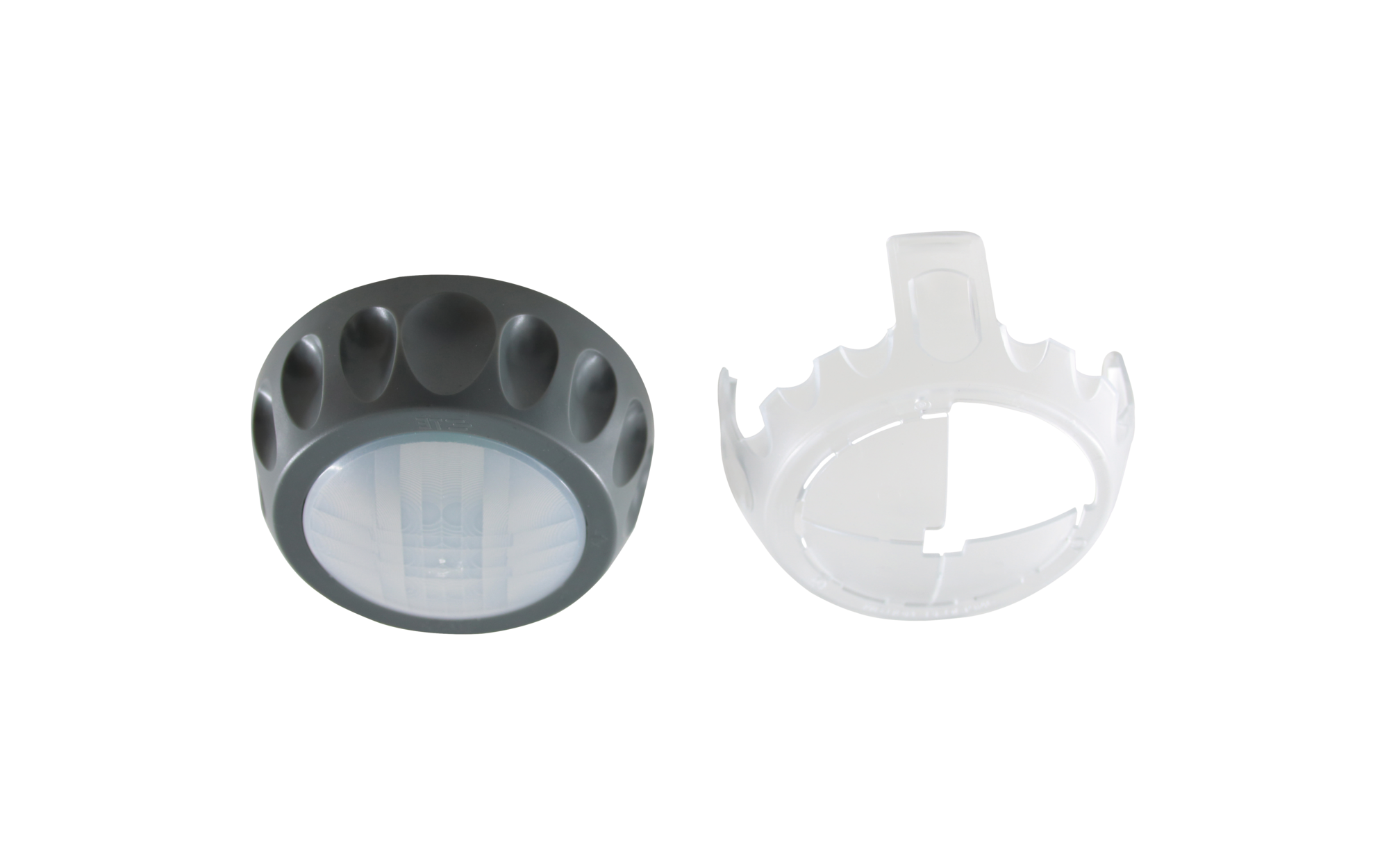

SITECO Connect WirelessMotion Easy, sensor, communication: D4i type B, control: by daylight, by movement, sensor technology: 1 PIR movement sensor, daylight sensor, Smart Interface below, daylight sensor switch-on value 30 lux, switch-off value 30 lux, holding time after motion detection 2 minutes, luminous flux fixed at 20% in idle state and at 100% when motion is detected, installation type: screw fastening, installation location: to the luminaire, of PBT, voltage: 24V, voltage type: DC, PIR movement sensor, protection rating (complete): IP66, certification: CE, UL, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA40TE01

Control

Certificates, Standards

Protection rating IP66
Impact resistance IK07
Temperature range (operation) -40..+65°C
Standard according to Zhaga book 18
Certification, designation CE, UL

Material, Colour

housing PBT, grey

Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 5..8m

Electrical connection

Nominal voltage 24V, DC

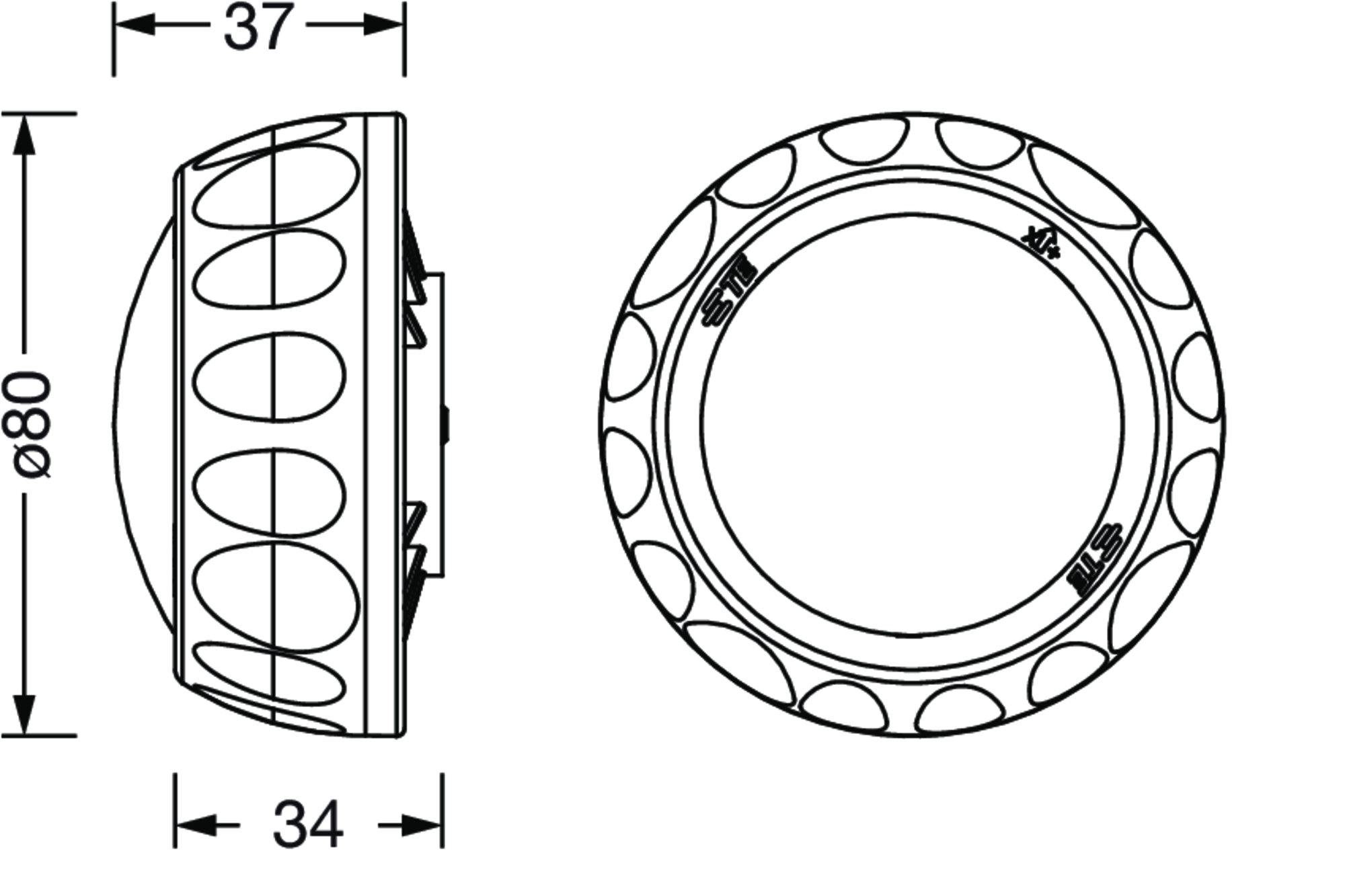

Dimensions, Weight

Weight 0.1kg

Inputs

PIR movement sensor

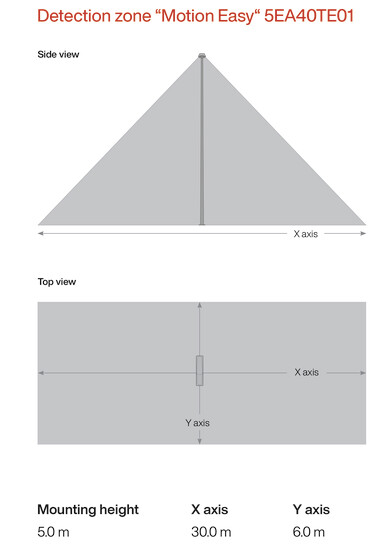

Detection range max. 30x6m
Feature incl. shield for reducing detection area

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA40TE01

Protection rating
IP66

Impact resistance
IK07

Temperature range (operation)
-40..+65°C

Standard
according to Zhaga book 18

Certification, designation
CE, UL

housing
PBT, grey

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
5..8m

Nominal voltage
24V, DC

Weight
0.1kg

PIR movement sensor

Detection range
max. 30x6m

Feature
incl. shield for reducing detection area
