5NW13993QA

Order No.: 5NW13993QA
Remember articleRemember article

Article secondary reflector
Product name SITECO Mirrortec Indoor
Weight 3.0kg

secondary reflector, for SITECO Mirrortec Indoor, wire hanger, housing, square, of aluminium, coated, metallic grey (RAL 9006), fresnel reflector 100, of PMMA, aluminized, highly specular, light point resolution, fresnel structure, length: 600 mm, width: 600 mm

Downloads

Technical product information
Data for applications

Product details

Key data

Product type secondary reflector
Product name SITECO Mirrortec Indoor
Order No. 5NW13993QA

Light control

Glare reduction

Beam angle

Symmetry

Material, Colour

wire hanger aluminium, coated, metallic grey (RAL 9006), square
housing aluminium, coated, metallic grey (RAL 9006), square

Mounting

Mounting method, mounting location suspended mounting, to the ceiling
Arrangement single arrangement

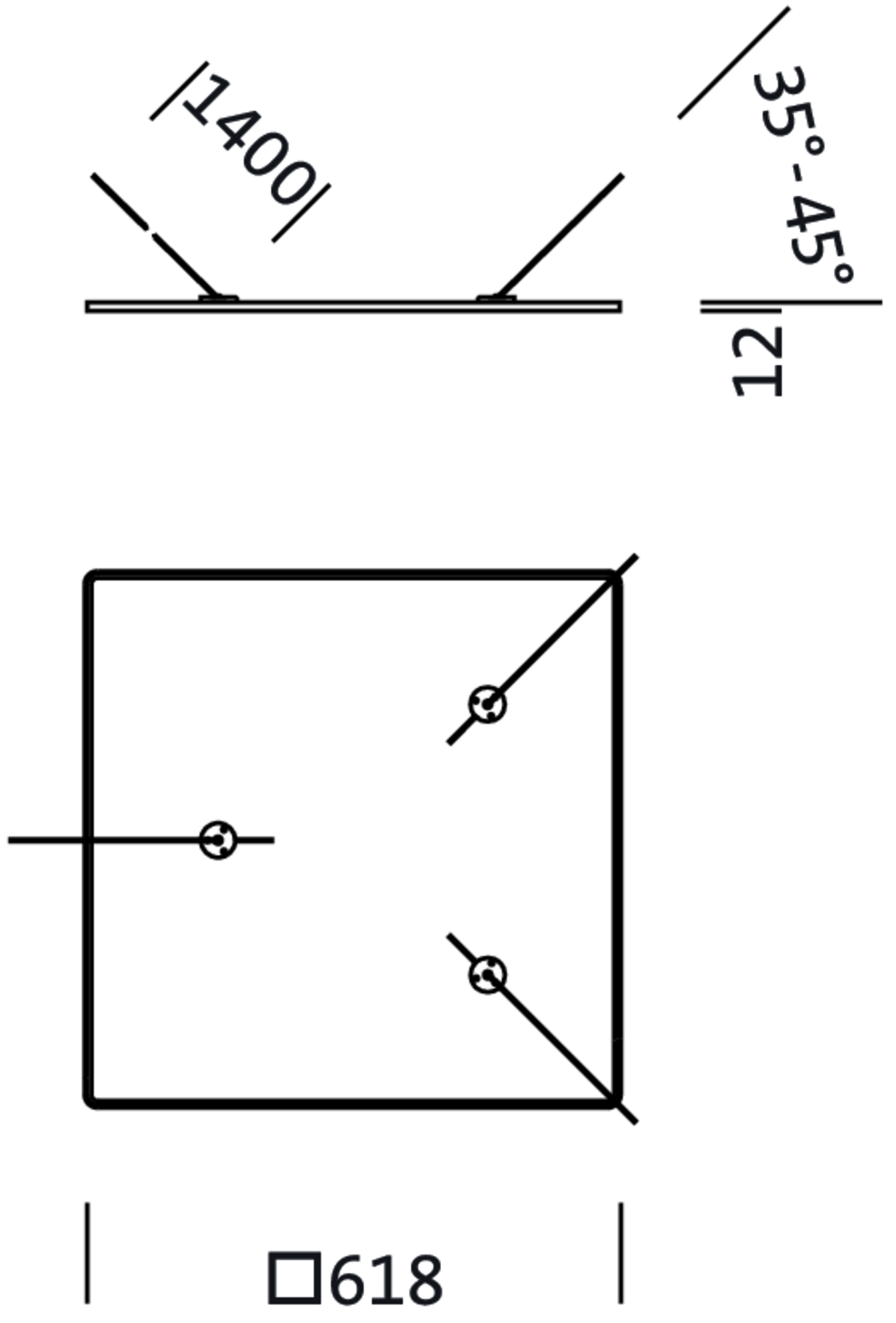

Dimensions, Weight

Length 600mm
Width 600mm
Weight 3.0kg

Product type
secondary reflector

Product name
SITECO Mirrortec Indoor

Order No.
5NW13993QA

wire hanger
aluminium, coated, metallic grey (RAL 9006), square

housing
aluminium, coated, metallic grey (RAL 9006), square

Mounting method, mounting location
suspended mounting, to the ceiling

Arrangement
single arrangement

Length
600mm

Width
600mm

Weight
3.0kg
