5XA5275CF14H

Order No.: 5XA5275CF14H
Remember articleRemember article

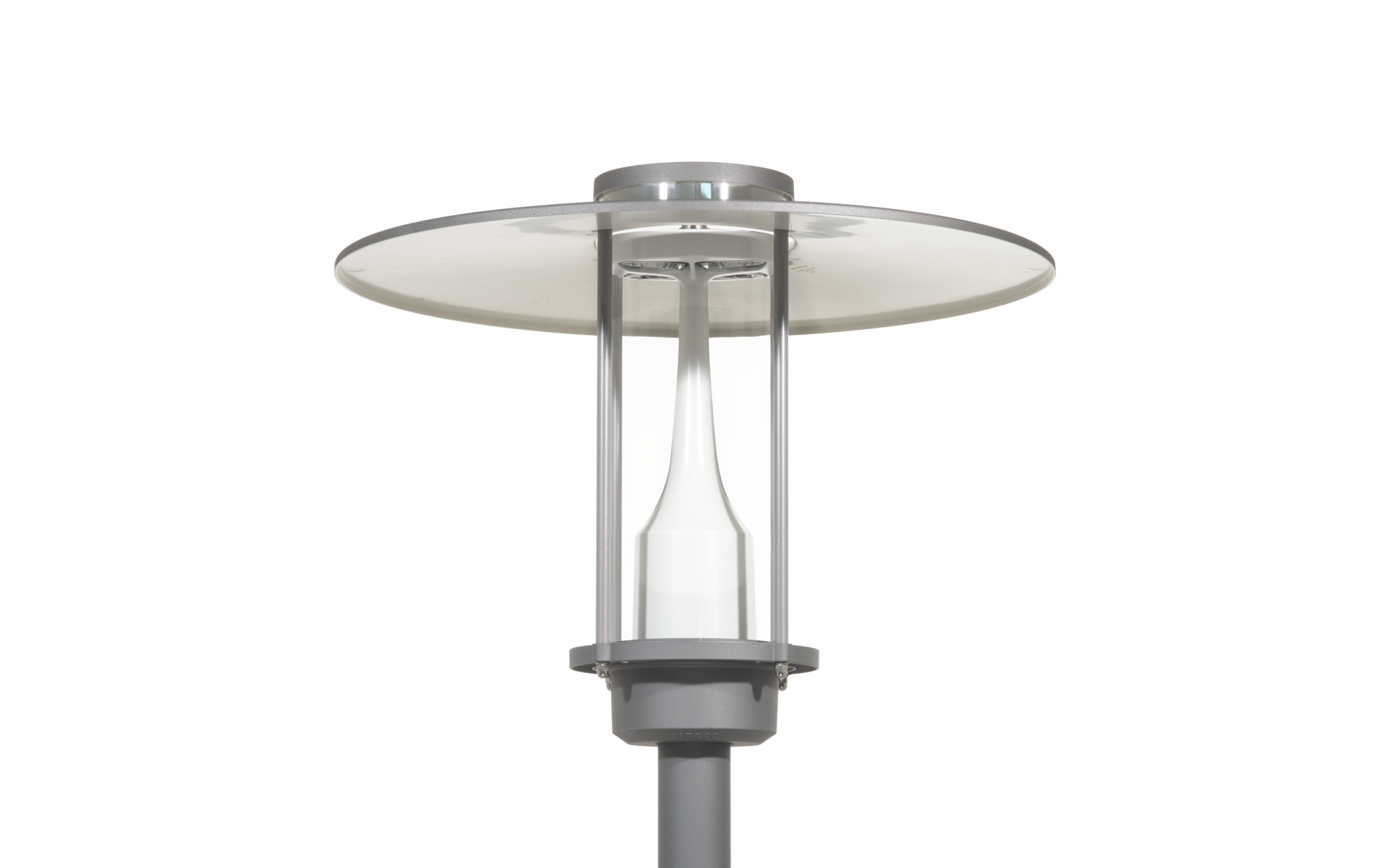

Article mast luminaire
Product name City-Light Plus iQ
Lamp LED
Rated luminous flux 2840lm
Luminous efficacy 118.8lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom 23.9W
Pnom end service life 25.5W
Pred at 50% lumin. flux 11.5W
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 11.0kg

City-Light Plus iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: C120007, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, lamps: LED, rated values: 2.840lm | 23,9W | 118,8lm/W (begin service life); end service life: 2.840lm | 25,5W; at 50% lumin. flux: 1.420lm | 11,5W | 123,5lm/W, colour temperature: 2200K, colour rendering: CRI > 70, light colour: 722, light setting 1 (further light settings possible): 100% | 2.840lm | 23,9W | 118,8lm/W | 2.200K (begin service life); end service life: 25,5W, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, upper part, of glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), diameter: 750mm, height: 590mm, spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm, post-top mast mounting element, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Module 540 iQ-SR, matt traffic white (RAL 9016), equipment: standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name City-Light Plus iQ
Order No. 5XA5275CF14H

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution C120007
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 2840lm | 23.9W | 118.8lm/W (begin service life);
end service life: 2840lm | 25.5W;
at 50% lumin. flux: 1420lm | 11.5W | 123.5lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 2840lm | 23.9W | 118.8lm/W | 2200K
end service life
LS 1: 25.5W
further light settings possible

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing, upper part glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S)
post-top mast mounting element diecast aluminium, coated, SITECO metallic grey (DB 702S)
Module 540 iQ-SR matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

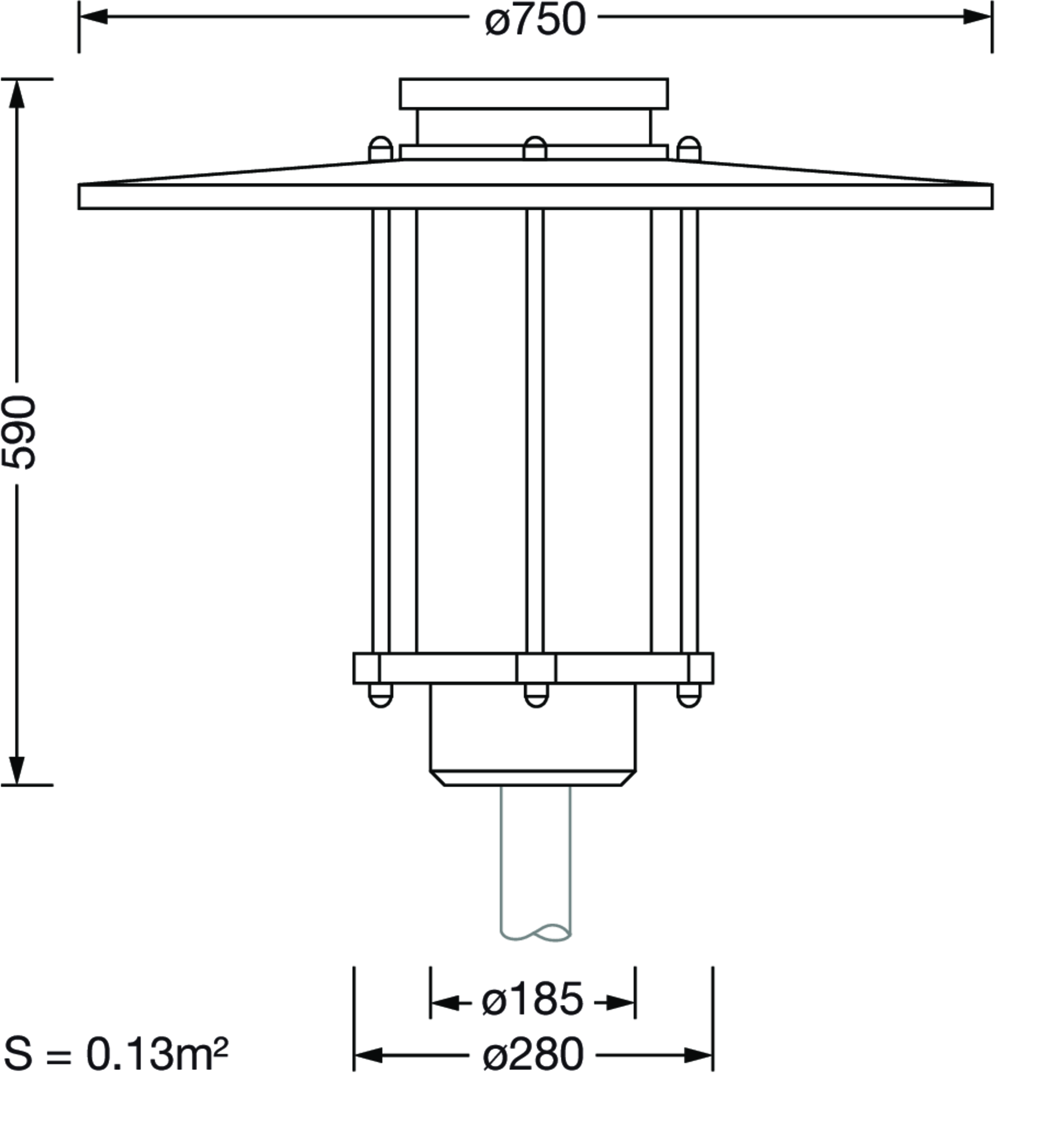

Dimensions, Weight

Diameter 750mm
Height 590mm
Weight 11.0kg
Mast spigot spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission

Light emission < 3%

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
City-Light Plus iQ

Order No.
5XA5275CF14H

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
C120007

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
2840lm | 23.9W | 118.8lm/W (begin service life);
end service life: 2840lm | 25.5W;
at 50% lumin. flux: 1420lm | 11.5W | 123.5lm/W

Colour temperature
2200K

Colour rendering index
CRI > 70

Light colour
722

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 2840lm | 23.9W | 118.8lm/W | 2200K

end service life

LS 1: 25.5W


further light settings possible

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP65

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

luminaire housing, upper part
glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S)

post-top mast mounting element
diecast aluminium, coated, SITECO metallic grey (DB 702S)

Module 540 iQ-SR
matt traffic white (RAL 9016)

Cover
cover of PMMA

Mounting method, mounting location
post-top, on mast

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
750mm

Height
590mm

Weight
11.0kg

Mast spigot
spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission
< 3%

Rated service life
100000h at AT = 25°C

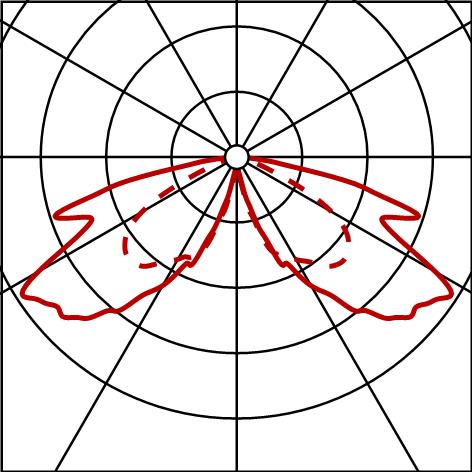

Photometric report / planning data

CL-PliQ
C120007,2840lm722,SR
Lamps: LED 2200K / CRI >= 70
Order No.: 5XA5275CF14H

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
