5XA5425MF14H
Article mast luminaire
Product name Litepole 2 iQ
Lamp LED
Rated luminous flux 1550lm
Luminous efficacy 131.4lm/W
Colour temperature 2700K
Colour rendering CRI > 70
Pnom 11.8W
Pnom end service life 12.1W
Pred at 50% lumin. flux 6W
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 7.9kg
Litepole 2 iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: S120013, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, lamps: LED, rated values: 1.550lm | 11,8W | 131,4lm/W (begin service life); end service life: 1.550lm | 12,1W; at 50% lumin. flux: 775lm | 6W | 129,2lm/W, colour temperature: 2700K, colour rendering: CRI > 70, light colour: 727, light setting 1 (further light settings possible): 100% | 1.550lm | 11,8W | 131,4lm/W | 2.700K (begin service life); end service life: 12,1W, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, upper part, of aluminium, coated, SITECO metallic grey (DB 702S), diameter: 750mm, height: 590mm, spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm, post-top mast mounting element, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Module 540 iQ-SR, matt traffic white (RAL 9016), equipment: standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data

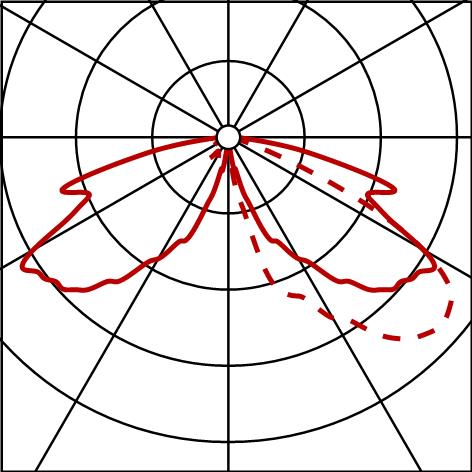

Litep2iQ
S120013,1550lm727,SR
Lamps: LED 2700K / CRI >= 70
Order No.: 5XA5425MF14H
Litep2iQ
Lamps: LED 2700K / CRI >= 70
Order No.: 5XA5425MF14H

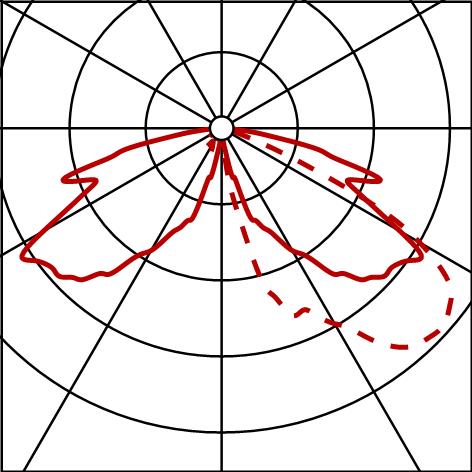

shield
Order No.: 5XA54000XBL
Litep2iQ
Lamps: LED 2700K / CRI >= 70
Order No.: 5XA5425MF14H

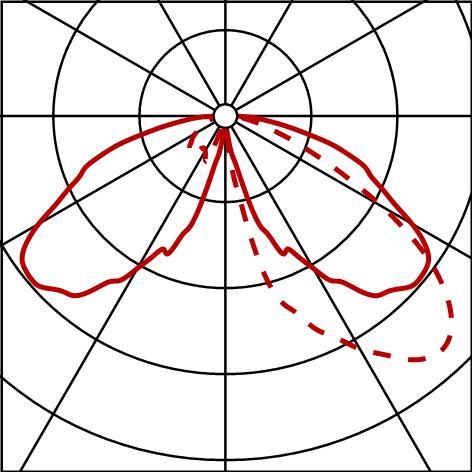

spreader element
Order No.: 5XA54000XS
