5XA5575EW14H000022

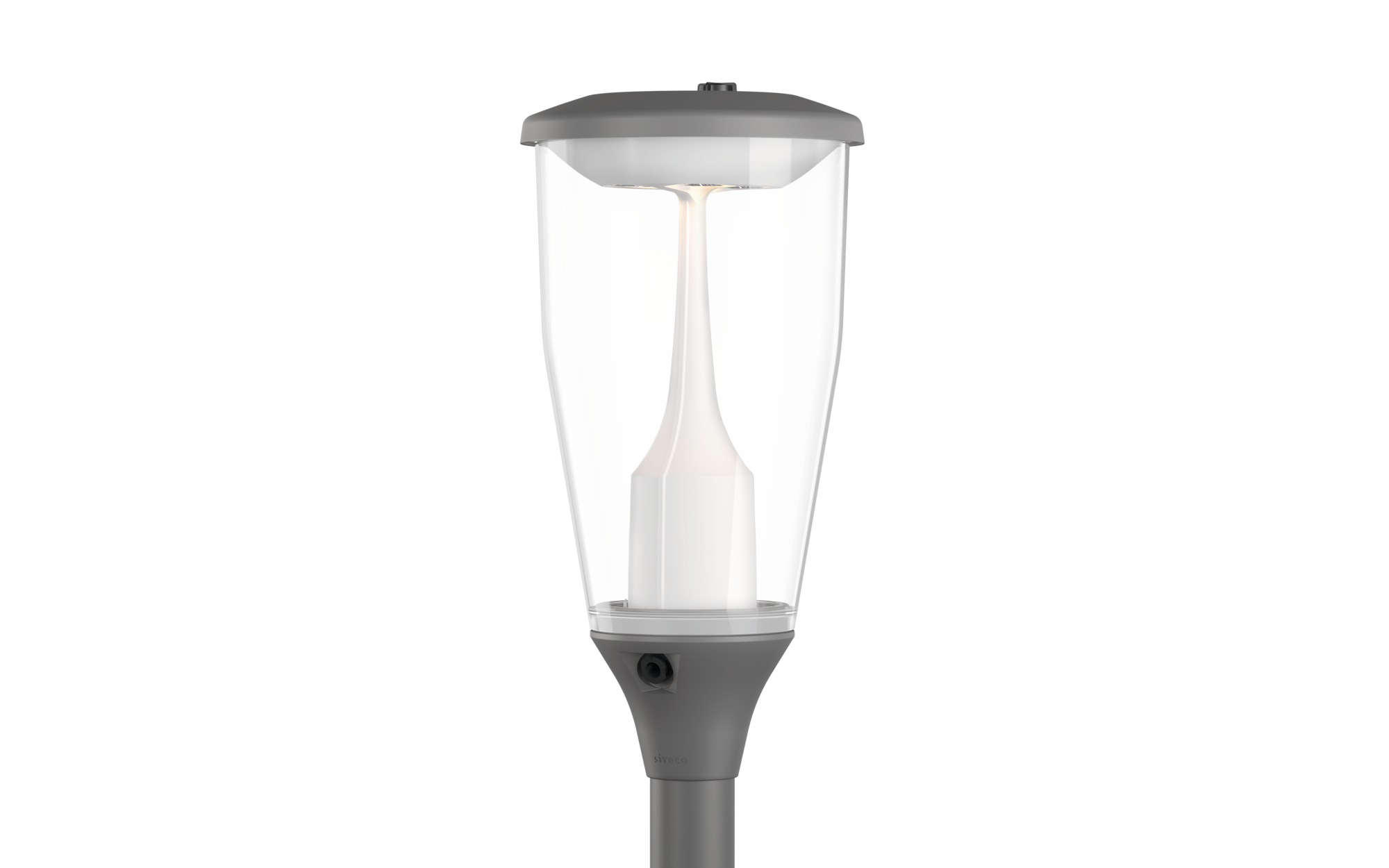

Article mast luminaire
Product name DL 11 iQ
Lamp LED
Rated luminous flux 1560lm
Luminous efficacy 145.8lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 10.7W
Pnom end service life 11.1W
Pred at 50% lumin. flux 5.6W
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 9.5kg
DL 11 iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: S120014, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, lamps: LED, rated values: 1.560lm | 10,7W | 145,8lm/W (begin service life); end service life: 1.560lm | 11,1W; at 50% lumin. flux: 780lm | 5,6W | 139,3lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 1.560lm | 10,7W | 145,8lm/W | 3.000K (begin service life); end service life: 11,1W, control gear: iQ-Street Remote, D4i, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, connection cable: pre-assembled, cable length: 5,5m, wiring characteristics: H07RN-F, 5G 1,5mm², configuration: L/N/E/LST, luminaire housing, upper part, of diecast aluminium, coated, SITECO metallic grey (DB 702S), spigot size: 76mm (post-top), post-top mast mounting element, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Module 540 iQ-SR, traffic white (RAL 9016), Smart Interface above: Zhaga, design motion detector, equipment: standard, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK07, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
DL11iQ
S120014,1560lm730,SR,D4i,Za
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022

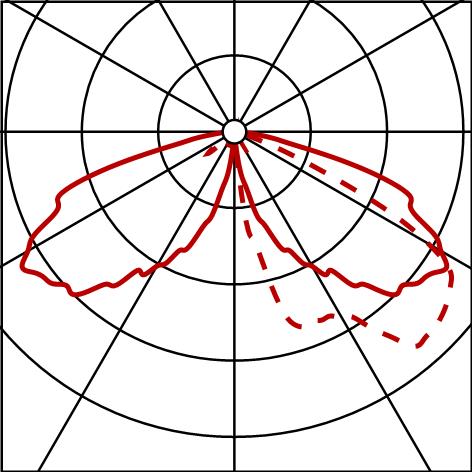

DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022
shield
Order No.: 5XA54000XBL
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022
shield
Order No.: 5XA54000XBS

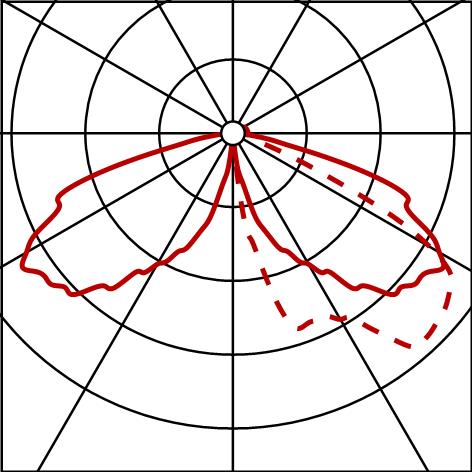

DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022
shield
Order No.: 5XA54000XBXL

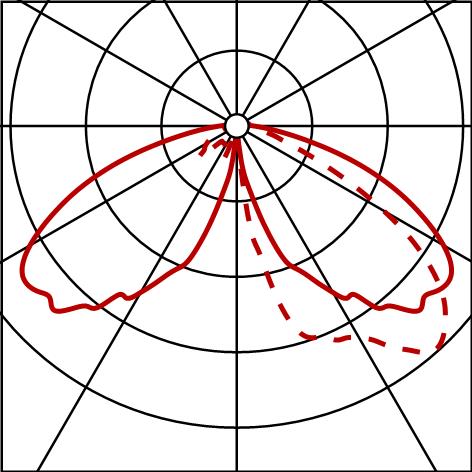

DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022
spreader element
Order No.: 5XA54000XS

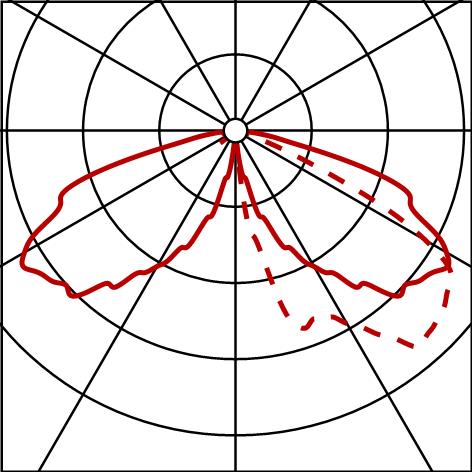

DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5575EW14H000022
decorative ring
Order No.: 5XA54001XS
