5XA7771D2B1A

Order No.: 5XA7771D2B1A
Remember articleRemember article

Article floodlight

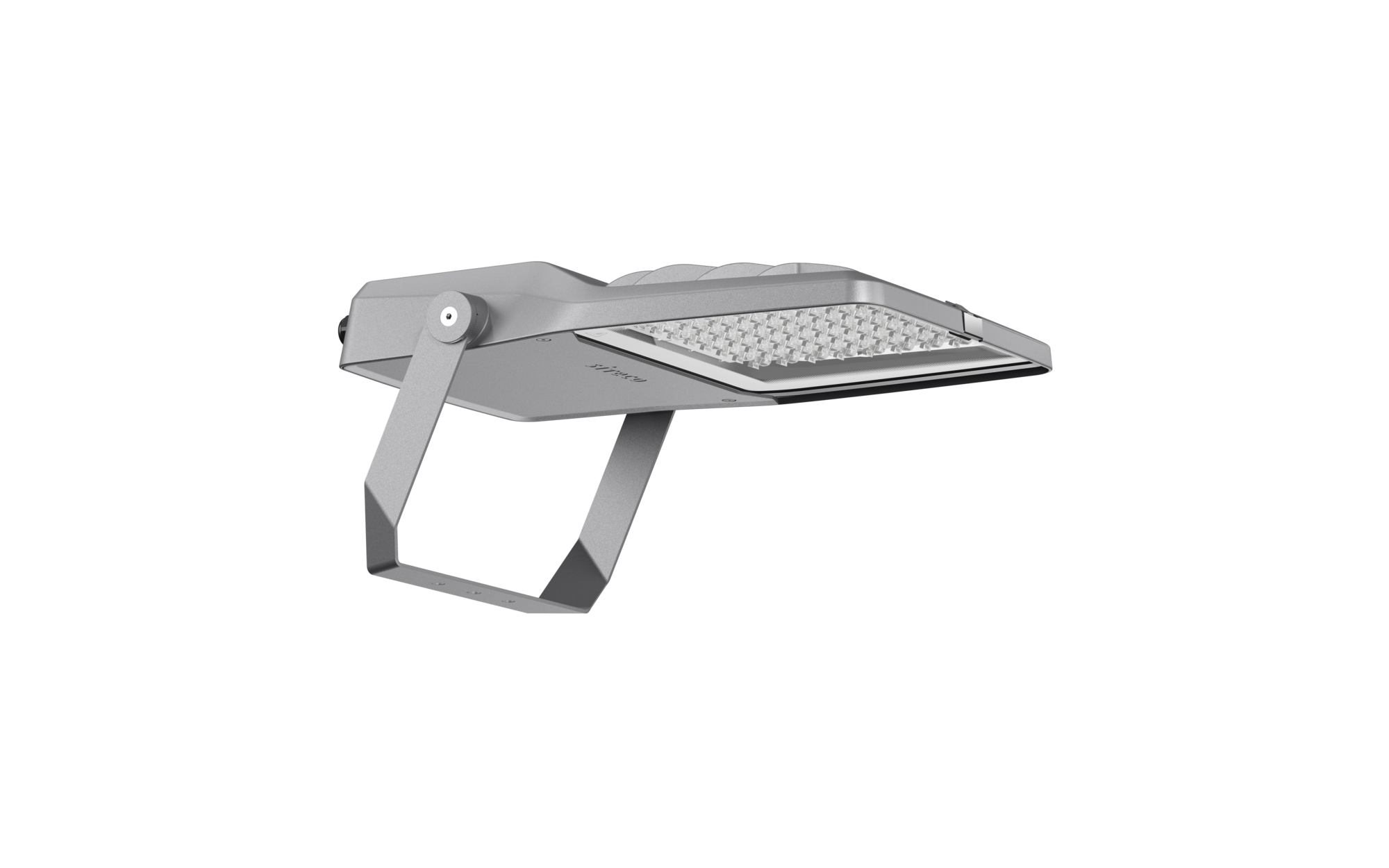

Product name Floodlight FL 21 iQ mini
Lamp LED
Rated luminous flux 18020lm
Luminous efficacy 126lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 143W
Pnom end service life 151.6W
Pred at 50% lumin. flux 60.6W
Service life 50000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.2kg

Floodlight FL 21 iQ mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: R120003, light emission: direct distribution, installation type: surface-mounted, lamps: LED, rated values: 18.020lm | 143W | 126lm/W (begin service life); end service life: 18.020lm | 151,6W; at 50% lumin. flux: 9.010lm | 60,6W | 148,7lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 18.020lm | 143W | 126lm/W | 3.000K (begin service life); end service life: 151,6W, control gear: iQ Comfort/DALI, control: Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 21 iQ mini
Order No. 5XA7771D2B1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution R120003
Light emission direct distribution

Lamps

Lamps with LED
Rated values 18020lm | 143W | 126lm/W (begin service life);
end service life: 18020lm | 151.6W;
at 50% lumin. flux: 9010lm | 60.6W | 148.7lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Supplement prepared for through-wiring

Factory light settings (LS)

begin service life
LS 1: 100% | 18020lm | 143W | 126lm/W | 3000K
end service life
LS 1: 151.6W
further light settings possible

Operating device

Control iQ Comfort/DALI
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable
mounting bracket steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

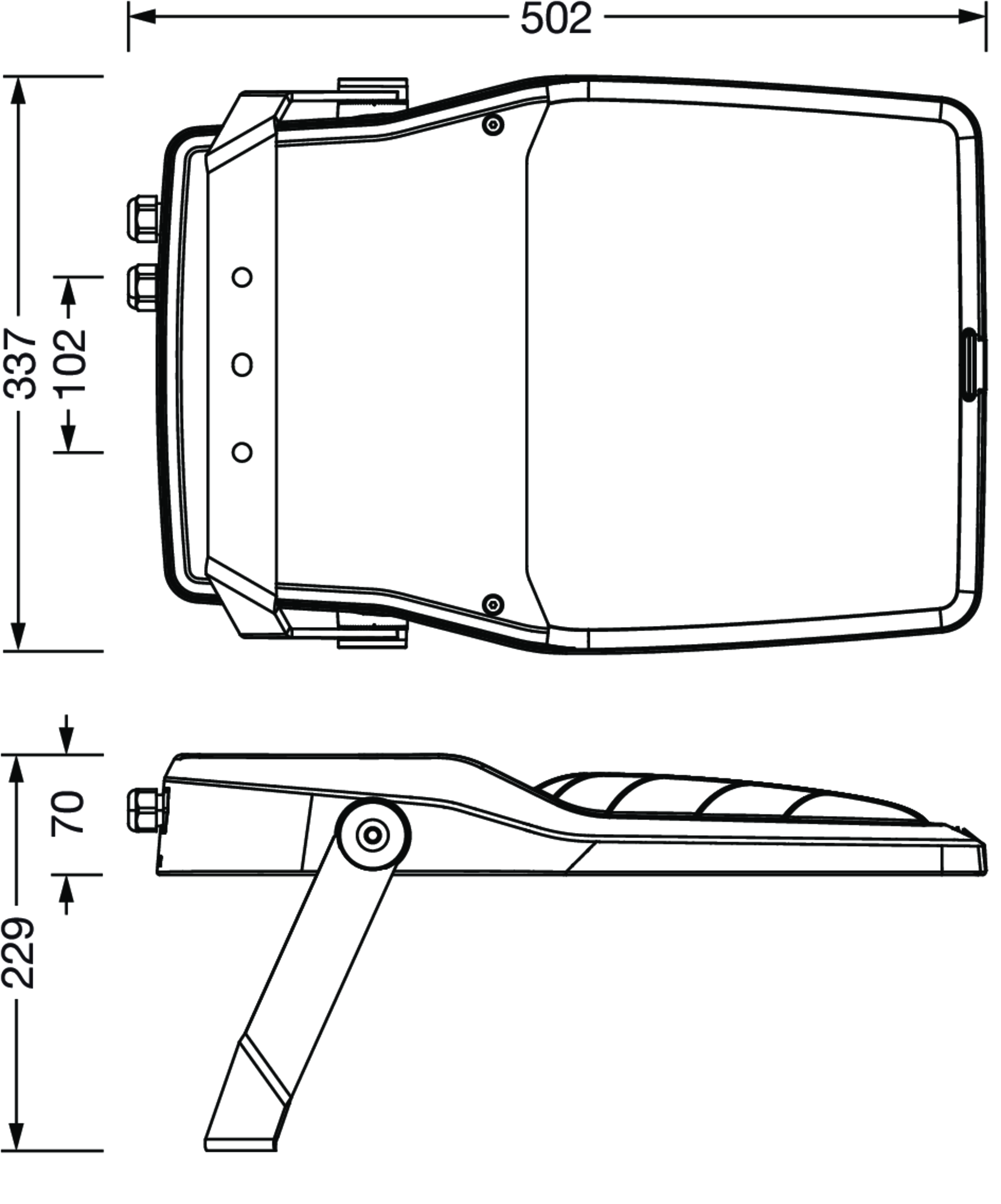

Dimensions, Weight

Weight 7.2kg

Service life

Rated service life 50000h (L95/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 iQ mini

Order No.
5XA7771D2B1A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
R120003

Light emission
direct distribution

Lamps
with LED

Rated values
18020lm | 143W | 126lm/W (begin service life);
end service life: 18020lm | 151.6W;
at 50% lumin. flux: 9010lm | 60.6W | 148.7lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Supplement
prepared for through-wiring

begin service life

LS 1: 100% | 18020lm | 143W | 126lm/W | 3000K

end service life

LS 1: 151.6W


further light settings possible

Control
iQ Comfort/DALI

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, pre-setting: linear dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable

mounting bracket
steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
7.2kg

Rated service life
50000h (L95/B10) at AT = 25°C

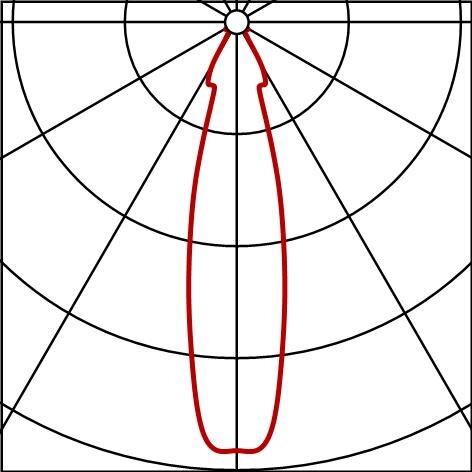

Photometric report / planning data

Floodlight FL 21 iQ mini
LED, direct distribution, surface-mounted, to the cross arm, to supporting structure
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA7771D2B1A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
