Key data

Product type catenary luminaire
Product name DL 500 iQ
Order No. 5XJ3EQ3AC108

Lighting technology

Light control lens of PMMA
Cover cover, transparent

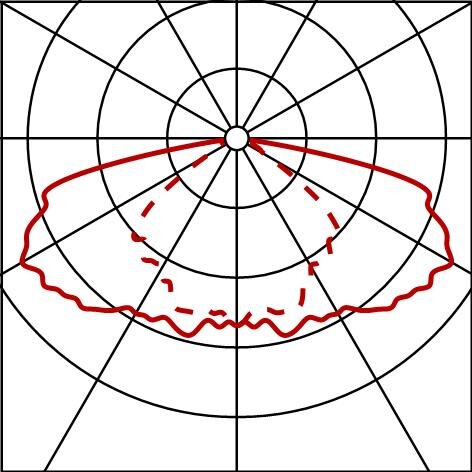

Light distribution S100004
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 5440lm | 36.3W | 149.9lm/W (begin service life);
end service life: 5440lm | 38W;
at 50% lumin. flux: 2720lm | 16.9W | 160.9lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 5440lm | 36.3W | 149.9lm/W | 3000K
end service life
LS 1: 38W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK09
Supplement standard-compliant lighting for roads and squares
Certification, designation CE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

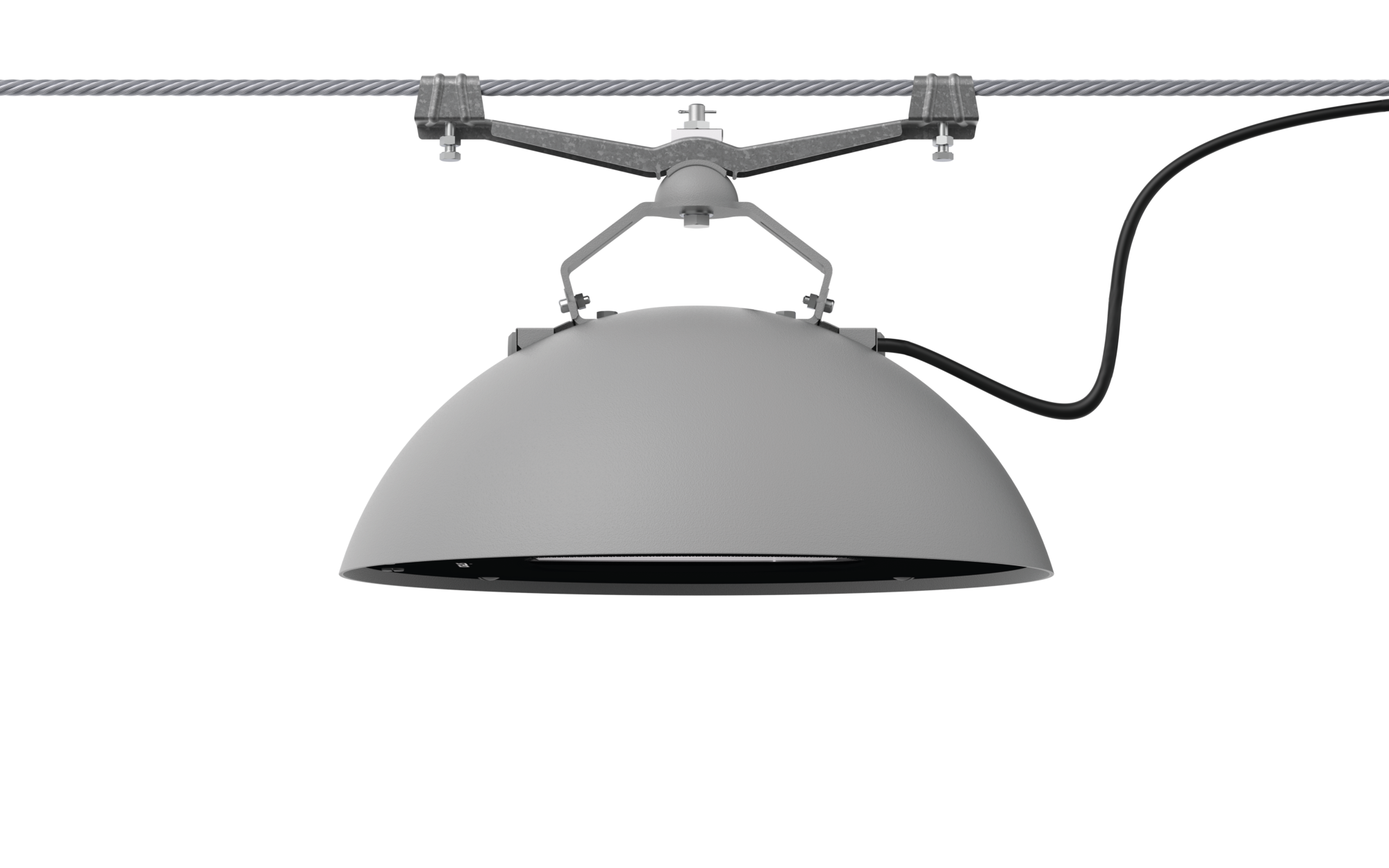

Mounting method, mounting location suspended mounting, to wire

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Dimensions, Weight

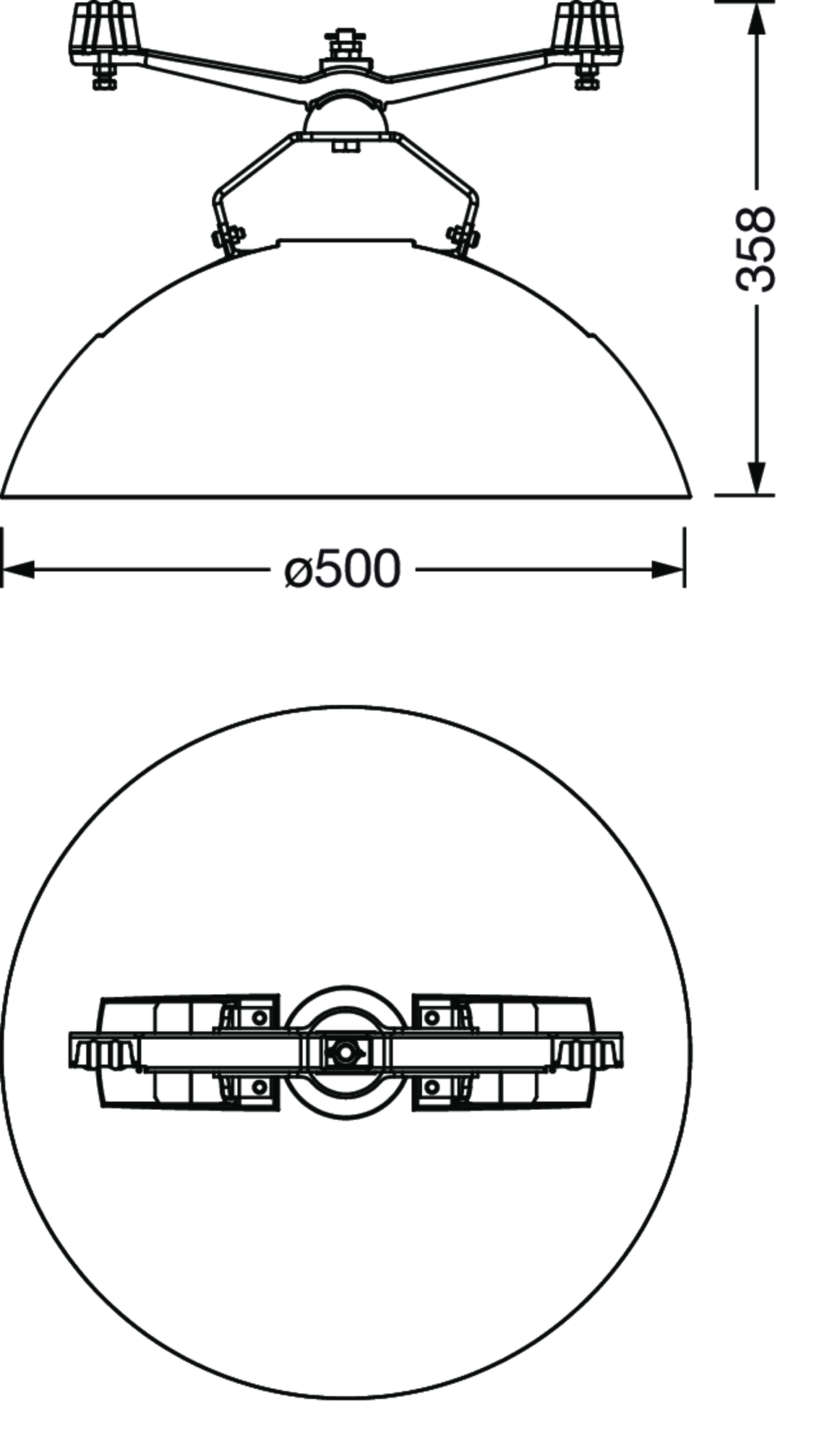

Diameter 500mm
Weight 9.2kg

Light emission

Light emission 0%

Service life

Rated service life 100000h at AT = 25°C
