Streetlight SL 11 iQ mini, direct asymmetric wide distribution, S10B001
Article mast luminaire
Product name Streetlight SL 11 iQ mini
Lamp LED
Rated luminous flux 3010lm
Luminous efficacy 132.6lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 22.7W
Pnom end service life 23.4W
Pred at 50% lumin. flux 11.6W
Service life 100000h (L98/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 6.6kg
Streetlight SL 11 iQ mini, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: S10B001, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 3.010lm | 22,7W | 132,6lm/W (begin service life); end service life: 3.010lm | 23,4W; at 50% lumin. flux: 1.505lm | 11,6W | 129,7lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 3.010lm | 22,7W | 132,6lm/W | 3.000K (begin service life); end service life: 23,4W, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Street-Remote, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 6,5m, wiring characteristics: H07RN-F, 3X 1,5mm², configuration: L/N/LST, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 736mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: standard, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece
Downloads
Technical product information
- Installation sheet (PDF)
- Data sheet (PDF)
- Environmental Product Declaration EPD (PDF)
- Photometric report / planning data
Data for applications
Product details

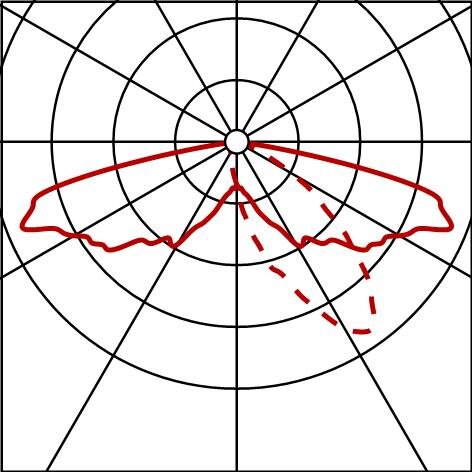

Photometric report / planning data
SL11iQmn
S10B001,3010lm730,SR
Lamps: LED 3000K / CRI >= 70
Order No.: 5XC2N51F08GE
