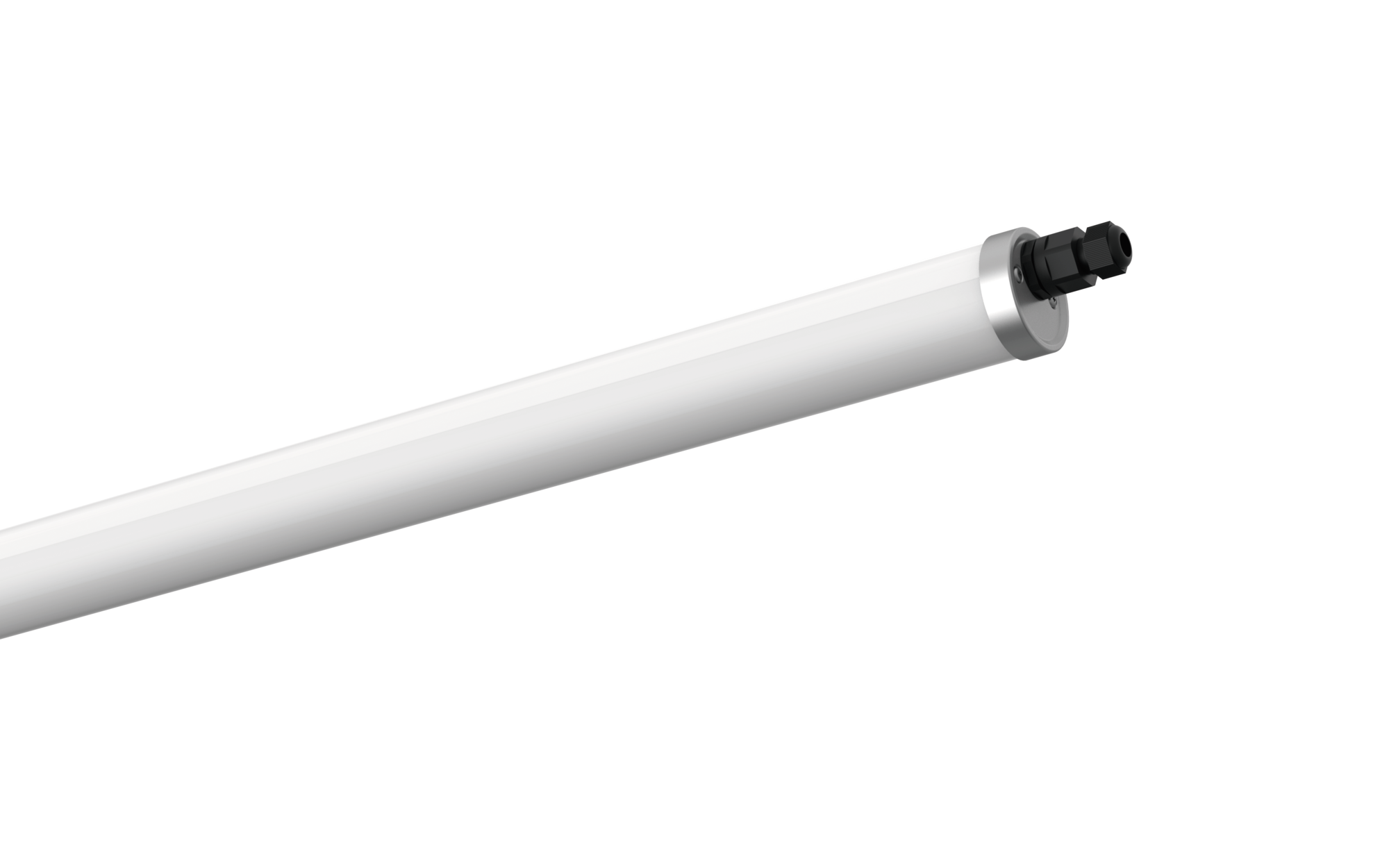

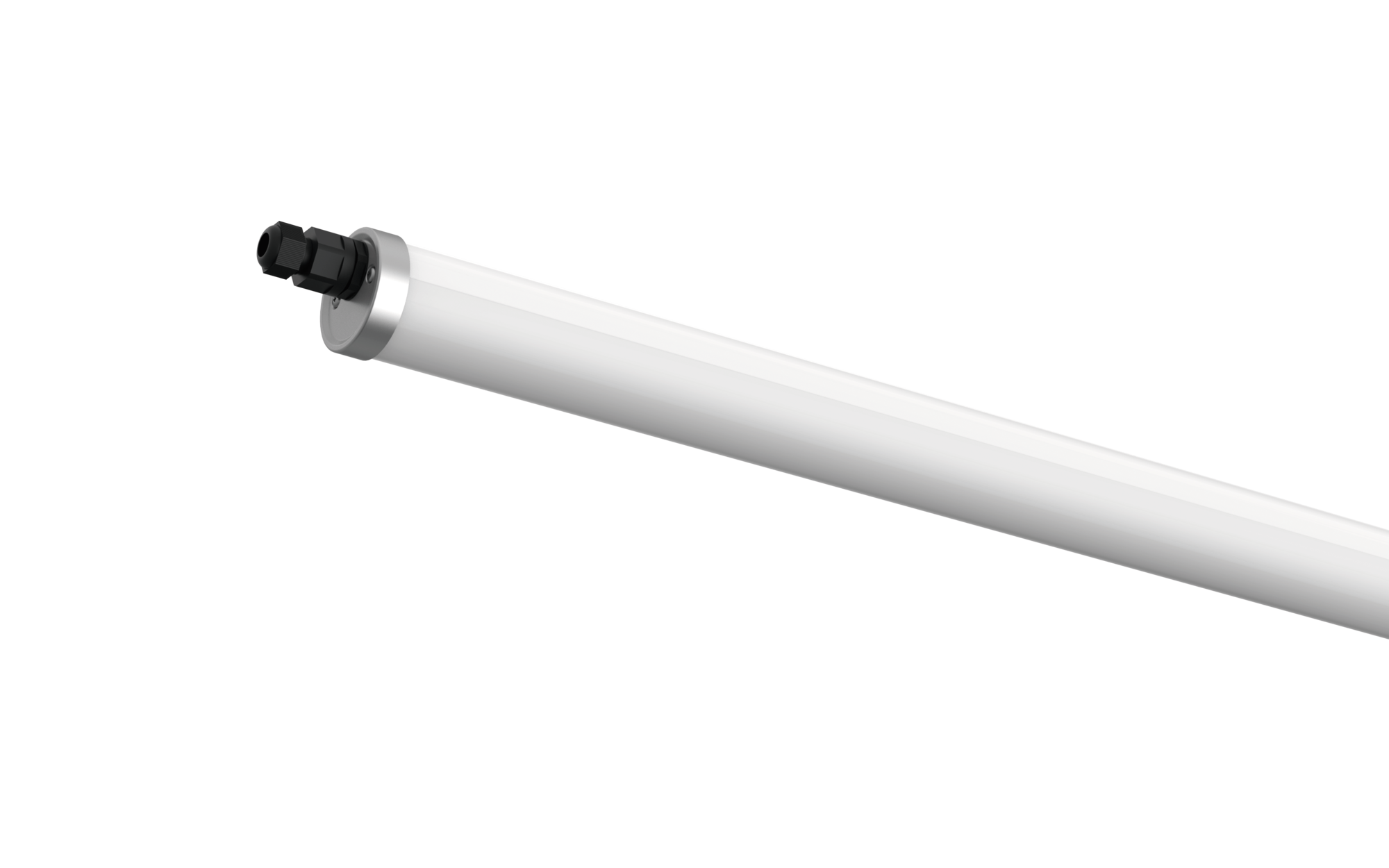

Monsun® 31 Tube

ProducttypesConfiguration & Datasheets

There are environmental conditions under which normal damp-proof luminaires quickly fail. Not so with the Monsun® 31 Tube. Their gas-tight housing protects their inner workings where the ambient air contains aggressive substances, such as sulfur in tire production and tire storage or ammonia in livestock farming. The Monsun® 31 Tube even withstands hot jets of water from the high-pressure cleaner and is ideal for unprotected outdoor areas thanks to its watertightness.

Our basic solution: Monsun® 31 Tube is our gas-tight luminaire for use in particularly critical areas

Producttypes

Monsun® 31 Tube

Intro to Productfamily

Data

Article tubular luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 6500lm to 10000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PMMA
Protection rating IP67/IP69K
Insulation class insulation class I (protective earthing)
Impact resistance IK07
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Specials

Highest degree of protection IP67 / IP69K against hot water jets from the high-pressure cleaner
Resistant to harmful gases with a short sealing system
Tube of PMMA with end caps of stainless steel (V4A)
With through-wiring and external terminal for individual connection options

Configuration & Datasheets

Rated luminous flux (lm)

Control

Through-wiring

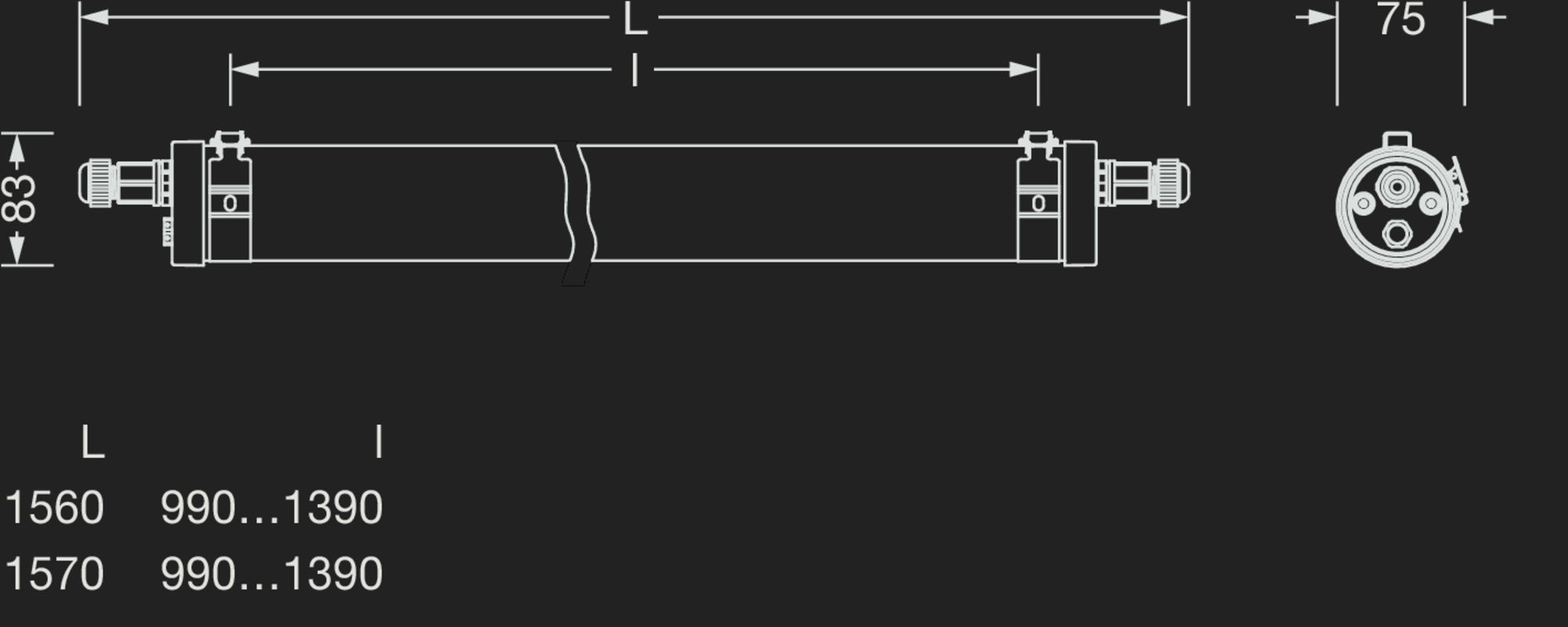

Length (mm)

Results

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N460A GTIN (EAN): 4058352701225
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806500lm40W160lm/WON/OFF3x 1.5mm²-20..+40°CIK0715601.8

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N480A GTIN (EAN): 4058352701256
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 808000lm50W160lm/WON/OFF3x 1.5mm²-20..+40°CIK0715601.8

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N4A0A GTIN (EAN): 4058352701287
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 8010000lm58W160lm/WON/OFF3x 1.5mm²-20..+40°CIK0715601.8

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN460A GTIN (EAN): 4058352701317
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806500lm40W160lm/WDALI 25x 1.5mm²-20..+40°CIK0715701.9

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN480A GTIN (EAN): 4058352701362
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 808000lm50W160lm/WDALI 25x 1.5mm²-20..+40°CIK0715701.9

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN4A0A GTIN (EAN): 4058352701379
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 8010000lm58W160lm/WDALI 25x 1.5mm²-20..+40°CIK0715701.9

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N460AGTIN (EAN): 4058352701225

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6500lm
Connected load40W
Luminous efficacy160lm/W
ControlON/OFF
Through-wiring3x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1560
Wt. (kg)1.8

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N480AGTIN (EAN): 4058352701256

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux8000lm
Connected load50W
Luminous efficacy160lm/W
ControlON/OFF
Through-wiring3x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1560
Wt. (kg)1.8

Monsun® 31 Tube, diffuse distribution, ON/OFF, PMMA

Order No.: 51FT107N4A0AGTIN (EAN): 4058352701287

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux10000lm
Connected load58W
Luminous efficacy160lm/W
ControlON/OFF
Through-wiring3x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1560
Wt. (kg)1.8

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN460AGTIN (EAN): 4058352701317

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6500lm
Connected load40W
Luminous efficacy160lm/W
ControlDALI 2
Through-wiring5x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1570
Wt. (kg)1.9

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN480AGTIN (EAN): 4058352701362

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux8000lm
Connected load50W
Luminous efficacy160lm/W
ControlDALI 2
Through-wiring5x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1570
Wt. (kg)1.9

Monsun® 31 Tube, diffuse distribution, DALI 2, PMMA

Order No.: 51FT10DN4A0AGTIN (EAN): 4058352701379

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux10000lm
Connected load58W
Luminous efficacy160lm/W
ControlDALI 2
Through-wiring5x 1.5mm²
ta-20..+40°C
Impact resistanceIK07
L (mm)1570
Wt. (kg)1.9
