Rondel

ReferencesFamily Product selection Configuration & data sheets

References

Constantin Vanotti School, Überlingen, Germany
Products: Licross
learn more

UPP, Great Britain
learn more

Product selection

Rondel 31

Rondel 31

Key data

Article wall and ceiling luminaire
Lighting effect direct symmetric distribution, 120°
Net luminous flux 2500lm to 4700lm
Colour temperature 3000/4000K
Control ON/OFF Multilumen; DALI 2, Multilumen
Cover PMMA
Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02

Special features

Luminaire in a minimalist design in three construction sizes for wall or ceiling surface mounting
For entrance areas, staircases, corridors, hallways and adjoining rooms
ON/OFF and DALI-2 versions for easy lighting control
Eight different lighting packages easily adjustable via DIP switch
Light colour between 3000 and 4000K easily adjustable via DIP switch
Easy installation, cover can be opened without tools via bayonet catch
The sensor and emergency lighting elements cannot be combined within a single luminaire

Configuration & data sheets

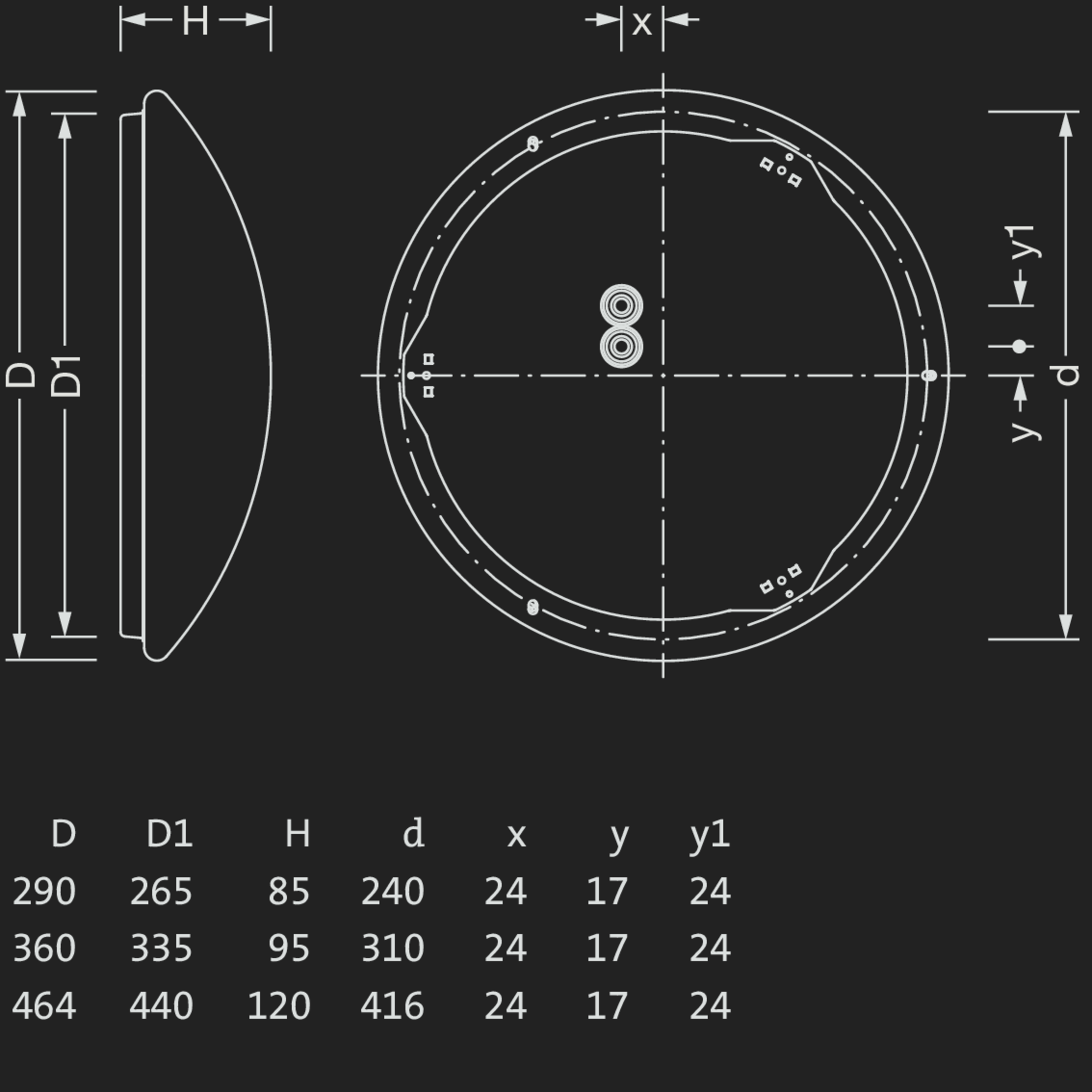

D (mm)

Rated luminous flux (lm)

Control

  • ceiling or wall installation without other luminaire-specific mounting accessories

Results

Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MA1G20B GTIN (EAN): 4069025155900
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 801100…2500lm9…20W2500lm20W ON/OFF Multilumen2900.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MB1G30B GTIN (EAN): 4069025155924
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 801600…3000lm12…24W3000lm24W ON/OFF Multilumen3601.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MC1G40B GTIN (EAN): 4069025155955
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 803200…4700lm25…39W4700lm39W ON/OFF Multilumen4641.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EA1G20B GTIN (EAN): 4069025155849
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 801100…2500lm9…20W2500lm20W DALI 2, Multilumen2900.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EB1G30B GTIN (EAN): 4069025155863
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 801600…3000lm12…24W3000lm24W DALI 2, Multilumen3601.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EC1G40B GTIN (EAN): 4069025155887
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomUGRControlD (mm)Wt. (kg)
3000/4000KCRI > 803200…4700lm25…39W4700lm39W DALI 2, Multilumen4641.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MA1G20BGTIN (EAN): 4069025155900

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1100…2500lm
Pnom9…20W
Factory-preset luminous flux2500lm
Factory-preset Pnom20W
UGR
ControlON/OFF Multilumen
D (mm)290
Wt. (kg)0.8
Show all details
Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MB1G30BGTIN (EAN): 4069025155924

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1600…3000lm
Pnom12…24W
Factory-preset luminous flux3000lm
Factory-preset Pnom24W
UGR
ControlON/OFF Multilumen
D (mm)360
Wt. (kg)1.3
Show all details
Delivery time on request

Rondel 31, direct distribution, 120°, ON/OFF Multilumen, white

Order No.: 5PJDN11MC1G40BGTIN (EAN): 4069025155955

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3200…4700lm
Pnom25…39W
Factory-preset luminous flux4700lm
Factory-preset Pnom39W
UGR
ControlON/OFF Multilumen
D (mm)464
Wt. (kg)1.7
Show all details
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EA1G20BGTIN (EAN): 4069025155849

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1100…2500lm
Pnom9…20W
Factory-preset luminous flux2500lm
Factory-preset Pnom20W
UGR
ControlDALI 2, Multilumen
D (mm)290
Wt. (kg)0.8
Show all details
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EB1G30BGTIN (EAN): 4069025155863

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1600…3000lm
Pnom12…24W
Factory-preset luminous flux3000lm
Factory-preset Pnom24W
UGR
ControlDALI 2, Multilumen
D (mm)360
Wt. (kg)1.0
Show all details
Delivery time on request

Rondel 31, direct distribution, 120°, DALI 2, Multilumen, white

Order No.: 5PJDN11EC1G40BGTIN (EAN): 4069025155887

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3200…4700lm
Pnom25…39W
Factory-preset luminous flux4700lm
Factory-preset Pnom39W
UGR
ControlDALI 2, Multilumen
D (mm)464
Wt. (kg)1.7
Show all details
