SITECO
Round
Product selection
Round 31
Key data
Article light sensor; wall and ceiling luminaire
Lighting effect direct symmetric extremely wide distribution
Net luminous flux 2450lm to 4400lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Special features
Efficient wall and ceiling luminaire for entrance areas, stairwells, aisles, corridors and adjoining rooms
Particularly resistant thanks to IP65, IK10 and UV-stabilized PC
Versions with a motion sensor save additional energy
DALI variants for problem-free lighting control
Configuration & data sheets
Results
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MA32A GTIN (EAN): 4058352616895
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2450lm | 19W | 129lm/W | ON/OFF Multilumen | 350 | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DA32A GTIN (EAN): 4058352616710
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2450lm | 19W | 129lm/W | DALI 2 | 350 | 1.9 |
Round 31, Light colour 830, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MA32AS GTIN (EAN): 4058352616918
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DA32AS GTIN (EAN): 4058352616734
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2450lm | 20.5W | 120lm/W | DALI 2 | 350 | 2.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MA42A GTIN (EAN): 4058352616949
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 19W | 134lm/W | ON/OFF Multilumen | 350 | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DA42A GTIN (EAN): 4058352616758
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 19W | 134lm/W | DALI 2 | 350 | 1.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MA42AS GTIN (EAN): 4058352616956
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 20.5W | 124lm/W | ON/OFF Multilumen | 350 | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DA42AS GTIN (EAN): 4058352616772
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2550lm | 20.5W | 124lm/W | DALI 2 | 350 | 2.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MB34A GTIN (EAN): 4058352616970
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4250lm | 34W | 125lm/W | ON/OFF Multilumen | 480 | 2.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DB34A GTIN (EAN): 4058352616796
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4250lm | 34W | 125lm/W | DALI 2 | 480 | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MB34AS GTIN (EAN): 4058352616994
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4250lm | 35W | 120lm/W | ON/OFF Multilumen | 480 | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DB34AS GTIN (EAN): 4058352616826
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4250lm | 35.5W | 120lm/W | DALI 2 | 480 | 3.1 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MB44A GTIN (EAN): 4058352617014
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 34W | 129lm/W | ON/OFF Multilumen | 480 | 2.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DB44A GTIN (EAN): 4058352616833
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 34W | 129lm/W | DALI 2 | 480 | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MB44AS GTIN (EAN): 4058352617038
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 35.5W | 124lm/W | ON/OFF Multilumen | 480 | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DB44AS GTIN (EAN): 4058352616857
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 35.5W | 124lm/W | DALI 2 | 480 | 3.1 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MA32AGTIN (EAN): 4058352616895
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2450lm |
| Connected load | 19W |
| Luminous efficacy | 129lm/W |
| Control | ON/OFF Multilumen |

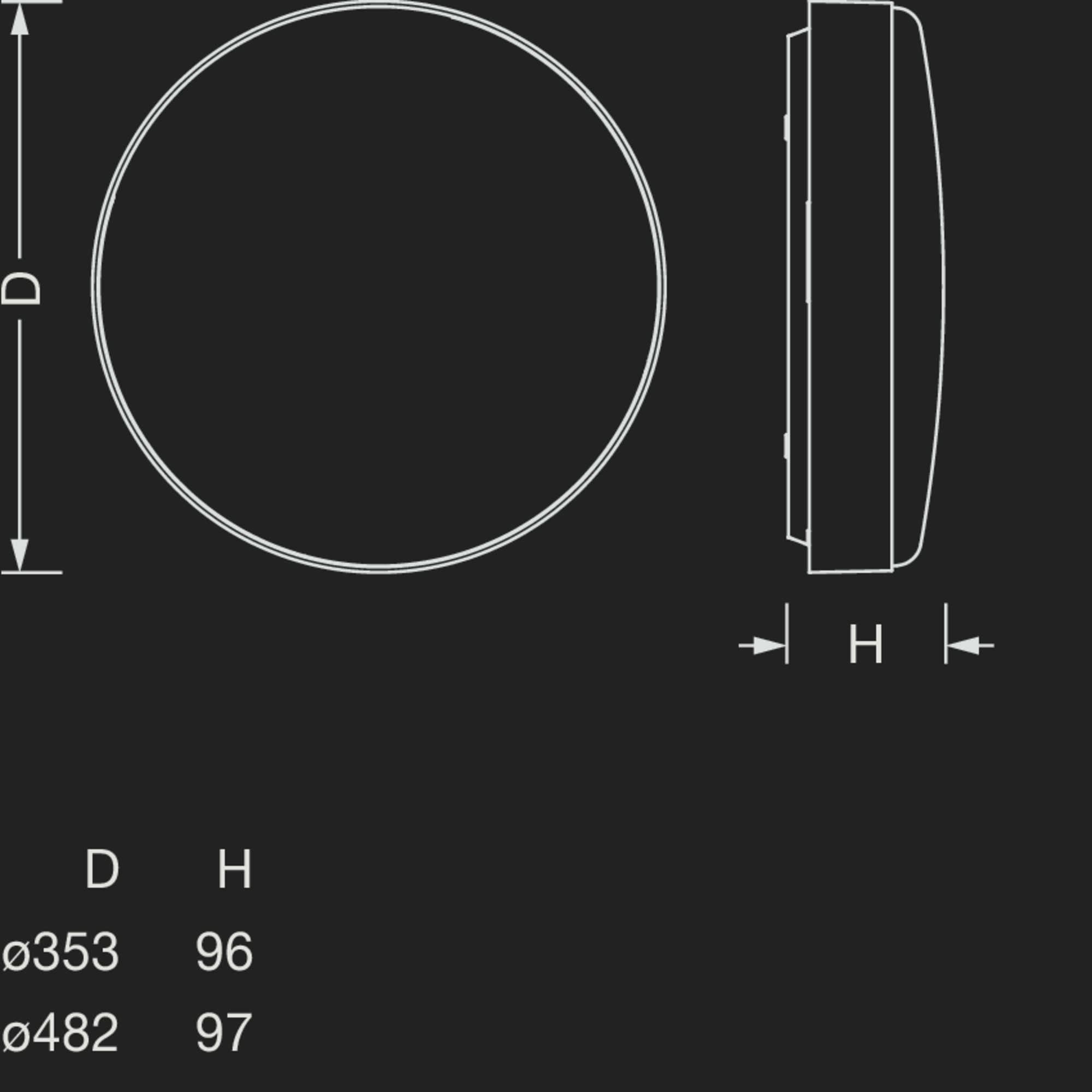

| D (mm) | 350 |
| Wt. (kg) | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DA32AGTIN (EAN): 4058352616710
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2450lm |
| Connected load | 19W |
| Luminous efficacy | 129lm/W |
| Control | DALI 2 |
| D (mm) | 350 |
| Wt. (kg) | 1.9 |
Round 31, Light colour 830, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MA32ASGTIN (EAN): 4058352616918
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | |
| Connected load | |
| Luminous efficacy | |
| Control | |
| D (mm) | |
| Wt. (kg) | 1.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DA32ASGTIN (EAN): 4058352616734
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2450lm |
| Connected load | 20.5W |
| Luminous efficacy | 120lm/W |
| Control | DALI 2 |
| D (mm) | 350 |
| Wt. (kg) | 2.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MA42AGTIN (EAN): 4058352616949
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 19W |
| Luminous efficacy | 134lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 350 |
| Wt. (kg) | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DA42AGTIN (EAN): 4058352616758
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 19W |
| Luminous efficacy | 134lm/W |
| Control | DALI 2 |
| D (mm) | 350 |
| Wt. (kg) | 1.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MA42ASGTIN (EAN): 4058352616956
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 20.5W |
| Luminous efficacy | 124lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 350 |
| Wt. (kg) | 1.7 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DA42ASGTIN (EAN): 4058352616772
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2550lm |
| Connected load | 20.5W |
| Luminous efficacy | 124lm/W |
| Control | DALI 2 |
| D (mm) | 350 |
| Wt. (kg) | 2.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MB34AGTIN (EAN): 4058352616970
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4250lm |
| Connected load | 34W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 480 |
| Wt. (kg) | 2.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DB34AGTIN (EAN): 4058352616796
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4250lm |
| Connected load | 34W |
| Luminous efficacy | 125lm/W |
| Control | DALI 2 |
| D (mm) | 480 |
| Wt. (kg) | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MB34ASGTIN (EAN): 4058352616994
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4250lm |
| Connected load | 35W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 480 |
| Wt. (kg) | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 830, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DB34ASGTIN (EAN): 4058352616826
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4250lm |
| Connected load | 35.5W |
| Luminous efficacy | 120lm/W |
| Control | DALI 2 |
| D (mm) | 480 |
| Wt. (kg) | 3.1 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, traffic white (RAL 9016)
Order No.: 51WC10MB44AGTIN (EAN): 4058352617014
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 34W |
| Luminous efficacy | 129lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 480 |
| Wt. (kg) | 2.9 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, traffic white (RAL 9016)
Order No.: 51WC10DB44AGTIN (EAN): 4058352616833
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 34W |
| Luminous efficacy | 129lm/W |
| Control | DALI 2 |
| D (mm) | 480 |
| Wt. (kg) | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, ON/OFF Multilumen, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10MB44ASGTIN (EAN): 4058352617038
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 35.5W |
| Luminous efficacy | 124lm/W |
| Control | ON/OFF Multilumen |
| D (mm) | 480 |
| Wt. (kg) | 3.0 |
Round 31, direct distribution, extremely wide distribution, Light colour 840, DALI 2, HF sensor, traffic white (RAL 9016)
Order No.: 51WC10DB44ASGTIN (EAN): 4058352616857
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 35.5W |
| Luminous efficacy | 124lm/W |
| Control | DALI 2 |
| D (mm) | 480 |
| Wt. (kg) | 3.1 |
Optional accessories
| Order No.: 51WC10EGTIN (EAN): 4058352616871 | Show all details |
