Refurbishment inserts and spare parts
Product selection

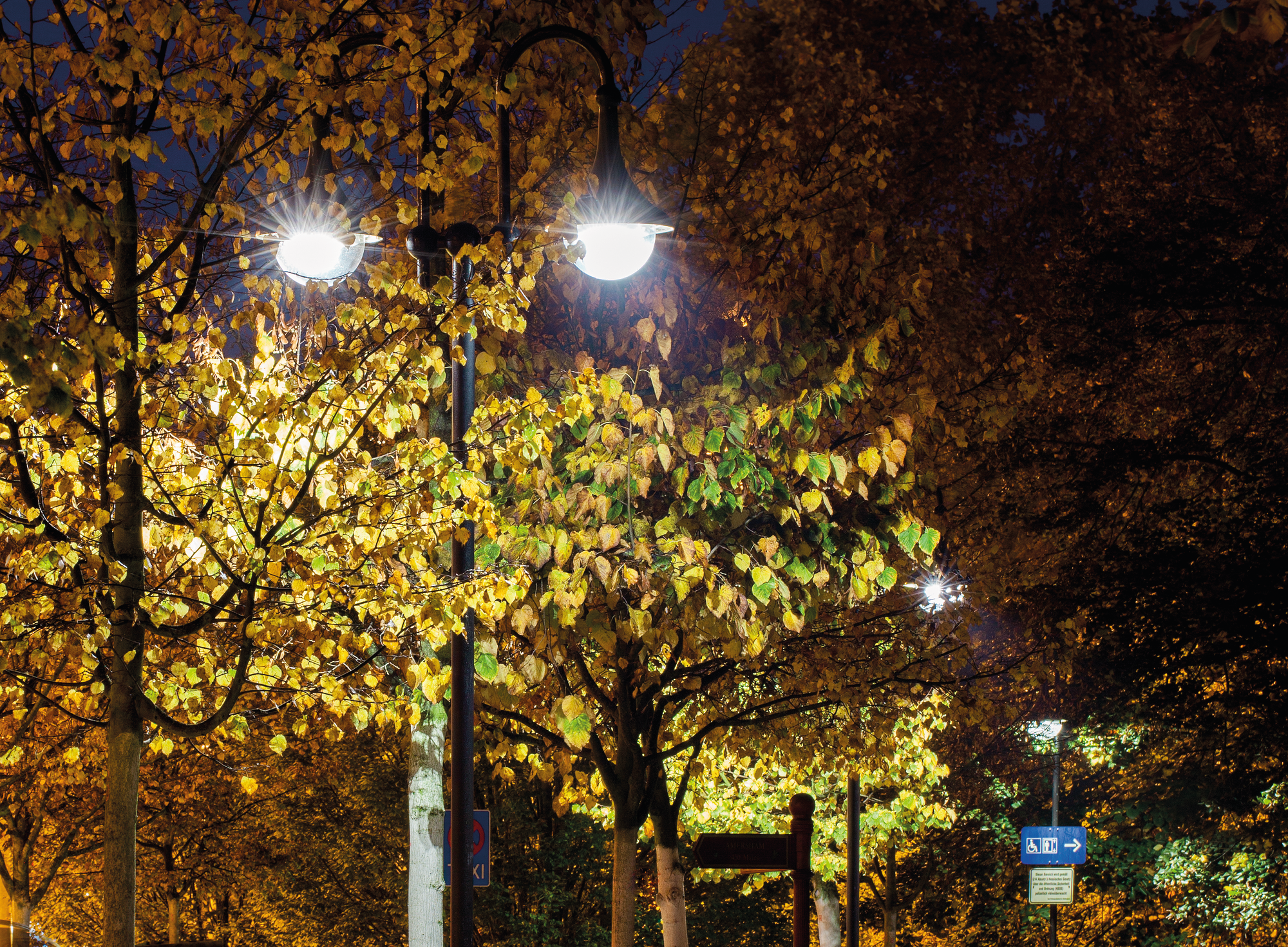

Bell LED module
Special features
Classic appearance with innovative components including HD faceted reflector for precise, glare-free light distribution
Intelligent operating electronics with extensive functions such as CLO 2.0
Flexible solution in two sizes, available both as complete luminaire and as LED module for refurbishing existing bell luminaires
High energy savings of over 80% compared to old systems with SON lamps – fast payback of less than 3 years
Configuration & data sheets
- please order shielding on building side separately if required
- please order Siteco Service Box for configuring the Plus variant additionally if required
Results
with ECG Plus, enclosure, transparent, for Small Bell
Order No.: 5XA1573K1B1 GTIN (EAN): 4058352167793
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1730lm | ST1.2a | Plus | 13 | 14 | 7 | 1.9 |
with ECG Plus, enclosure, transparent structured, for Small Bell
Order No.: 5XA1573K1B2 GTIN (EAN): 4058352167816
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1750lm | ST1.2a | Plus | 13 | 14 | 7 | 1.9 |
with ECG Plus, enclosure, transparent, for Large Bell
Order No.: 5XA1563K1B1 GTIN (EAN): 4058352167557
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3320lm | ST1.2a | Plus | 23 | 24 | 12 | 2.9 |
with ECG Plus, enclosure, transparent structured, for Large Bell
Order No.: 5XA1563K1B2 GTIN (EAN): 4058352167571
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3380lm | ST1.2a | Plus | 23 | 24 | 12 | 2.9 |
with ECG Plus, enclosure, transparent, for Small Bell
Order No.: 5XA1573K1B1GTIN (EAN): 4058352167793
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1730lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 13 |
| Pnom end service life | 14 |
| Pred at 50% lumin. flux | 7 |
| Wt. (kg) | 1.9 |
with ECG Plus, enclosure, transparent structured, for Small Bell
Order No.: 5XA1573K1B2GTIN (EAN): 4058352167816
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1750lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 13 |
| Pnom end service life | 14 |
| Pred at 50% lumin. flux | 7 |
| Wt. (kg) | 1.9 |

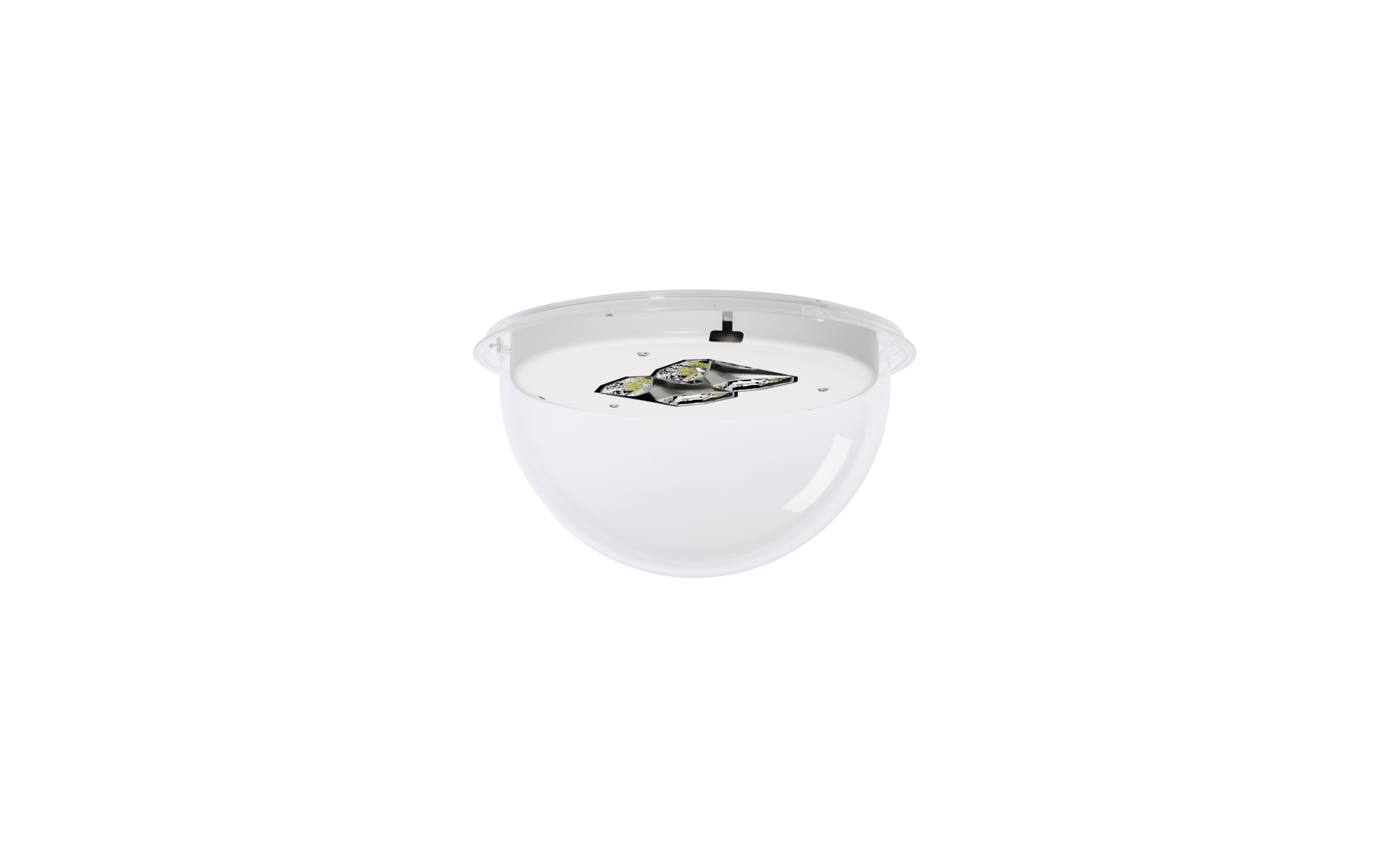

with ECG Plus, enclosure, transparent, for Large Bell
Order No.: 5XA1563K1B1GTIN (EAN): 4058352167557
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3320lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 23 |
| Pnom end service life | 24 |
| Pred at 50% lumin. flux | 12 |
| Wt. (kg) | 2.9 |
with ECG Plus, enclosure, transparent structured, for Large Bell
Order No.: 5XA1563K1B2GTIN (EAN): 4058352167571
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3380lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 23 |
| Pnom end service life | 24 |
| Pred at 50% lumin. flux | 12 |
| Wt. (kg) | 2.9 |
