SITECO
Batten
Batten 41
Key data
Article batten luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 1000lm to 2000lm
Colour temperature 3000/4000/5000K
Control ON/OFF
Cover PC
Protection rating IP20
Insulation class insulation class II (safety insulation)
Special features
Universally usable LED batten luminaire with integrated operating device

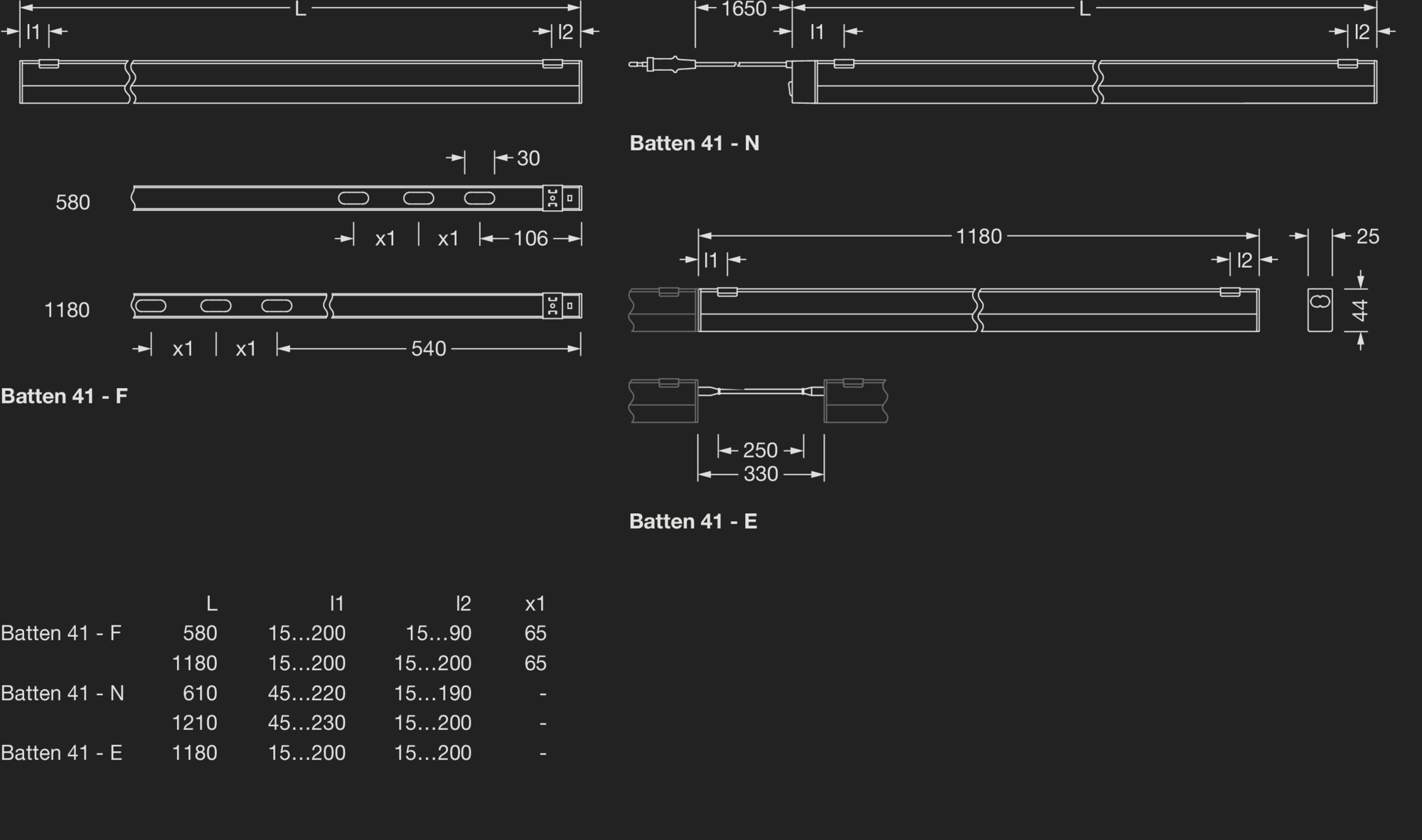

Also suitable for tight installation spaces thanks to compact luminaire cross-section (25 x 44mm)
Non-interrupted, continuous light lines without dark spots up to 15 metres in length
Angled arrangements possible with flexible connection cable
Pleasant spatial atmosphere and good visual comfort due to glare-free, uniformly wide light distribution
Permissible ambient temperature range to 40°C
Simple, time-saving mounting also in tight installation spaces due to mounting clips and electrical plug connector
Mounting material and plug connector included in the scope of supply of the corresponding luminaire
Configuration & data sheets
- includes mounting clips
- Batten 41-N: includes connection cable with flat euro plug (l = 1.65m)
- Batten 41-F: with terminal for fixed connection
- Batten 41-E: includes system plug connector (plug adapter, connecting cable (l = 250mm)) for continuous-row arrangement (up to max. 14 luminaires)
- a 'Batten 41-N' (with power plug) or a 'Batten 41-F' (for fixed electrical connection) and the desired number of 'Batten 41-E' (extension luminaire) are required for each trunking system; (max. 15 luminaires are permitted for each trunking system)
Results
Batten 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327DM10AF GTIN (EAN): 4058352704936
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 1000lm | 8.3W | 120lm/W | ON/OFF | 580 | 0.3 |
Batten 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327KM20AF GTIN (EAN): 4058352705025
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1180 | 0.5 |

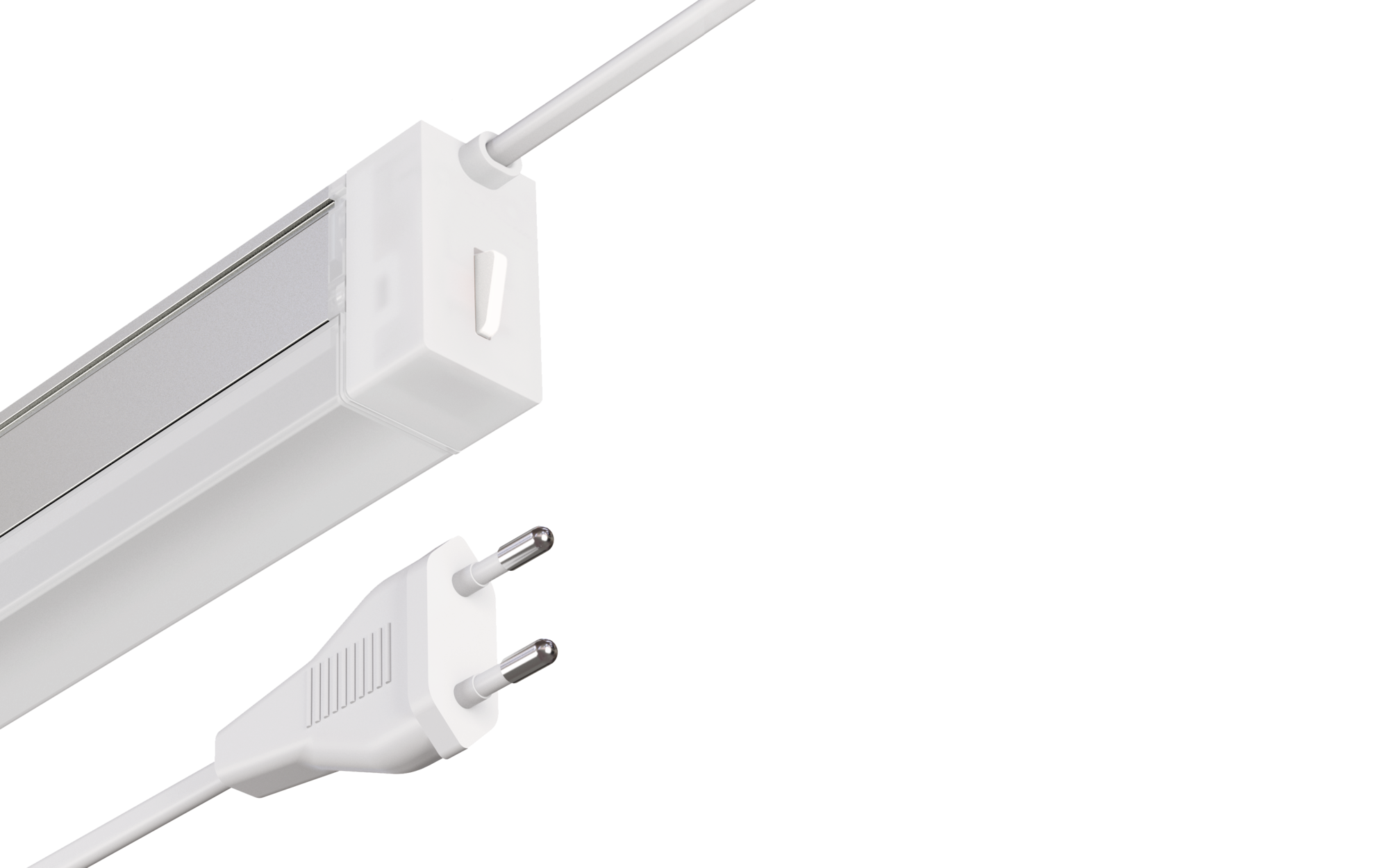

Batten 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327DM10AN GTIN (EAN): 4058352704967
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 1000lm | 8.3W | 120lm/W | ON/OFF | 610 | 0.4 |
Batten 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327KM20AN GTIN (EAN): 4058352705070
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1210 | 0.6 |
Batten 41-E, Light colour 830/840/850, ON/OFF, system connector: socket
Order No.: 51LP327KM20AE GTIN (EAN): 4058352704998
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1180 | 0.5 |
Batten 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327DM10AFGTIN (EAN): 4058352704936
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF |
| L (mm) | 580 |
| Wt. (kg) | 0.3 |
Batten 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327KM20AFGTIN (EAN): 4058352705025
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1180 |
| Wt. (kg) | 0.5 |
Batten 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327DM10ANGTIN (EAN): 4058352704967
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF |
| L (mm) | 610 |
| Wt. (kg) | 0.4 |
Batten 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327KM20ANGTIN (EAN): 4058352705070
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1210 |
| Wt. (kg) | 0.6 |
Batten 41-E, Light colour 830/840/850, ON/OFF, system connector: socket
Order No.: 51LP327KM20AEGTIN (EAN): 4058352704998
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1180 |
| Wt. (kg) | 0.5 |
