SITECO
Rondel
References
Constantin Vanotti School, Überlingen, Germany
Products: Licross
learn more
UPP, Great Britain
learn more
Product selection
Rondel 40
Key data
Article enclosure luminaire
Lighting effect direct symmetric distribution, 120°
Net luminous flux 1200lm
Colour temperature 4000K
Control ON/OFF
Cover PMMA
Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Special features
Timeless design with familiar form factors
Pleasant room atmosphere and homogeneous illumination due to diffuse light distribution
Light according to needs with the version with presence and daylight sensor
Wide distribution UV-resistant diffuser
Also suitable for use in protected outdoor areas
Configuration & data sheets
- ceiling or wall installation without other luminaire-specific mounting accessories
Results
Delivery time on request
Rondel 40, direct distribution, 120°, ON/OFF, HF sensor, signal white (RAL 9003)
Order No.: 5MD5207L1040S GTIN (EAN): 4058352260074
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1200lm | 12W | 100lm/W | ON/OFF | 267 | 0.5 | 46.60 |
Delivery time on request
Rondel 40, direct distribution, 120°, ON/OFF, HF sensor, signal white (RAL 9003)
Order No.: 5MD5207L1040SGTIN (EAN): 4058352260074
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1200lm |
| Connected load | 12W |
| Luminous efficacy | 100lm/W |
| Control | ON/OFF |

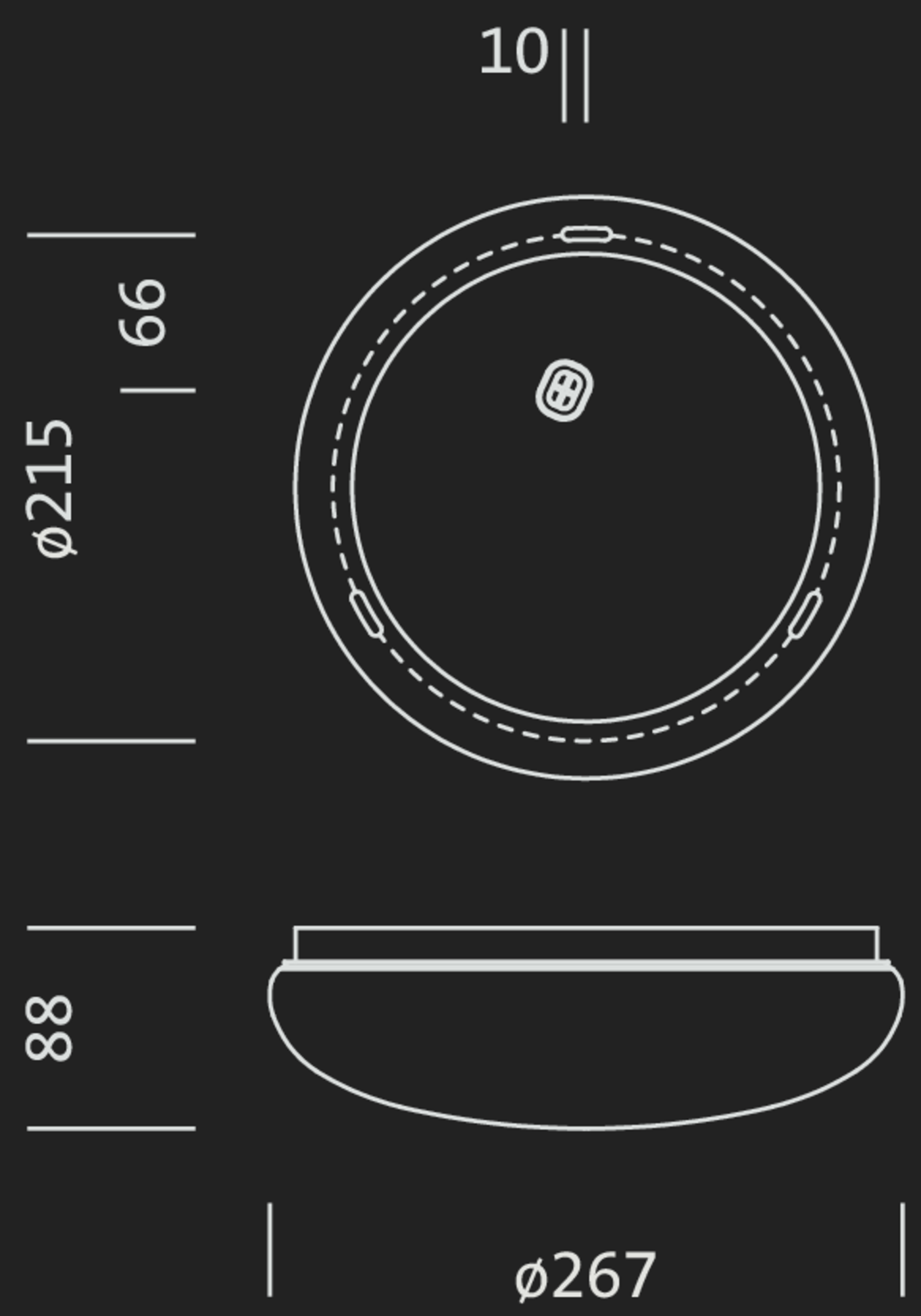

| D (mm) | 267 |
| Wt. (kg) | 0.5 |
| Price (EUR) | 46.60 |
