Product selection

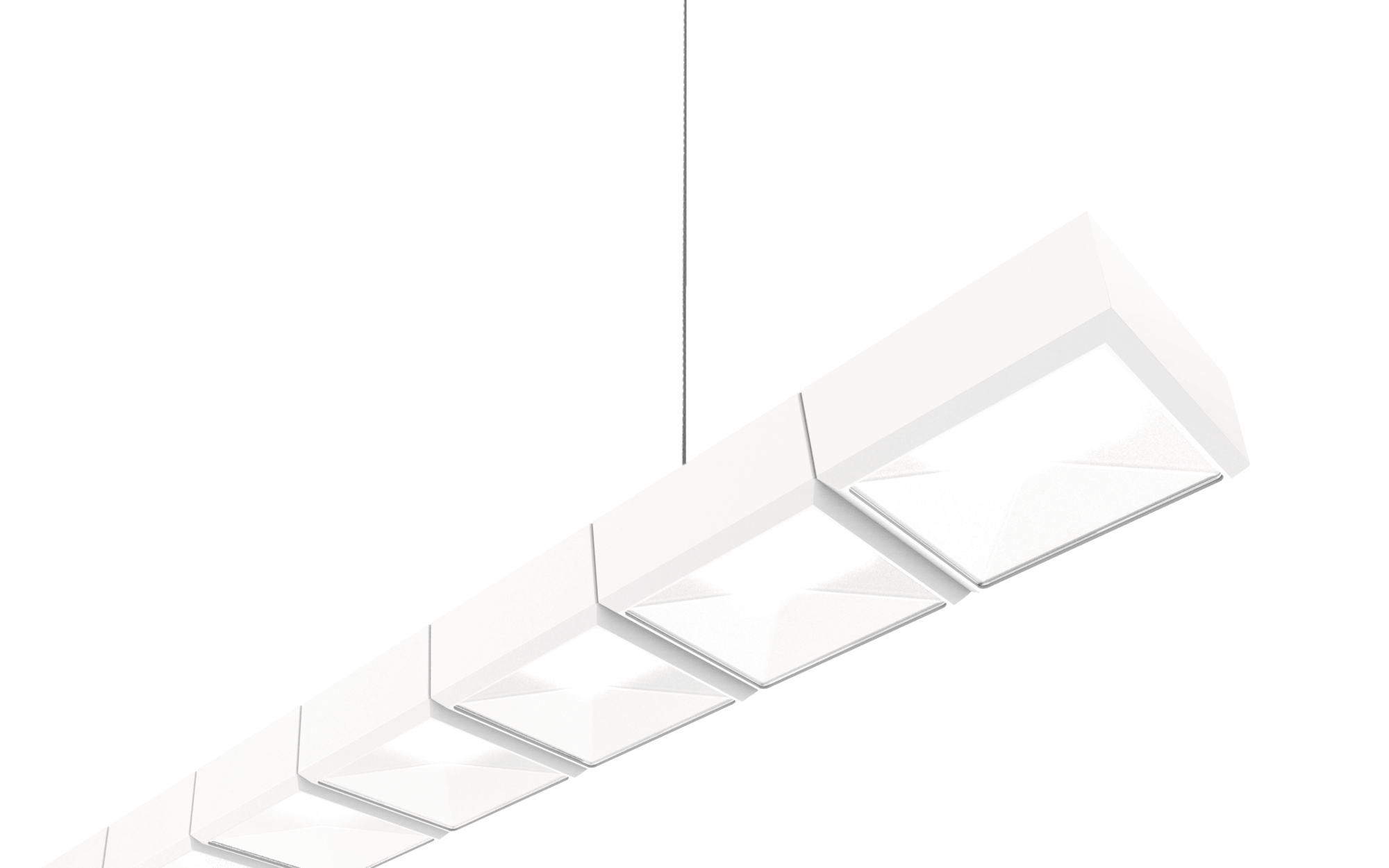

Scriptus 11 suspended luminaire
Key data
Article office luminaire
Lighting effect direct/indirect symmetric distribution
Net luminous flux 8020lm to 16060lm
Colour temperature 3000…6500K; 4000K
Control DALI; DALI DT8
Special features
Luminaire range for ceiling surface mounting or suspended mounting as well as individual ceiling recessed variants – with a sophisticated appearance due to discreetly integrated ECG
High quality lighting technology with new, multi-step optic system for maximum visual comfort due to very good glare control (UGR ≤ 16) and uniform illumination
Available with Tunable White function as suspended version with indirect light component as the ideal basis for HCLlive applications – for greater well-being and motivation
Maximum planning flexibility due to various lengths, luminous intensities and configurations as well as extensive control options
Configuration & data sheets
- luminaire incl. pre-assembled connection cable, l = 1.2m
- please order wire suspension separately (2 pieces required per luminaire)
- luminaire for integration in light management concepts suitable both for building environments with local control and those with central control
- for light management with local control: master luminaire (with light and motion sensor) and slave luminaire (with motion sensor) can be used; the light sensor of the slave luminaire is inactive in this application
- with light management concept with local control: manual control of lighting installation is possible via push button interface and commercial push buttons; for commissioning and parameterizing the installation, a commissioning remote control is required
- for light management with central control: slave luminaire (with light and motion sensor) can be used
- with light management concept with central control: manual control of lighting installation via push button interface only possible in combination with controller
- please order push button interface, controller, commissioning remote control and further Siteco Connect components separately if required
Results
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ312D04WA GTIN (EAN): 4058352065129
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8020lm | 62W | 130lm/W | DALI | 1658 | 5.8 | 1253.00 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ312D0TWB GTIN (EAN): 4058352198193
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 11150lm | 96W | 116lm/W | DALI DT8 | 1768 | 6.6 | 1714.60 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ313D04WA GTIN (EAN): 4058352128718
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13330lm | 99W | 134lm/W | DALI | 2648 | 8.1 | 2691.80 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ313D0TWB GTIN (EAN): 4058352198414
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 13880lm | 110W | 126lm/W | DALI DT8 | 2648 | 8.2 | 2659.00 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ314D04WA GTIN (EAN): 4058352067789
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16060lm | 120W | 133lm/W | DALI | 3088 | 10.4 | 2242.20 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ314D0TWB GTIN (EAN): 4058352198438
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 13970lm | 110W | 128lm/W | DALI DT8 | 3088 | 10.4 | 2839.00 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ323D04WA GTIN (EAN): 4058352124918
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 12070lm | 91W | 133lm/W | DALI | 2426 | 8.1 | 2091.20 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ312D04WAGTIN (EAN): 4058352065129
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8020lm |
| Connected load | 62W |
| Luminous efficacy | 130lm/W |
| Control | DALI |
| L (mm) | 1658 |
| Wt. (kg) | 5.8 |
| Price (EUR) | 1253.00 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ312D0TWBGTIN (EAN): 4058352198193
| Colour temperature | 3000..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 11150lm |
| Connected load | 96W |
| Luminous efficacy | 116lm/W |
| Control | DALI DT8 |
| L (mm) | 1768 |
| Wt. (kg) | 6.6 |
| Price (EUR) | 1714.60 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ313D04WAGTIN (EAN): 4058352128718
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13330lm |
| Connected load | 99W |
| Luminous efficacy | 134lm/W |
| Control | DALI |
| L (mm) | 2648 |
| Wt. (kg) | 8.1 |
| Price (EUR) | 2691.80 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ313D0TWBGTIN (EAN): 4058352198414
| Colour temperature | 3000..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13880lm |
| Connected load | 110W |
| Luminous efficacy | 126lm/W |
| Control | DALI DT8 |
| L (mm) | 2648 |
| Wt. (kg) | 8.2 |
| Price (EUR) | 2659.00 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ314D04WAGTIN (EAN): 4058352067789
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 16060lm |
| Connected load | 120W |
| Luminous efficacy | 133lm/W |
| Control | DALI |
| L (mm) | 3088 |
| Wt. (kg) | 10.4 |
| Price (EUR) | 2242.20 |
Scriptus 11, direct/indirect distribution, 3000..6500K, DALI DT8
Order No.: 5MZ314D0TWBGTIN (EAN): 4058352198438
| Colour temperature | 3000..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13970lm |
| Connected load | 110W |
| Luminous efficacy | 128lm/W |
| Control | DALI DT8 |
| L (mm) | 3088 |
| Wt. (kg) | 10.4 |
| Price (EUR) | 2839.00 |
Scriptus 11, direct/indirect distribution, DALI
Order No.: 5MZ323D04WAGTIN (EAN): 4058352124918
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 12070lm |
| Connected load | 91W |
| Luminous efficacy | 133lm/W |
| Control | DALI |
| L (mm) | 2426 |
| Wt. (kg) | 8.1 |
| Price (EUR) | 2091.20 |
Mandatory accessories
| Order No.: 5LY92001GTIN (EAN): 4058352074022 | Show all details |
| Order No.: 5LY92002GTIN (EAN): 4058352074053 | Show all details |
| Order No.: 5LY92003GTIN (EAN): 4058352074077 | Show all details |
| Order No.: 5LY92004GTIN (EAN): 4058352074091 | Show all details |
| Order No.: 5LY92005GTIN (EAN): 4058352074138 | Show all details |
Optional accessories
| Order No.: 5LZ904712GTIN (EAN): 4008321710871 | Show all details |
| Order No.: 5LZ904307GTIN (EAN): 4052899195967 | Show all details |
