SITECO

Ecopack

Family Configuration & data sheets

Ecopack 31

Key data

Article diffuser luminaire
Lighting effect direct symmetric extremely wide distribution
Net luminous flux 2600lm to 7000lm
Colour temperature 3000/4000/5000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2
Cover PC
Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK06; IK02
Emergency light with self-contained supply

Special features

Light colour and luminous flux adjustable via switch
DALI variants for problem-free lighting control
Motion detection by optional PIR sensor
3h emergency light kit turns any 1149mm or 1450mm long luminaire into an emergency luminaire

Configuration & data sheets

Colour temperature

Rated luminous flux (lm)

Control

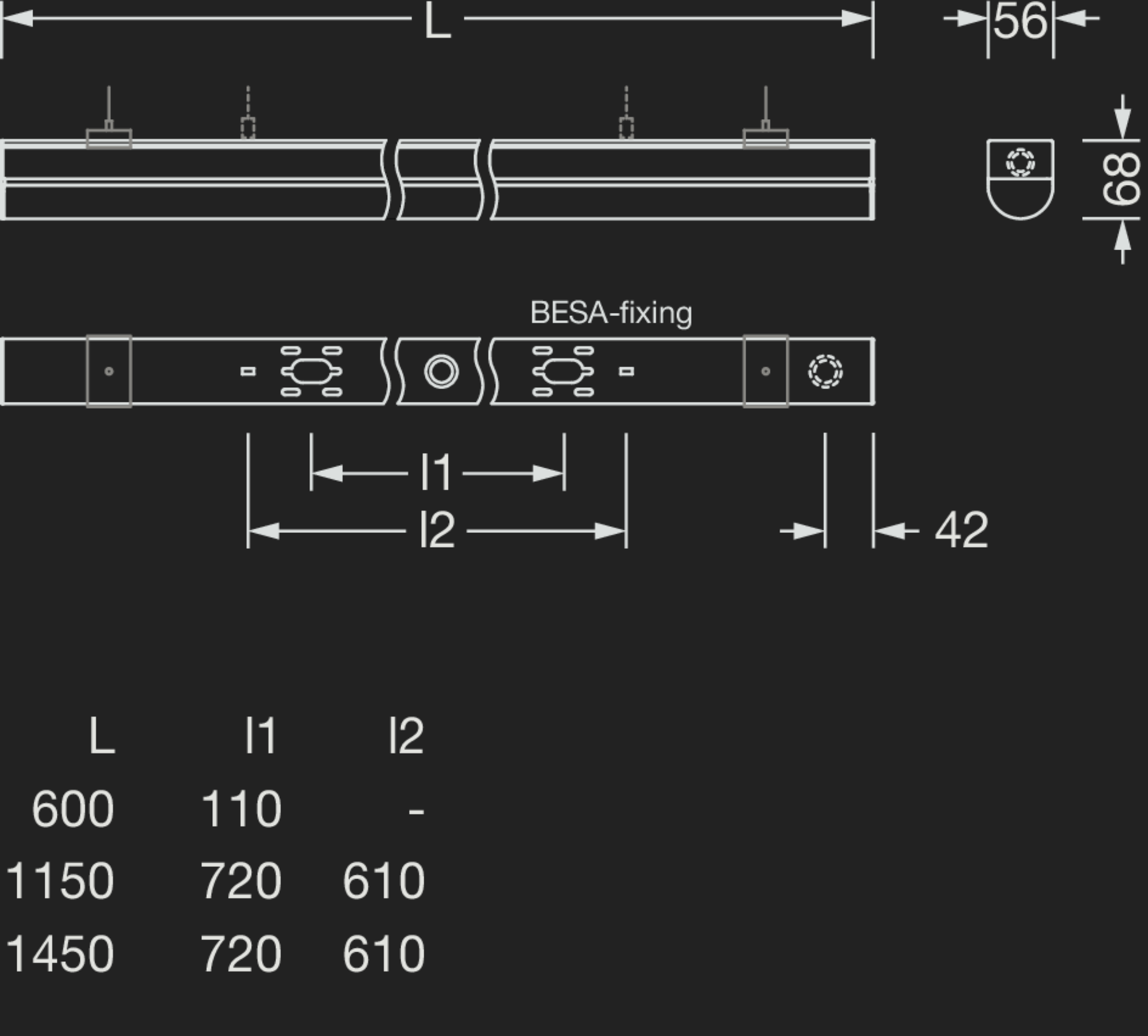

Length (mm)

Impact resistance

Emergency light

Operating ambient temperature

  • emergency light kit only suitable for luminaire lengths 1149 and 1450mm

Results

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MDM20A GTIN (EAN): 4058352589533
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 802600lm20W130lm/WON/OFF Multilumen 6000.871.80
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40A GTIN (EAN): 4058352589564
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen 11501.295.30
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70A GTIN (EAN): 4058352589595
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen 14501.5111.20
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DKM40A GTIN (EAN): 4058352589519
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 804300lm33W130lm/WDALI 2 11501.2142.70
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DNM80A GTIN (EAN): 4058352589526
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 807000lm52W135lm/WDALI 2 14501.5158.50
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430A GTIN (EAN): 4058352622483
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
4000KCRI > 803000lm21W140lm/WON/OFF 14501.597.60
Show all details
Tender textData sheet (PDF, full)Complete download list

Ecopack 31, extremely wide distribution, ON/OFF, 3h, PC

Order No.: 51LJ127N430A3G GTIN (EAN): 4058352622513
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
4000KCRI > 803000lm23W133lm/WON/OFF3h14601.8188.10
Show all details
Tender textData sheet (PDF, full)Complete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, 3h, PC

Order No.: 51LJ12MKM40A3G GTIN (EAN): 4058352671085
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen3h11591.5214.30
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, 3h, PC

Order No.: 51LJ12MNM70A3G GTIN (EAN): 4058352671115
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)Price (EUR)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen3h14601.8235.70
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MDM20AGTIN (EAN): 4058352589533

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux2600lm
Connected load20W
Luminous efficacy130lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)600
Wt. (kg)0.8
Price (EUR)71.80
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40AGTIN (EAN): 4058352589564

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1150
Wt. (kg)1.2
Price (EUR)95.30
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70AGTIN (EAN): 4058352589595

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1450
Wt. (kg)1.5
Price (EUR)111.20
Show all details

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DKM40AGTIN (EAN): 4058352589519

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4300lm
Connected load33W
Luminous efficacy130lm/W
ControlDALI 2
Battery duration
L (mm)1150
Wt. (kg)1.2
Price (EUR)142.70
Show all details

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DNM80AGTIN (EAN): 4058352589526

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load52W
Luminous efficacy135lm/W
ControlDALI 2
Battery duration
L (mm)1450
Wt. (kg)1.5
Price (EUR)158.50
Show all details

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430AGTIN (EAN): 4058352622483

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load21W
Luminous efficacy140lm/W
ControlON/OFF
Battery duration
L (mm)1450
Wt. (kg)1.5
Price (EUR)97.60
Show all details

Ecopack 31, extremely wide distribution, ON/OFF, 3h, PC

Order No.: 51LJ127N430A3GGTIN (EAN): 4058352622513

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load23W
Luminous efficacy133lm/W
ControlON/OFF
Battery duration3h
L (mm)1460
Wt. (kg)1.8
Price (EUR)188.10
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, 3h, PC

Order No.: 51LJ12MKM40A3GGTIN (EAN): 4058352671085

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1159
Wt. (kg)1.5
Price (EUR)214.30
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, 3h, PC

Order No.: 51LJ12MNM70A3GGTIN (EAN): 4058352671115

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1460
Wt. (kg)1.8
Price (EUR)235.70
Show all details

Optional accessories

Articleceiling mountingPU2 pcs.Wt. (kg)0.1Price (EUR)10.60Order No.: 59LJ101GTIN (EAN): 4058352612309Show all details
Articlewire suspension with ceiling canopy, suspension height up to 2.0mPU2 pcs.Wt. (kg)0.1Price (EUR)26.50Order No.: 59LJ102GTIN (EAN): 4058352612330Show all details
Articlemulti-sensor, traffic white (RAL 9016)PU1 pc.Wt. (kg)0.1Price (EUR)66.00Order No.: 59LJ201GTIN (EAN): 4058352612361Show all details
Articleremote controlPU1 pc.Wt. (kg)0.1Price (EUR)26.50Order No.: 59LJ202GTIN (EAN): 4058352612415Show all details
Articleemergency light elementPU1 pc.Wt. (kg)0.3Price (EUR)198.40Order No.: 59LJ203GTIN (EAN): 4058352612422Show all details
