51MP26WD2341E
Article office luminaire

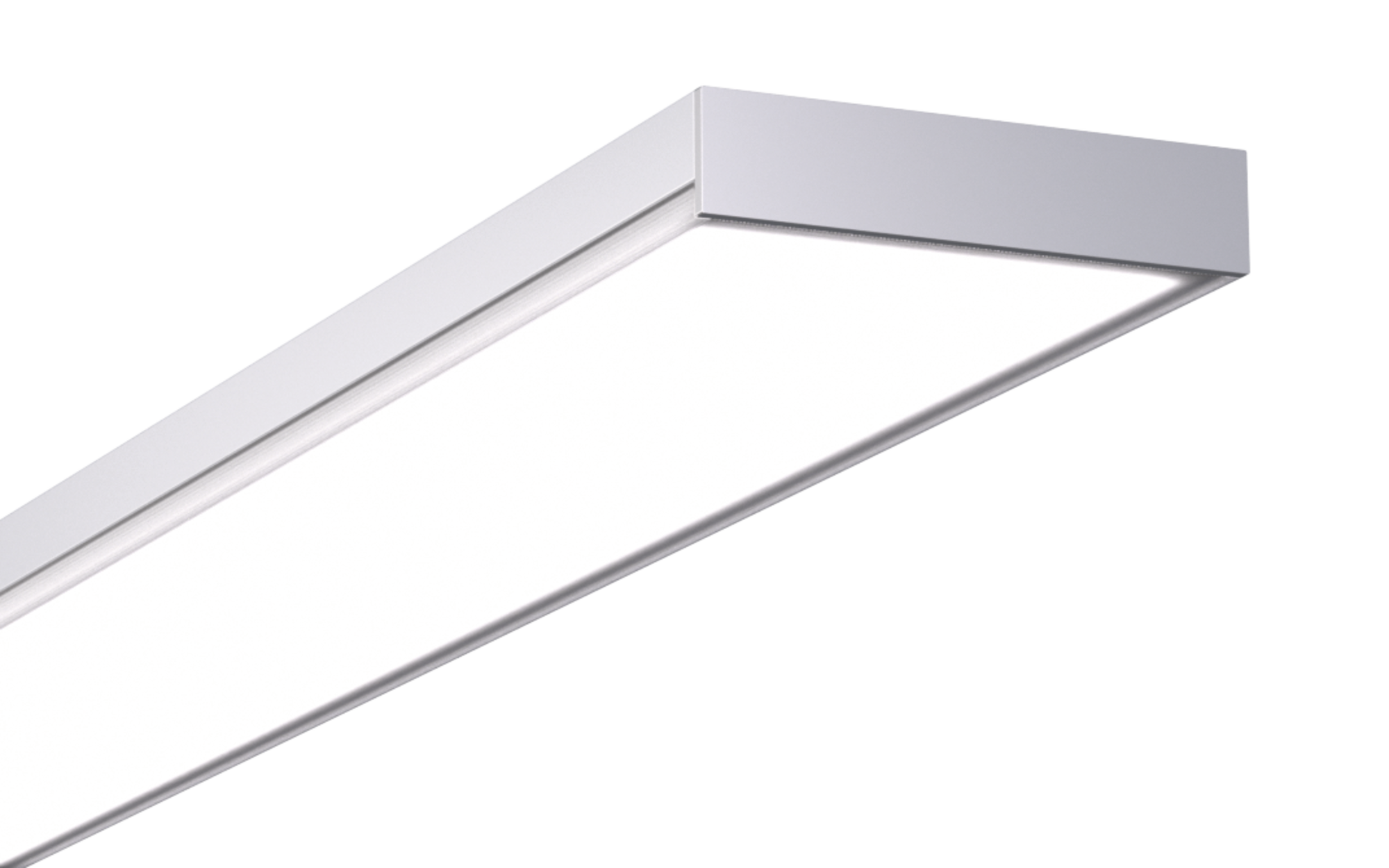

Product name Apollon 31 Surface
Lamp LED
Rated luminous flux 4400lm
Luminous efficacy 133lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 33W
Service life 50000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 4.1kg
Apollon 31 Surface, office luminaire, primary optical cover: micro prismatic cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.400lm, luminous efficacy: 133lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 33W, housing, of sheet steel, coated, metallic grey (RAL 9006), length: 1.545mm, width: 200mm, height: 44mm, protection rating (complete): IP20, protection rating (on room side): IP40, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, impact resistance: IK02, permissible operating ambient temperature: -20..+40°C, standard: EN 60598-2-22, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

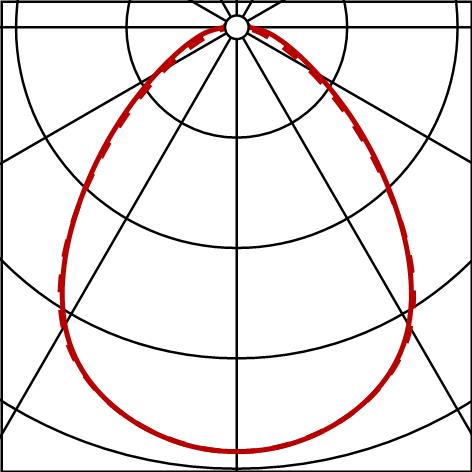

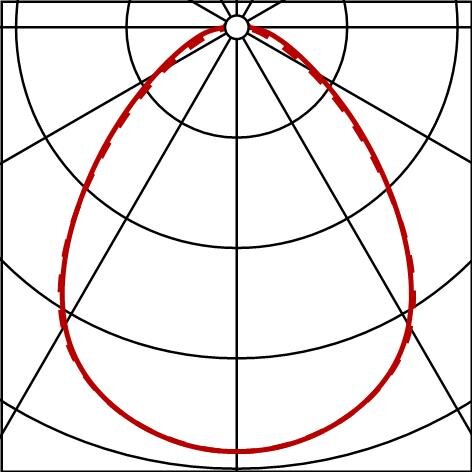

Photometric report / planning data
Apollon 31 Surface
office luminaire, metallic grey (RAL 9006), DALI 2, 4400lm, 830, 1545x200mm, Connection: terminal
Lamps: 1x LED
Order No.: 51MP26WD2341E
