51WC10E

Order No.: 51WC10E

Remember article Remember article

Article emergency light element
Product name Round 31
Lamp LED
Rated luminous flux 210lm
Luminous efficacy 105lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 2.3W
Weight 0.3kg

Round 31, emergency light element, installation type: recessed, emergency light element,LED, rated luminous flux: 210lm, luminous efficacy: 105lm/W, colour temperature: 4000K, with terminal, 3-pole, mains connection: 220..240V, AC/DC, rated input power: 2.3W, control gear: single battery element, battery: LiFePO4, 3Ah, housing, round, of PC, white, insulation class (complete): insulation class II (safety insulation), certification: CE, standard: EN 60598-2-22, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

Product details

Key data

Product type emergency light element
Product name Round 31
Order No. 51WC10E

Component 1

Lamps
Lamps with LED
Rated luminous flux 210lm
Luminous efficacy 105lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Rated input power 2.3W
Supplement for emergency light function

Component 2

Lamps
Supplement for emergency light function

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Insulation class insulation class II (safety insulation)
Standard EN 60598-2-22
Certification, designation CE

Material, Colour

housing PC, white, round

Mounting

Mounting method, mounting location recessed, in the luminaire

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, AC/DC

Dimensions, Weight

Weight 0.3kg

Key data

Product type
emergency light element

Product name
Round 31

Order No.
51WC10E

Component 1

Lamps

Lamps
with LED

Rated luminous flux
210lm

Luminous efficacy
105lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Rated input power
2.3W

Supplement
for emergency light function

Component 2

Lamps

Supplement
for emergency light function

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Certificates, Standards

Insulation class
insulation class II (safety insulation)

Standard
EN 60598-2-22

Certification, designation
CE

Material, Colour

housing
PC, white, round

Mounting

Mounting method, mounting location
recessed, in the luminaire

Electrical connection

Connection
terminal, 3-pole

Nominal voltage
220..240V, AC/DC

Dimensions, Weight

Weight
0.3kg

Photometric report / planning data

ROU31
2450lm830,DA2,Ø350
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10DA32A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10DA32A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Photometric report / planning data

ROU31
2550lm840,DA2,Ø350
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10DA42A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10DA42A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Photometric report / planning data

ROU31
4250lm830,DA2,Ø480
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10DB34A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10DB34A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Photometric report / planning data

ROU31
4400lm840,DA2,Ø480
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10DB44A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10DB44A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

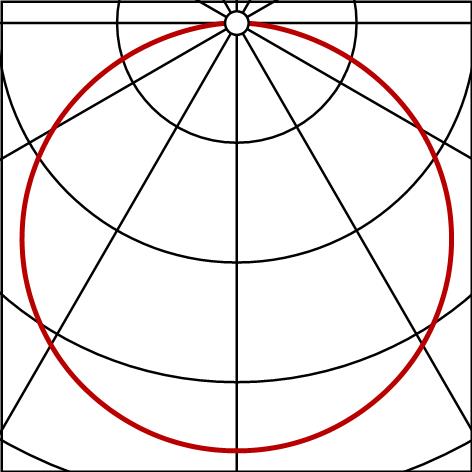

Photometric report / planning data

ROU31
2450lm830,ML,Ø350
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10MA32A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10MA32A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

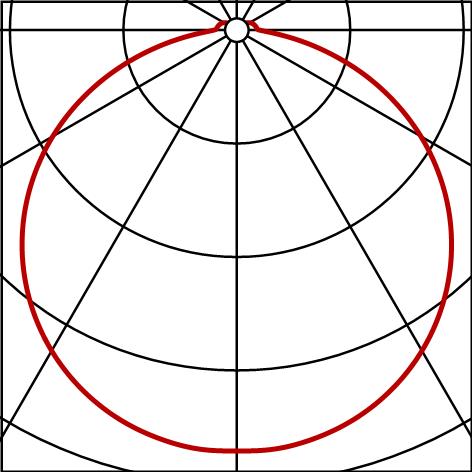

Photometric report / planning data

ROU31
2550lm840,ML,Ø350
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10MA42A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10MA42A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Photometric report / planning data

ROU31
4250lm830,ML,Ø480
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10MB34A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10MB34A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Photometric report / planning data

ROU31
4400lm840,ML,Ø480
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10MB44A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)

Product versions/accessory

ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10MB44A

emergency light element
Order No.: 51WC10E

Photometric report (PDF)
