59MX1BW100WA

Order No.: 59MX1BW100WA
Remember articleRemember article

Article lighting management components
Product name Silica 21
Protection rating IP20
Weight 0.3kg

Silica 21sensor PC2, slave, local control - self-sufficient standalone sensors, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the Silica 21 luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI, 1 x LED red/green, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family DALI-2
Product type lighting management components
Product name Silica 21
Order No. 59MX1BW100WA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with opal or prismatic cover

Mounting

Mounting method, mounting location slip-in mounting, to the Silica 21 luminaire
Mounting height 2.5..5m
Arrangement single/continuous arrangement
Supplement for recessed luminaires

Dimensions, Weight

Length 139mm
Width 53mm
Height 54mm
Weight 0.3kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

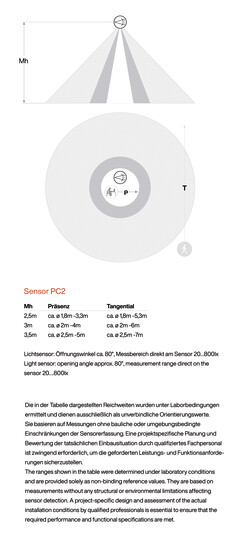

Detection angle 360°
Detection range tangential approx. ø1.8m..7m
Detection range approx. ø1.8m..5m
Option detection range can be limited in stages using extendable lens covers (2x 180°)
Feature circular detection area

1x light sensor
Illuminance 20..800lx (directly at sensor)

Outputs

1x DALI
System current max. 6mA
Feature DALI, slave function, DALI current max. 6mA

1x LED red/green
Feature for displaying initialization

System family
DALI-2

Product type
lighting management components

Product name
Silica 21

Order No.
59MX1BW100WA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with opal or prismatic cover

Mounting method, mounting location
slip-in mounting, to the Silica 21 luminaire

Mounting height
2.5..5m

Arrangement
single/continuous arrangement

Supplement
for recessed luminaires

Length
139mm

Width
53mm

Height
54mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
tangential approx. ø1.8m..7m

Detection range
approx. ø1.8m..5m

Option
detection range can be limited in stages using extendable lens covers (2x 180°)

Feature
circular detection area

1x light sensor

Illuminance
20..800lx (directly at sensor)

1x DALI

System current
max. 6mA

Feature
DALI, slave function, DALI current max. 6mA

1x LED red/green

Feature
for displaying initialization
