5NW13993KB

Order No.: 5NW13993KB
Remember articleRemember article

Article secondary reflector
Product name SITECO Mirrortec Indoor
Weight 4.8kg

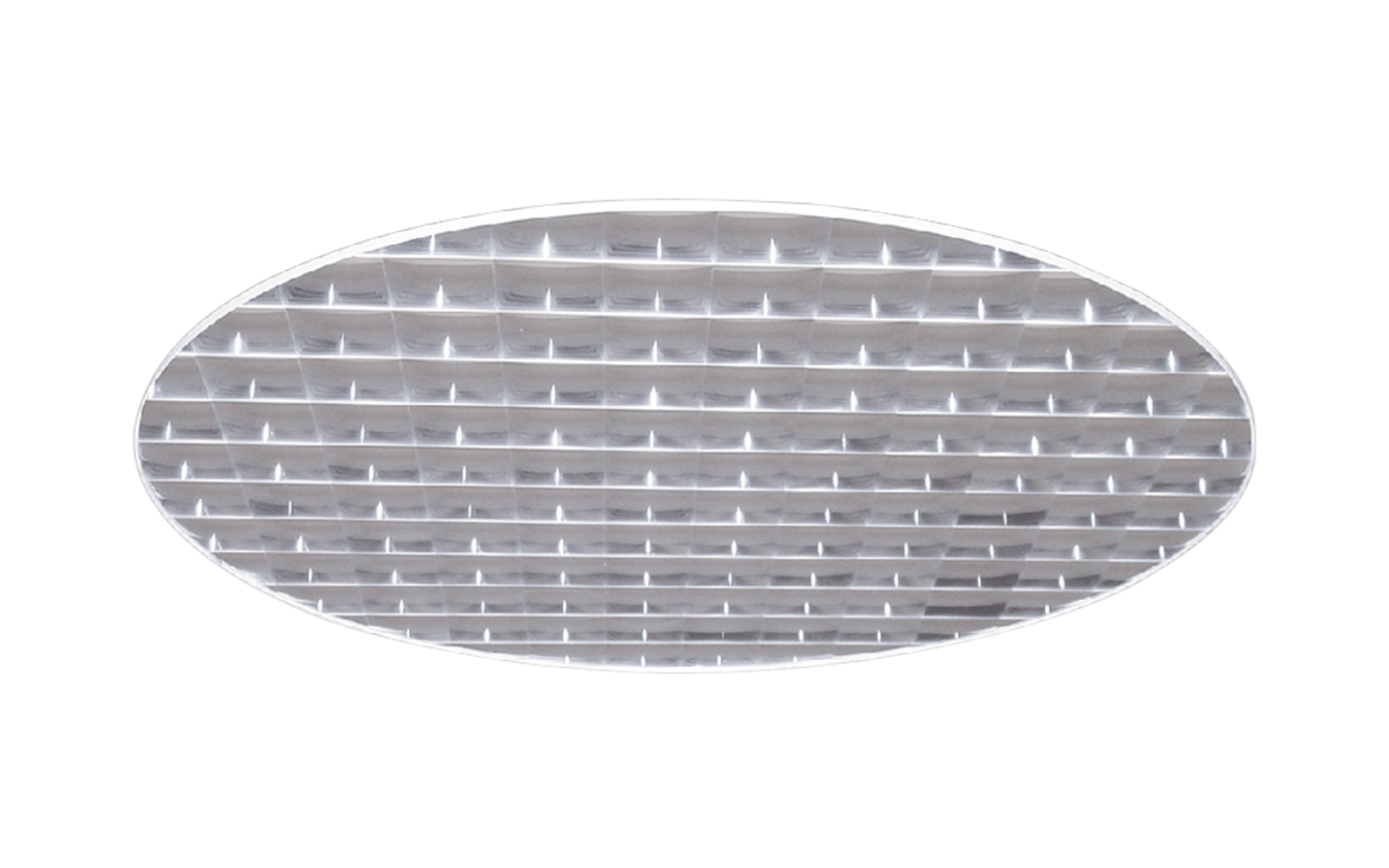

secondary reflector, for SITECO Mirrortec Indoor, wire hanger, housing, circular, of aluminium, coated, metallic grey (RAL 9006), fresnel reflector 100, of PMMA, aluminized, highly specular, light point resolution, fresnel structure, diameter: 900 mm

Downloads

Technical product information
Data for applications

Product details

Key data

Product type secondary reflector
Product name SITECO Mirrortec Indoor
Order No. 5NW13993KB

Light control

Glare reduction

Beam angle

Symmetry

Material, Colour

wire hanger aluminium, coated, metallic grey (RAL 9006), circular
housing aluminium, coated, metallic grey (RAL 9006), circular

Mounting

Mounting method, mounting location suspended mounting, to the ceiling
Arrangement single arrangement

Dimensions, Weight

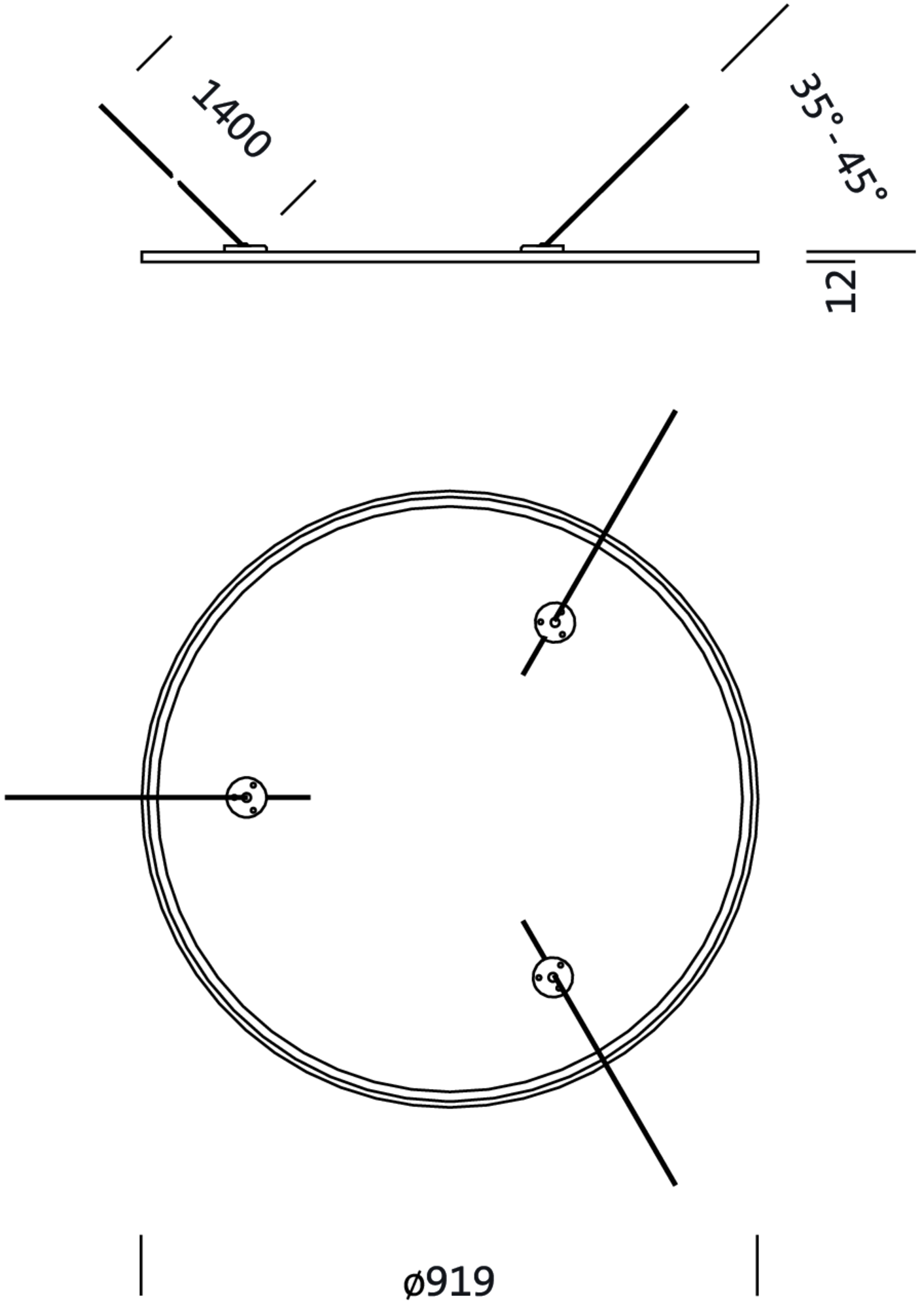

Diameter 900mm
Weight 4.8kg

Product type
secondary reflector

Product name
SITECO Mirrortec Indoor

Order No.
5NW13993KB

wire hanger
aluminium, coated, metallic grey (RAL 9006), circular

housing
aluminium, coated, metallic grey (RAL 9006), circular

Mounting method, mounting location
suspended mounting, to the ceiling

Arrangement
single arrangement

Diameter
900mm

Weight
4.8kg
