Key data

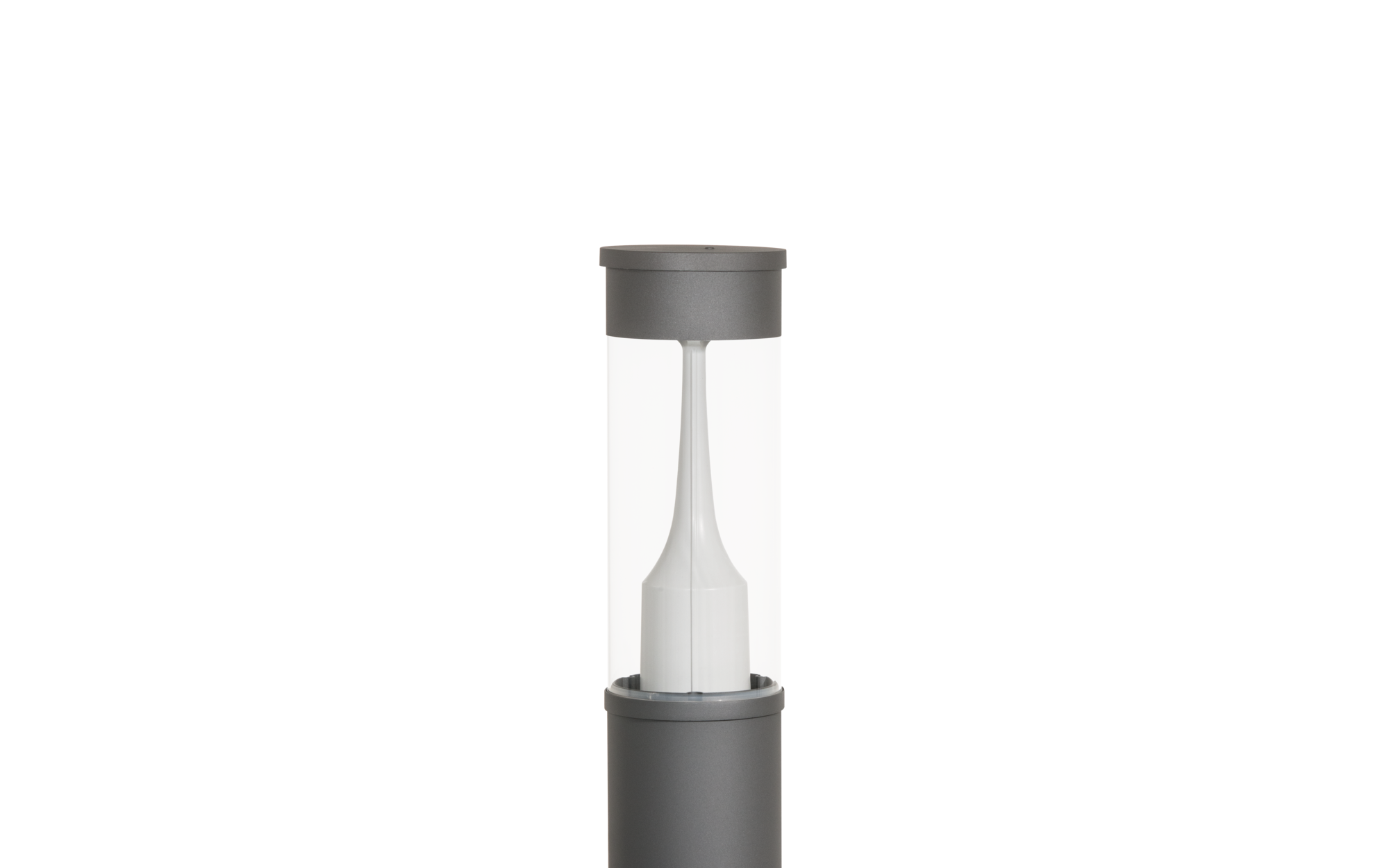

Product type bollard luminaire
Product name City-Light 120 iQ
Order No. 5XA5285AF14H

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent, partly coated

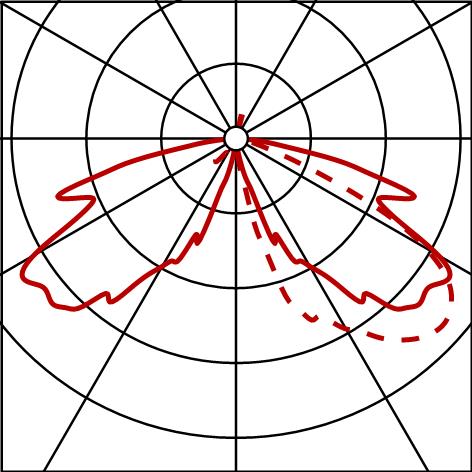

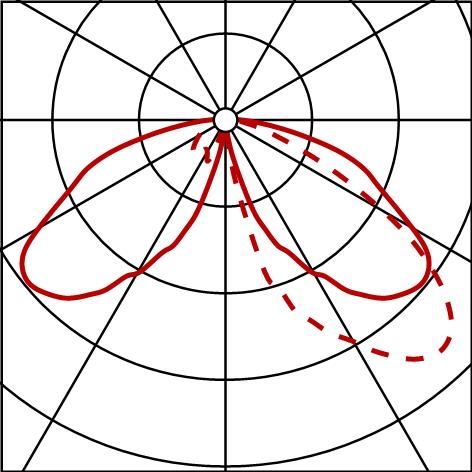

Light distribution S120002
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with LED
Rated values 1540lm | 12.9W | 119.4lm/W (begin service life);
end service life: 1540lm | 13.3W;
at 50% lumin. flux: 770lm | 6.4W | 120.3lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 1540lm | 12.9W | 119.4lm/W | 2200K
end service life
LS 1: 13.3W
further light settings possible

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing extruded aluminium section, coated, SITECO metallic grey (DB 702S), cylindrical
Module 540 iQ-SR matt traffic white (RAL 9016)
Cover cover of PMMA

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

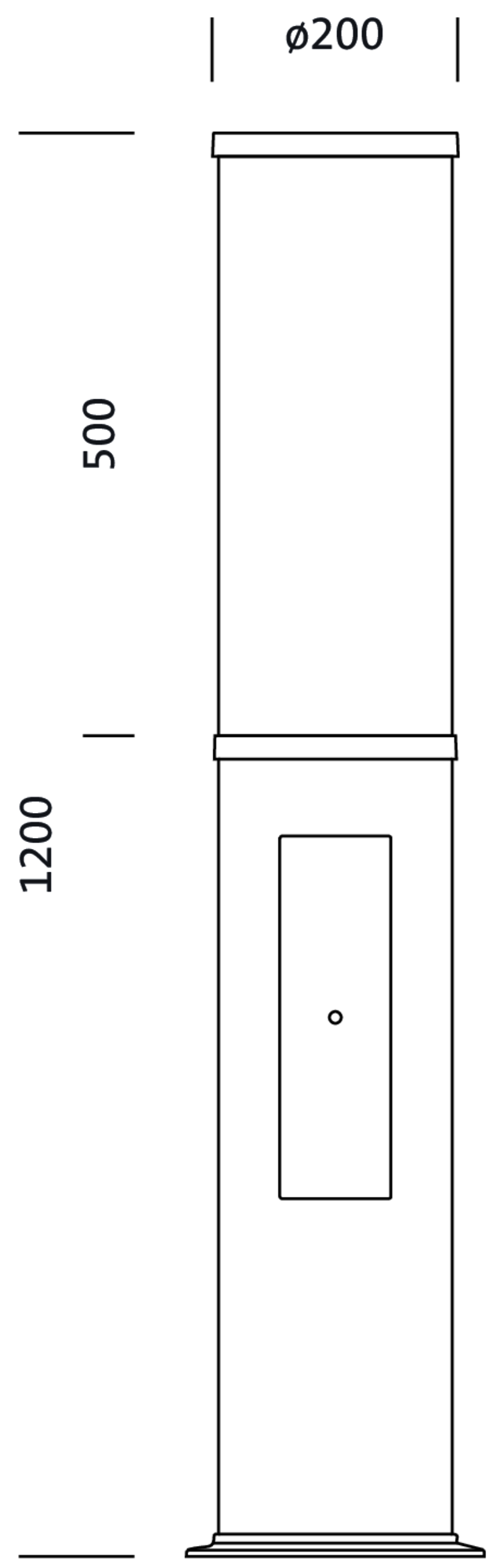

Dimensions, Weight

Length 1200mm
Diameter 200mm
Weight 10.8kg

Service life

Rated service life 100000h at AT = 25°C
