5XE3E63T08NB

Order No.: 5XE3E63T08NB
Remember articleRemember article

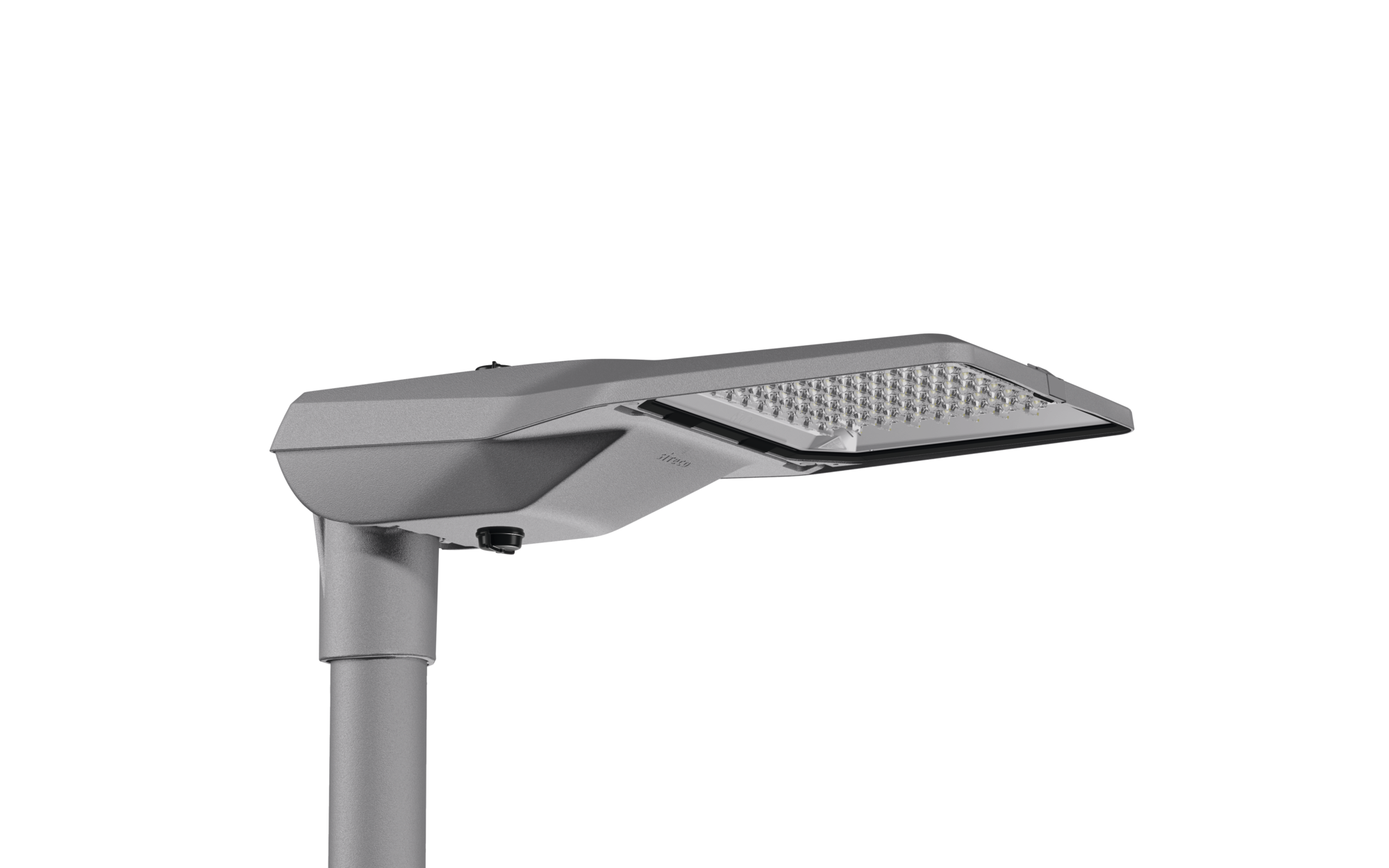

Article mast luminaire
Product name Streetlight SL 21 midi
Lamp LED
Rated luminous flux 20350lm
Luminous efficacy 134.6lm/W
Colour temperature 2700K
Colour rendering CRI > 70
Pnom 151.2W
Pnom end service life 156.8W
Pred at 50% lumin. flux 69.9W
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 7.3kg

Streetlight SL 21 midi, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100006, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 20.350lm | 151,2W | 134,6lm/W (begin service life); end service life: 20.350lm | 156,8W; at 50% lumin. flux: 10.152lm | 69,9W | 145,2lm/W, colour temperature: 2700K, colour rendering: CRI > 70, light colour: 727, light setting 1 (further light settings possible): 100% | 20.350lm | 151,2W | 134,6lm/W | 2.700K (begin service life); end service life: 156,8W, control gear: D4i, control: overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system, length: 644mm, width: 335mm, height: 110mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, Smart Interface above: Zhaga, Smart Interface below: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 21 midi
Order No. 5XE3E63T08NB

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100006
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 20350lm | 151.2W | 134.6lm/W (begin service life);
end service life: 20350lm | 156.8W;
at 50% lumin. flux: 10152lm | 69.9W | 145.2lm/W
Colour temperature 2700K
Colour rendering index CRI > 70
Light colour 727

Factory light settings (LS)

begin service life
LS 1: 100% | 20350lm | 151.2W | 134.6lm/W | 2700K
end service life
LS 1: 156.8W
further light settings possible

Operating device

Control D4i
Smart Interface above Zhaga
Smart Interface below Zhaga
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

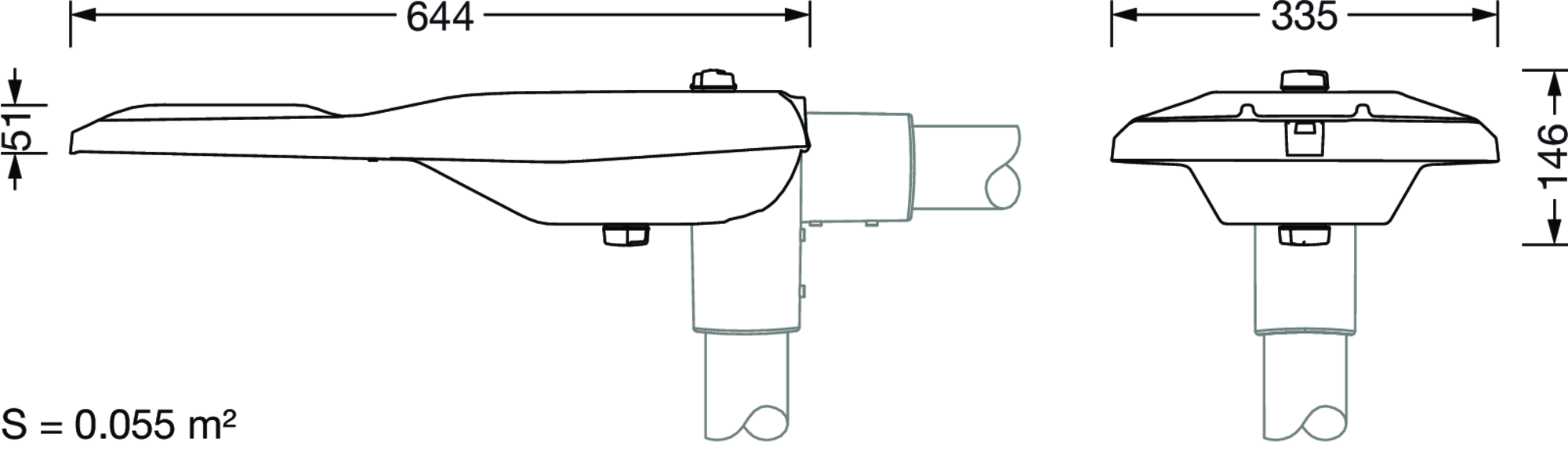

Dimensions, Weight

Length 644mm
Width 335mm
Height 110mm
Weight 7.3kg
Mast spigot mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L96/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 21 midi

Order No.
5XE3E63T08NB

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100006

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
20350lm | 151.2W | 134.6lm/W (begin service life);
end service life: 20350lm | 156.8W;
at 50% lumin. flux: 10152lm | 69.9W | 145.2lm/W

Colour temperature
2700K

Colour rendering index
CRI > 70

Light colour
727

begin service life

LS 1: 100% | 20350lm | 151.2W | 134.6lm/W | 2700K

end service life

LS 1: 156.8W


further light settings possible

Control
D4i

Smart Interface above
Zhaga

Smart Interface below
Zhaga

Equipment
overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK10

Temperature range (operation)
-40..+50°C

Supplement
standard-compliant lighting for roads and squares

Corrosion protection
corrosivity category C5 high according to DIN EN ISO 12944

Certification, designation
CE, ENEC, ENEC+, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, post-top, on mast

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Length
644mm

Width
335mm

Height
110mm

Weight
7.3kg

Mast spigot
mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission
0% at 0° inclination

Rated service life
100000h (L96/B10) at AT = 25°C

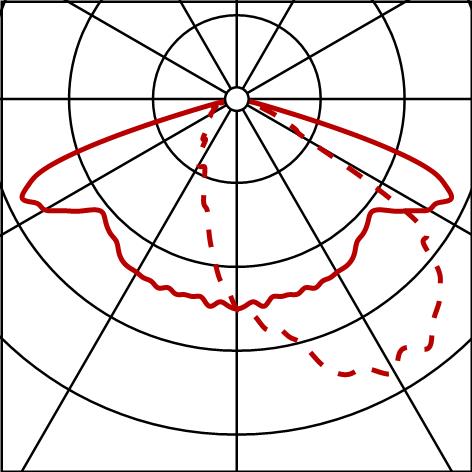

Photometric report / planning data

SL21md
S100006,20350lm727,D4i,ZaZb
Lamps: LED 2700K / CRI >= 70
Order No.: 5XE3E63T08NB

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
