5XJ3BE3BG108

Order No.: 5XJ3BE3BG108
Remember articleRemember article

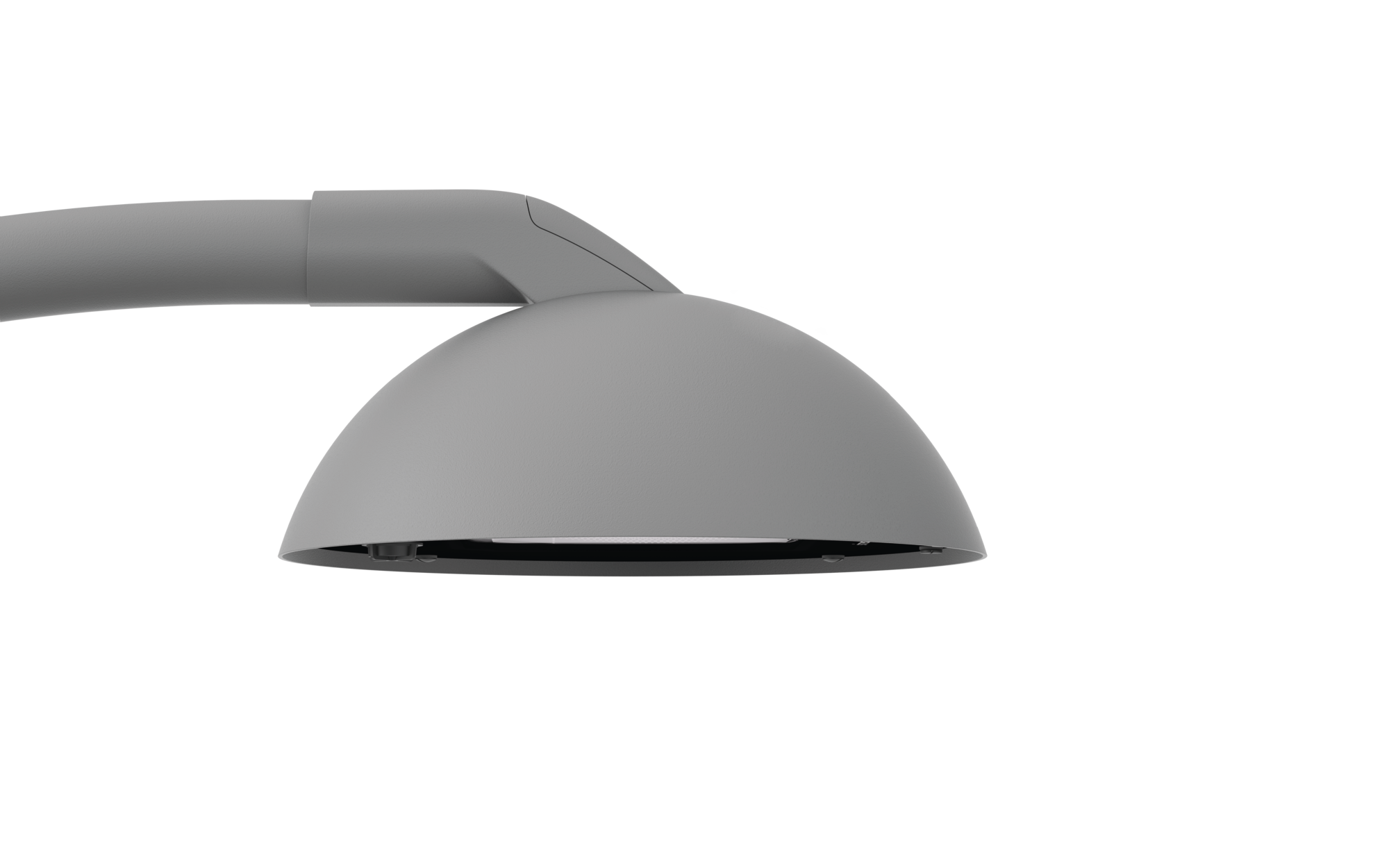

Article mast luminaire
Product name DL 500 iQ
Lamp LED
Rated luminous flux 15610lm
Luminous efficacy 158.3lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 98.6W
Pnom end service life 105.2W
Pred at 50% lumin. flux 45.1W
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 11.3kg

DL 500 iQ, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100003, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: side-entry, lamps: LED, rated values: 15.610lm | 98,6W | 158,3lm/W (begin service life); end service life: 15.610lm | 105,2W; at 50% lumin. flux: 7.805lm | 45,1W | 173,1lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 15.610lm | 98,6W | 158,3lm/W | 3.000K (begin service life); end service life: 105,2W, control gear: iQ-Street Remote, D4i with power reduction, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 10,5m, wiring characteristics: H07RN-F, 3X 1,5mm², configuration: L/N/LST, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry), diameter: 500mm, spigot size: 60mm, Smart Interface below: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name DL 500 iQ
Order No. 5XJ3BE3BG108

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100003
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 15610lm | 98.6W | 158.3lm/W (begin service life);
end service life: 15610lm | 105.2W;
at 50% lumin. flux: 7805lm | 45.1W | 173.1lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 15610lm | 98.6W | 158.3lm/W | 3000K
end service life
LS 1: 105.2W
further light settings possible

Operating device

Control iQ-Street Remote, D4i with power reduction
Smart Interface below Zhaga
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK09
Supplement standard-compliant lighting for roads and squares
Certification, designation CE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, to mast bracket, on mast

Electrical connection

Connection cable pre-assembled, L= 10.5m, H07RN-F, 3X 1.5mm², L/N/LST
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Dimensions, Weight

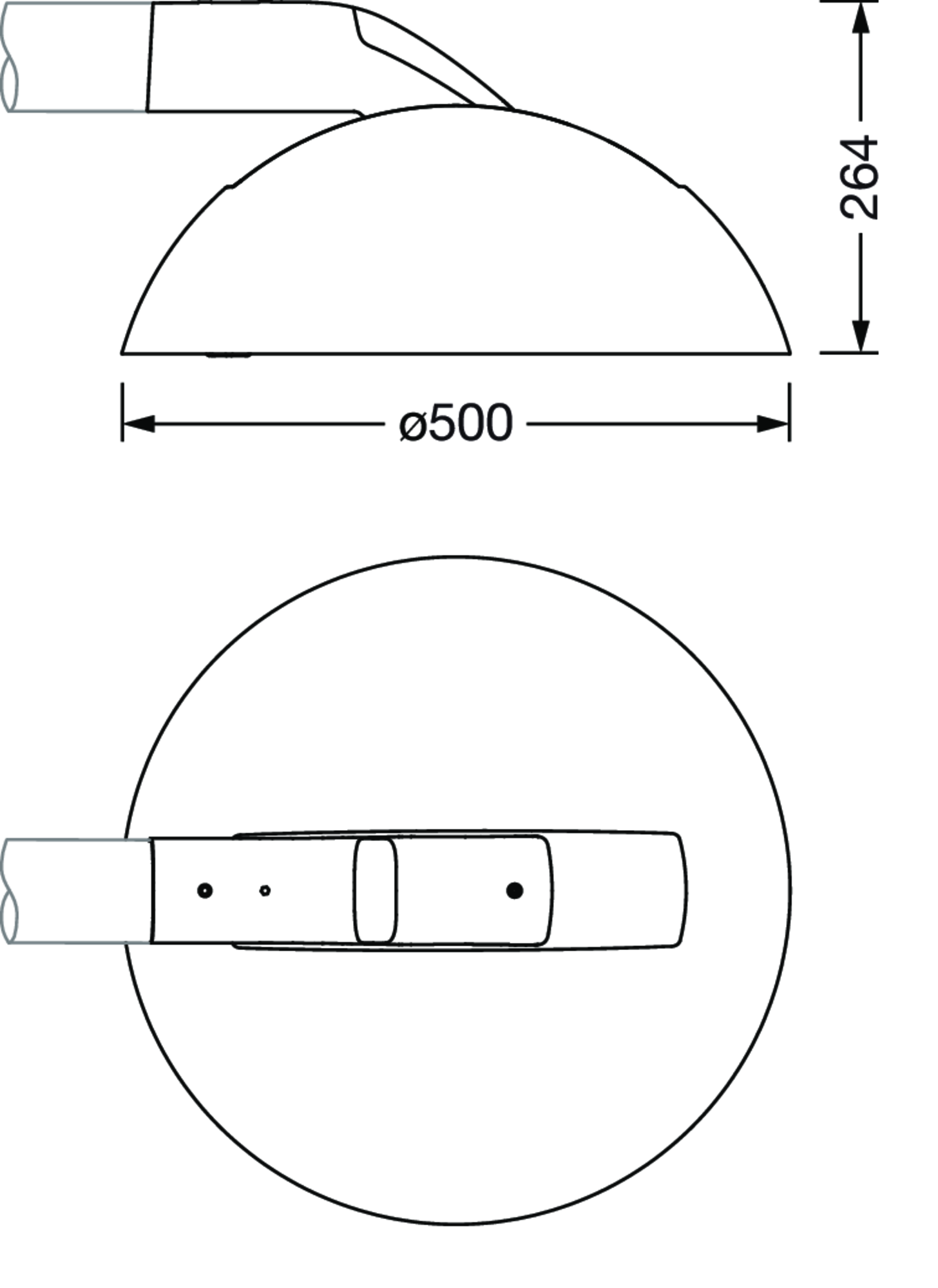

Diameter 500mm
Weight 11.3kg
Mast spigot spigot size: 60mm

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
DL 500 iQ

Order No.
5XJ3BE3BG108

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100003

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
15610lm | 98.6W | 158.3lm/W (begin service life);
end service life: 15610lm | 105.2W;
at 50% lumin. flux: 7805lm | 45.1W | 173.1lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 15610lm | 98.6W | 158.3lm/W | 3000K

end service life

LS 1: 105.2W


further light settings possible

Control
iQ-Street Remote, D4i with power reduction

Smart Interface below
Zhaga

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK09

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry)

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, to mast bracket, on mast

Connection cable
pre-assembled, L= 10.5m, H07RN-F, 3X 1.5mm², L/N/LST

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
500mm

Weight
11.3kg

Mast spigot
spigot size: 60mm

Light emission
0% at 0° inclination

Rated service life
100000h at AT = 25°C

Photometric report / planning data

DL500iQ
ST1.0a,15610lm730,SR,D4i,LSTZb
Lamps: LED 3000K / CRI >= 70
Order No.: 5XJ3BE3BG108

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
