SITECO
Mira

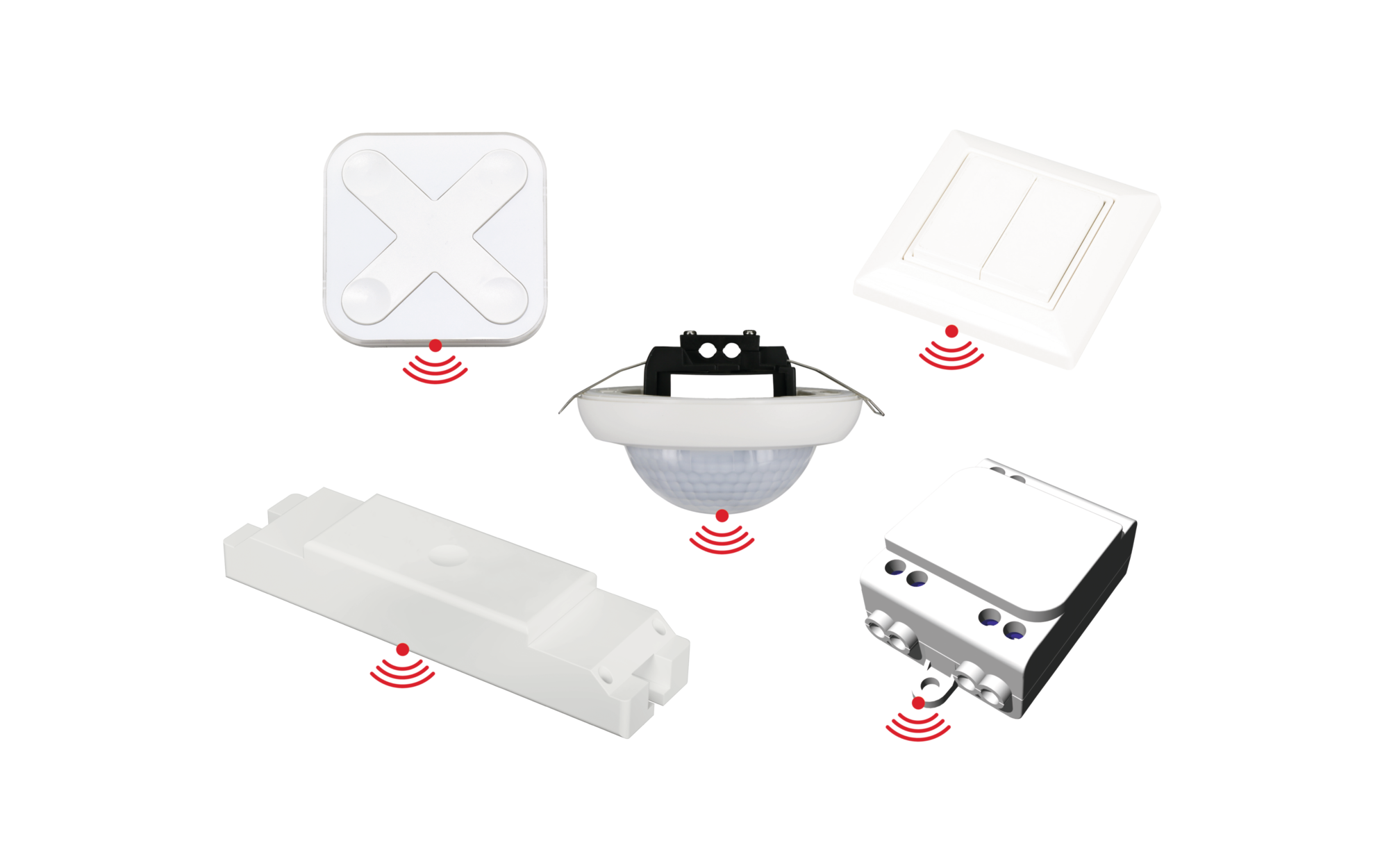

SITECO Connect wireless by Casambi
Special features
A single platform for all applications connects luminaire families
Ideal for refurbishment – simple retrofitting of controls and sensors without rewiring
Greater efficiency and comfort – light only where and when it is needed – demand-based control and easy operation
Flexible system architecture – as a standalone solution or with integration into lighting and building management systems
EPBD-ready – prepared for the requirements of energy-efficient buildings
Complete solution from a single source – accessories and components are optimally matched
Flexible combination options – the control components complement selected luminaires and can be seamlessly combined with luminaires featuring integrated Siteco Connect Wireless by Casambi as standard
Links
Configuration & data sheets
- operation and commissioning (always necessary) via CASAMBI app
- Compatibility with other Casambi components or lighting and building management systems must be checked in each project case
- Casambi für iOS: Https://apps.apple.com/de/app/casambi/id731859317?platform=iphone
- Casambi für Android: Https://play.google.com/store/apps/details?id=casambi.ambi&gl=DE
- Silica 21 Linear: modular sensor modules equipped as standard with SITECO Connect Wireless by Casambi
- Silica 21 Rectangular: comes equipped with SITECO Connect Wireless by Casambi as standard
- Silica 21 Round: comes equipped as standard with SITECO Connect Wireless by Casambi
- technical requirement for monitoring: luminaire equipped with a DALI-2 ECG certified according to IEC 62386, parts 251 (Luminaire Data), 252 (Energy Data), and 253 (Diagnostics & Maintenance Data)
Results
Delivery time on request
multi-sensor
Order No.: 5LZ980200A GTIN (EAN): 4069025765611
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 2.5..5m | 1 PIR movement sensor, daylight sensor | circular detection area | 230V | master | max. 80mA | radial max. ø6m; tangential max. ø10m | 0.1 | 290.20 |
Delivery time on request
multi-sensor
Order No.: 5LZ980201A GTIN (EAN): 4069025765635
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 2.5..4m | 1 PIR movement sensor, daylight sensor | circular detection area | 230V | slave | at mounting height (Mh) = 3m: max. ø8m | 0.1 | 139.20 |
Delivery time on request
Control Panel
Order No.: 5LZ980731A GTIN (EAN): 4069025765673
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| to the wall | slave | 0.1 | 115.70 |
Delivery time on request
Xpress Button
Order No.: 5EA6CX01 GTIN (EAN): 4069025277992
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| to the wall, in housing | 3V | 1x button cell CR2430 | slave | 0.1 | 192.20 |
Delivery time on request
push button interface
Order No.: 5LZ980100 GTIN (EAN): 4058352398517
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the switch box | 230V | slave | 0.1 | 266.70 |
Delivery time on request
controller
Order No.: 5LZ980301A GTIN (EAN): 4069025765659
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 230V | master | max. 50mA | 0.1 | 196.10 |
Delivery time on request
relay unit
Order No.: 5LZ980300 GTIN (EAN): 4058352398579
| Installation location | Mounting height | Sensor technology | Feature | Supply voltage | Batterie | Equipment | System current | Detection range movement | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| in the ceiling | 230V | master | max. 2mA | 0.1 | 137.30 |
Delivery time on request
multi-sensor
Order No.: 5LZ980200AGTIN (EAN): 4069025765611
| Installation location | in the ceiling |
|---|---|
| Mounting height | 2.5..5m |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Feature | circular detection area |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 80mA |
| Detection range movement | radial max. ø6m; tangential max. ø10m |
| Wt. (kg) | 0.1 |
| Price (EUR) | 290.20 |
Delivery time on request
multi-sensor
Order No.: 5LZ980201AGTIN (EAN): 4069025765635
| Installation location | in the ceiling |
|---|---|
| Mounting height | 2.5..4m |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Feature | circular detection area |
| Supply voltage | 230V |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | at mounting height (Mh) = 3m: max. ø8m |
| Wt. (kg) | 0.1 |
| Price (EUR) | 139.20 |
Delivery time on request
Control Panel
Order No.: 5LZ980731AGTIN (EAN): 4069025765673
| Installation location | to the wall |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 115.70 |
Delivery time on request
Xpress Button
Order No.: 5EA6CX01GTIN (EAN): 4069025277992
| Installation location | to the wall, in housing |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 3V |
| Batterie | 1x button cell CR2430 |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 192.20 |
Delivery time on request
push button interface
Order No.: 5LZ980100GTIN (EAN): 4058352398517
| Installation location | in the switch box |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | slave |
| System current | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 266.70 |
Delivery time on request
controller
Order No.: 5LZ980301AGTIN (EAN): 4069025765659
| Installation location | in the ceiling |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 50mA |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 196.10 |
Delivery time on request
relay unit
Order No.: 5LZ980300GTIN (EAN): 4058352398579
| Installation location | in the ceiling |
|---|---|
| Mounting height | |
| Sensor technology | |
| Feature | |
| Supply voltage | 230V |
| Batterie | |
| Equipment | master |
| System current | max. 2mA |
| Detection range movement | |
| Wt. (kg) | 0.1 |
| Price (EUR) | 137.30 |
Optional accessories
| Order No.: 5LZ980200ACKGTIN (EAN): 4069025765628 | Show all details |
| Order No.: 5LZ980201ACKGTIN (EAN): 4069025765642 | Show all details |
| Order No.: 5LZ980301ASRGTIN (EAN): 4069025765666 | Show all details |
