SITECO
Lunis
Product selection
Lunis 40 IP65
Key data
Article downlight
Lighting effect direct distribution, 100°
Net luminous flux 350lm
Colour temperature 3000K
Control leading or trailing edge phase cut control
Special features
The Lunis 40 product family is the simple downlight solution. The compact, handy design with a low overall height makes it universally applicable. Various variants allow, for example, accent lighting or use in harsh environments thanks to a high degree of protection. In many cases, Lunis 40 is a practical replacement for downlights with compact fluorescent and halogen lamps.
Configuration & data sheets
- The information in the ordering table refers to the factory setting and shows the maximum luminous flux at UGR ≤ 19.
- Please refer to the installation instructions for the maximum possible luminous flux and the possible luminous flux settings for the luminaire.
- decorative rings in your desired colour on request
Results
Lunis 40 IP65, 100°, leading or trailing edge phase cut control, traffic white (RAL 9016)
Order No.: 5DP10C72V365 GTIN (EAN): 4058352408438
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 350lm | 3.5W | 100lm/W | lead./trail. edge ph. cut | 83 | 0.2 | 61.40 |
Lunis 40 IP65, 100°, leading or trailing edge phase cut control, traffic white (RAL 9016)
Order No.: 5DP10C72V365GTIN (EAN): 4058352408438
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 350lm |
| Connected load | 3.5W |
| Luminous efficacy | 100lm/W |
| Control | lead./trail. edge ph. cut |

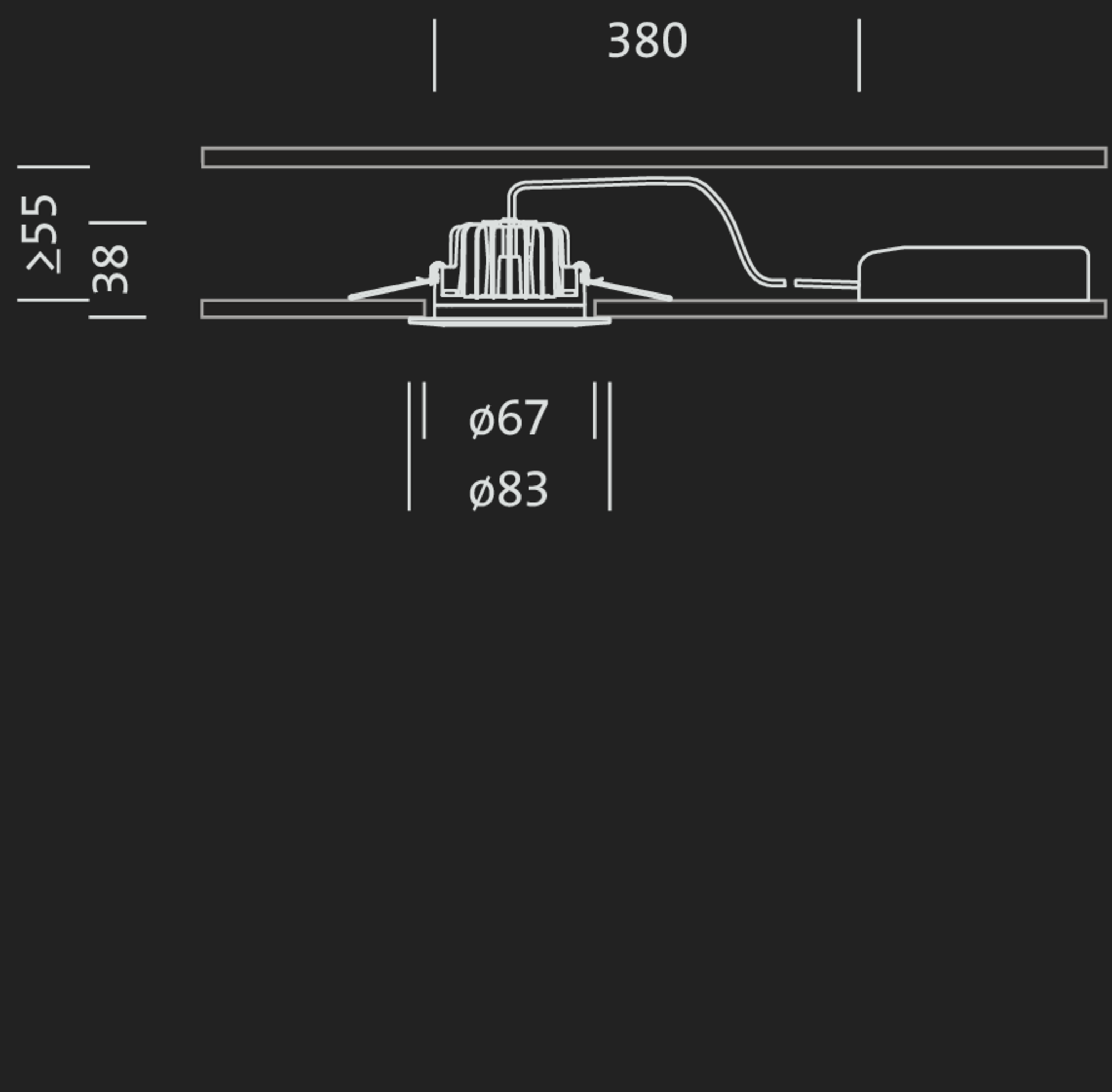

| D (mm) | 83 |
| Wt. (kg) | 0.2 |
| Price (EUR) | 61.40 |
