Sirius®

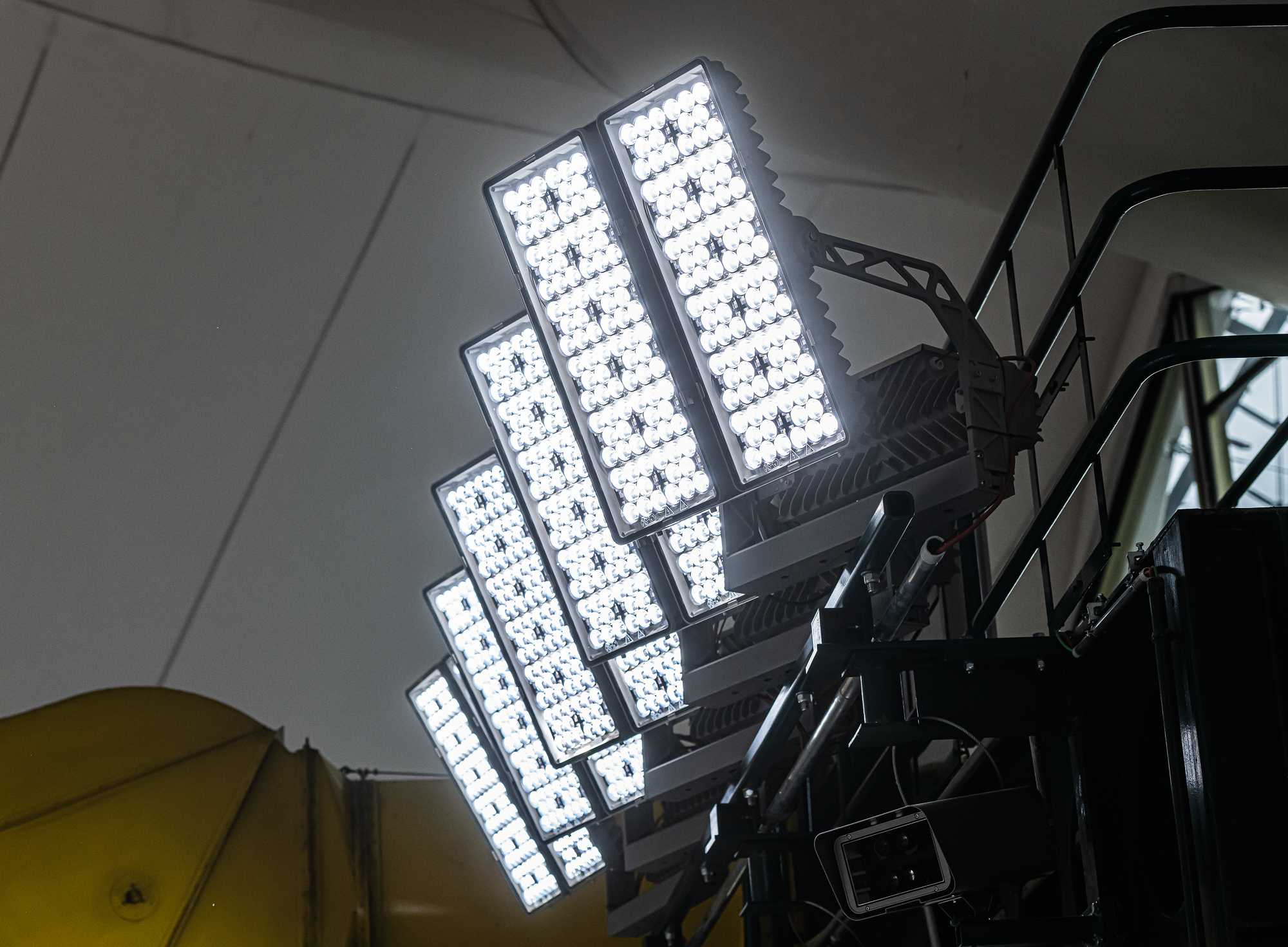

A revolutionary floodlight system for sports and area lighting with unrivaled performance, efficiency and light quality. The high-performance floodlight Sirius® sets records in terms of performance with up to 309,000lm. Thanks to our full cut-off technology, the impossible becomes possible and stray light is cut off through perfect light bundling. The light immission is only < 3% in vertical alignment - in horizontal even 0%. With a TLCI value of 96 at 5,700K, realistic colour rendering is guaranteed - for broadcasters this means minimal post-processing effort. The ECGs of the modular driver system allow the 4 LED modules to be controlled separately – also via DALI/DMX.
A dream of a floodlight
Producttypes

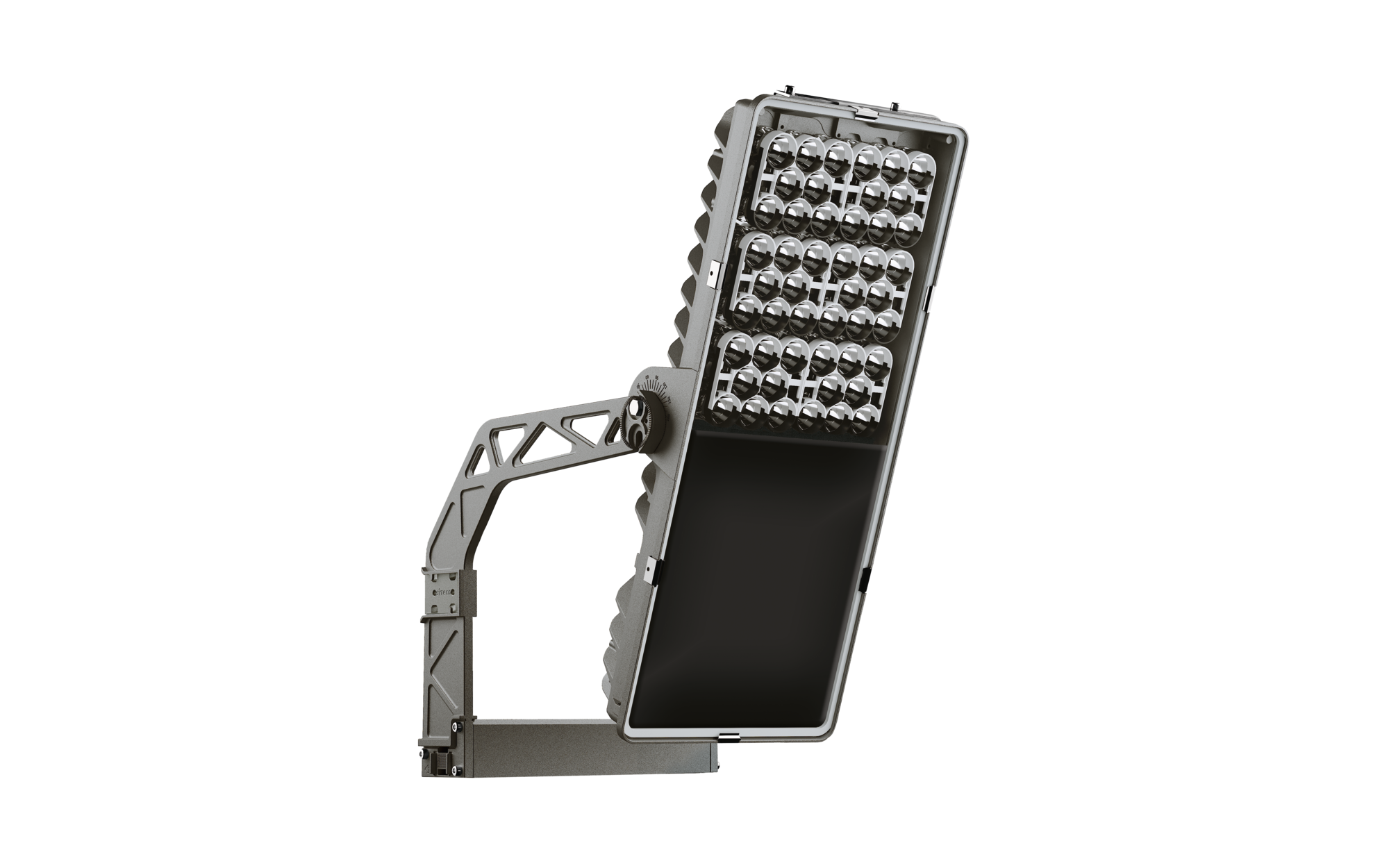

Sirius®
Intro to Productfamily
Data

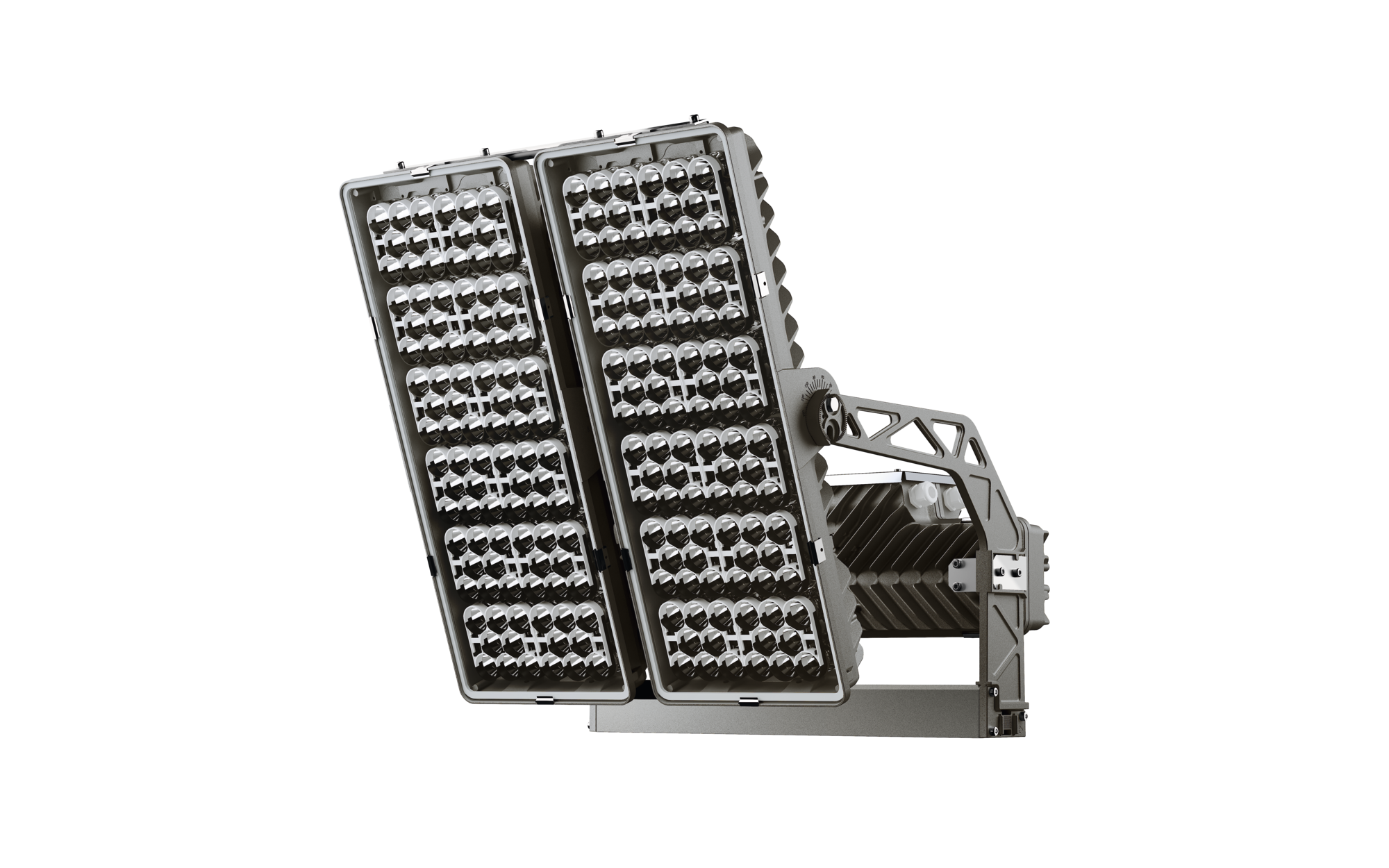

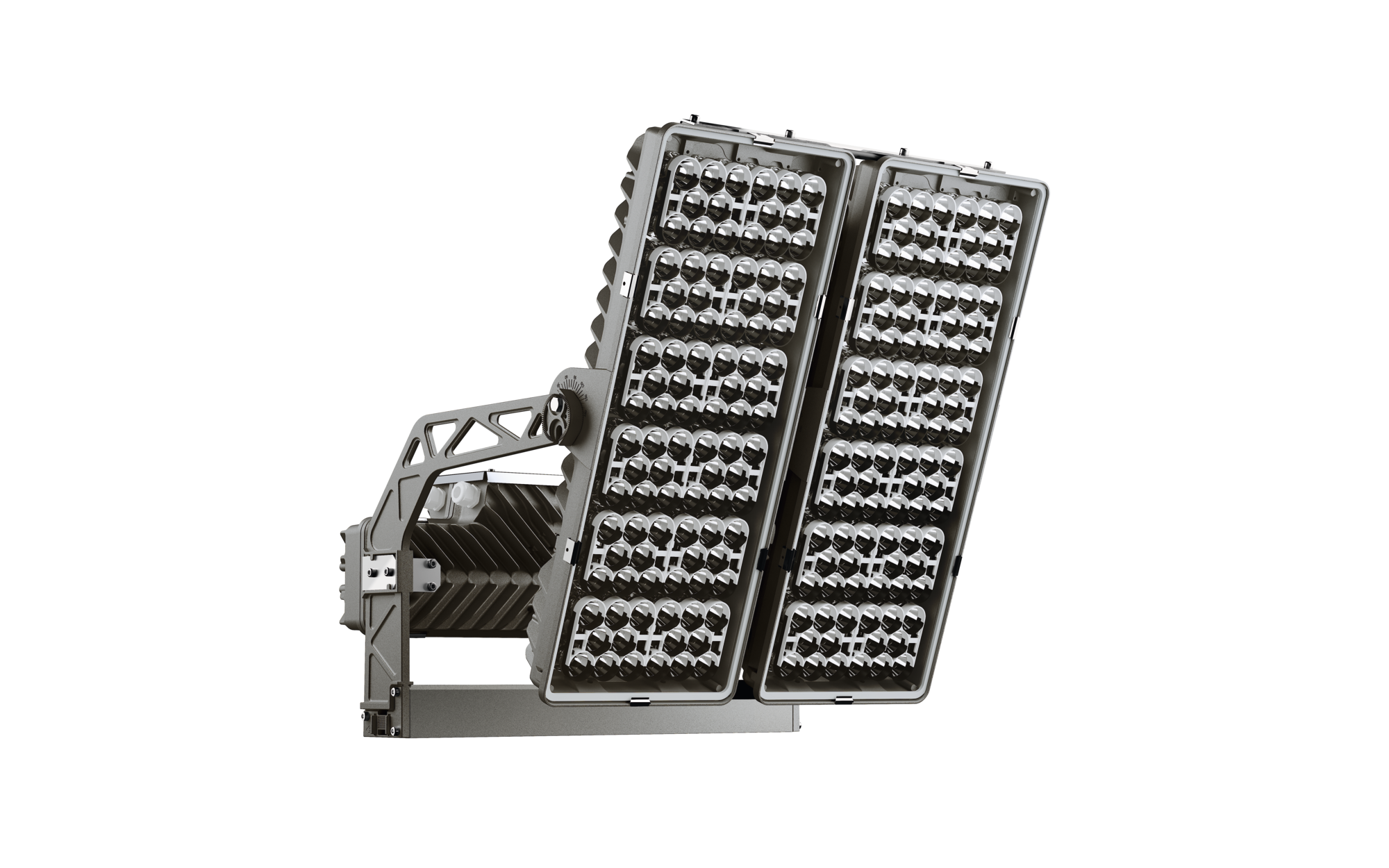

Article ECG unit; luminaire head; mounting bracket
Lighting effect direct asymmetric distribution; direct rotationally symmetric distribution
Light distribution CUT-RS05; CUT-RS06; CUT-RS08; CUT-RS12; ECO-RS03; ECO-RS05; ECO-RS07; ECO-RS14; AREA-PL52
Net luminous flux 144609lm to 309823lm
Colour temperature 4000K; 5000K; 5700K
Control DMX; DALI, power reduction
Specials
Full-cut-off technology for maximum glare reduction (UGR ≤ 10) and perfect visual conditions
Extremely high lumen output with up to 309,000lm with a long service life of up to 100,000 hours for low and plannable investment costs
Highly efficient thanks to silver reflectors and CLO 2.0 luminous flux tracking for low energy consumption and low operating costs
With a TLCI value of 96 at 5700K for true-to-life colour rendering and minimum post-editing work for broadcasters
Modular driver system that can be installed up to 150m away and whose ECGs allow separate control of the 4 LED modules – also via DMX

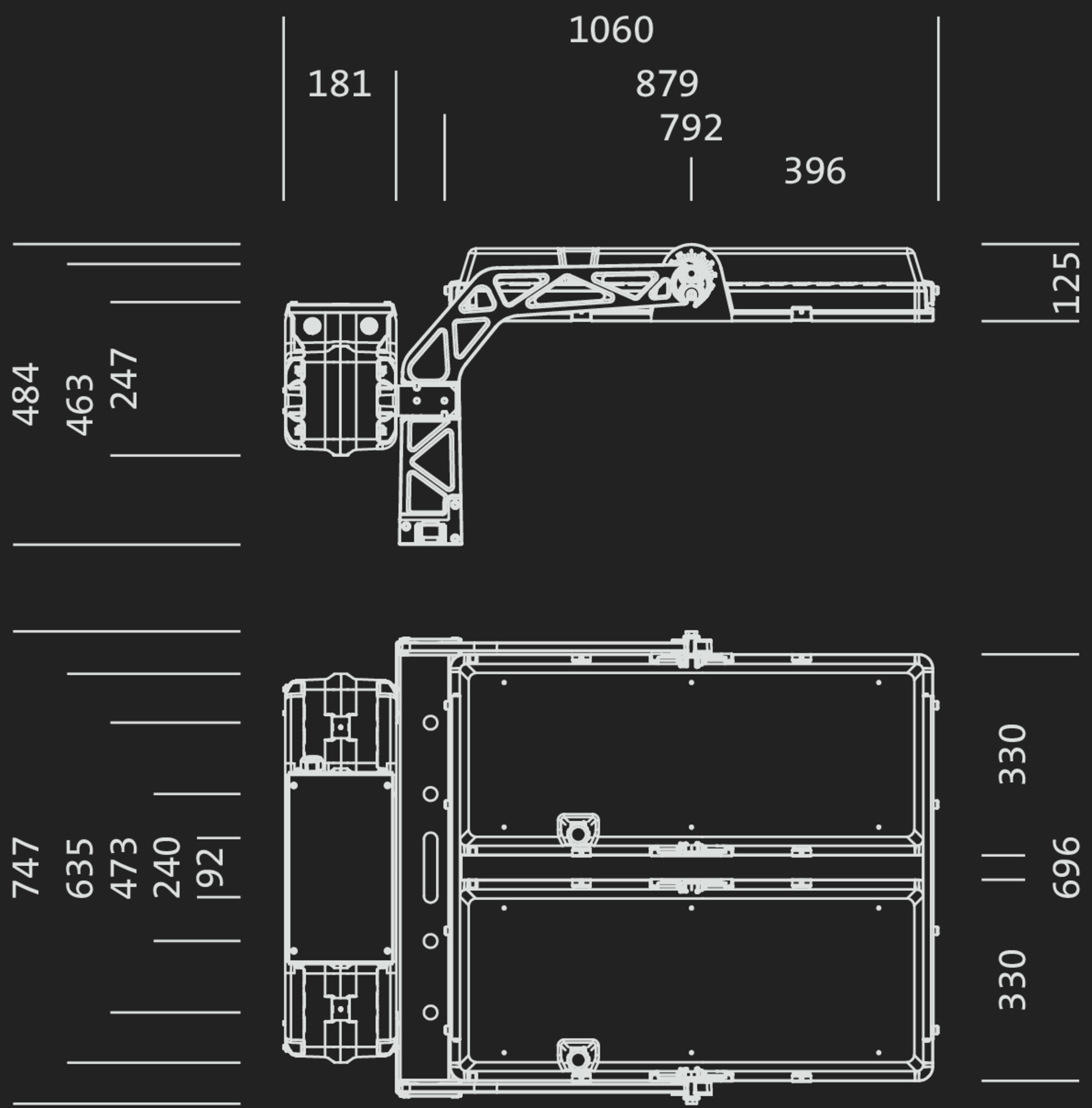

Configuration & Datasheets
- luminaire constructed according to modular principle and only available in single components; a complete luminaire consists of: 1x light head (consisting of 2 LED units) + 1x mounting bracket + 1x ECG unit + 1x mounting accessory for ECG unit + if necessary 1x connection box for light head (if ECG unit is mounted remotely); for your individual assembly of a complete floodlight please order the appropriate components separately
- the ECG unit can be mounted on the mounting bracket or elsewhere (cable length of light head to ECG unit: max. 150m); please order suitable mounting accessory for ECG unit separately, depending on the mounting situation
- when mounting the ECG unit at another location, please order the connection box for the light head separately
- with 'DMX' light control: please separately order divisible cable gland for inserting the DMX cable into the ECG unit (DMX cable with pre-assembled RJ45 plug connection)
- on request also available as RGBW version
Results
Sirius®, luminaire head, ECO-RS03, rotationally symmetric distribution
Order No.: 5XA7100W40A12DA GTIN (EAN): 4058352402252
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 175629lm | 1499W | 117lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W40A22DA GTIN (EAN): 4058352402696
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 233092lm | 1909W | 122lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W40A32DA GTIN (EAN): 4058352402726
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 267273lm | 1974W | 135lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, CUT-RS05, rotationally symmetric distribution
Order No.: 5XA7100W40A11DA GTIN (EAN): 4058352402641
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 154772lm | 1499W | 103lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W40A31DA GTIN (EAN): 4058352402702
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 207840lm | 1909W | 109lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W40A51DA GTIN (EAN): 4058352402740
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 229688lm | 1974W | 116lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W40A61DA GTIN (EAN): 4058352402764
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 223563lm | 1974W | 113lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W40A72DA GTIN (EAN): 4058352402788
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 264489lm | 1974W | 134lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W40A13DA GTIN (EAN): 4058352402665
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 90 | TLCI ≥ 87 | 239138lm | 1971W | 121lm/W | 30.5 | 6430.20 |
Sirius®, luminaire head, ECO-RS03, rotationally symmetric distribution
Order No.: 5XA7100W50A12DA GTIN (EAN): 4058352402825
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 164095lm | 1499W | 109lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W50A22DA GTIN (EAN): 4058352402849
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 217792lm | 1909W | 114lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W50A32DA GTIN (EAN): 4058352402887
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 249736lm | 1974W | 127lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, CUT-RS05, rotationally symmetric distribution
Order No.: 5XA7100W50A11DA GTIN (EAN): 4058352402818
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 144609lm | 1499W | 96lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W50A31DA GTIN (EAN): 4058352402863
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 194197lm | 1909W | 102lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W50A51DA GTIN (EAN): 4058352366714
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 214617lm | 1974W | 109lm/W | 30.0 | 5727.40 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W50A61DA GTIN (EAN): 4058352402900
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 208894lm | 1974W | 106lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W50A72DA GTIN (EAN): 4058352402924
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 247135lm | 1974W | 125lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W50A13DA GTIN (EAN): 4058352366684
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 5700K | CRI > 95 | TLCI ≥ 96 | 223454lm | 1971W | 113lm/W | 30.5 | 5727.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W20A22DA GTIN (EAN): 4058352402528
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 270554lm | 1909W | 142lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W20A32DA GTIN (EAN): 4058352402566
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 309823lm | 1974W | 157lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W20A31DA GTIN (EAN): 4058352402559
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 241244lm | 1909W | 126lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W20A51DA GTIN (EAN): 4058352402580
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 266254lm | 1974W | 135lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W20A61DA GTIN (EAN): 4058352402603
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 259154lm | 1974W | 131lm/W | 30.0 | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W20A72DA GTIN (EAN): 4058352402627
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 306595lm | 1974W | 155lm/W | 30.0 | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W20A13DA GTIN (EAN): 4058352402504
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 277343lm | 1971W | 141lm/W | 30.5 | 6430.20 |
Sirius®, ECG unit
Order No.: 5XA7102W01000 GTIN (EAN): 4058352349014
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| DALI, power reduction | 10.0 | 2579.70 |
Sirius®, ECG unit
Order No.: 5XA7106W01000 GTIN (EAN): 4058352349038
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| DMX | 10.0 | 3009.70 |
Sirius®, mounting bracket
Order No.: 5XA71000XE GTIN (EAN): 4058352325339
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 6.0 | 404.70 |
Sirius®, mounting bracket
Order No.: 5XA71000XF GTIN (EAN): 4058352357774
| Colour temperature | Colour rendering | TLCI | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|
| 4.7 | 334.80 |
Sirius®, luminaire head, ECO-RS03, rotationally symmetric distribution
Order No.: 5XA7100W40A12DAGTIN (EAN): 4058352402252
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 175629lm |
| Connected load | 1499W |
| Luminous efficacy | 117lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W40A22DAGTIN (EAN): 4058352402696
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 233092lm |
| Connected load | 1909W |
| Luminous efficacy | 122lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W40A32DAGTIN (EAN): 4058352402726
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 267273lm |
| Connected load | 1974W |
| Luminous efficacy | 135lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, CUT-RS05, rotationally symmetric distribution
Order No.: 5XA7100W40A11DAGTIN (EAN): 4058352402641
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 154772lm |
| Connected load | 1499W |
| Luminous efficacy | 103lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W40A31DAGTIN (EAN): 4058352402702
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 207840lm |
| Connected load | 1909W |
| Luminous efficacy | 109lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W40A51DAGTIN (EAN): 4058352402740
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 229688lm |
| Connected load | 1974W |
| Luminous efficacy | 116lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W40A61DAGTIN (EAN): 4058352402764
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 223563lm |
| Connected load | 1974W |
| Luminous efficacy | 113lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W40A72DAGTIN (EAN): 4058352402788
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 264489lm |
| Connected load | 1974W |
| Luminous efficacy | 134lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W40A13DAGTIN (EAN): 4058352402665
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 90 |
| TLCI | TLCI ≥ 87 |
| Luminous flux | 239138lm |
| Connected load | 1971W |
| Luminous efficacy | 121lm/W |
| Control | |
| Wt. (kg) | 30.5 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, ECO-RS03, rotationally symmetric distribution
Order No.: 5XA7100W50A12DAGTIN (EAN): 4058352402825
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 164095lm |
| Connected load | 1499W |
| Luminous efficacy | 109lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W50A22DAGTIN (EAN): 4058352402849
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 217792lm |
| Connected load | 1909W |
| Luminous efficacy | 114lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W50A32DAGTIN (EAN): 4058352402887
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 249736lm |
| Connected load | 1974W |
| Luminous efficacy | 127lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, CUT-RS05, rotationally symmetric distribution
Order No.: 5XA7100W50A11DAGTIN (EAN): 4058352402818
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 144609lm |
| Connected load | 1499W |
| Luminous efficacy | 96lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W50A31DAGTIN (EAN): 4058352402863
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 194197lm |
| Connected load | 1909W |
| Luminous efficacy | 102lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W50A51DAGTIN (EAN): 4058352366714
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 214617lm |
| Connected load | 1974W |
| Luminous efficacy | 109lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5727.40 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W50A61DAGTIN (EAN): 4058352402900
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 208894lm |
| Connected load | 1974W |
| Luminous efficacy | 106lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W50A72DAGTIN (EAN): 4058352402924
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 247135lm |
| Connected load | 1974W |
| Luminous efficacy | 125lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W50A13DAGTIN (EAN): 4058352366684
| Colour temperature | 5700K |
|---|---|
| Colour rendering | CRI > 95 |
| TLCI | TLCI ≥ 96 |
| Luminous flux | 223454lm |
| Connected load | 1971W |
| Luminous efficacy | 113lm/W |
| Control | |
| Wt. (kg) | 30.5 |
| Price (EUR) | 5727.40 |
Sirius®, luminaire head, ECO-RS05, rotationally symmetric distribution
Order No.: 5XA7100W20A22DAGTIN (EAN): 4058352402528
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 270554lm |
| Connected load | 1909W |
| Luminous efficacy | 142lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, ECO-RS07, rotationally symmetric distribution
Order No.: 5XA7100W20A32DAGTIN (EAN): 4058352402566
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 309823lm |
| Connected load | 1974W |
| Luminous efficacy | 157lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, CUT-RS06, rotationally symmetric distribution
Order No.: 5XA7100W20A31DAGTIN (EAN): 4058352402559
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 241244lm |
| Connected load | 1909W |
| Luminous efficacy | 126lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS08, rotationally symmetric distribution
Order No.: 5XA7100W20A51DAGTIN (EAN): 4058352402580
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 266254lm |
| Connected load | 1974W |
| Luminous efficacy | 135lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, CUT-RS12, rotationally symmetric distribution
Order No.: 5XA7100W20A61DAGTIN (EAN): 4058352402603
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 259154lm |
| Connected load | 1974W |
| Luminous efficacy | 131lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 6430.20 |
Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Order No.: 5XA7100W20A72DAGTIN (EAN): 4058352402627
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 306595lm |
| Connected load | 1974W |
| Luminous efficacy | 155lm/W |
| Control | |
| Wt. (kg) | 30.0 |
| Price (EUR) | 5778.40 |
Sirius®, luminaire head, AREA-PL52, asymmetric distribution
Order No.: 5XA7100W20A13DAGTIN (EAN): 4058352402504
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| TLCI | |
| Luminous flux | 277343lm |
| Connected load | 1971W |
| Luminous efficacy | 141lm/W |
| Control | |
| Wt. (kg) | 30.5 |
| Price (EUR) | 6430.20 |
Sirius®, ECG unit
Order No.: 5XA7102W01000GTIN (EAN): 4058352349014
| Colour temperature | |
|---|---|
| Colour rendering | |
| TLCI | |
| Luminous flux | |
| Connected load | |
| Luminous efficacy | |
| Control | DALI, power reduction |
| Wt. (kg) | 10.0 |
| Price (EUR) | 2579.70 |
Sirius®, ECG unit
Order No.: 5XA7106W01000GTIN (EAN): 4058352349038
| Colour temperature | |
|---|---|
| Colour rendering | |
| TLCI | |
| Luminous flux | |
| Connected load | |
| Luminous efficacy | |
| Control | DMX |
| Wt. (kg) | 10.0 |
| Price (EUR) | 3009.70 |
Sirius®, mounting bracket
Order No.: 5XA71000XEGTIN (EAN): 4058352325339
| Colour temperature | |
|---|---|
| Colour rendering | |
| TLCI | |
| Luminous flux | |
| Connected load | |
| Luminous efficacy | |
| Control | |
| Wt. (kg) | 6.0 |
| Price (EUR) | 404.70 |
Sirius®, mounting bracket
Order No.: 5XA71000XFGTIN (EAN): 4058352357774
| Colour temperature | |
|---|---|
| Colour rendering | |
| TLCI | |
| Luminous flux | |
| Connected load | |
| Luminous efficacy | |
| Control | |
| Wt. (kg) | 4.7 |
| Price (EUR) | 334.80 |
Optional accessory
| Order No.: 5XA71000XCGTIN (EAN): 4058352312032 | Show details |
| Order No.: 5XA71000XDGTIN (EAN): 4058352332559 | Show details |
| Order No.: 5XA71000XAGTIN (EAN): 4058352367582 | Show details |
| Order No.: 5XA71000XGGTIN (EAN): 4058352363089 | Show details |
