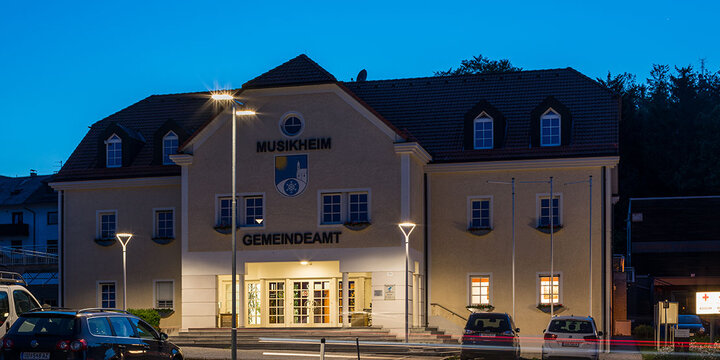

Municipalities of Kirchschlag / Steinbach, Austria
Products: SL 11 iQ
learn more

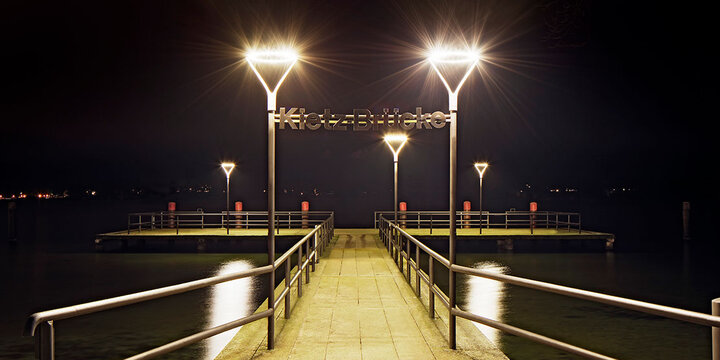

City of Waren an der Müritz, Germany
learn more

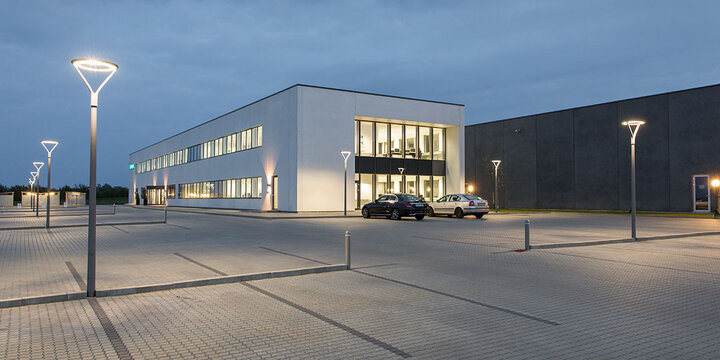

Siemens Flow Instruments, Sonderborg, Denmark
Products: Modario 31
learn more

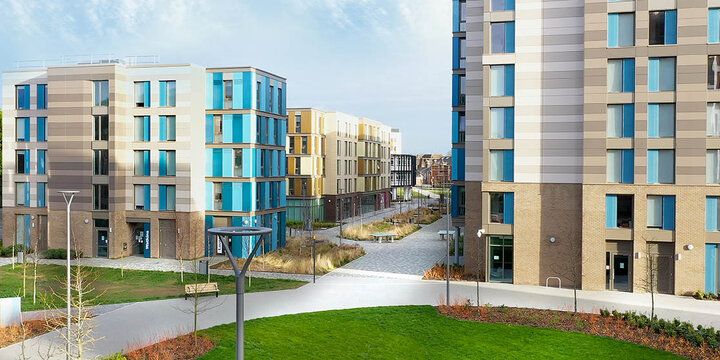

UPP, Great Britain
learn more

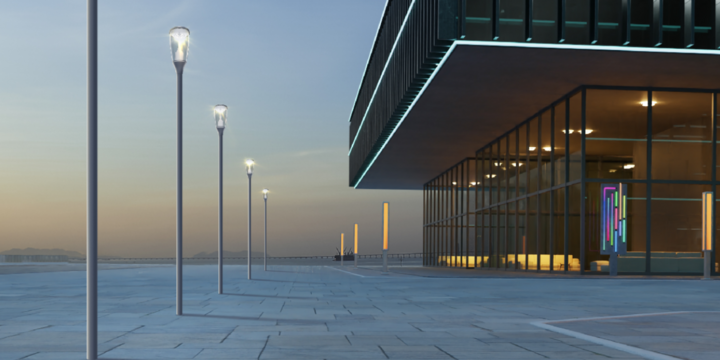

Project example DL 11 iQ

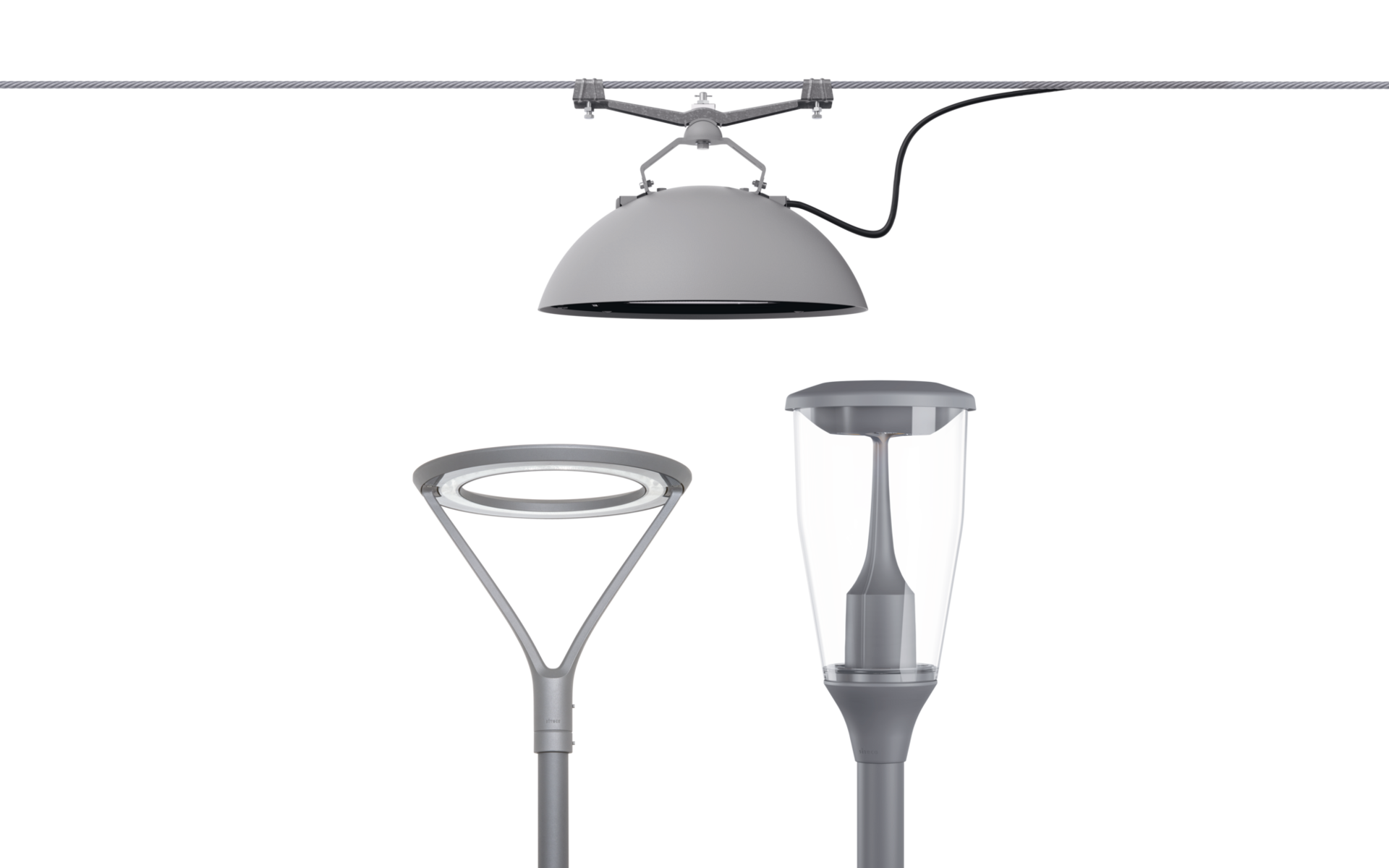

Product selection

DL 30 iQ

DL 30 iQ

Key data

Article mast luminaire
Luminous flux 1400lm to 6990lm
Colour temperature 3000K; 4000K
Lighting effect direct asymmetric wide distribution, crossroads; direct asymmetric wide distribution; direct asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution C120002; P100004; S120004; S120006
Control D4i; Plus
Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08

Special features

Decorative luminaire with visual guidance along the road thanks to discreet display of the mast mounting element
Optionally available with an optic for 270° distribution especially developed for intersections
Modern lighting technology with customized light distributions and high quality specular reflectors for glare-free light with constant quality of light
Low maintenance requirements due to permanently clear, translucent PMMA cover
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications

Configuration & data sheets

Lighting effect

Light distribution

Light distribution

Colour temperature

Control

  • please order the 'mast cable set' for configuration of the Plus version with installed luminaire separately
  • please order Siteco Service Box for configuring the Plus variant additionally if required
  • please order mast reducer separately if required

Results

DL 30 LED, direct asymmetric wide distribution, crossroads, S120006

Order No.: 5XA513271B08A5 GTIN (EAN): 4058352058619
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705540lmS120006Plus48.9W50.5W22.9W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, crossroads, S120006

Order No.: 5XA513281B08A5 GTIN (EAN): 4058352058688
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 804590lmS120006Plus49W50.5W22.4W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A2 GTIN (EAN): 4058352058817
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 801410lmS120004Plus15.1W15.3W7.8W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A4 GTIN (EAN): 4058352058848
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 802400lmS120004Plus22.5W23.1W11.2W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A5 GTIN (EAN): 4058352058855
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 804680lmS120004Plus43.4W44.8W20.2W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1B08A4 GTIN (EAN): 4058352058992
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 803100lmC120002Plus29.3W29.9W14.2W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1B08A5 GTIN (EAN): 4058352059012
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 805780lmC120002Plus52W54W23.5W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A2 GTIN (EAN): 4058352059173
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701610lmS120004Plus14.4W14.7W7.8W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A4 GTIN (EAN): 4058352059197
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702740lmS120004Plus21.2W21.7W10.9W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A5 GTIN (EAN): 4058352059210
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705640lmS120004Plus43.3W44.7W20.6W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132R1B08A4 GTIN (EAN): 4058352059357
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 703540lmC120002Plus27.9W28.5W14.1W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132R1B08A5 GTIN (EAN): 4058352059371
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 706990lmC120002Plus52W54W24.1W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132S1B08A1 GTIN (EAN): 4058352059470
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701600lmP100004Plus12.5W12.7W6.9W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132S1B08A3 GTIN (EAN): 4058352059494
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702720lmP100004Plus20W20.2W10.5W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132T1B08A1 GTIN (EAN): 4058352059609
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 801400lmP100004Plus13.1W13.2W6.9W7.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132T1B08A3 GTIN (EAN): 4058352059616
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 802370lmP100004Plus20.4W20.7W10.3W7.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1ZS00095XX GTIN (EAN): 4058352448823
Colour temperatureColour renderingLuminous fluxLight distributionControlPnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 802940lmC120002D4i22.8W23.5W11.3W8.0
Show all details
Tender textData sheet (PDF, full)Complete download list

DL 30 LED, direct asymmetric wide distribution, crossroads, S120006

Order No.: 5XA513271B08A5GTIN (EAN): 4058352058619

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5540lm
Light distributionS120006
ControlPlus
Pnom48.9W
Pnom end service life50.5W
Pred at 50% lumin. flux22.9W
Wt. (kg)7.8
Show all details

DL 30 LED, direct asymmetric wide distribution, crossroads, S120006

Order No.: 5XA513281B08A5GTIN (EAN): 4058352058688

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4590lm
Light distributionS120006
ControlPlus
Pnom49W
Pnom end service life50.5W
Pred at 50% lumin. flux22.4W
Wt. (kg)7.8
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A2GTIN (EAN): 4058352058817

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux1410lm
Light distributionS120004
ControlPlus
Pnom15.1W
Pnom end service life15.3W
Pred at 50% lumin. flux7.8W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A4GTIN (EAN): 4058352058848

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2400lm
Light distributionS120004
ControlPlus
Pnom22.5W
Pnom end service life23.1W
Pred at 50% lumin. flux11.2W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132E1B08A5GTIN (EAN): 4058352058855

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4680lm
Light distributionS120004
ControlPlus
Pnom43.4W
Pnom end service life44.8W
Pred at 50% lumin. flux20.2W
Wt. (kg)7.8
Show all details

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1B08A4GTIN (EAN): 4058352058992

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3100lm
Light distributionC120002
ControlPlus
Pnom29.3W
Pnom end service life29.9W
Pred at 50% lumin. flux14.2W
Wt. (kg)7.8
Show all details

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1B08A5GTIN (EAN): 4058352059012

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5780lm
Light distributionC120002
ControlPlus
Pnom52W
Pnom end service life54W
Pred at 50% lumin. flux23.5W
Wt. (kg)7.8
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A2GTIN (EAN): 4058352059173

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1610lm
Light distributionS120004
ControlPlus
Pnom14.4W
Pnom end service life14.7W
Pred at 50% lumin. flux7.8W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A4GTIN (EAN): 4058352059197

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2740lm
Light distributionS120004
ControlPlus
Pnom21.2W
Pnom end service life21.7W
Pred at 50% lumin. flux10.9W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric wide distribution, S120004

Order No.: 5XA5132K1B08A5GTIN (EAN): 4058352059210

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5640lm
Light distributionS120004
ControlPlus
Pnom43.3W
Pnom end service life44.7W
Pred at 50% lumin. flux20.6W
Wt. (kg)7.8
Show all details

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132R1B08A4GTIN (EAN): 4058352059357

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3540lm
Light distributionC120002
ControlPlus
Pnom27.9W
Pnom end service life28.5W
Pred at 50% lumin. flux14.1W
Wt. (kg)7.8
Show all details

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132R1B08A5GTIN (EAN): 4058352059371

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux6990lm
Light distributionC120002
ControlPlus
Pnom52W
Pnom end service life54W
Pred at 50% lumin. flux24.1W
Wt. (kg)7.8
Show all details

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132S1B08A1GTIN (EAN): 4058352059470

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1600lm
Light distributionP100004
ControlPlus
Pnom12.5W
Pnom end service life12.7W
Pred at 50% lumin. flux6.9W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132S1B08A3GTIN (EAN): 4058352059494

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2720lm
Light distributionP100004
ControlPlus
Pnom20W
Pnom end service life20.2W
Pred at 50% lumin. flux10.5W
Wt. (kg)7.8
Show all details

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132T1B08A1GTIN (EAN): 4058352059609

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux1400lm
Light distributionP100004
ControlPlus
Pnom13.1W
Pnom end service life13.2W
Pred at 50% lumin. flux6.9W
Wt. (kg)7.7
Show all details

DL 30 LED, direct asymmetric extremely wide distribution, P100004

Order No.: 5XA5132T1B08A3GTIN (EAN): 4058352059616

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2370lm
Light distributionP100004
ControlPlus
Pnom20.4W
Pnom end service life20.7W
Pred at 50% lumin. flux10.3W
Wt. (kg)7.8
Show all details

DL 30 LED, direct symmetric wide distribution, C120002

Order No.: 5XA5132J1ZS00095XXGTIN (EAN): 4058352448823

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2940lm
Light distributionC120002
ControlD4i
Pnom22.8W
Pnom end service life23.5W
Pred at 50% lumin. flux11.3W
Wt. (kg)8.0
Show all details

Optional accessories

Articlereducer, SITECO metallic grey (DB 702S), spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5NA24600XR2GTIN (EAN): 4050737978154Show all details
Articleconnection cable 'mast' for version Plus, OZ-500, 5X 1.5mm², L= 4mPU1 pc.Wt. (kg)0.8Order No.: 5EA6Y00L02GTIN (EAN): 4050737028804Show all details
Articleconnection cable 'mast' for version Plus, OZ-500, 5X 1.5mm², L= 5mPU1 pc.Wt. (kg)0.9Order No.: 5EA6Y00L03GTIN (EAN): 4050737028828Show all details
Articleconnection cable 'mast' for version Plus, OZ-500, 5X 1.5mm², L= 6mPU1 pc.Wt. (kg)1.1Order No.: 5EA6Y00L08GTIN (EAN): 4050737056098Show all details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show all details
