5XJ3EQ3CC108

Order No.: 5XJ3EQ3CC108
Remember articleRemember article

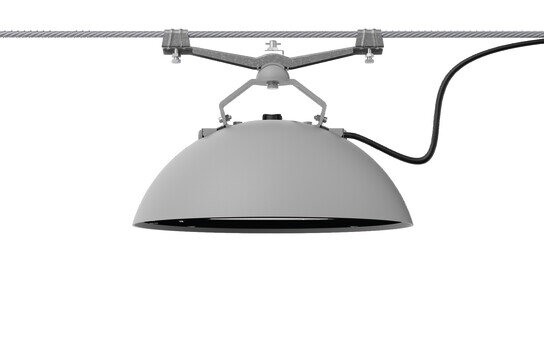

Article catenary luminaire
Product name DL 500 iQ
Lamp LED
Rated luminous flux 5440lm
Luminous efficacy 151.1lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 36W
Pnom end service life 37.7W
Pred at 50% lumin. flux 16.7W
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 9.2kg

DL 500 iQ, catenary luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100004, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, lamps: LED, rated values: 5.440lm | 36W | 151,1lm/W (begin service life); end service life: 5.440lm | 37,7W; at 50% lumin. flux: 2.720lm | 16,7W | 162,9lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 5.440lm | 36W | 151,1lm/W | 3.000K (begin service life); end service life: 37,7W, control gear: iQ-Street Remote, D4i with power reduction, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), diameter: 500mm, Smart Interface above: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type catenary luminaire
Product name DL 500 iQ
Order No. 5XJ3EQ3CC108

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100004
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 5440lm | 36W | 151.1lm/W (begin service life);
end service life: 5440lm | 37.7W;
at 50% lumin. flux: 2720lm | 16.7W | 162.9lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 5440lm | 36W | 151.1lm/W | 3000K
end service life
LS 1: 37.7W
further light settings possible

Operating device

Control iQ-Street Remote, D4i with power reduction
Smart Interface above Zhaga
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK09
Supplement standard-compliant lighting for roads and squares
Certification, designation CE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location suspended mounting, to wire

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

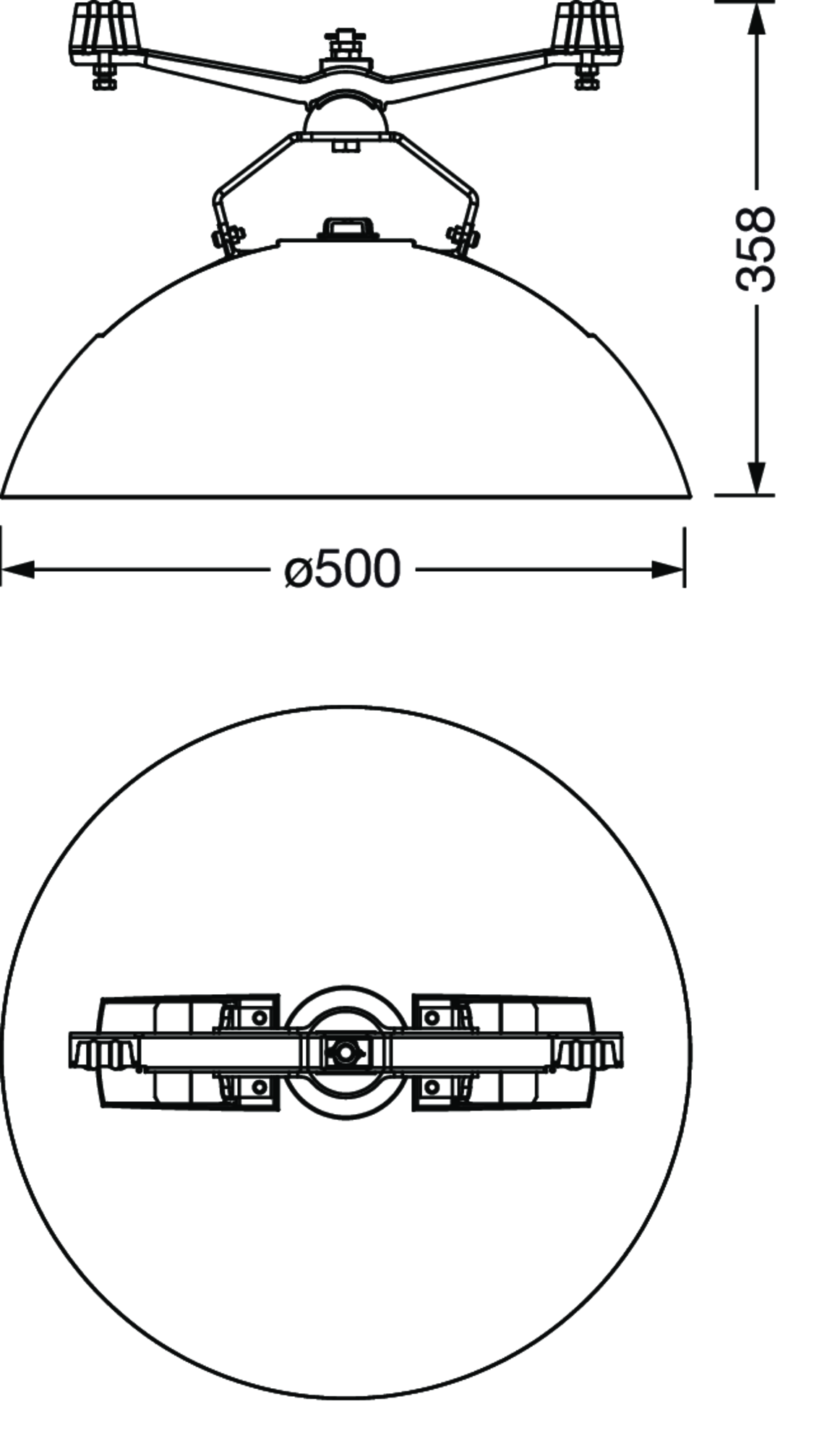

Dimensions, Weight

Diameter 500mm
Weight 9.2kg

Light emission

Light emission 0%

Service life

Rated service life 100000h at AT = 25°C

Product type
catenary luminaire

Product name
DL 500 iQ

Order No.
5XJ3EQ3CC108

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100004

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
5440lm | 36W | 151.1lm/W (begin service life);
end service life: 5440lm | 37.7W;
at 50% lumin. flux: 2720lm | 16.7W | 162.9lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 5440lm | 36W | 151.1lm/W | 3000K

end service life

LS 1: 37.7W


further light settings possible

Control
iQ-Street Remote, D4i with power reduction

Smart Interface above
Zhaga

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK09

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Cover
cover of toughened safety glass

Mounting method, mounting location
suspended mounting, to wire

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
500mm

Weight
9.2kg

Light emission
0%

Rated service life
100000h at AT = 25°C

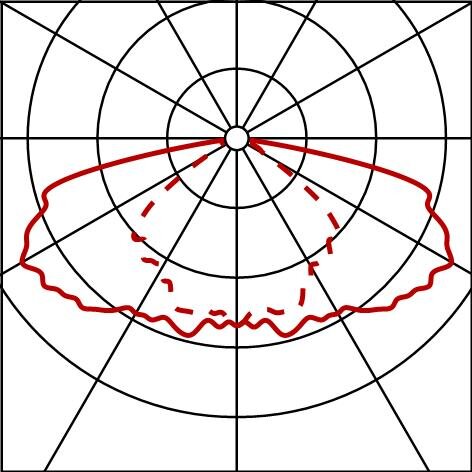

Photometric report / planning data

DL500iQ
cat,S100004,5440lm730,SR,D4i,LST
Lamps: LED 3000K / CRI >= 70
Order No.: 5XJ3EQ3CC108

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
