Streetlight SL 21 micro, direct asymmetric wide distribution, A520002
Article mast luminaire
Product name Streetlight SL 21 micro
Lamp LED
Rated luminous flux 5230lm
Luminous efficacy 133.8lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom 39.1W
Pnom end service life 40.8W
Pred at 50% lumin. flux 17.5W
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.0kg
Streetlight SL 21 micro, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: A520002, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 5.230lm | 39,1W | 133,8lm/W (begin service life); end service life: 5.230lm | 40,8W; at 50% lumin. flux: 2.593lm | 17,5W | 148,2lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 (further light settings possible): 100% | 5.230lm | 39,1W | 133,8lm/W | 4.000K (begin service life); end service life: 40,8W, control gear: Easy, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, overheat protection, mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 6,5m, wiring characteristics: H07RN-F, 2X 1,5mm², configuration: L/N, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system, length: 528mm, width: 235mm, height: 110mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
- Installation sheet (PDF)
- Data sheet (PDF)
- Environmental Product Declaration EPD (PDF)
- Photometric report / planning data
Data for applications
Product details

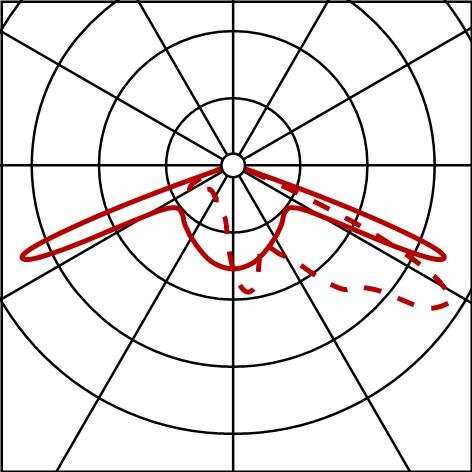

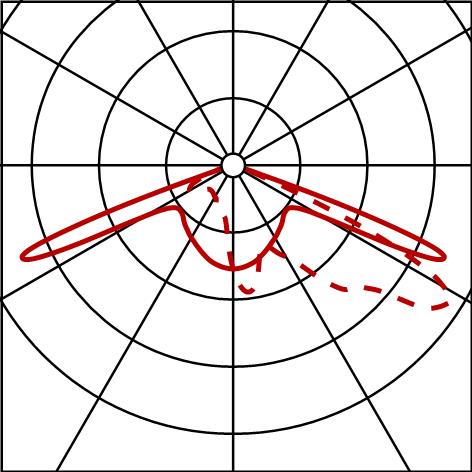

Photometric report / planning data
SL21mc
A520002,5230lm740,Easy
Lamps: LED 4000K / CRI >= 70
Order No.: 5XE5H43A08DB
