Mushroom Luminaire

ReferencesApplication Configuration & data sheets

References

Celle, Germany
Products: SL 21 iQ, Mushroom Luminaire
learn more

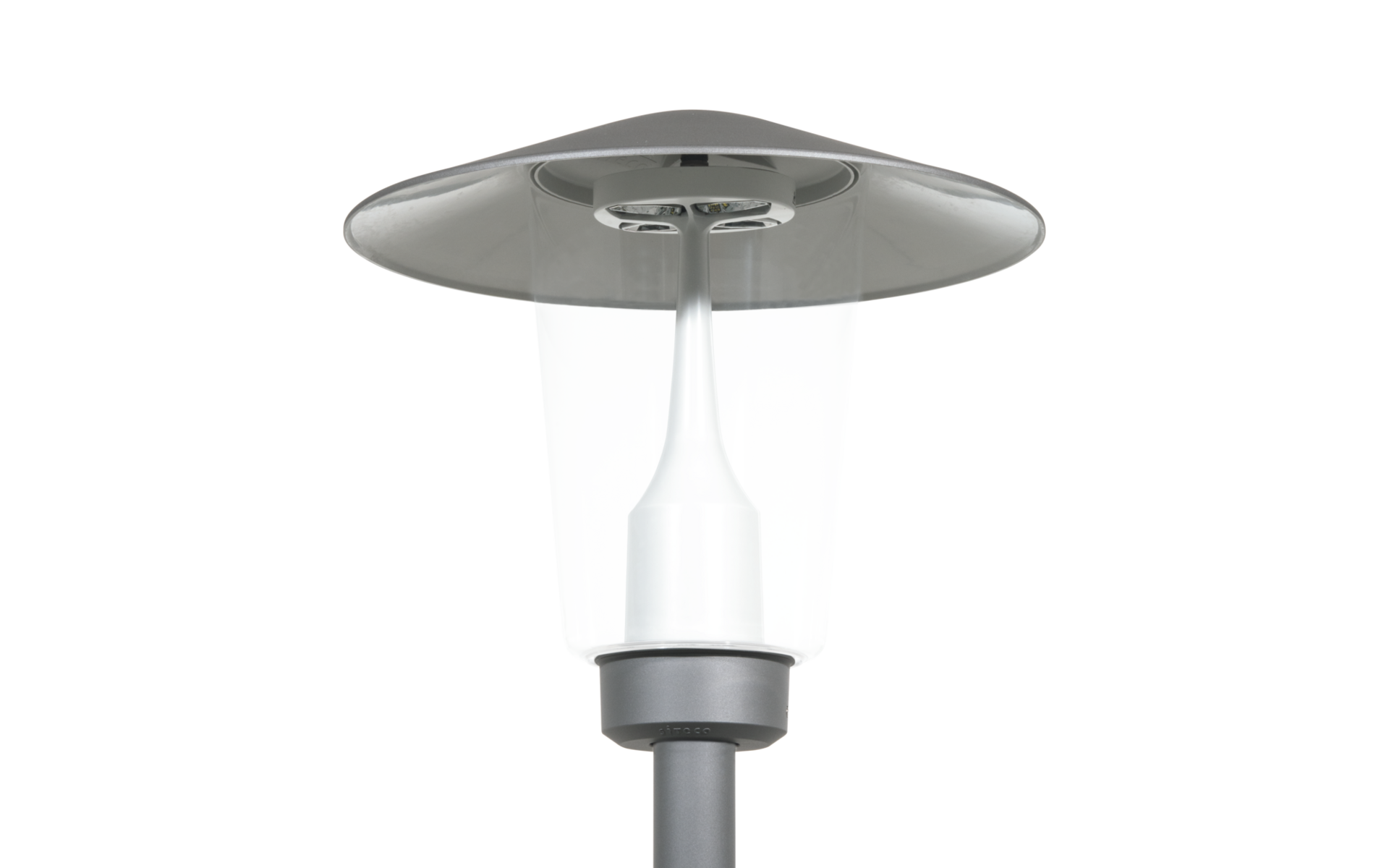

Mushroom Luminaire with Module 540 iQ (pre-assembled, incl. connection cable)

Key data

Article mast luminaire
Luminous flux 1530lm to 3000lm
Colour temperature 3000K
Lighting effect direct asymmetric wide distribution; direct asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution C120005; P100007; S120002
Control iQ Street-Remote; iQ-Street Remote, D4i
Smart Interface above Zhaga
Smart Interface below Zhaga
Protection rating IP65
Insulation class insulation class II (safety insulation)

Links

To the product page

Configuration & data sheets

Lighting effect

Light distribution

Light distribution

Control

Smart Interface above

Smart Interface below

  • further light colours and connection cable variants on request
  • please order mast reducer separately if required
  • luminaire incl. pre-installed connection cable, l = 5.0m
  • Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
  • SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
  • Smart Interface luminaires currently without iQ functionality

Results

Mushroom Luminaire iQ, direct asymmetric extremely wide distribution, P100007, transparent, standard

Order No.: 5XA5235FF14H000022 GTIN (EAN): 4058352635131
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701530lmP100007iQ Street-Remote 10.5W10.8W5.4W9.0
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard

Order No.: 5XA5235EF14H000022 GTIN (EAN): 4058352635117
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmS120002iQ Street-Remote 10.5W10.8W5.4W9.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct symmetric wide distribution, C120005, transparent, standard

Order No.: 5XA5235JF14H000022 GTIN (EAN): 4058352635810
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703000lmC120005iQ Street-Remote 19.3W20.6W9.6W9.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↓

Order No.: 5XA5235EU14H000022 GTIN (EAN): 4058352023846
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmS120002iQ-Street Remote, D4iZ↓10.7W11.1W5.6W7.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↑

Order No.: 5XA5235EV14H000022 GTIN (EAN): 4058352023860
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmS120002iQ-Street Remote, D4iZ↑10.7W11.1W5.6W7.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↑ Z↓

Order No.: 5XA5235EY14H000022 GTIN (EAN): 4058352987582
Colour temperatureColour renderingLuminous fluxLight distributionControlSmart InterfacePnomPnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmS120002iQ-Street Remote, D4iZ↑ Z↓10.7W11.1W5.6W8.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, direct asymmetric extremely wide distribution, P100007, transparent, standard

Order No.: 5XA5235FF14H000022GTIN (EAN): 4058352635131

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1530lm
Light distributionP100007
ControliQ Street-Remote
Smart Interface
Pnom10.5W
Pnom end service life10.8W
Pred at 50% lumin. flux5.4W
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard

Order No.: 5XA5235EF14H000022GTIN (EAN): 4058352635117

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionS120002
ControliQ Street-Remote
Smart Interface
Pnom10.5W
Pnom end service life10.8W
Pred at 50% lumin. flux5.4W
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, direct symmetric wide distribution, C120005, transparent, standard

Order No.: 5XA5235JF14H000022GTIN (EAN): 4058352635810

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3000lm
Light distributionC120005
ControliQ Street-Remote
Smart Interface
Pnom19.3W
Pnom end service life20.6W
Pred at 50% lumin. flux9.6W
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↓

Order No.: 5XA5235EU14H000022GTIN (EAN): 4058352023846

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionS120002
ControliQ-Street Remote, D4i
Smart InterfaceZ↓
Pnom10.7W
Pnom end service life11.1W
Pred at 50% lumin. flux5.6W
Wt. (kg)7.0
Show all details

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↑

Order No.: 5XA5235EV14H000022GTIN (EAN): 4058352023860

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionS120002
ControliQ-Street Remote, D4i
Smart InterfaceZ↑
Pnom10.7W
Pnom end service life11.1W
Pred at 50% lumin. flux5.6W
Wt. (kg)7.0
Show all details

Mushroom Luminaire iQ, direct asymmetric wide distribution, S120002, transparent, standard, Z↑ Z↓

Order No.: 5XA5235EY14H000022GTIN (EAN): 4058352987582

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionS120002
ControliQ-Street Remote, D4i
Smart InterfaceZ↑ Z↓
Pnom10.7W
Pnom end service life11.1W
Pred at 50% lumin. flux5.6W
Wt. (kg)8.8
Show all details

Optional accessories

Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSGTIN (EAN): 4050737730073Show all details
Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSAGTIN (EAN): 4058352161326Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBSGTIN (EAN): 4050737971445Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBLGTIN (EAN): 4050737971421Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.5Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573Show all details
Articledecorative ring, silverPU1 pc.Wt. (kg)0.2Order No.: 5XA54001XSGTIN (EAN): 4050737754895Show all details
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5LA52201XRGTIN (EAN): 4039806232175Show all details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show all details
Articlecover, PMMA, opal, ø= 320mmPU1 pc.Wt. (kg)1.4Order No.: 5LA53200XGGTIN (EAN): 4039806179272Show all details
Articlecover, PE-HD, opal, ø= 320mmPU1 pc.Wt. (kg)1.1Order No.: 5LA53210XGGTIN (EAN): 4039806188755Show all details
Articlecover, PMMA, transparent, ø= 320mmPU1 pc.Wt. (kg)1.4Order No.: 5LA53220XGGTIN (EAN): 4039806179296Show all details
Articlecover, PMMA, frosted, ø= 320mmPU1 pc.Wt. (kg)1.5Order No.: 5LA53230XGGTIN (EAN): 4039806202772Show all details
